Garmin ECHOMAP UHD2 7" sv Chartplotter (Model 010-02684-00) – Multi-Sonar Fishing Chartplotter with Navionics+ Mapping

Introduction

The Garmin ECHOMAP UHD2 7" sv is a dedicated fishing chartplotter that delivers real-time sonar imaging and detailed inland navigation data without sacrificing screen clarity or processing speed. Built for anglers who demand precision target identification in shallow and deep water, this unit combines three sonar technologies—CHIRP traditional sonar, ClearVü scanning sonar, and SideVü sonar—into one integrated platform. The device ships with Garmin Navionics+ U.S. Inland Mapping preloaded, giving you a complete fishing solution for lakes, rivers, and coastal rivers across North America immediately out of the box.

Key Features

• 7-inch high-resolution touchscreen with keyed-assist navigation and sunlight-readable technology for visibility in bright conditions

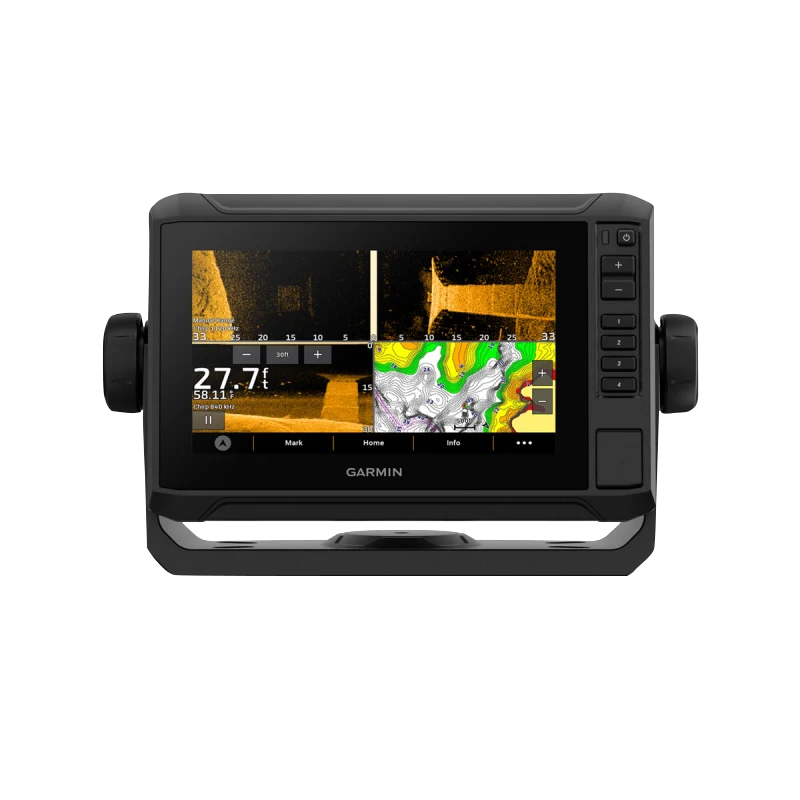

• Support for three sonar types: CHIRP traditional sonar, ClearVü scanning sonar, and SideVü sonar for comprehensive underwater imaging
• LiveScope™ real-time scanning sonar compatibility for live-view underwater observation

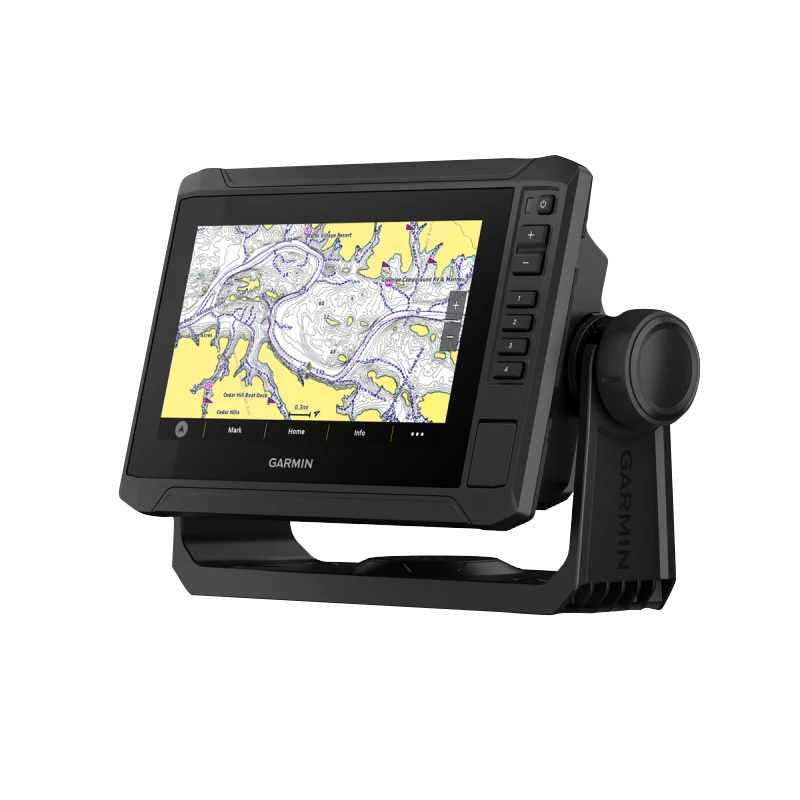

• Garmin Navionics+ U.S. Inland Mapping with automatic 1-year free map updates and depth range shading
• Auto Guidance+™ route creation technology with precision turn-by-turn navigation on inland waterways
• Wireless Wi-Fi networking to share sonar data, waypoints, and routes with other ECHOMAP UHD2 units
• Multi-band GPS positioning with trolling motor compatibility for precise boat and trolling control
• ActiveCaptain app integration for community fishing insights and real-time waypoint synchronization

Data Insights

The ECHOMAP UHD2 delivers up to 77% better target separation in shallow water environments compared to previous-generation sonar systems, enabling clearer distinction between fish, vegetation, and bottom structure. This enhanced clarity is critical for fishing in congested areas where competitors with standard sonar struggle to differentiate targets. When paired with LiveScope™ sonar capability, the unit provides live-streaming underwater views, a capability previously available only on premium standalone live-sonar units.

Usage Instructions

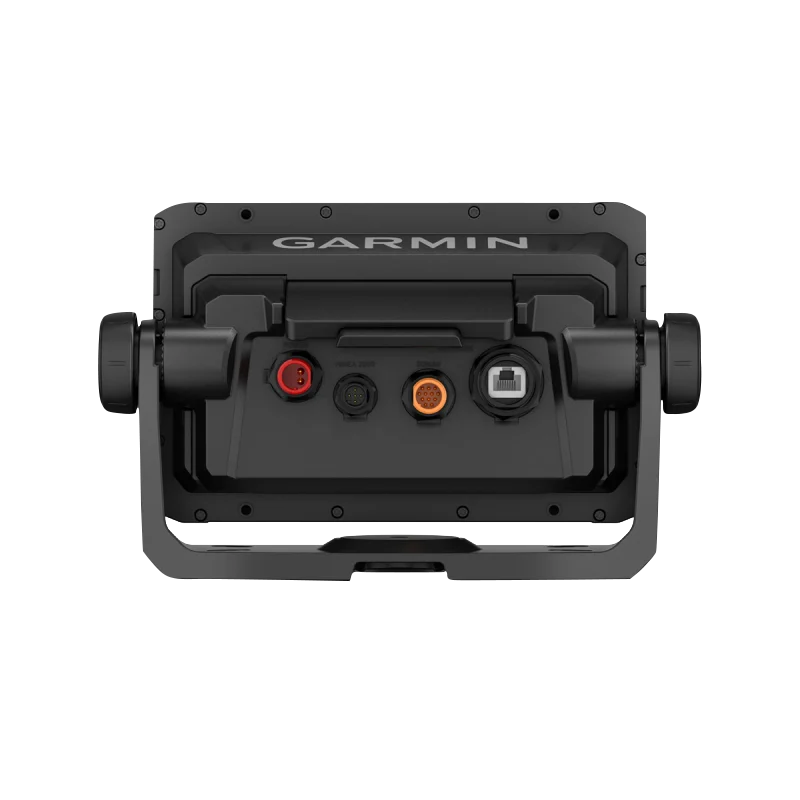

Mount the ECHOMAP UHD2 securely to your boat's dash or console using the included bracket system. Connect your compatible sonar transducer to the dedicated sonar port (note: this unit does not include a transducer—select a CHIRP, ClearVü, or SideVü transducer separately based on your fishing needs). Power on the device, access mapping and sonar functions via the touchscreen interface, and connect to Wi-Fi to sync with the ActiveCaptain app and download map updates. For optimal performance, update your Navionics+ mapping annually when new data becomes available.

Design & Material

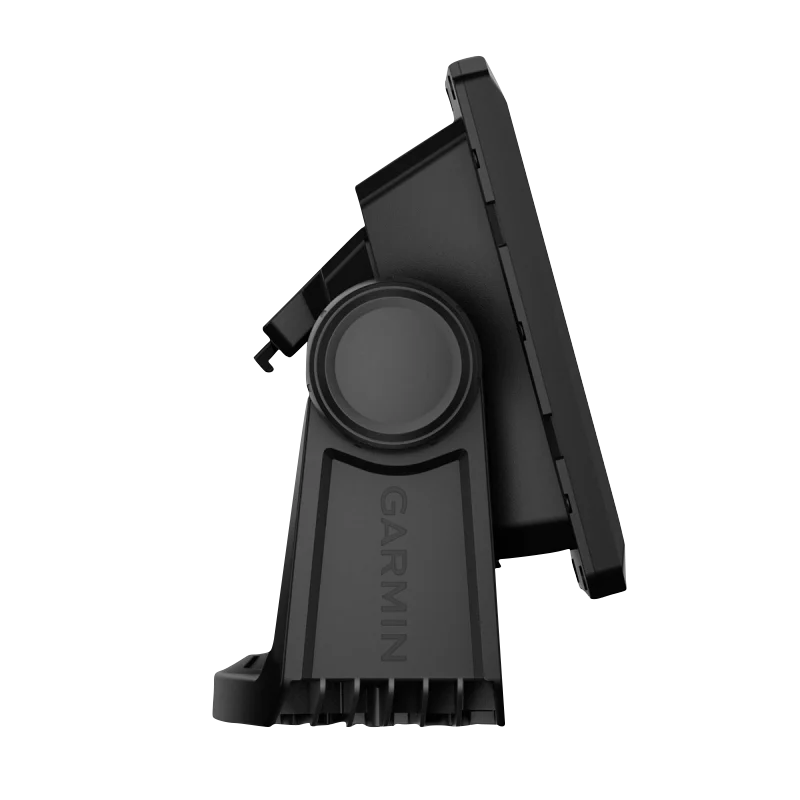

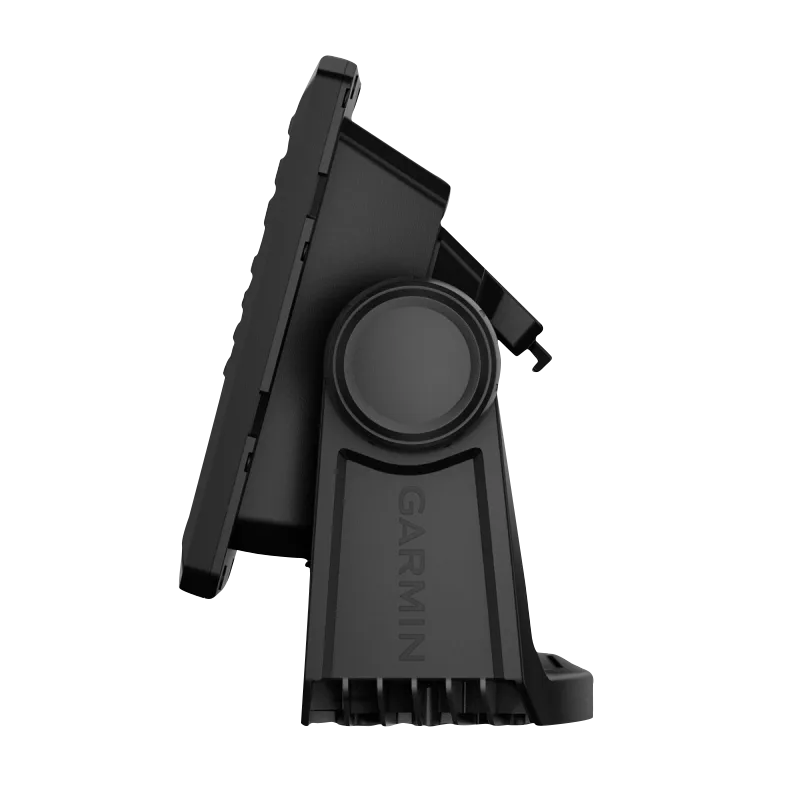

The ECHOMAP UHD2 combines a compact, sleek chassis with marine-grade engineering designed to function reliably in high-salt, high-humidity environments. The wraparound bezel protects the display from impact, while the device footprint is optimized to fit standard helm spaces on recreational and professional fishing boats without requiring extensive rewiring.

• High-strength polymer housing engineered to resist UV damage, corrosion, and temperature cycling
• Sunlight-readable 7-inch display with anti-glare coating and high contrast color palettes for target visibility
• Water-resistant construction rated for splash and spray exposure during normal boating operations
• Ergonomic side-mounted buttons for quick access to sonar gain, zoom, and menu functions without removing hands from helm control
• Lightweight design that minimizes load on boat power systems and console mounting hardware
• Composite materials and sealed connectors that withstand repeated washdown and extended saltwater exposure

Final Verdict

The Garmin ECHOMAP UHD2 7" sv is a purpose-built tool for anglers who fish inland waters and coastal rivers where detailed mapping and live sonar fusion matter most. Unlike generic marine GPS units, this chartplotter is engineered specifically for fishing—its multi-sonar architecture and Navionics+ integration eliminate guesswork when locating structure and predicting fish movement. Invest in the ECHOMAP UHD2 today to gain the underwater visibility and navigation precision that separates consistent catches from wasted time on the water.
