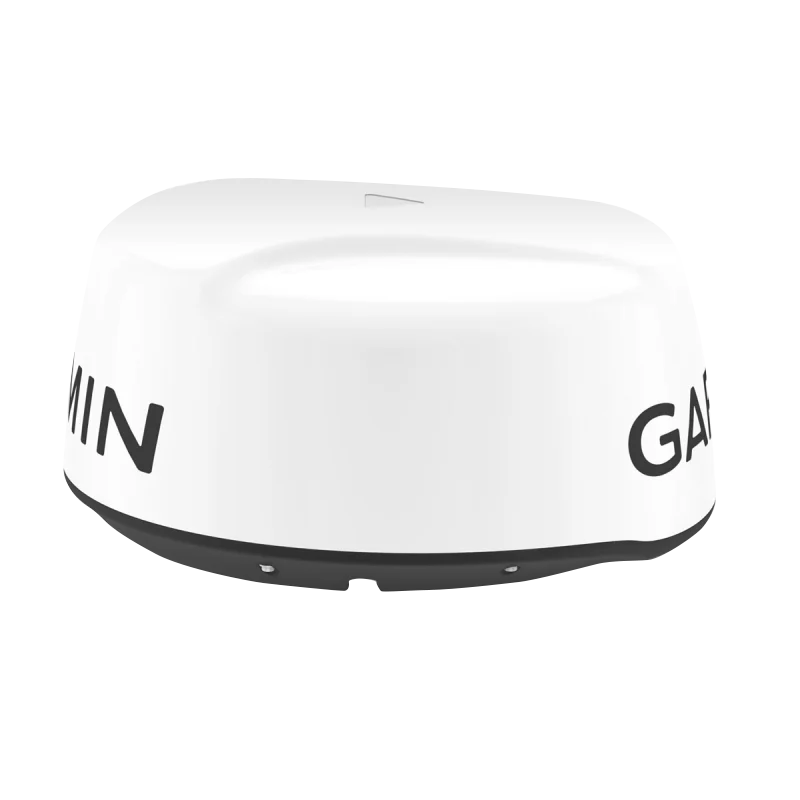

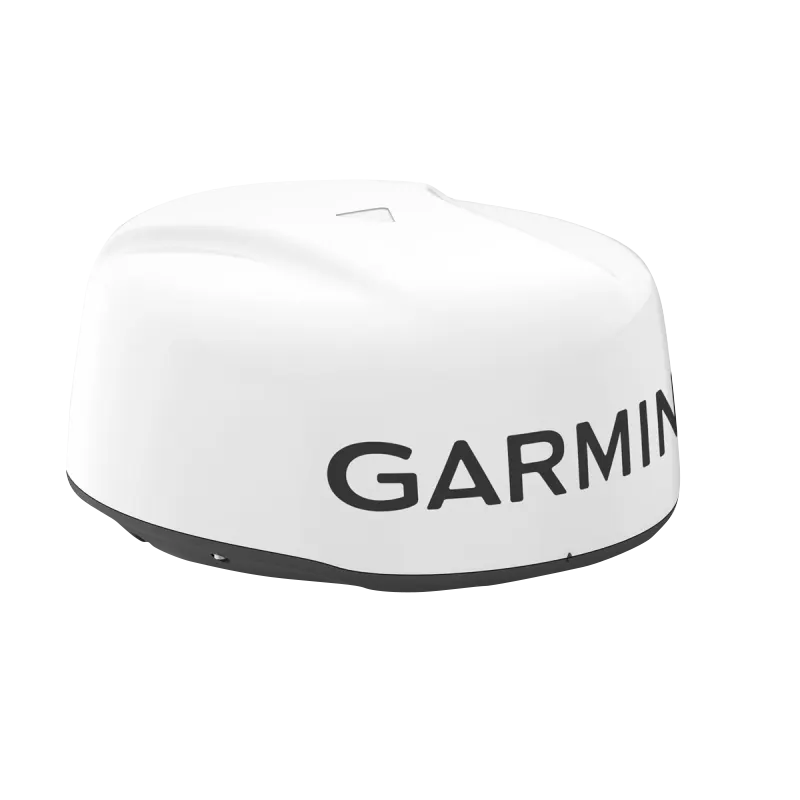

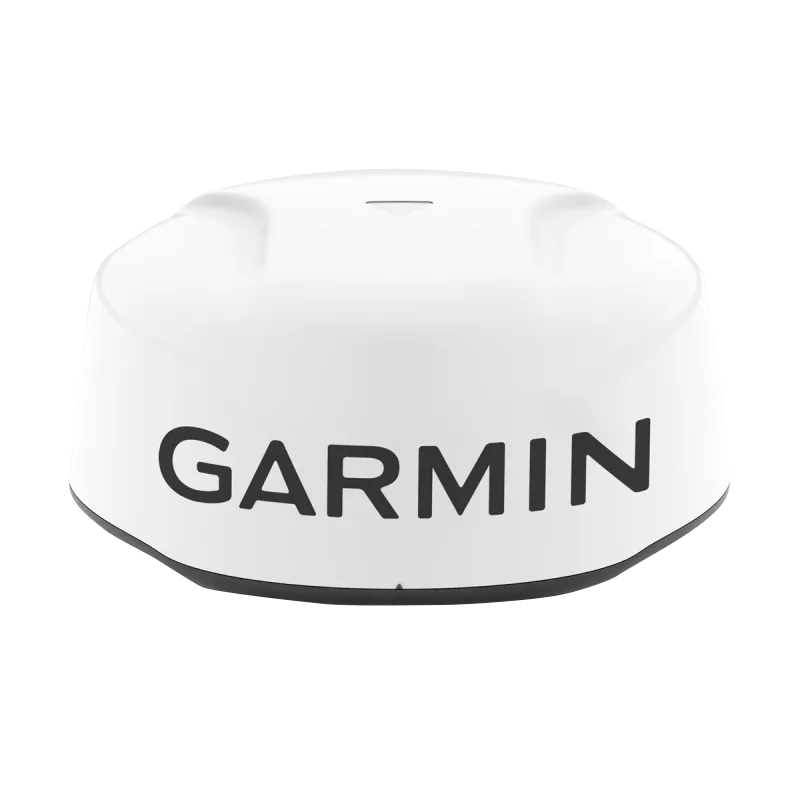

Garmin GMR 18 HD3 Marine Dome Radar — 4kW Compact Radar System

Introduction

The Garmin GMR 18 HD3 (model 010-02843-00) is an 18-inch dome radar engineered to provide real-time situational awareness for vessels operating in open water. At 4kW power output, this magnetron radar delivers clear target detection out to 36 nautical miles, enabling you to identify vessels, storm systems, and coastlines regardless of daylight, fog, or precipitation. The 8-bit true color display architecture separates true echoes from sea clutter, reducing false alarms and the cognitive load of interpretation during high-stakes navigation decisions.

Key Features

• 4kW magnetron power output with maximum detection range of 36 nautical miles
• 8-bit true color radar display providing superior target separation and reduced screen clutter
• Fixed scanning speed of 24 revolutions per minute with low-noise operation to conserve power
• Dynamic Auto Gain function that automatically optimizes signal strength across all range scales
• Dynamic Sea Filter with three configurable modes (calm, medium, rough seas) to eliminate weather-related radar noise
• MARPA (Mini-Automatic Radar Plotting Aid) target tracking for collision avoidance monitoring of selected vessels
• Dual-radar support architecture enabling redundancy and multi-source data integration across displays
• Compact 18-inch dome form factor designed for vessels with limited mast or hardtop space

Data Insights

The GMR 18 HD3's 36-nautical-mile range places it among the practical limit for compact marine radars without sacrificing portability. The 24 rpm fixed scanning speed balances detection speed against power consumption—each 360-degree sweep completes in 2.5 seconds, enabling near-real-time updates of dynamic environments. The 8-bit color palette processes over 256 distinct signal levels, compared to 16-level systems, permitting finer gradation between rain, sea state, and solid targets. Low-noise scanning technology operating at fixed speed also reduces wear on motor components compared to variable-speed alternatives.

Usage Instructions

Mount the dome securely to your vessel's mast or hardtop structure per Garmin's installation guidelines, ensuring clear 360-degree radar coverage with minimal obstruction from antennas or rigging. Connect the transducer cable to your compatible Garmin chartplotter or multifunction display. Power on the radar and allow 3 to 5 minutes for magnetron warm-up before interpreting returns. Use Dynamic Sea Filter to match your current sea state, adjust gain manually if auto-gain produces excessive clutter, and enable MARPA on any vessels requiring collision avoidance tracking. Periodically verify antenna rotation and perform software updates through your display unit to maintain accuracy and gain access to performance improvements.

Design and Material

The GMR 18 HD3 combines a streamlined fiberglass dome with a sealed aluminum mounting bracket, creating a weatherproof system that operates continuously in open ocean environments. The radome design minimizes wind loading on mast-mounted installations while the low-profile silhouette integrates visually with modern marine electronics. Material selection prioritizes durability in salt spray and UV exposure.

• Fiberglass radome construction rated for salt-spray marine environments without degradation
• Sealed cable connectors and connector ports prevent water ingress during high-pressure washdowns or heavy rain
• Aluminum alloy internal components resist corrosion in humid, salt-laden air
• Rubber vibration dampers isolate magnetron and motor assembly from mast movement
• Weather-resistant gaskets maintain integrity across temperature ranges from freezing to 140°F
• Compact 18-inch dome diameter reduces mounting footprint compared to 24-inch systems, requiring minimal structural reinforcement

Final Verdict

For maritime operators navigating without reliable visibility or needing redundant collision-detection capability, the Garmin GMR 18 HD3 delivers professional-grade target definition in a mast-friendly package. Its 36-nautical-mile range covers practical cruising distances, while dynamic filtering adapts to variable sea conditions without constant recalibration. If you prioritize safety through real-time awareness without surrendering deck space or power budget, this compact dome radar resolves the core tension between capability and practicality. Upgrade your vessel's situational awareness today with proven Garmin marine electronics engineering.
