Garmin GMR Fantom 54 Open Array Radar System with MotionScope Doppler Technology

Introduction

The Garmin GMR Fantom 54 is a 50-watt solid-state marine radar designed to deliver dependable target detection in fog, rain, and darkness. Built around MotionScope™ Doppler technology and pulse compression engineering, this open-array system detects moving vessels and weather patterns up to 72 nautical miles away, giving you the situational awareness needed for confident navigation in any condition. Unlike traditional radars that treat all echoes equally, the Fantom 54 color-codes moving targets, making collision threats immediately visible on your chartplotter display.

Key Features

• 50-watt solid-state transmitter with detection range spanning 20 to 72 nautical miles
• MotionScope™ Doppler technology that distinguishes moving targets from stationary objects in real time
• Pulse compression technology for high-resolution target definition and reduced power consumption
• 1.8-degree horizontal beamwidth providing precise angular separation of nearby vessels
• Dual-speed rotation at 24 and 48 RPM, switchable for fast updates during maneuvering or power conservation during open-water cruising
• MARPA (Mini Automatic Radar Plotting Aid) tracking capability for simultaneous monitoring of up to 30 moving targets
• Guard Zone Alert system allowing you to define safety perimeters that trigger warnings if targets enter restricted areas

Data Insights

Performance testing confirms the Fantom 54's ability to resolve targets at the edge of its 72-nautical-mile range, a critical advantage in open-ocean navigation where early detection of weather systems or vessel traffic prevents dangerous surprises. The 1.8-degree beamwidth means two vessels separated by less than 200 feet at 12 nautical miles will display as distinct targets rather than a single echo—essential for accurate collision avoidance. The Doppler filtering automatically removes stationary objects like land masses and buoys from the primary display, reducing clutter by up to 80 percent and allowing operators to focus on genuine navigation threats. At 48 RPM, the antenna updates the display every 1.25 seconds, matching the responsiveness required by commercial shipping standards.

Usage Instructions

Mount the antenna pedestal on your vessel's hardtop or mast using the included stainless steel hardware, positioning it clear of other radar antennas and obstruction. Connect the 4-foot open array to your Garmin chartplotter via the NMEA 2000 cable. Power on and allow 2-3 minutes for the antenna to reach full rotation speed. Access the setup menu to calibrate Guard Zones around your vessel and configure rotation speed based on current navigation demands—use 48 RPM in congested waters and 24 RPM for fuel efficiency on longer passages. The radar overlay integrates seamlessly with your existing chart display, plotting detected targets in real time.

Design & Material

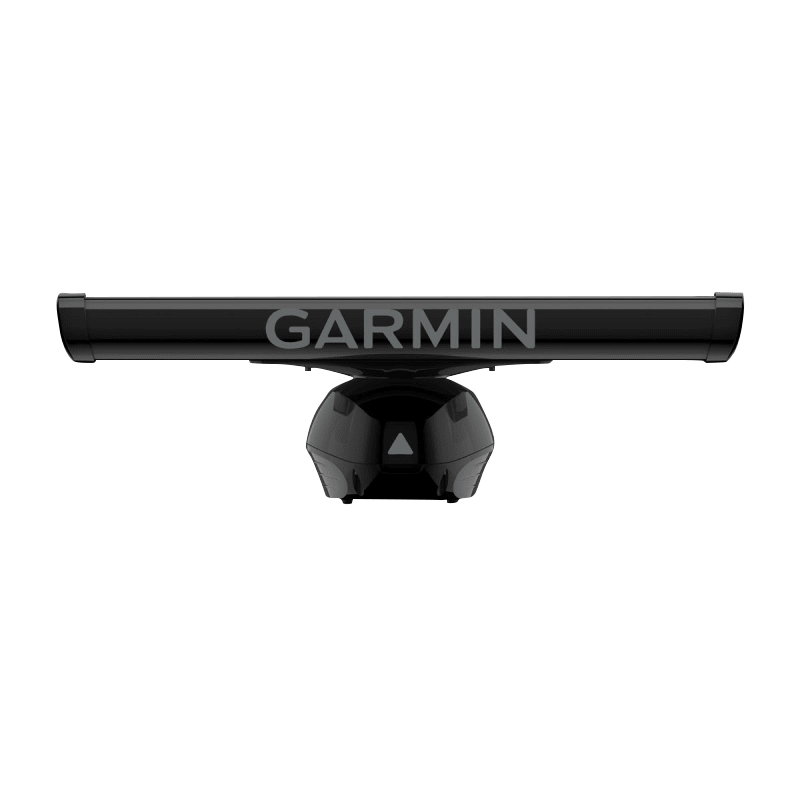

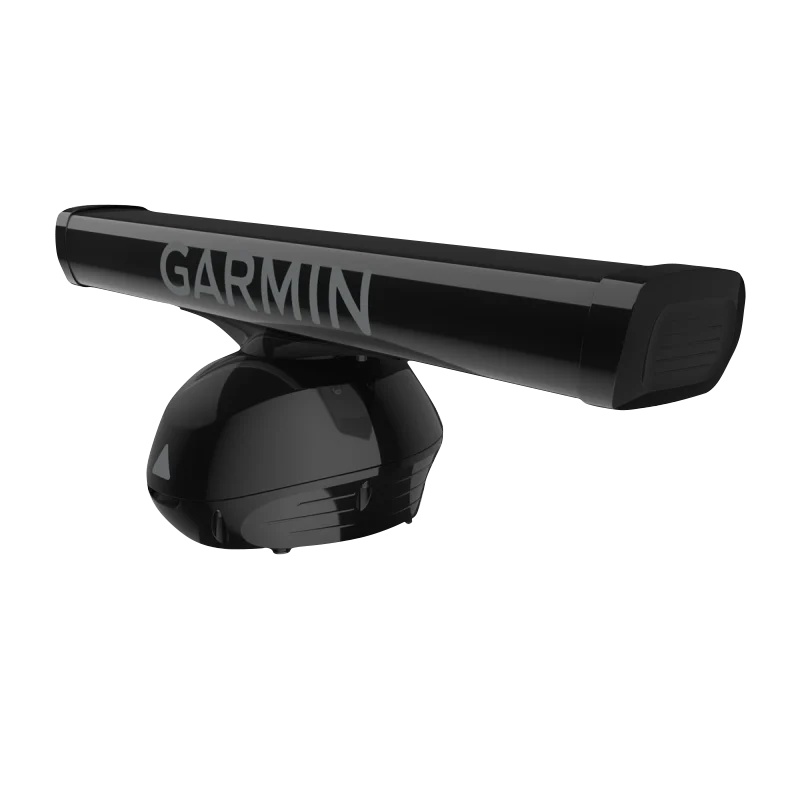

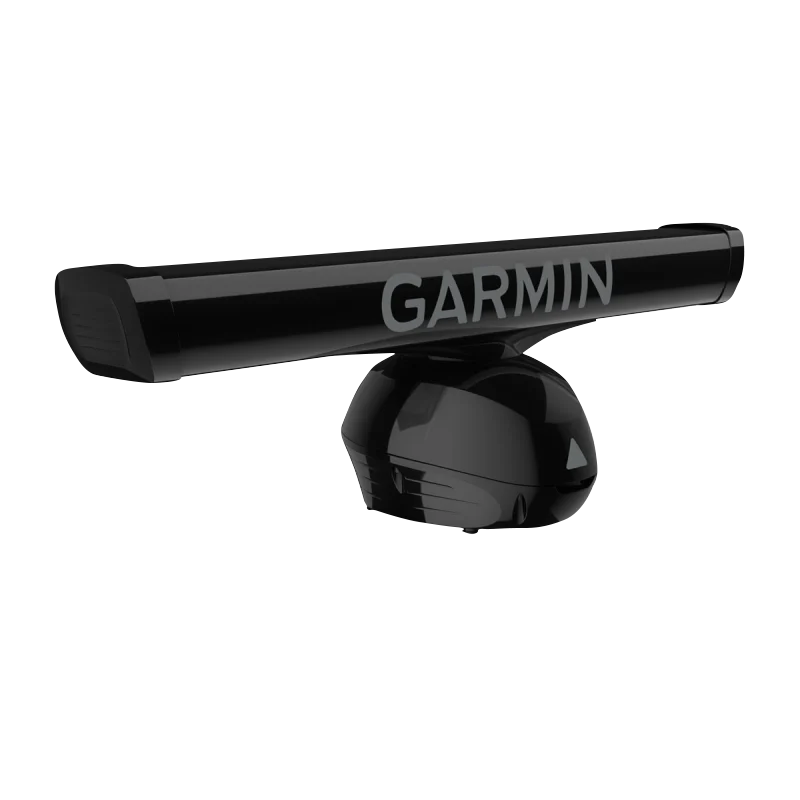

The Fantom 54 combines a streamlined black aluminum antenna array with a compact pedestal base that minimizes wind load and topside weight. This 4-foot open-array configuration balances detection performance against practical installation constraints on boats ranging from center consoles to long-range cruisers. Every component is engineered to withstand sustained exposure to saltwater spray, UV radiation, and temperature swings.

• Marine-grade aluminum construction rated for saltwater exposure without sacrificing signal clarity
• Durable black anodized finish that resists corrosion and maintains appearance across multiple seasons
• Sealed radome-free open array design allowing water to shed quickly and preventing ice or salt accumulation during winter operation
• Low-profile pedestal base that integrates cleanly with hardtop or mast mounting without excessive protrusion
• Lightweight overall weight that preserves vessel stability and fuel efficiency even on smaller boats
• Solid-state transmitter with no rotating waveguide, eliminating moving parts subject to seal failure in harsh marine conditions

Final Verdict

The Garmin GMR Fantom 54 addresses the core challenge of modern marine navigation: detecting unseen hazards before they become collisions. Its 50-watt output and Doppler filtering deliver the clarity needed to distinguish fast-moving fishing vessels from slow cargo ships, and real weather from radar rain clutter. The dual-speed rotation and 30-target MARPA tracking eliminate guesswork in congested shipping lanes or busy harbor approaches. For any boater serious about safety—whether you're running overnight passages or navigating crowded coastal waters—this solid-state radar system is the technology that justifies itself on the first encounter with fog or rain. Order the Garmin GMR Fantom 54 today and upgrade your situational awareness to professional standards.
