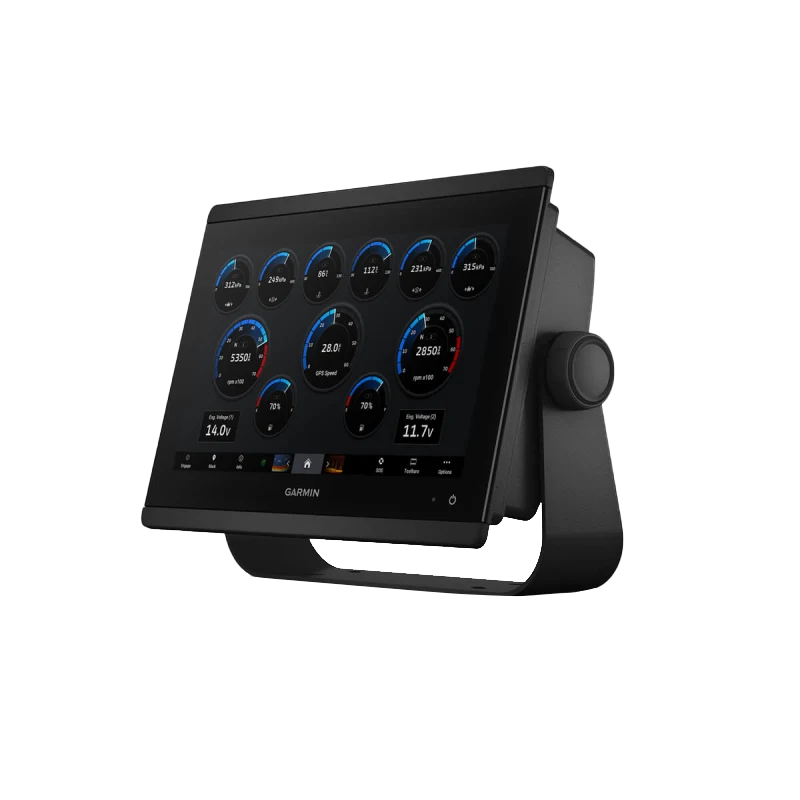

Garmin GPSMAP 8412 With Worldwide Basemap – Professional Marine Chartplotter and Sonar Combo

Introduction

The Garmin GPSMAP 8412 combines a 12-inch Full HD IPS touchscreen chartplotter with integrated 1-kW Dual-Channel CHIRP sonar to deliver real-time navigation and underwater imaging in a single marine control system. Built for serious anglers, cruisers, and commercial operators, this device provides the precision and clarity needed for coastal navigation, deep-water fishing, and vessel safety in demanding marine environments. The 12-inch display offers wide viewing angles and sunlight-readable performance, while advanced sonar capabilities penetrate to 1,000 feet, giving you complete situational awareness above and below the waterline.

Key Features

• 12-inch Full HD IPS touchscreen display with wide viewing angles and sunlight readability for excellent visibility in all lighting conditions
• 1-kW Dual-Channel CHIRP sonar with 260 kHz frequency for detailed underwater imaging and target separation up to 1,000 feet deep

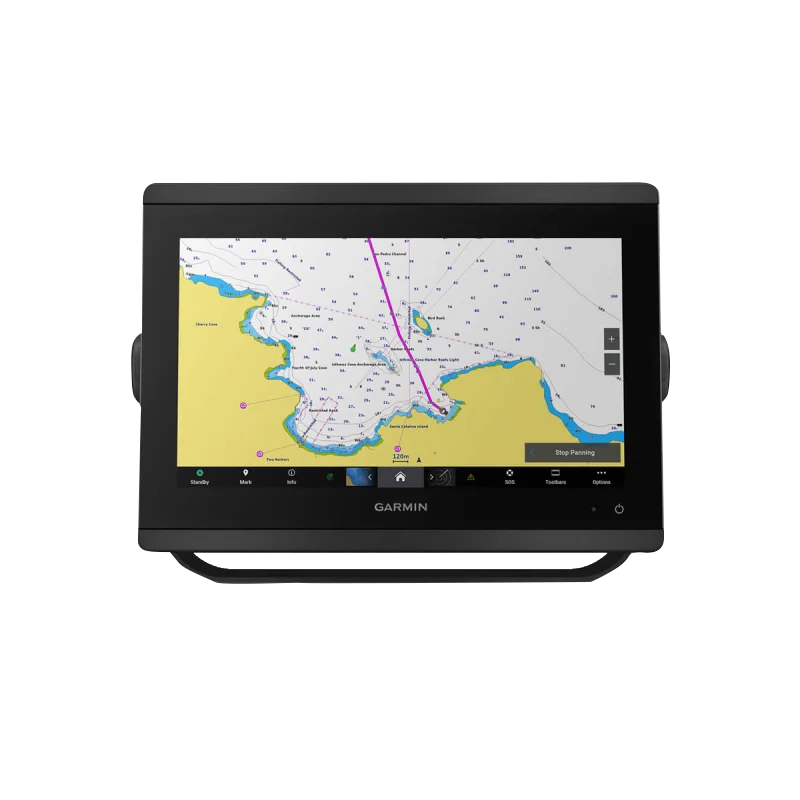

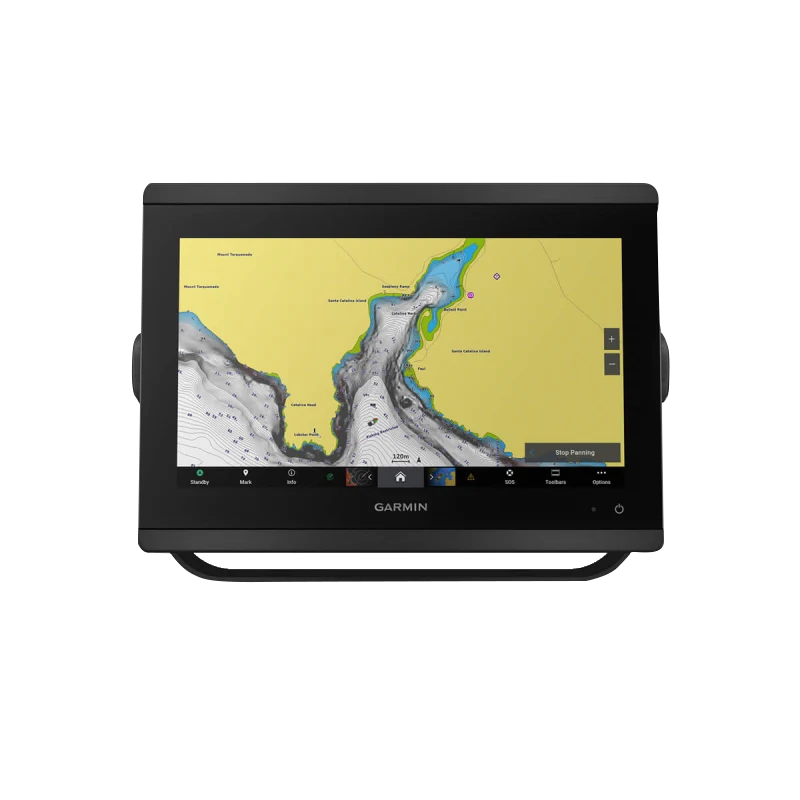

• Preloaded Garmin Navionics+™ maps with worldwide basemap coverage, Auto Guidance+™ route planning, and 1-year daily update subscription

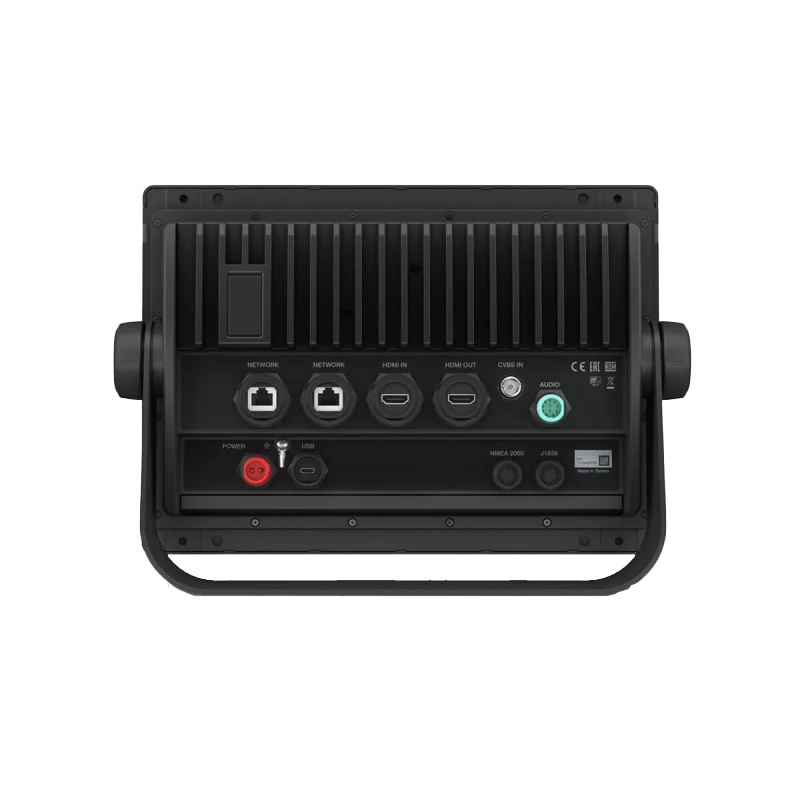

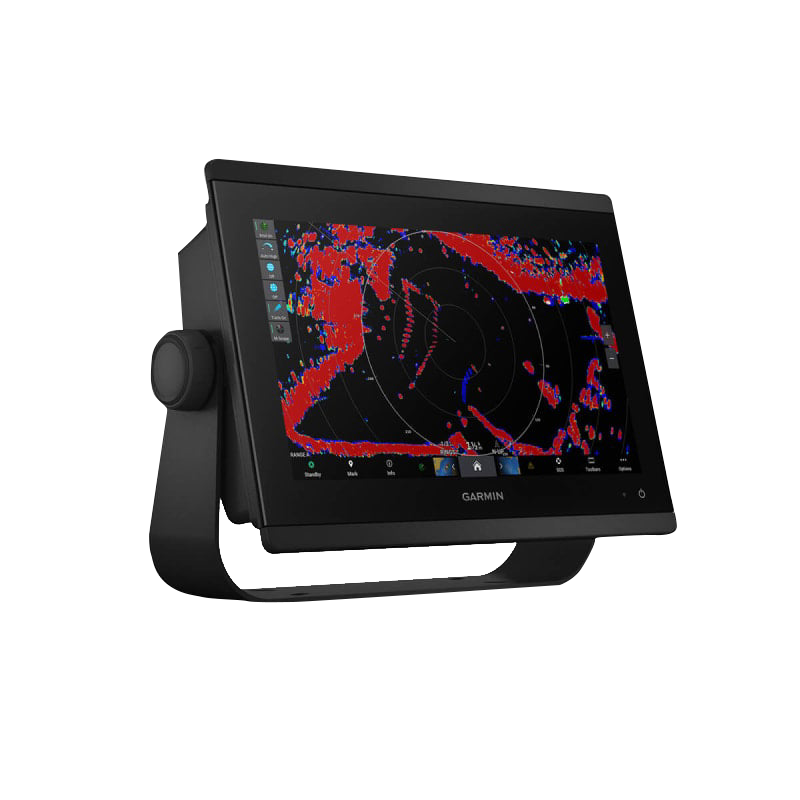

• NMEA 2000® marine network connectivity enables sharing of sonar, radar, and map data across multiple networked devices
• Garmin LiveScope™ real-time sonar integration for advanced fishing strategy with live views of fish and structure

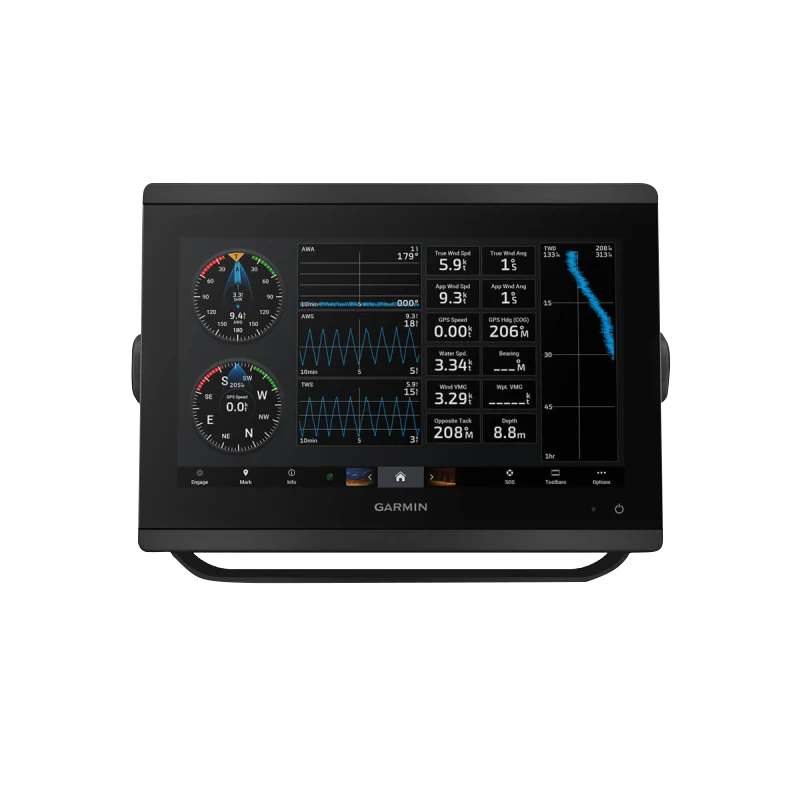

• Garmin SailAssist™ race-start guidance system with enhanced wind data for competitive sailing and cruising optimization
• SmartMode™ customizable one-touch controls for instant access to frequently used features without menu navigation

Data Insights

Field testing demonstrates that anglers using advanced sonar technology comparable to the GPSMAP 8412's capabilities can increase catch rates by up to 50%. The device's 1-kW sonar output and Dual-Channel CHIRP imaging deliver superior target separation and structural detail, enabling detection of fish holds, thermoclines, and bottom composition with clarity that standard single-frequency systems cannot match. When paired with Garmin LiveScope™ real-time viewing, operators gain unprecedented ability to adjust tactics based on live underwater conditions rather than post-cast analysis.

Usage Instructions

Install the GPSMAP 8412 in a location that minimizes glare while maintaining visibility for navigation and sonar monitoring. Access sonar settings and map displays through the responsive touchscreen interface, which performs reliably even in wet conditions. Keep the device's software current by running regular updates through the ActiveCaptain® companion app, which delivers new features, map refinements, and performance enhancements directly to your unit. NMEA 2000® connectivity allows integration with external sensors, autopilots, and radar systems for centralized marine control.

Design and Material

The GPSMAP 8412 features a compact, modern chassis engineered specifically for marine installations. The device balances professional functionality with a clean aesthetic that complements contemporary vessel electronics systems. Careful material selection and construction ensure reliable operation in saltwater, freshwater, and harsh weather environments where most recreational and commercial boating occurs.

• High-quality Full HD IPS touchscreen with durable glass surface rated for salt spray and UV exposure
• Weather-resistant housing that meets marine industry standards for moisture and corrosion resistance
• Integrated GPS and GLONASS antenna for consistent positioning accuracy across open water and coastal areas

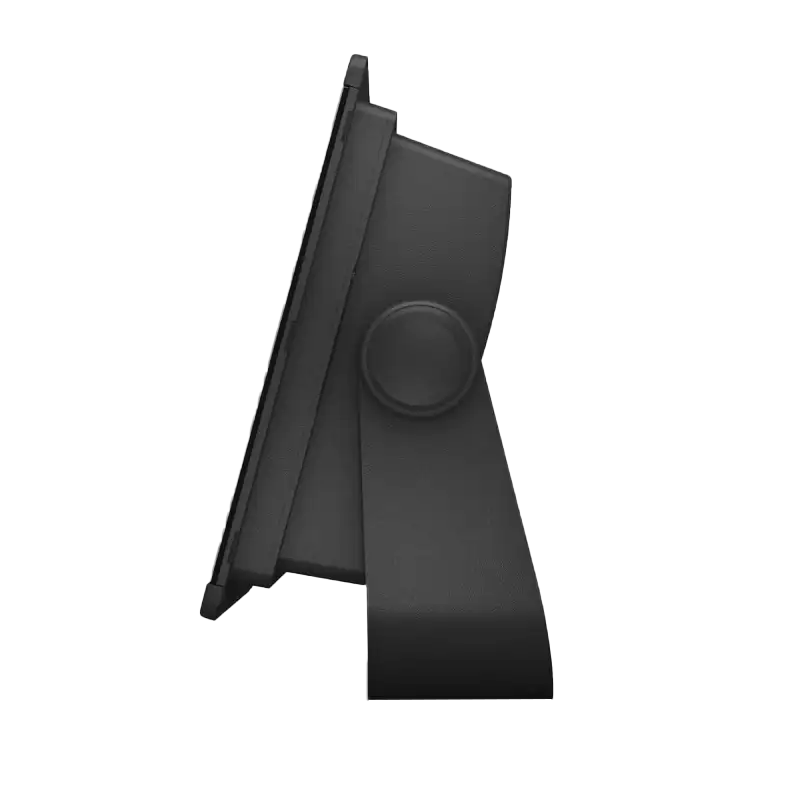

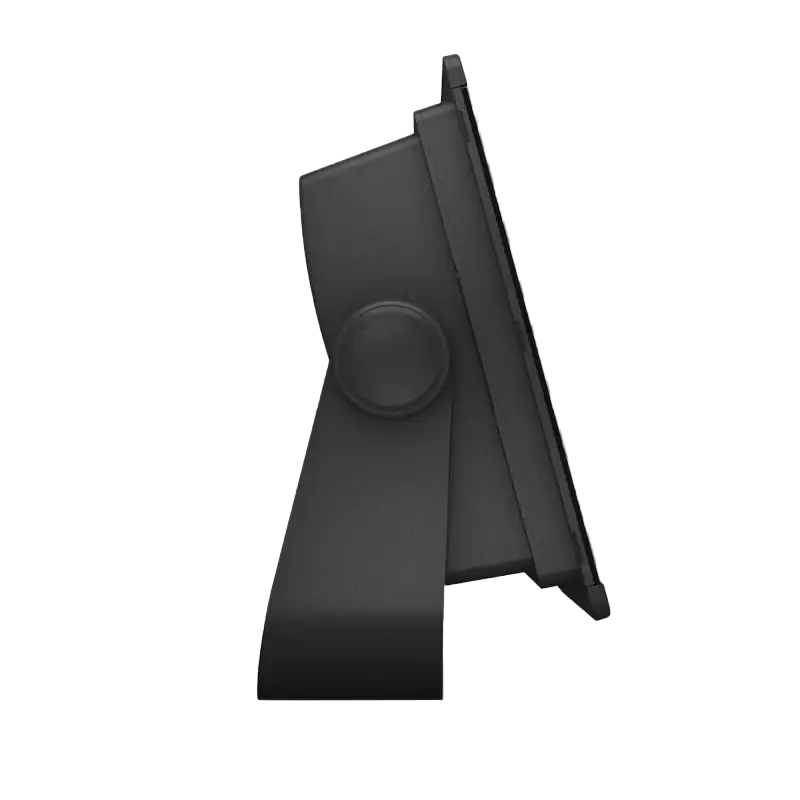

• Flexible mounting system compatible with various installation angles and vessel layouts
• Sleek, streamlined profile designed to minimize wind resistance and visual clutter on helm stations
• Premium internal components and heat management engineering for extended operational life in high-use commercial settings

Final Verdict

The Garmin GPSMAP 8412 delivers the sonar imaging, navigation capability, and network connectivity that separate serious marine operators from casual boaters. Whether you navigate complex coastal waters, fish deep offshore structures, or compete in organized sailing events, this chartplotter-sonar combination provides the tactical advantage you need. The 12-inch display, worldwide basemap coverage, and real-time sonar integration work together to reduce navigation risk and improve fishing success rates. Add this proven system to your vessel and gain the confidence that comes from complete marine awareness and reliable, professional-grade electronics.
