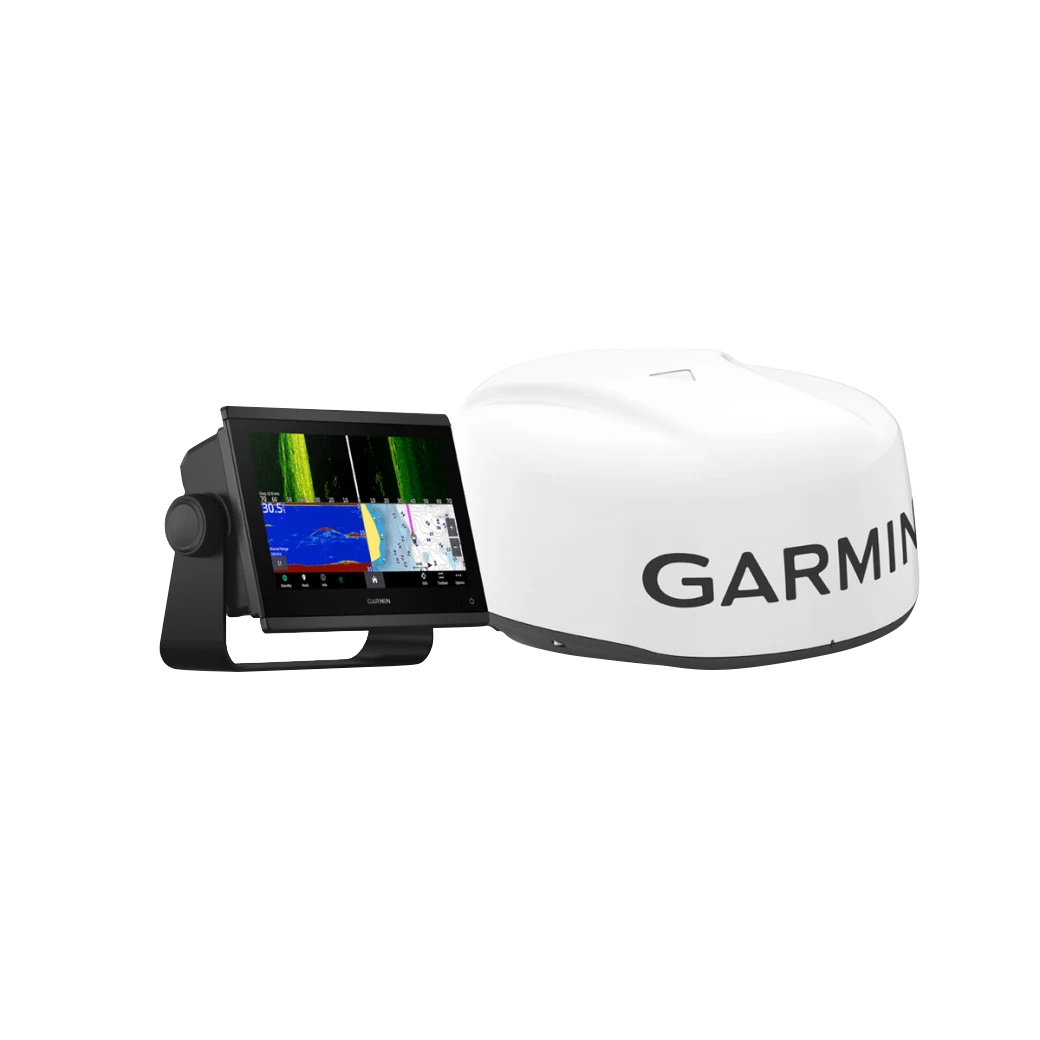

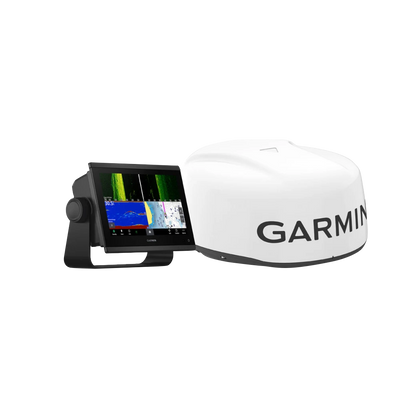

Garmin GPSMAP 943xsv With GMR 18 HD3 Radome Marine Chartplotter and Radar System

Introduction

The Garmin GPSMAP 943xsv combined with the GMR 18 HD3 Radome delivers integrated chartplotting and radar capabilities designed for serious boaters and commercial fishing operations. This 9-inch system processes real-time sonar, radar, and GPS data simultaneously, enabling faster target detection and more confident navigation in variable conditions. The combination handles multiple data streams across a single platform without performance degradation, eliminating the need for separate devices cluttering your helm.

Key Features

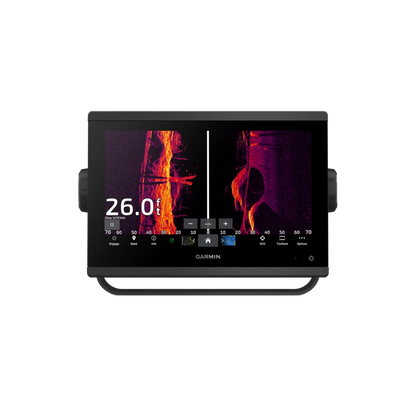

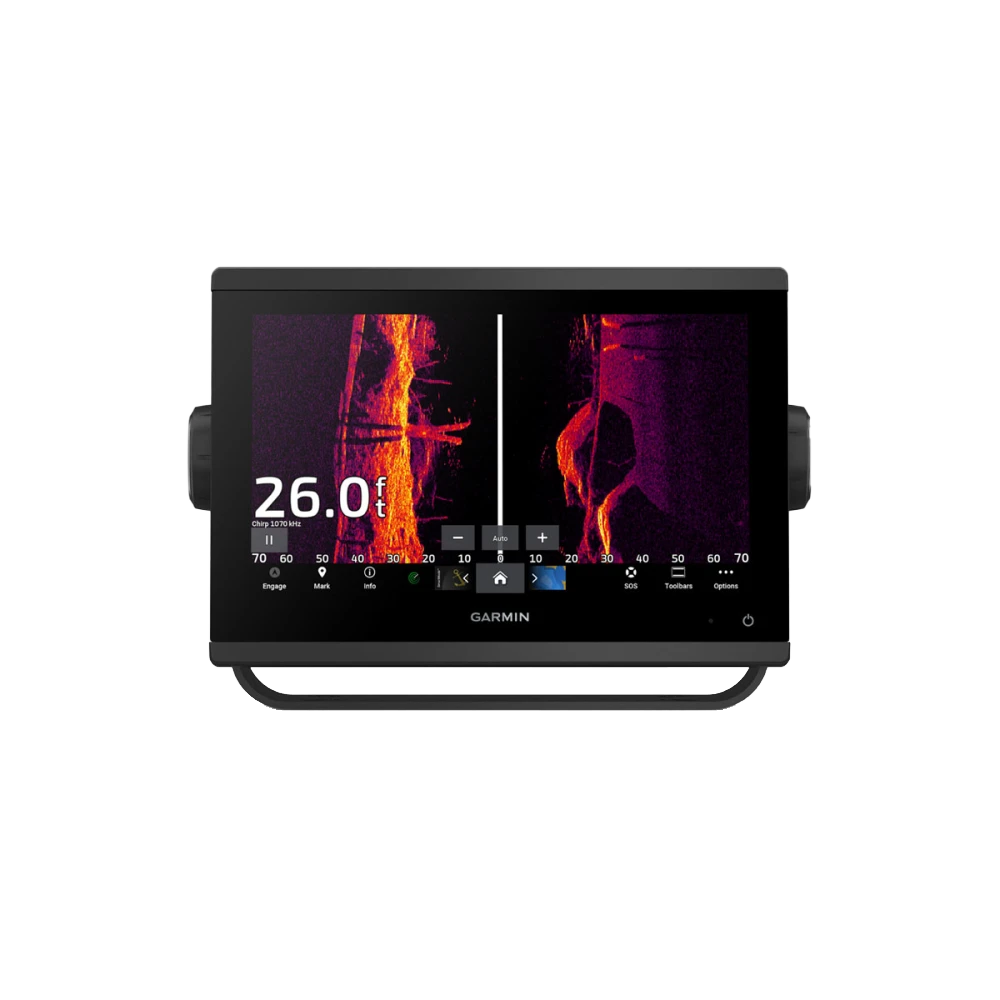

• 9-inch high-resolution IPS display with edge-to-edge glass construction for improved durability and visibility across all lighting conditions
• SideVü™ and ClearVü™ sonar technology delivering ultra-high-definition scanning with 1 kW traditional sonar support
• GMR 18 HD3 Dome Radar with 4 kW transmission power for weather detection and target identification up to 36 nautical miles
• Preloaded Garmin Navionics+™ Charts with regular update capability for worldwide coastal and inland navigation
• 30% improvement in detection and target separation compared to conventional non-sonar systems
• Garmin Marine Network integration enabling shared map and data distribution across multiple compatible devices
• Engine connectivity supporting integration with multiple outboard and inboard engine brands for real-time performance monitoring
• Panoptix™ and LiveScope™ compatibility for real-time down-imaging and forward-looking sonar capabilities

Data Insights

Testing demonstrates that the GPSMAP 943xsv's combined sonar architecture achieves approximately 30% better detection performance and target separation than traditional non-integrated systems. The 4 kW GMR 18 HD3 radar delivers detection range beyond 36 nautical miles in optimal conditions, while the dual-frequency sonar configuration provides both broad coverage and detailed bottom structure mapping. Integration with LiveScope technology enables anglers to observe baitfish behavior and structure responses in real time, reducing productive search time by an estimated 20-40% on unfamiliar water.

Usage Instructions

Connect the GPSMAP 943xsv to your boat's power system and antenna inputs following the included installation guide. Activate each sonar mode independently—SideVü for structure scanning, ClearVü for bottom detail, or traditional sonar for target separation. Use the OneHelm™ feature to connect third-party electronics and share navigational data across your marine network. Update Garmin Navionics+™ charts before each season and after significant geographic relocation. Select sonar modes based on depth, bottom composition, and your primary activity—fishing, cruising, or survey work.

Design and Material

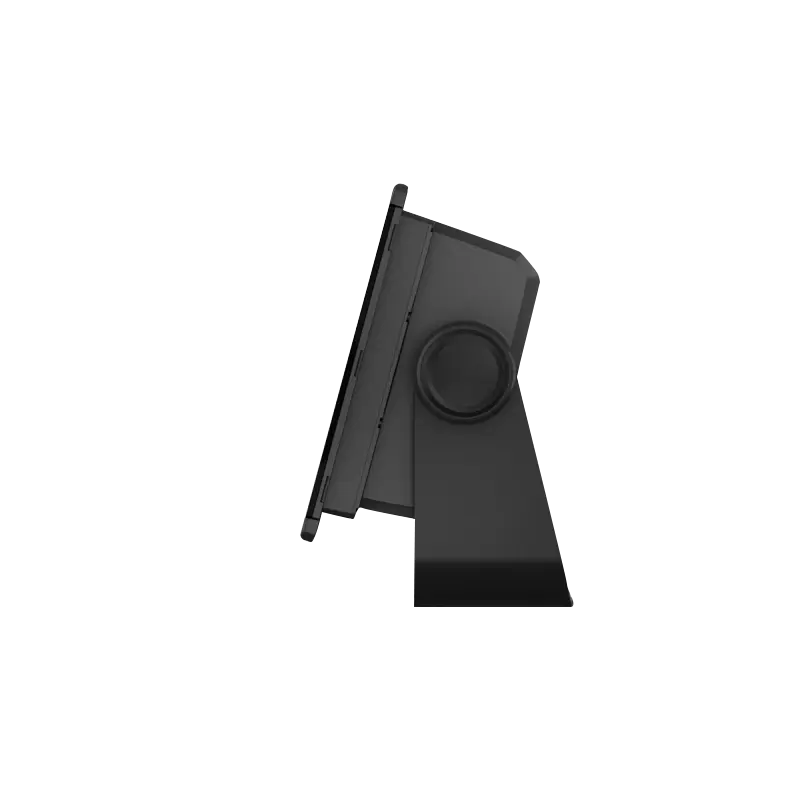

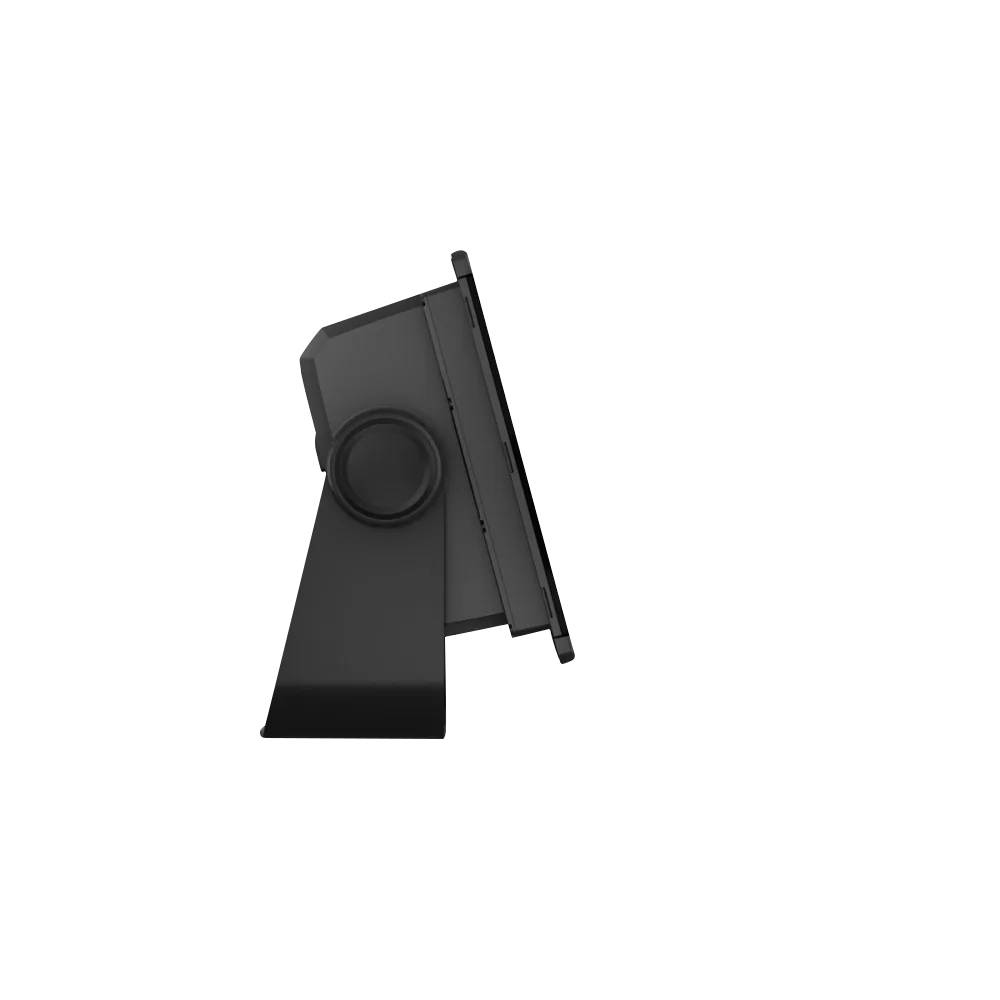

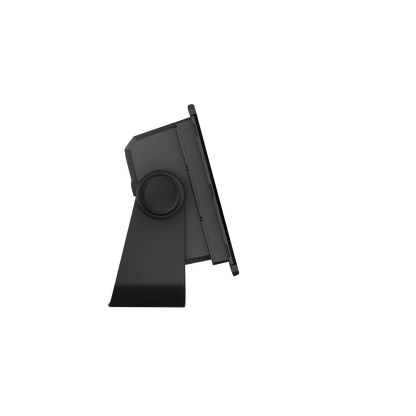

The GPSMAP 943xsv features a slimline profile that fits standard 9-inch marine dash openings without requiring extensive modification. The 010-02366-53 package includes the GMR 18 HD3 radome mounted on a durable bracket suitable for hardtop, tower, or arch installation. The system is engineered for saltwater and freshwater environments using marine-grade materials and sealed connections throughout.

• Marine-grade aluminum and stainless steel construction rated for saltwater corrosion resistance
• GMR 18 HD3 radome with weather-sealed cabling and connectors preventing water ingress
• Edge-to-edge Gorilla Glass display protecting the IPS screen from impact and UV damage
• Slimline mounting bracket compatible with existing transducer and antenna installations
• Precision-engineered touchscreen interface designed for gloved operation in wet conditions
• Tempered display with anti-reflective treatment reducing glare in bright sunlight by up to 40%

Final Verdict

The Garmin GPSMAP 943xsv with GMR 18 HD3 Radome consolidates navigation, sonar, and radar functions into a single 9-inch platform, eliminating dashboard clutter while reducing installation complexity and cost compared to separate systems. The 30% performance improvement in target detection, 4 kW radar range exceeding 36 nautical miles, and real-time sonar integration make this system essential for anglers pursuing offshore species and captains navigating challenging water conditions. Upgrade to this integrated chartplotter solution and gain confidence through real-time data visibility at your helm.
