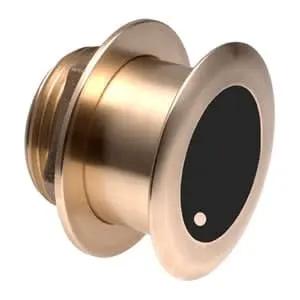

Garmin AIRMAR B175L 0° Tilt Transducer: 1 kW CHIRP Deep-Water Sonar for Flush-Hull Installation

Introduction

The Garmin AIRMAR B175L 0° Tilt Transducer delivers professional-grade 1 kW CHIRP sonar performance in a streamlined, flush-mounted design that requires no external fairing block. Built for anglers and boaters who want powerful deep-water sonar capability without added drag or installation complexity, this bronze thru-hull transducer operates from 40–60 kHz and maintains optimal beam alignment through an internally tilted element that compensates for hull deadrise. The result is dependable fish detection, excellent bottom tracking, and clear sonar returns at depths up to 2,500 feet—all delivered through a housing that protrudes less than one-quarter inch beyond the hull.

Key Features

• 1 kW CHIRP Sonar Output: High-power, chirp-capable transducer producing clear fish and bottom returns with enhanced target identification capability
• 40–60 kHz Operating Frequency: Low-frequency band optimized for deep-water applications, providing excellent penetration and offshore sonar performance
• 2,500-Foot Maximum Depth Rating: Supports professional-grade deep-water fishing and reliable bottom tracking in offshore environments
• Flush-Mounted Bronze Housing: Low-profile design with less than 1/4-inch hull protrusion, minimizing water resistance and drag while offering protection during trailering
• Internal 0° Tilted Element: Integrated tilted transducer element eliminates the need for an external fairing block, simplifying installation and maintaining optimal sonar beam alignment
• 8-Pin Connector Configuration: Standard connection for compatibility with supported Garmin sonar systems and chartplotters
• Dual-Hull Compatibility: Engineered for both fiberglass and wood hulls, suitable for recreational and professional fishing vessels

Data Insights

The B175L combines 1 kW CHIRP power with low-frequency 40–60 kHz operation to deliver exceptional deep-water performance, enabling consistent fish and bottom detection at depths reaching 2,500 feet. The internally tilted element design eliminates installation complications while maintaining precise sonar beam alignment without requiring external fairing blocks—a feature that reduces both setup time and installation cost. The flush-mounted bronze housing, protruding less than one-quarter inch, significantly reduces hull drag compared to traditional fairing block configurations while providing durable, long-lasting protection suitable for trailer-stored vessels.

Usage Instructions

Install the B175L thru-hull transducer in fiberglass or wood hull applications according to Garmin and AIRMAR installation guidelines, positioning it for unobstructed sonar coverage. Connect the 8-pin connector to a compatible Garmin sonar system and configure frequency and power settings based on your fishing environment, target species, and water depth. Periodically inspect the transducer face and surrounding installation area, cleaning as needed to maintain optimal sonar performance and prevent fouling.

Design & Material

The AIRMAR B175L features premium marine-grade bronze construction engineered for durability and corrosion resistance in saltwater and freshwater environments. Its flush-mounted profile integrates seamlessly with hull-mounted installations while the compact housing design minimizes water resistance and provides added protection during launch, retrieval, and trailer storage. The internal tilted element design delivers a clean, professional appearance without the bulk of external fairing blocks.

• Premium 1 kW CHIRP transducer element with enhanced sonar clarity
• Bronze thru-hull housing with marine-grade corrosion resistance
• Less than 1/4-inch hull protrusion for minimal drag and clean appearance
• Internal 0° tilted element requiring no external fairing block installation
• 40–60 kHz frequency band optimized for offshore and deep-water applications
• 8-pin connector with broad Garmin sonar system compatibility
• Trailer-friendly, low-profile design suitable for recreational and commercial vessels
• Durable construction rated for depths exceeding 2,500 feet

Final Verdict

The Garmin AIRMAR B175L 0° Tilt Transducer is the ideal choice for anglers seeking powerful 1 kW CHIRP sonar performance without the complexity of fairing block installation or the aesthetic compromise of external housing. Its internally tilted element, flush-mounted bronze construction, and 2,500-foot depth capability deliver the reliable deep-water performance needed for offshore and coastal fishing while maintaining a clean, streamlined hull installation. Whether upgrading an existing sonar system or installing new electronics on a fiberglass or wood hull, the B175L combines professional-grade sonar technology with simplified installation and exceptional durability. Choose the B175L to maximize your underwater visibility, improve fish detection accuracy, and enjoy confident navigation in depths where serious anglers fish.
