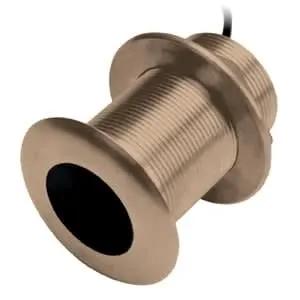

Garmin AIRMAR B619 20° Tilt Thru-Hull Transducer (010-10217-22)

Introduction

The Garmin AIRMAR B619 20° Tilt is a bronze thru-hull transducer engineered for fiberglass and wood-hull vessels that need reliable sonar performance without hull compromise. Unlike portable or transom-mount alternatives, this permanently installed transducer delivers clean sonar data at high speeds thanks to its 500 W power output and dual-frequency operation at 77/200 kHz. It reaches depths up to 900 feet, making it suitable for both coastal and offshore fishing scenarios where stable, uninterrupted sonar coverage matters.

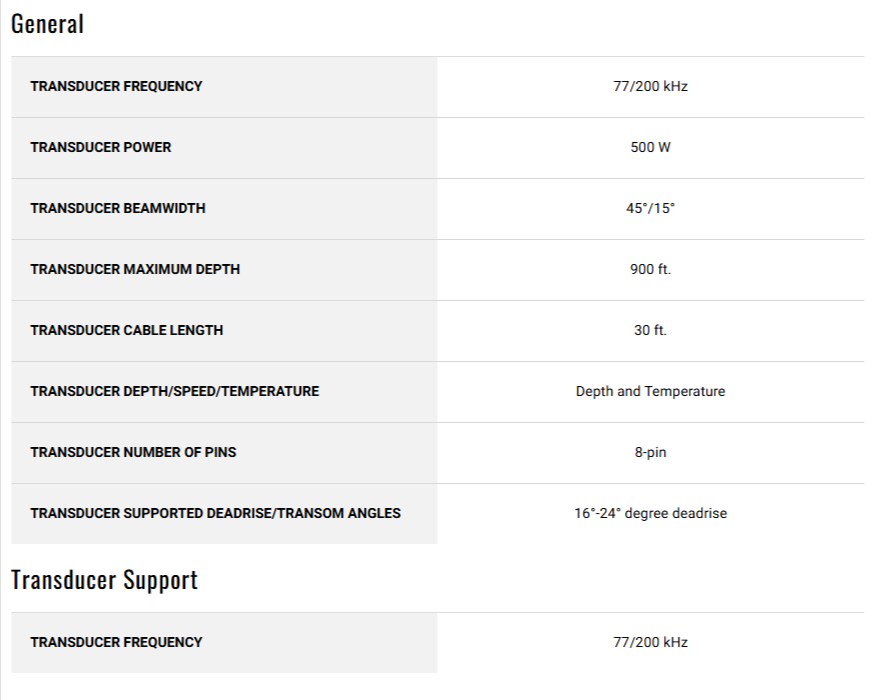

Key Features

• 500 W power rating for strong sonar signal penetration and clarity
• Dual-frequency operation at 77 kHz and 200 kHz for versatile sonar performance
• 900 ft maximum depth capability for deep-water and offshore applications
• 45° beamwidth at 77 kHz and 15° beamwidth at 200 kHz for precise target separation
• 8-pin connector for seamless integration with compatible Garmin marine electronics
• 20° tilt design specifically engineered for boats with 16° to 24° deadrise angles

Data Insights

The dual-frequency architecture provides exceptional adaptability across fishing conditions. The 77 kHz frequency delivers a 45° beamwidth for wide-area bottom tracking and structure identification, while the 200 kHz frequency narrows to a precise 15° cone for high-resolution target detail. At 500 W, this transducer maintains strong signal performance even when traversing weeds, rocks, and suspended sediment—conditions that reduce effective range on lower-powered units. The 900 ft depth rating positions it well above typical recreational fishing limits, though performance will scale based on water clarity, bottom composition, and Garmin chartplotter capabilities.

Usage Instructions

Before installation, verify that your hull is fiberglass or wood and measure the deadrise angle to confirm it falls within the 16° to 24° range; deadrise outside this window may result in poor performance or mounting complications. Follow the included installation instructions precisely during thru-hull drilling and mounting—improper installation can compromise hull integrity and void warranties. Once mounted, connect the 8-pin connector to your compatible Garmin marine electronics unit and configure sonar settings according to your chartplotter's manual. Test at various depths and speeds to verify sonar clarity and transducer alignment.

Design & Material

The transducer features a bronze thru-hull housing designed for permanent saltwater and freshwater immersion with minimal corrosion concerns. The 20° tilt angle is fixed at installation and cannot be adjusted, so hull angle measurement before mounting is critical. The compact footprint and streamlined design reduce drag and turbulence during high-speed operation—a key advantage over large transom-mount transducers that can generate aerator interference.

• Bronze thru-hull construction for corrosion resistance and durability in marine environments
• Precision-engineered 20° tilt angle matched to common mid-range deadrise hulls
• 8-pin military-spec connector ensures secure, weatherproof electrical contact
• Streamlined nose cone geometry minimizes drag and maintains sonar performance at planing speeds
• Integrated mounting hardware included for direct thru-hull installation on fiberglass and wood hulls
• Sealed housing design protects internal piezo elements from pressure, corrosion, and mechanical damage

Final Verdict

The Garmin AIRMAR B619 20° Tilt is the correct choice if you operate a fiberglass or wood boat with a 16° to 24° deadrise and need reliable deep-water sonar that maintains clarity at cruising speeds. Its 500 W, dual-frequency architecture and 900 ft depth rating deliver performance comparable to much larger transducers while occupying minimal hull space. The bronze thru-hull design offers permanence that transom mounts cannot match, and the included installation instructions provide clear guidance for careful mounting. If your hull deadrise or material (metal hulls excluded) doesn't align with these specifications, confirm compatibility before purchase—incorrect installation will compromise both boat safety and sonar performance. Order the AIRMAR B619 today and upgrade to professional-grade sonar that grows with your fishing ambitions.
