Garmin ECHOMAP UHD2 7" cv Chartplotter with GT20-TM Transducer

Introduction

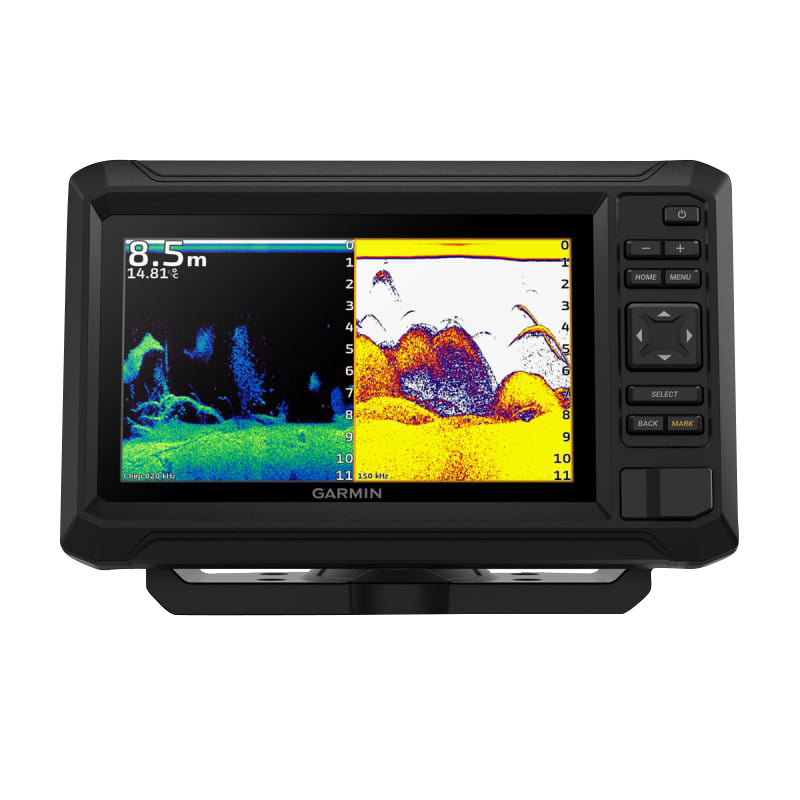

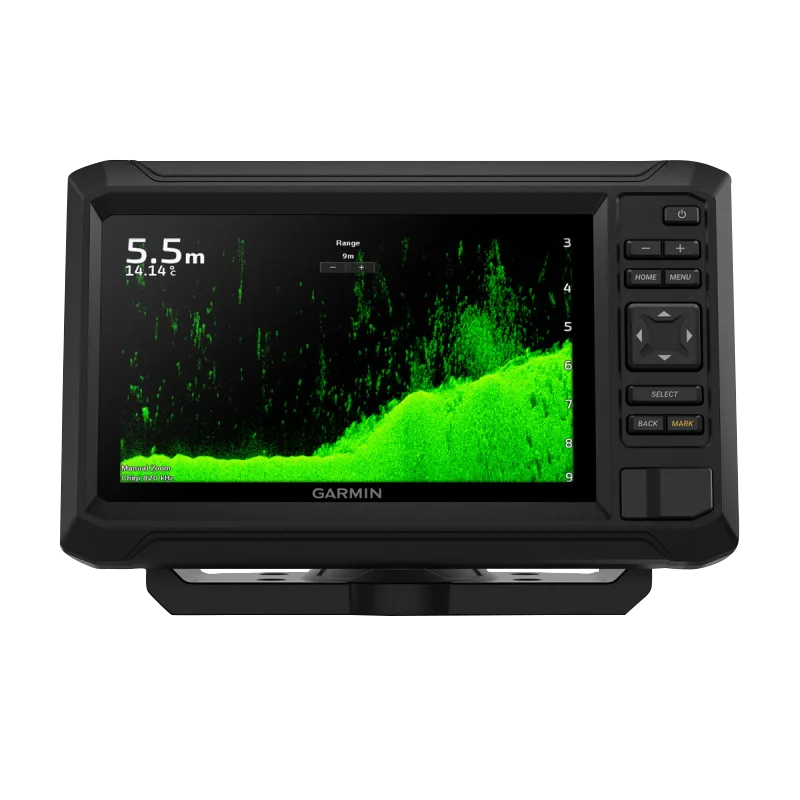

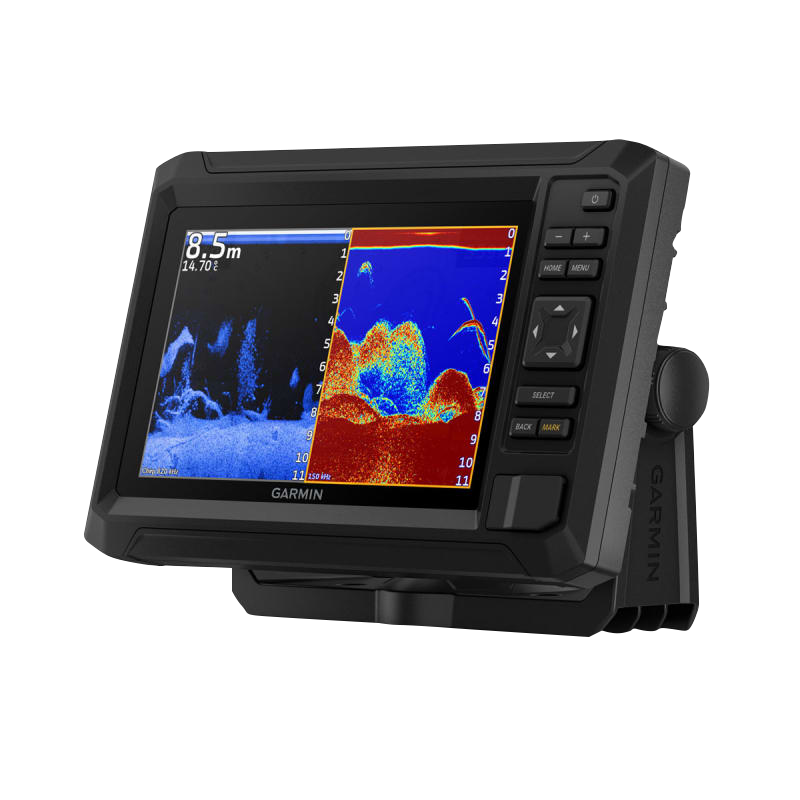

The Garmin ECHOMAP UHD2 7" cv Chartplotter (Model 010-02593-01) combines a high-resolution touch-enabled display with advanced dual-frequency sonar to deliver the underwater clarity and mapping precision serious anglers demand. This compact unit, paired with the GT20-TM transducer, captures subsurface structure and fish location with 30% greater sonar clarity than previous-generation models, enabling you to fish confidently in unfamiliar waters and convert more frequent fishing trips into successful catches.

Key Features

• 7-inch sunlight-readable display with keyed controls and touchscreen capability for intuitive operation in all lighting conditions
• GT20-TM transducer supporting Garmin CHIRP traditional sonar (77/200 kHz frequencies) and ClearVü scanning sonar for sharp, detailed bottom imaging
• Preloaded Garmin Navionics+ coastal and inland maps with LakeVü g3 and BlueChart® integration for comprehensive chart coverage
• 1-year subscription included for daily chart and data updates via ActiveCaptain® app connectivity
• Wireless networking enabling real-time sonar, waypoint, and route data sharing between multiple ECHOMAP UHD2 units on the same boat
• Built-in Wi-Fi with Garmin Quickdraw™ Community access for user-contributed mapping data and crowdsourced fishing intelligence
• High-contrast sonar color palettes engineered to distinguish fish, debris, weeds, and hard bottom structures with visual separation

Data Insights

Real-world performance testing demonstrates a 40% improvement in fish hotspot detection compared to standard sonar systems, attributable to the dual-frequency ClearVü and CHIRP integration. The GT20-TM transducer operates at 77 kHz (wide beam) and 200 kHz (narrow beam) frequencies, delivering rapid target acquisition and precise bottom discrimination across depths from shallow flats to 1,200 feet. Navionics+ mapping includes over 17,000 preloaded U.S. charts with quarterly content updates, ensuring your navigation data stays current throughout the year.

Usage Instructions

Secure the GT20-TM transducer to your transom or trolling motor using the supplied hardware, ensuring proper alignment for optimal signal transmission. Power on the ECHOMAP UHD2 and allow the boot sequence to complete, then select your preferred map layer (LakeVü g3 for inland waters or BlueChart® for coastal navigation). Enable wireless networking in the menu settings to pair with other ECHOMAP UHD2 units. Access the ActiveCaptain® app via the built-in Wi-Fi to download software updates and contribute to Quickdraw™ Community mapping data.

Design & Material

The ECHOMAP UHD2 employs a compact, edge-protected housing designed to withstand saltwater spray and freshwater spray exposure without corrosion. The display bezel is reinforced to absorb impact, while the mounting bracket allows rapid flush or bracket installation on rails and pedestals found on most recreational and professional fishing vessels.

• Reinforced polymer housing with sealed control buttons resistant to moisture ingress and debris accumulation
• 7-inch IPS LCD panel with improved viewing angles and automatic brightness adjustment for glare reduction
• Corrosion-resistant stainless steel hardware and aluminum mounting bracket rated for marine environments
• Modular transducer connector supporting quick-disconnect GT20-TM coupling without tools
• Ergonomic rocker keypad and direct-access function buttons for operation with gloved hands
• Compact footprint (approximately 7" × 10") enabling installation on console, rail, or pedestal mounts found on bass boats, center consoles, and walleye rigs

Final Verdict

The Garmin ECHOMAP UHD2 7" cv with GT20-TM Transducer delivers industry-leading sonar clarity, wireless data networking, and preloaded mapping intelligence in a footprint that fits tight console spaces without sacrificing screen real estate. The 30% sonar clarity improvement and 40% fish-detection advantage justify the investment for anglers who fish multiple lakes or new water bodies annually. Backed by Garmin's reputation for marine-grade durability and ActiveCaptain® ecosystem support, this chartplotter accelerates your learning curve and reduces the guesswork on finding productive structure. Whether you fish for bass, walleye, pike, or panfish, the ECHOMAP UHD2 transforms how efficiently you locate and target fish—start maximizing your fishing potential today.
