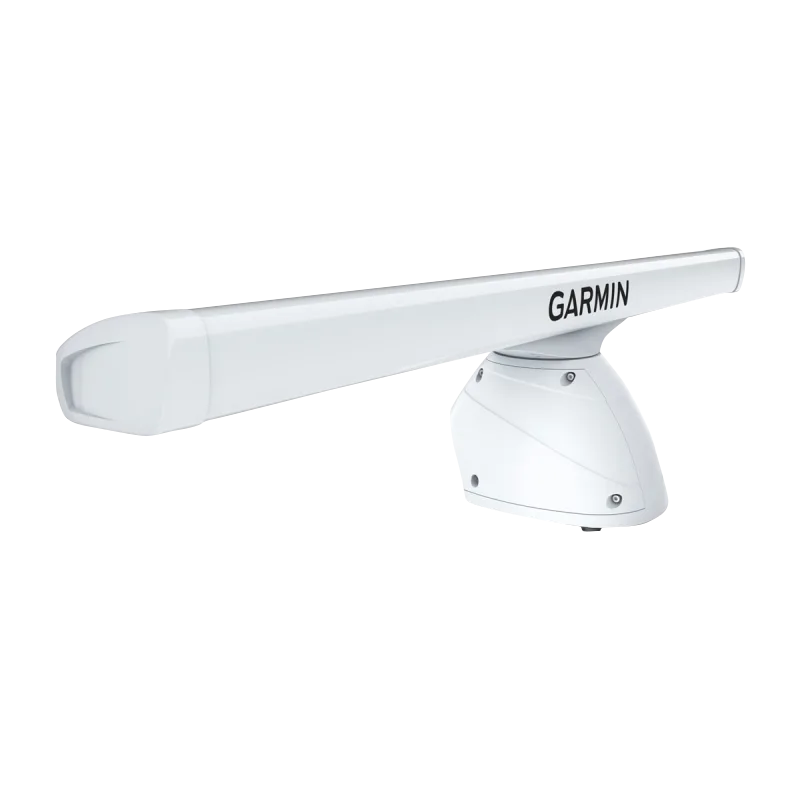

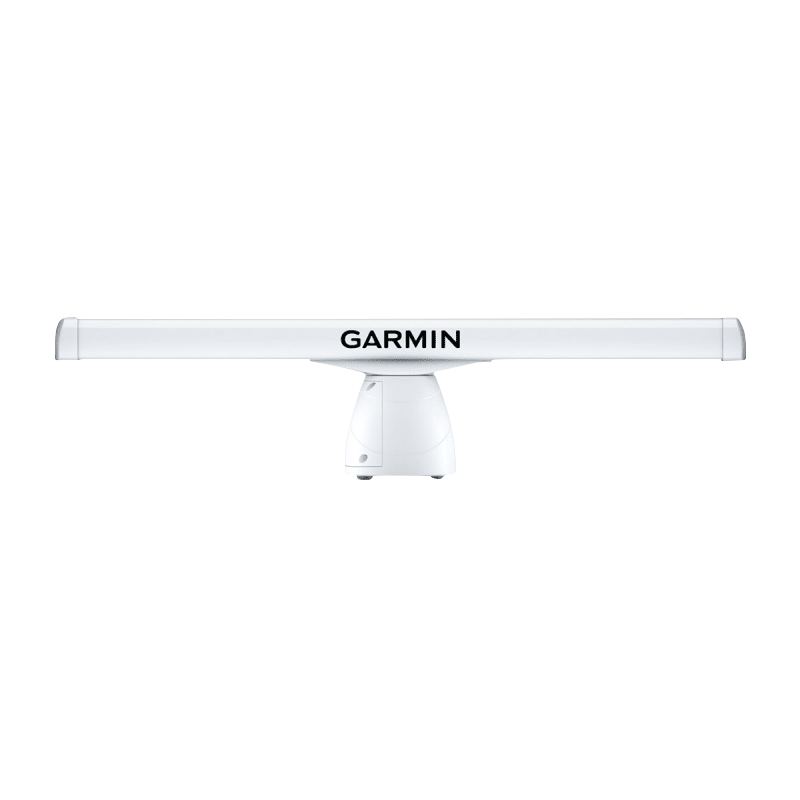

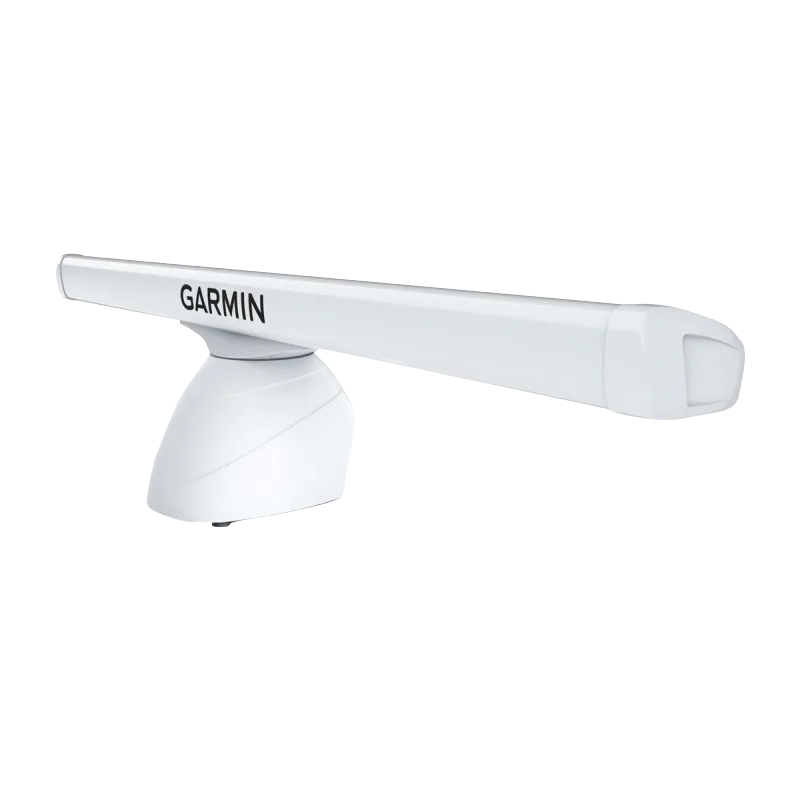

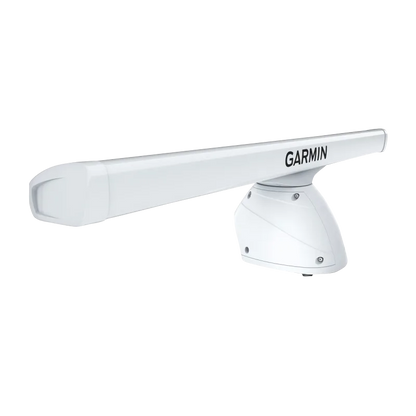

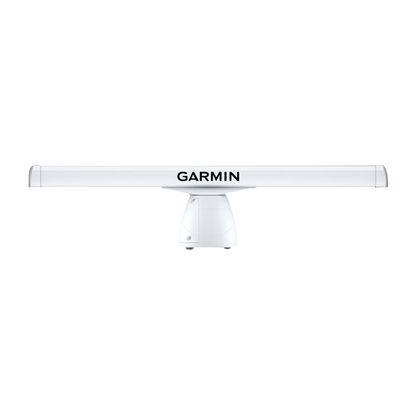

Garmin GMR 434/436 xHD3 Open Array Radar and Pedestal (K10-00012-25)

Introduction

The Garmin GMR 434/436 xHD3 Open Array Radar delivers high-definition target detection across extended ranges, enabling professional mariners to identify weather systems, vessel traffic, and obstacles with confidence in demanding offshore environments. This radar system combines selectable power outputs with advanced processing technology to provide the situational awareness required for safe and efficient navigation in all sea conditions.

Key Features

• Selectable Power Output: Available in 4 kW, 12 kW, or 25 kW configurations to match vessel size and operational requirements
• Maximum Detection Range: 96 nautical miles (25 kW version) for extended surveillance coverage
• Commercial-Grade Wind Rating: Certified to 100 knots for reliable performance in severe weather
• MARPA Target Tracking: Simultaneous tracking of up to 30 targets for enhanced collision avoidance awareness
• Antenna Rotation Speeds: 24 and 48 RPM options for flexible update rates and power consumption management
• Available Antenna Sizes: 4-foot and 6-foot configurations to accommodate various hull designs and installation spaces

Data Insights

The 96-nautical-mile detection capability at maximum power output positions this system among the most capable open-array radars for offshore work. Advanced features including true echo trails, improved target-size processing, and dynamic auto-gain adjustment produce clearer target images with superior discrimination compared to conventional radar systems. Scan-averaging technology reduces sea clutter variability, enabling more consistent target detection in rough conditions.

Usage Instructions

Proper installation and calibration according to the user manual are essential for optimal performance. Utilize the split-screen dual-range display to monitor both close-range and distant targets simultaneously. Adjust the dynamic sea filter based on current sea conditions to minimize clutter while maintaining target visibility. Periodically verify MARPA target tracking assignments to ensure accurate collision-avoidance situational awareness during transit through congested waters.

Design & Material

The GMR 434/436 xHD3 features an aerodynamic pedestal-mounted design that minimizes wind resistance and reduces structural loading on the antenna mast. The open-array antenna assembly combines lightweight construction with rigid structural integrity to maintain consistent performance across extended operating periods.

• Weather-Resistant Construction: High-quality materials engineered for saltwater and harsh marine environments
• Quiet Operation: Open-array drive motor design reduces mechanical noise during continuous scanning
• High Antenna Gain: Enhanced gain characteristics improve target separation and extend reliable detection range
• Wind-Rated Antenna Assembly: 100-knot rating ensures structural stability during extreme weather events
• Customizable Display Options: Tailor radar overlay configurations and image processing to match individual navigation preferences
• Flexible Mounting: 4-foot and 6-foot antenna options accommodate different vessel topside configurations without major structural modifications

Final Verdict

For professional mariners and serious recreational boaters requiring extended-range detection and reliable target tracking in offshore operations, the Garmin GMR 434/436 xHD3 delivers the performance and durability demanded by modern maritime navigation. The combination of configurable power outputs, true echo trails, and MARPA tracking capabilities directly addresses the safety and operational efficiency requirements of commercial and blue-water recreational vessels. Upgrade your navigation system with the GMR 434/436 xHD3 and maintain decisive situational awareness in any marine environment.
