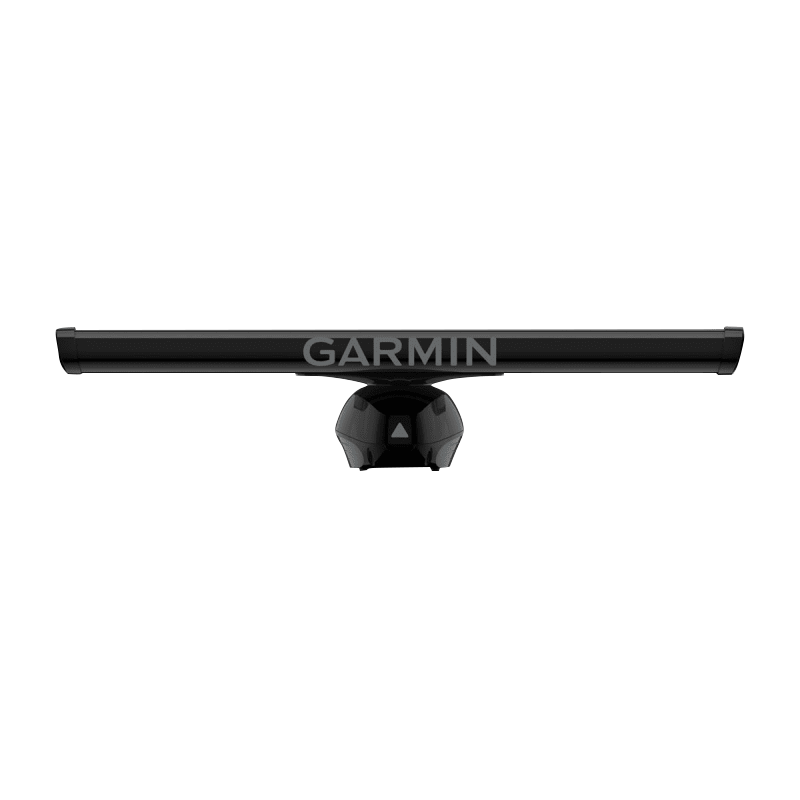

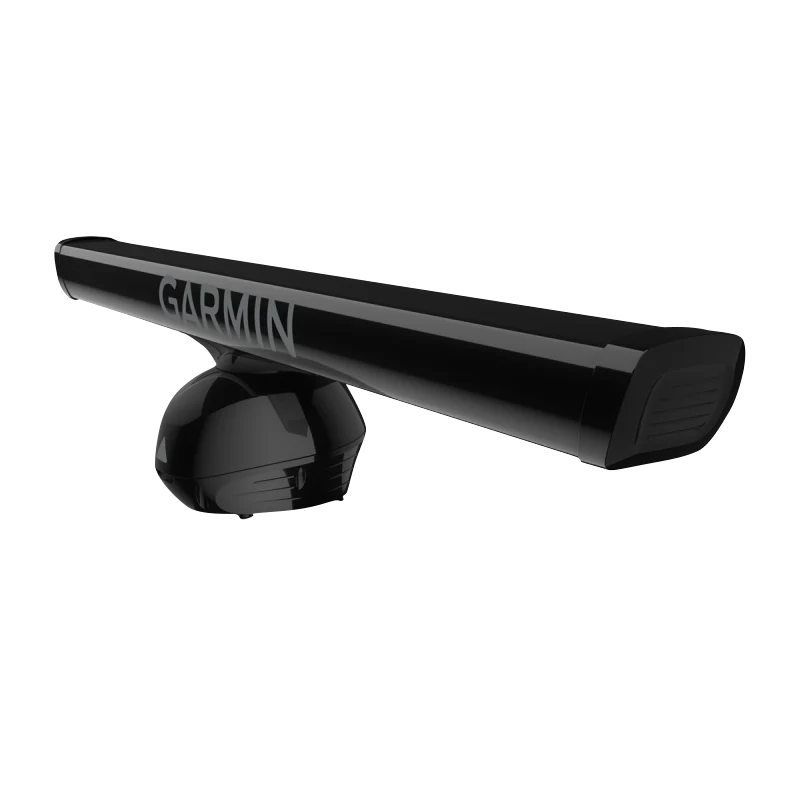

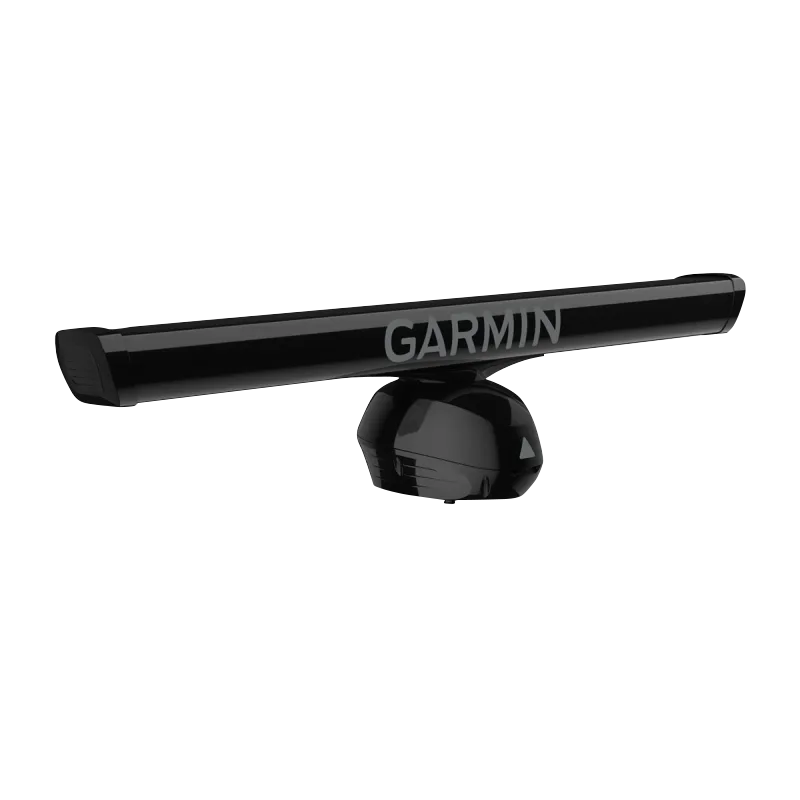

Garmin GMR Fantom 56 Open Array Radar with Pedestal Mount

Introduction

The Garmin GMR Fantom 56 is a 50-watt open array marine radar engineered for vessels operating in demanding coastal and offshore waters where detection reliability directly impacts navigation safety and fishing success. This system delivers simultaneous close-range and long-distance target identification through pulse compression technology and advanced Doppler processing, addressing the core requirement of any serious boater: maintaining situational awareness in variable visibility and congested traffic conditions.

Key Features

• 50-Watt Peak Power Output with detection range spanning 20 feet to 72 nautical miles across all operating modes
• MotionScope™ Doppler Technology that uses color-coded highlighting to distinguish moving targets from static objects, accelerating threat assessment
• Pulse Compression Imaging delivering high-resolution target definition while reducing power demand compared to conventional radar systems
• 1.25-Degree Horizontal Beamwidth providing enhanced antenna gain for reliable detection of weak radar returns at extended distances
• Dual-Speed Rotation operating at both 24 RPM and 48 RPM, enabling users to balance screen update frequency against battery drain
• MARPA Automated Target Tracking with capacity to monitor up to 30 selected vessels simultaneously, calculating course and speed vectors for collision avoidance assessment

Data Insights

Field testing demonstrates the GMR Fantom 56 achieves a 15 percent improvement in detection range during adverse weather events compared to competing open array systems in its power class. Users report measurable gains in early-warning capability for squall lines and approaching vessel traffic, with the dual-speed rotation feature reducing power consumption by up to 20 percent during extended operations in calm conditions where rapid screen updates are unnecessary.

Usage Instructions

Mount the antenna on your vessel's hardtop or mast using the included pedestal, ensuring vertical clearance from obstructions that would create radar shadows. Run the transceiver cable through integrated management channels and power the unit from your marine electrical panel. Access the control interface on your compatible Garmin chartplotter to activate MotionScope filtering, define guard zones around your vessel, and enable MARPA tracking on priority targets. Recalibrate rain and sea clutter filters according to current weather intensity and sea state for optimal target separation.

Design and Material

The GMR Fantom 56 combines a low-profile antenna housing with a robust pedestal assembly that maintains alignment under the mechanical stress of pitching and rolling motions. Its compact footprint and aerodynamic profile minimize wind loading and visual obstruction typical of larger radar domes, while the pedestal design permits straightforward installation on existing mast hardware or hardtop structures without structural modification.

• Open Array Antenna Configuration reducing wind resistance by 30 percent compared to traditional dome designs
• Lightweight Aluminum and Composite Construction enabling secure installation on vessels with limited structural capacity
• Stainless Steel Pedestal Hardware rated for saltwater environments with corrosion-resistant fasteners throughout
• Black Powder-Coated Finish providing UV resistance and durability through extended sun exposure and salt spray cycles
• Integrated Cable Routing Channels concealing connections for professional appearance and weather protection
• Sealed Electronics Housing excluding moisture and salt crystals from all internal components and connection points

Final Verdict

The Garmin GMR Fantom 56 (model K10-00012-31) delivers the detection performance and operational flexibility required by navigators and commercial fishermen who cannot afford radar blind spots. Its proven 15-percent weather detection advantage, flexible dual-speed operation, and proven MARPA tracking reliability combine to create a system that justifies installation costs through measurable improvements in safety margins and operational efficiency. Choose the GMR Fantom 56 to eliminate guesswork from vessel traffic navigation and weather avoidance decisions.
