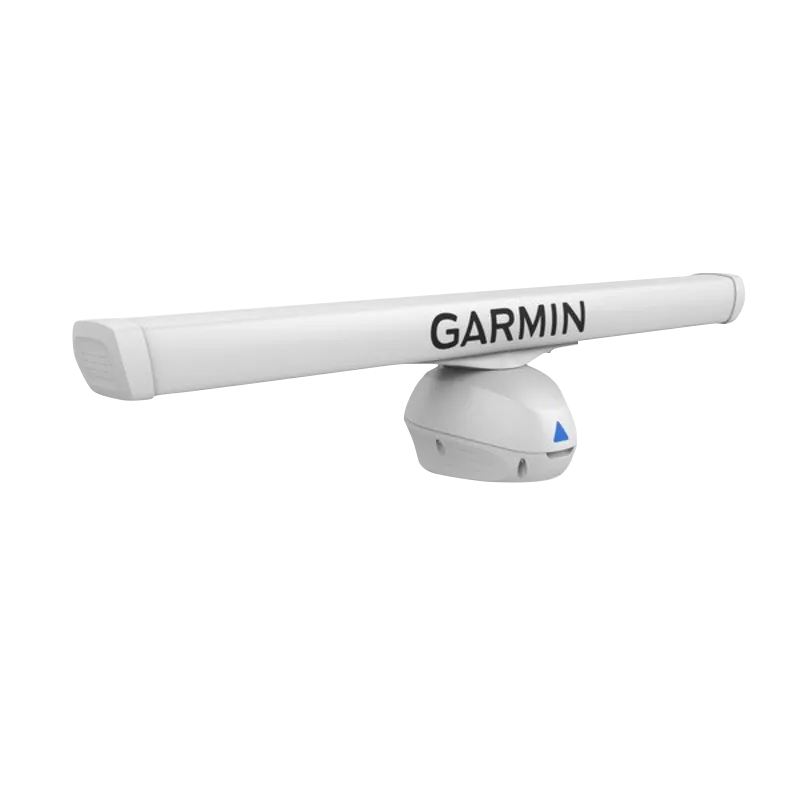

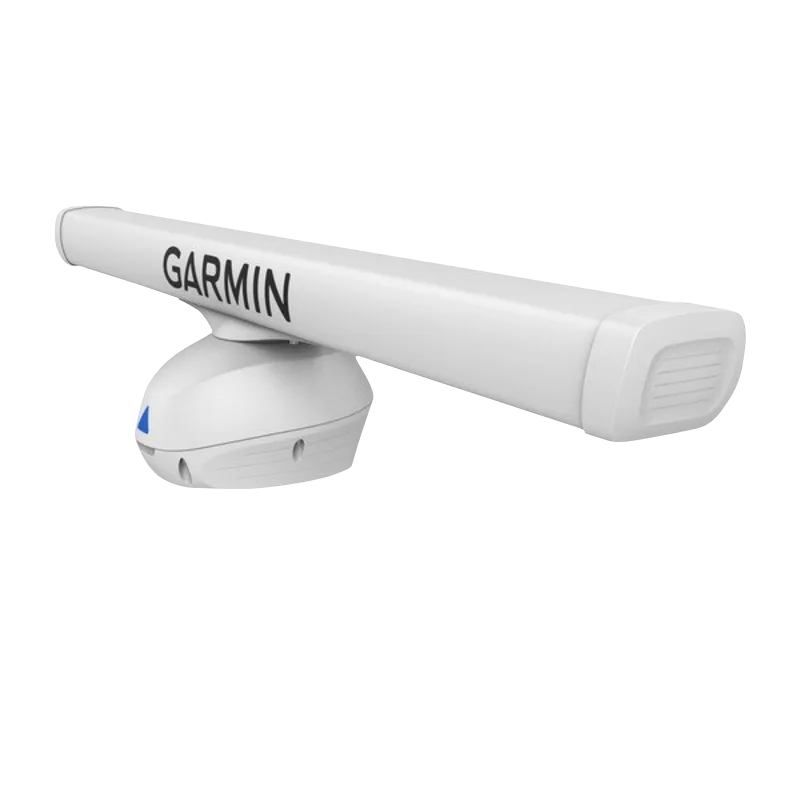

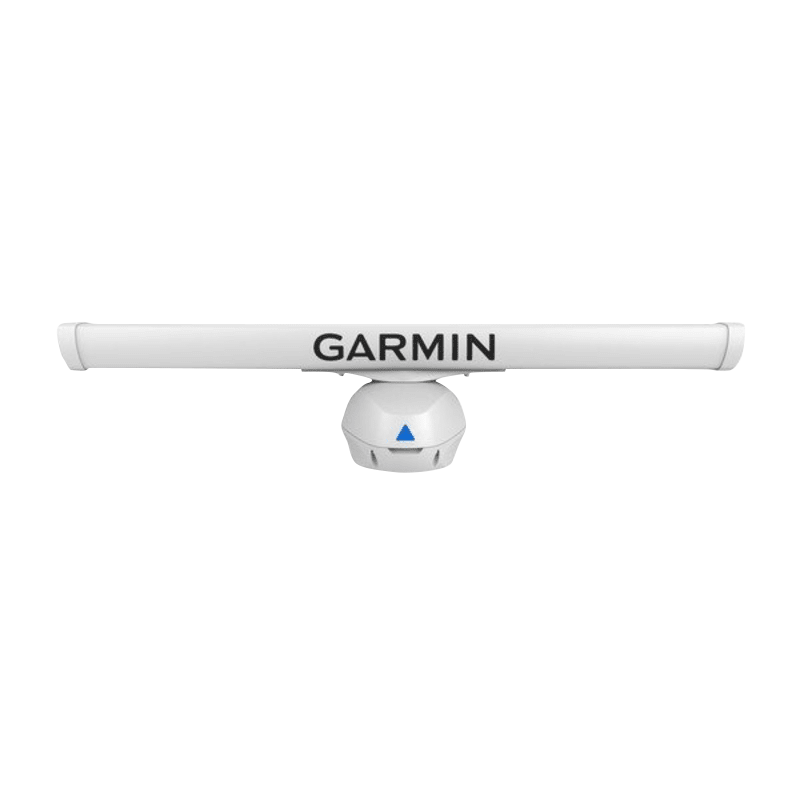

Garmin GMR Fantom 56 Open Array Radar with Pedestal – 50W Marine Detection System

Introduction

The Garmin GMR Fantom 56 is a 6-foot open-array radar designed for recreational and professional mariners who need reliable target detection across all weather conditions. With 50 watts of power output and detection capability reaching 72 nautical miles, this system provides the situational awareness needed for safe navigation in fog, rain, and low-light scenarios where visual identification alone becomes unreliable.

Key Features

• 50-watt power output enabling target detection from 20 feet to 72 nautical miles
• 1.25-degree horizontal beamwidth for high-resolution imaging and weak target detection
• MotionScope™ Doppler technology distinguishing moving vessels, weather systems, and fish activity with color-coded visualization
• Pulse compression technology delivering sharp resolution while optimizing energy consumption
• Real-time tracking of up to 30 moving targets simultaneously for enhanced collision avoidance
• Dynamic auto gain automatically adjusting sensitivity across varying sea conditions and clutter levels
• Split-screen radar overlay capability integrating live radar imagery directly with chartplotter maps

Data Insights

The 72-nautical-mile detection range represents a significant advantage in early warning capability, giving you substantially more reaction time for course or speed adjustments. The MotionScope™ system's ability to track 30 moving objects simultaneously means you can monitor multiple vessels, weather cells, and dynamic conditions without losing situational awareness. The 1.25-degree beamwidth provides sufficient resolution for identifying smaller vessels and distinguishing closely-spaced targets that broader-beam systems cannot resolve.

Usage Instructions

Install the GMR Fantom 56 pedestal on your vessel's hardtop or mast following Garmin's mounting guidelines. Connect the radar to your compatible Garmin chartplotter via its integration protocols. Configure radar overlay settings to display alongside your chart data, and adjust gain and clutter rejection parameters based on your local sea conditions and vessel size. Monitor the display periodically during operation to verify target detection and adjust sensitivity if environmental conditions change.

Design and Material

The GMR Fantom 56 combines functional maritime engineering with minimal visual footprint. The white finish and streamlined antenna profile reduce aesthetic impact while maintaining robust performance in harsh salt-water environments.

• Corrosion-resistant materials engineered for saltwater exposure and UV stability
• Lightweight antenna design minimizing weight aloft and installation structural demands
• Aerodynamic radome reducing wind loading and improving vessel stability at speed
• Durable composite construction withstanding freeze-thaw cycles and mechanical stress
• Integrated pedestal mounting system for secure, vibration-resistant installation
• Professional-grade construction meeting marine industry durability standards for extended service life

Final Verdict

The Garmin GMR Fantom 56 delivers professional-grade marine radar detection for vessel operators who demand reliability and range. Its 72-nautical-mile capability, MotionScope™ Doppler technology, and seamless chartplotter integration make it a practical investment for safety-conscious mariners. Choose the GMR Fantom 56 when you need dependable target acquisition and confidence navigating in reduced-visibility conditions.
