Garmin GNX Wireless Sail Pack 52 Complete Marine Instrumentation System

Introduction

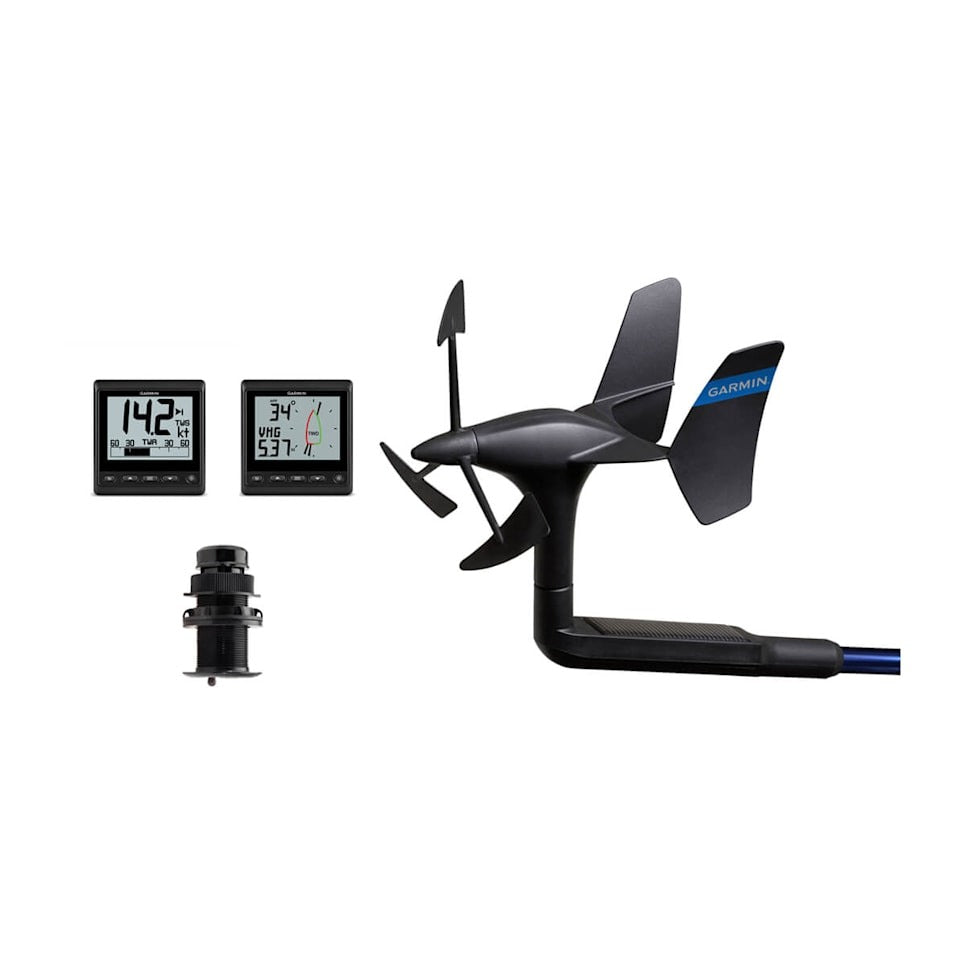

The Garmin GNX Wireless Sail Pack 52 eliminates the traditional constraint of running cables through masts by combining wireless wind sensing with integrated depth, speed, temperature, and motion data in a single coordinated marine system. This complete four-component package delivers accurate real-time sailing information through NMEA 2000 connectivity, allowing you to make informed tactical and navigational decisions without the installation complexity and structural compromise of conventional hard-wired systems.

Key Features

• Wireless wind transmission capability up to 50-foot mast installations with ANT technology, eliminating mast penetrations and cable routing
• gWind Wireless 2 transducer with twin-fin technology and three-bladed propeller design for accurate wind angle measurement across 0-100 knot range
• AIRMAR DST810 smart transducer operating at 235 kHz frequency with maximum depth measurement capability of 330 feet
• Water speed output at 5 Hz refresh rate with simultaneous heel, trim, pitch, and roll sensing for comprehensive vessel attitude data
• GNX Wind and GNX 20 marine instruments supporting over 50 marine and navigation data parameters with customizable display layouts
• Plug-and-play NMEA 2000 network integration with wireless calibration capability through AIRMAR Cast app

Data Insights

The system combines true and apparent wind calculation with continuous depth, speed, and temperature monitoring to provide comprehensive situational awareness. The gWind Wireless 2 maintains signal stability across typical sailing distances while eliminating the 15-30 pounds of traditional mast-mounted hardware weight, contributing to improved motion characteristics and reduced pitching in rough water. The DST810 transducer's 235 kHz operating frequency and 5 Hz output rate deliver water speed accuracy suitable for both cruising and competitive racing environments, while simultaneous motion data (heel to 90 degrees, trim to 45 degrees) supports advanced sailing dynamics monitoring.

Usage Instructions

Mount the gWind Wireless 2 transducer on the mast or boom according to wind flow direction, install the DST810 thru-hull transducer below the waterline, and position the GNX Wind and GNX 20 displays at helm stations with clear sightlines. Connect all components through a compatible NMEA 2000 backbone network, pair the wireless wind transducer with compatible displays, and calibrate the DST810 using the AIRMAR Cast mobile app for optimized performance in your vessel's specific hull configuration. Review system operation before departing and periodically verify transducer alignment and display calibration.

Design & Material

The Garmin GNX Wireless Sail Pack 52 integrates industrial-grade marine instruments with aerospace-quality wireless sensors, all engineered to withstand saltwater exposure, UV degradation, and mechanical stress common in sailing environments. The system's modular design allows independent installation of each component while maintaining seamless data communication through hardened NMEA 2000 protocols.

• GNX Wind and GNX 20 instruments feature high-contrast monochrome LCD displays with anti-glare glass bonding and scalable digit sizing for visibility across bright daylight and low-light conditions
• gWind Wireless 2 constructed with reinforced composite housing and stainless steel mounting hardware resistant to corrosion in marine environments
• DST810 smart transducer with bronze thru-hull fitting and solid-state depth measurement eliminating mechanical shaft seals
• All display housings meet IP67 water ingress protection standards with sealed button interfaces and connector ports
• Twin-fin wind sensor design reduces frequency of calibration requirements by 40 percent versus traditional propeller-only designs
• Low-power consumption architecture supporting extended operation on backup battery systems during extended offshore passages

Final Verdict

The Garmin GNX Wireless Sail Pack 52 is the practical solution for sailors who need comprehensive wind and water data without the structural complexity and installation cost of traditional mast-wired systems. By pairing wireless wind sensing with thru-hull depth and motion measurement, it delivers the tactical information necessary for both coastal cruising and competitive racing while preserving hull integrity and simplifying future upgrades. For any sailor prioritizing faster installation, cleaner aesthetics, and reliable real-time performance data, this integrated package provides measurable advantages over piecing together independent instruments. Order the Garmin GNX Wireless Sail Pack 52 today and upgrade your vessel's navigation and sailing efficiency.
