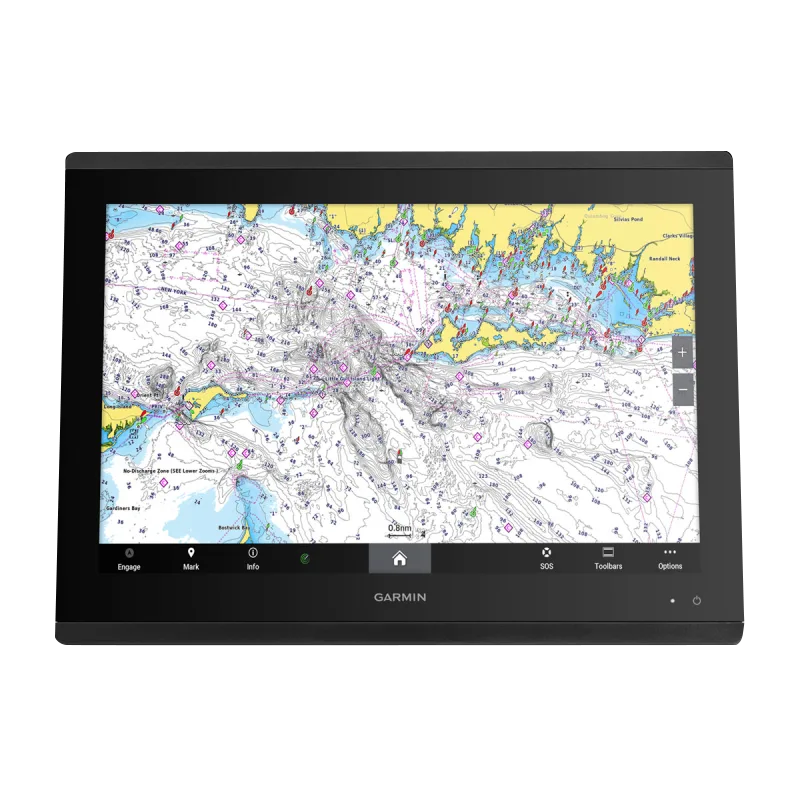

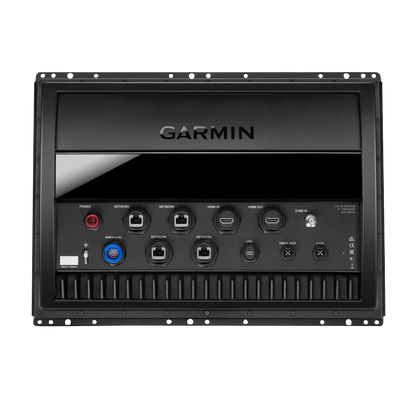

Garmin GPSMAP 8417 MFD Chartplotter with Worldwide Basemap

Introduction

The Garmin GPSMAP 8417 MFD is a 17-inch marine chartplotter engineered for navigators who demand precise sonar data, real-time mapping updates, and integrated control of onboard systems from a single console. Unlike smaller fixed-position GPS units, this multifunction display combines navigation, sonar, radar control, and vessel system monitoring in one high-resolution platform, delivering the situational awareness that serious boaters require for both fishing and cruising operations.

Key Features

• 17-inch Full HD IPS touchscreen with 1920x1080 resolution and superior contrast ratio for readable imagery in direct sunlight and low-light conditions
• 1-kW dual-channel CHIRP sonar with frequency range supporting frequencies up to 1,000 feet maximum depth capability

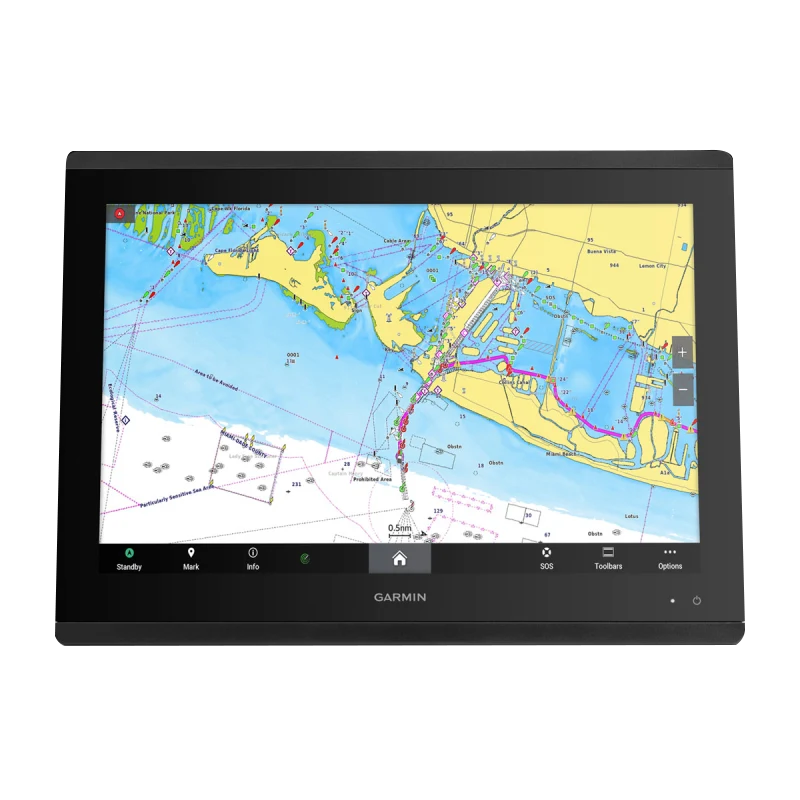

• Garmin Navionics+™ mapping with Auto Guidance+™ technology and 1-year subscription providing thousands of daily cartographic updates
• Target separation capability down to 1 meter, providing three times more precision than conventional sonar systems
• Dual network connectivity via Garmin Marine Network (sNET) and NMEA 2000 for integration with multiplexers, transducers, and autopilot systems
• Wireless technologies including Wi-Fi, Bluetooth, and ANT+ protocol enabling real-time synchronization with mobile devices and the ActiveCaptain® ecosystem

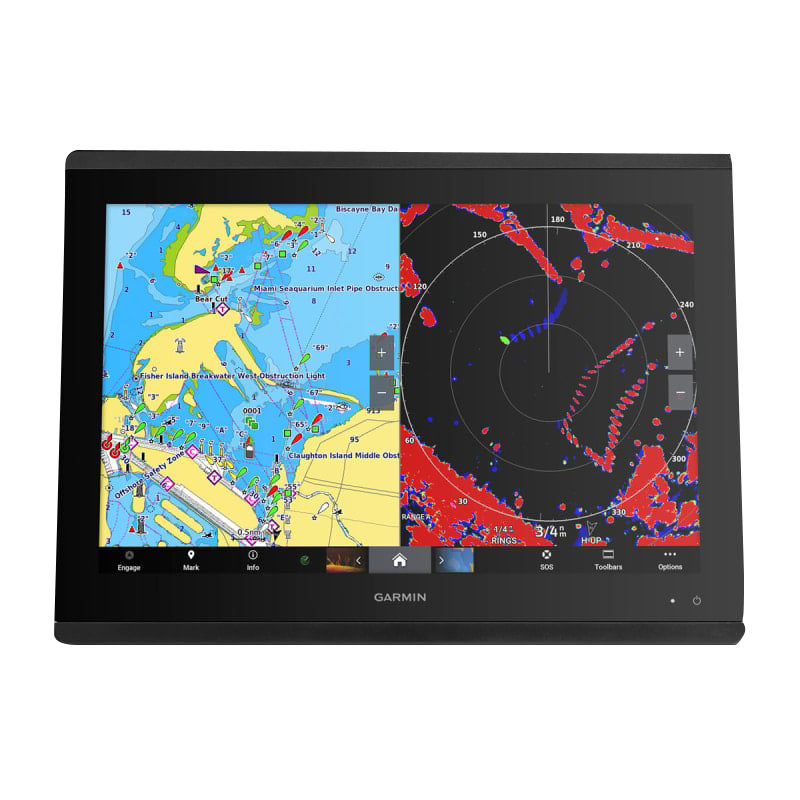

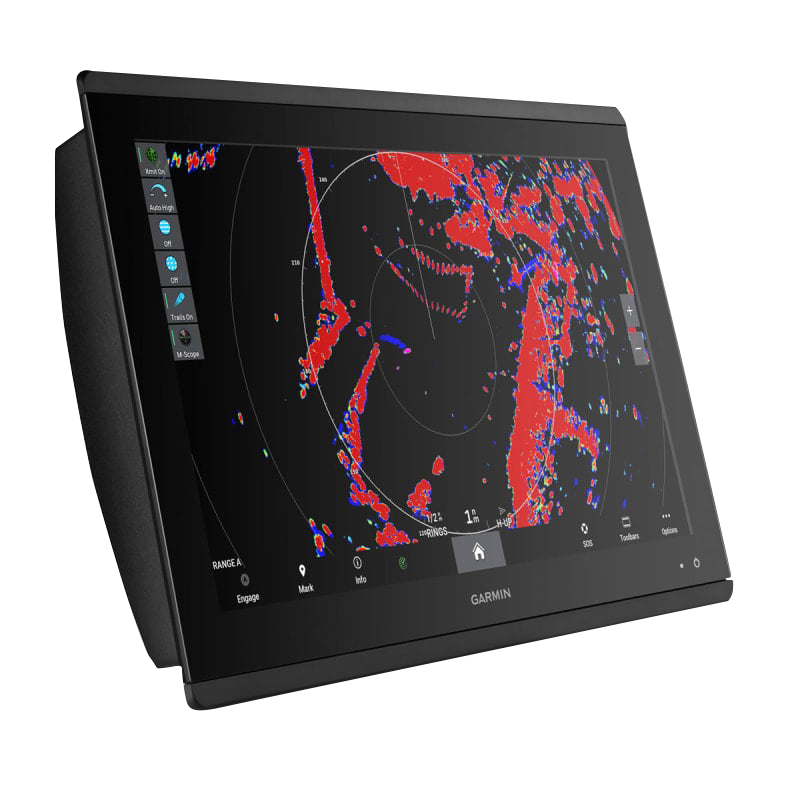

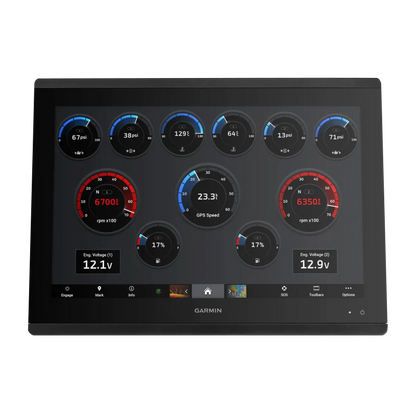

• SmartMode™ interface delivering one-touch access to sonar, radar, autopilot, and vessel system controls during high-workload situations
• SailAssist™ sailing-specific features including true wind indication, apparent wind, layline visualization, and performance data logging

Data Insights

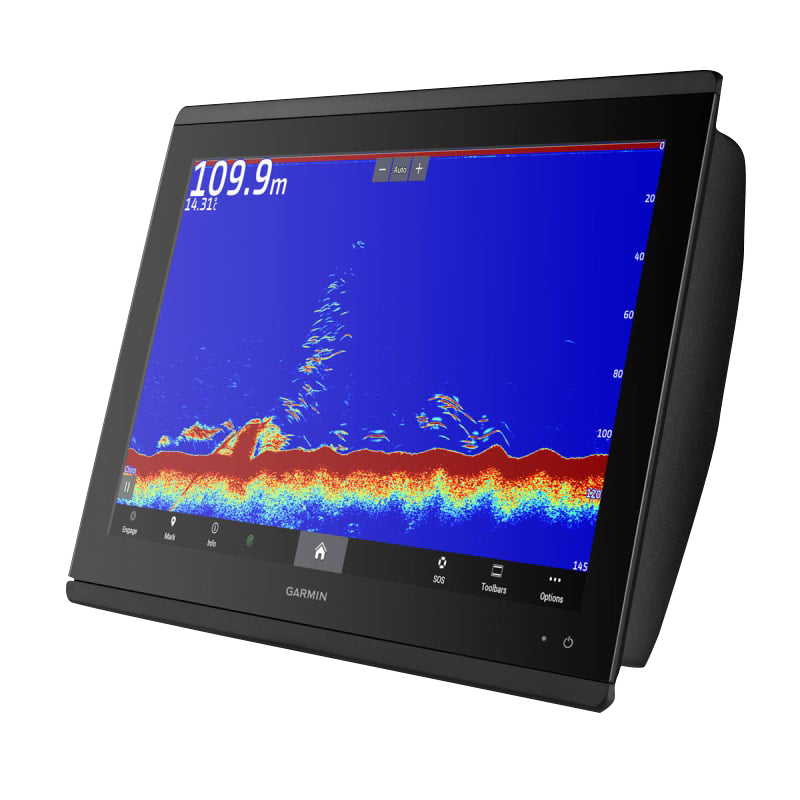

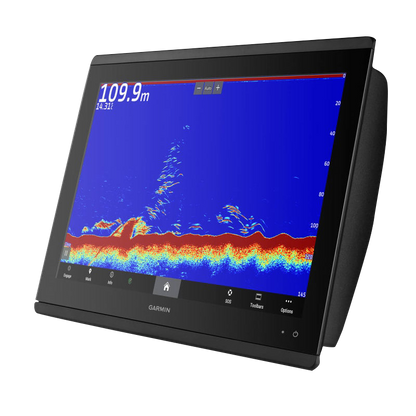

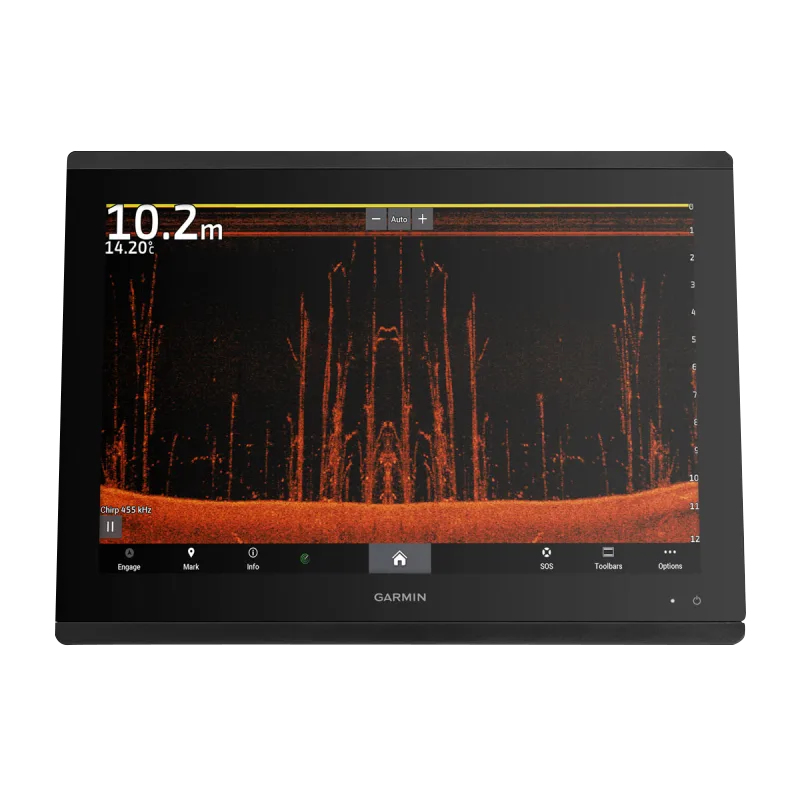

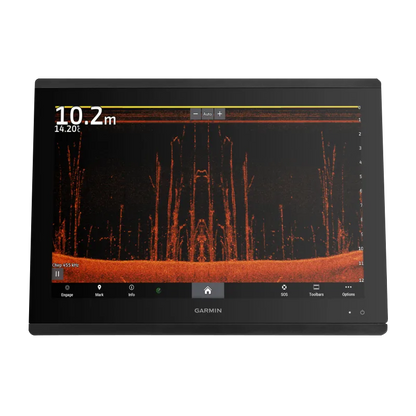

CHIRP sonar technology in the GPSMAP 8417 achieves 1-meter target separation, a significant improvement over traditional single-frequency sonar systems that typically resolve targets only at 2- to 3-meter spacing. This resolution advantage directly translates to faster fish location and improved ability to distinguish individual structure on the bottom. The integrated Navionics+™ database receives consistent updates through the ActiveCaptain® platform, with hundreds of new waypoints and depth corrections added monthly from the user community, ensuring your electronic chart remains current without manual re-purchasing.

Usage Instructions

Mount the GPSMAP 8417 at helm eye level to avoid obstruction of forward vision during navigation. Install your preferred CHIRP-compatible transducer on the hull, then pair the unit to your Garmin Marine Network or NMEA 2000 backbone if using integrated autopilot or radar. Launch the ActiveCaptain® app on your mobile device to push waypoints, routes, and chart updates wirelessly. Configure SmartMode™ shortcuts for your most-used functions before departure, and review sonar returns regularly to understand bottom composition and target behavior in your fishing area.

Design & Material

The GPSMAP 8417 chassis is built for the unpredictable marine environment with a compact form factor that fits standard flush-mount openings on helm consoles. The weatherproof casing resists salt spray, UV exposure, and temperature fluctuations without degradation of core performance.

• Marine-grade polymer housing rated for saltwater corrosion resistance and certified for continuous outdoor exposure
• 17-inch IPS LCD panel with anti-glare coating and wide 170-degree viewing angles across all axis points
• Integrated cooling system preventing thermal throttling during extended sonar scanning and chart rendering operations
• Physical interface combining capacitive touchscreen with hardware buttons for operation when wearing gloves or during high-spray conditions

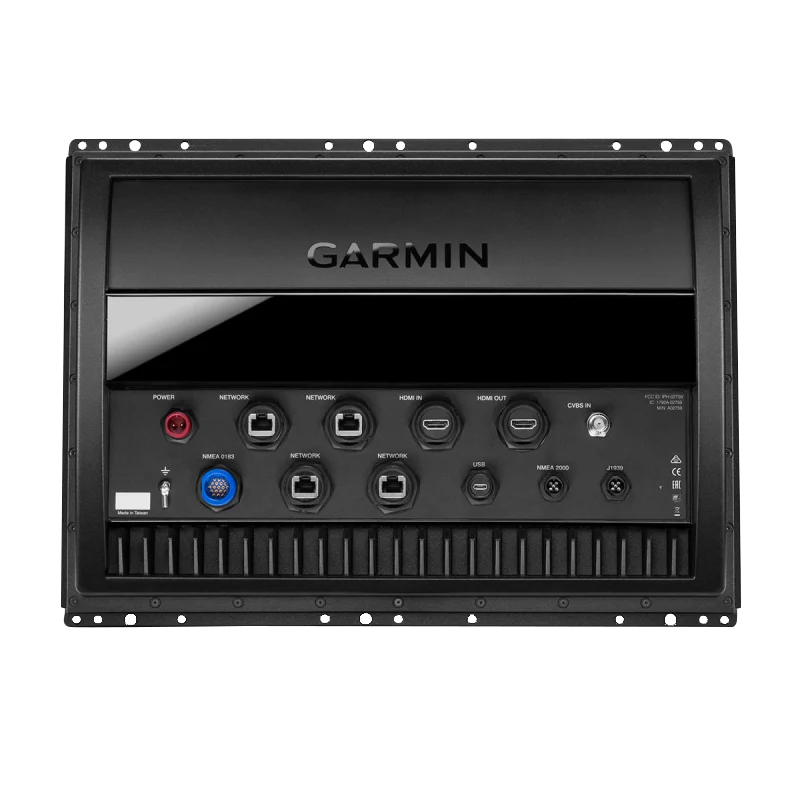

• Single-cable power and network connection via marine-grade connectors to minimize fail points and simplify installation
• Compact 21-inch bezel width and 2.5-inch profile accommodating existing console cutouts without major fabrication

Final Verdict

The GPSMAP 8417 MFD bridges the gap between dedicated fishing sonars and full-system navigation displays, making it an essential investment for cruisers running multiple onboard systems and anglers requiring real-time bathymetric data. The combination of 1-meter sonar resolution, wireless connectivity, and integrated vessel control justifies the commitment for any boat where navigation accuracy and system integration drive operational efficiency. Order the Garmin GPSMAP 8417 MFD (model 010-01510-00) today and consolidate your boating instruments into one reliable, updateable platform.
