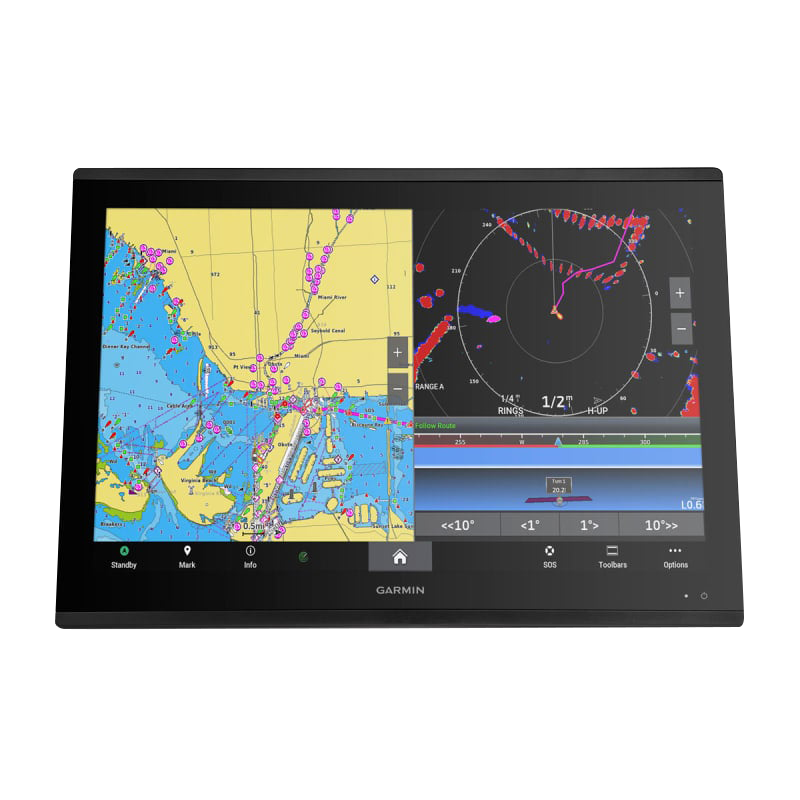

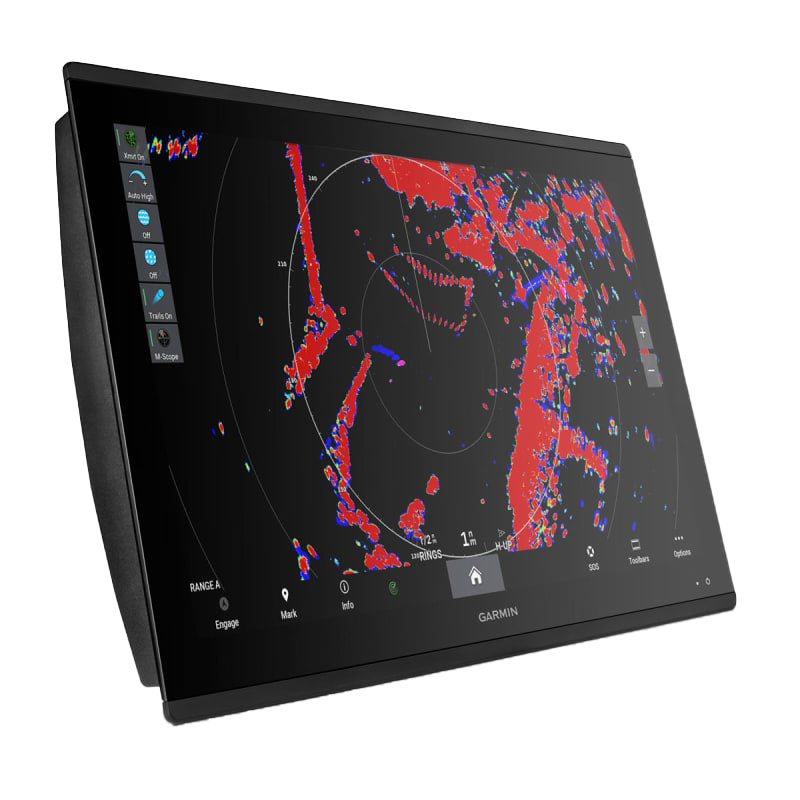

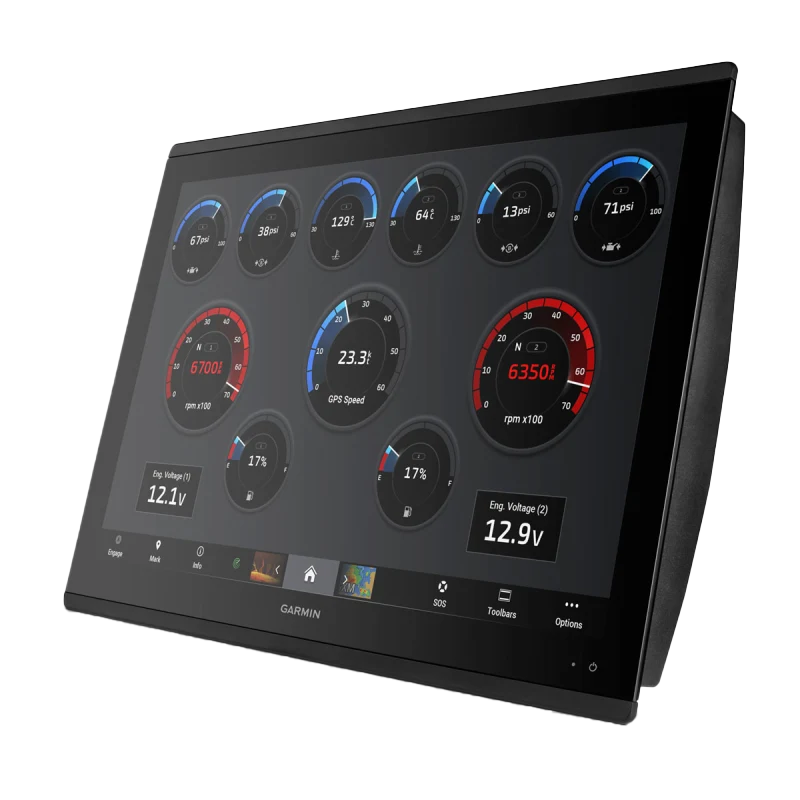

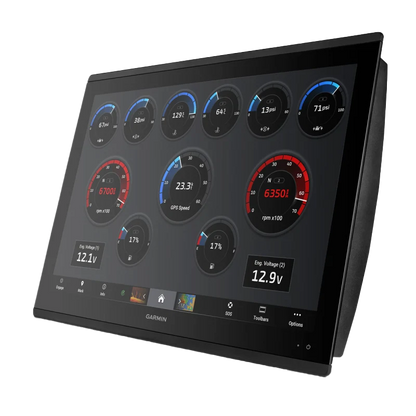

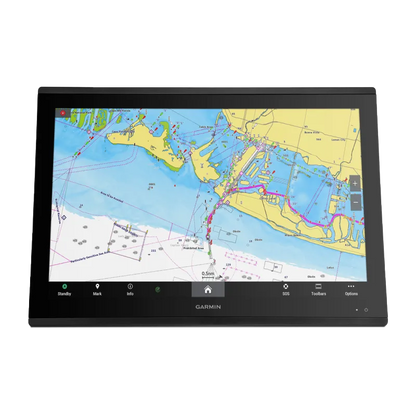

Garmin GPSMAP 8424 MFD Marine Chartplotter with 24-Inch HD Display and Dual-Channel CHIRP Sonar

Introduction

The Garmin GPSMAP 8424 MFD (model 010-01512-00) combines a 24-inch Full HD IPS touchscreen display with professional-grade sonar and advanced navigation capabilities, delivering real-time performance improvements for commercial and recreational marine operators. Its expansive display and integrated mapping system reduce navigation time and enhance target detection precision in both shallow and deep-water environments.

Key Features

• 24-inch Full HD IPS touchscreen with anti-glare technology and wide viewing angles for visibility up to direct sunlight

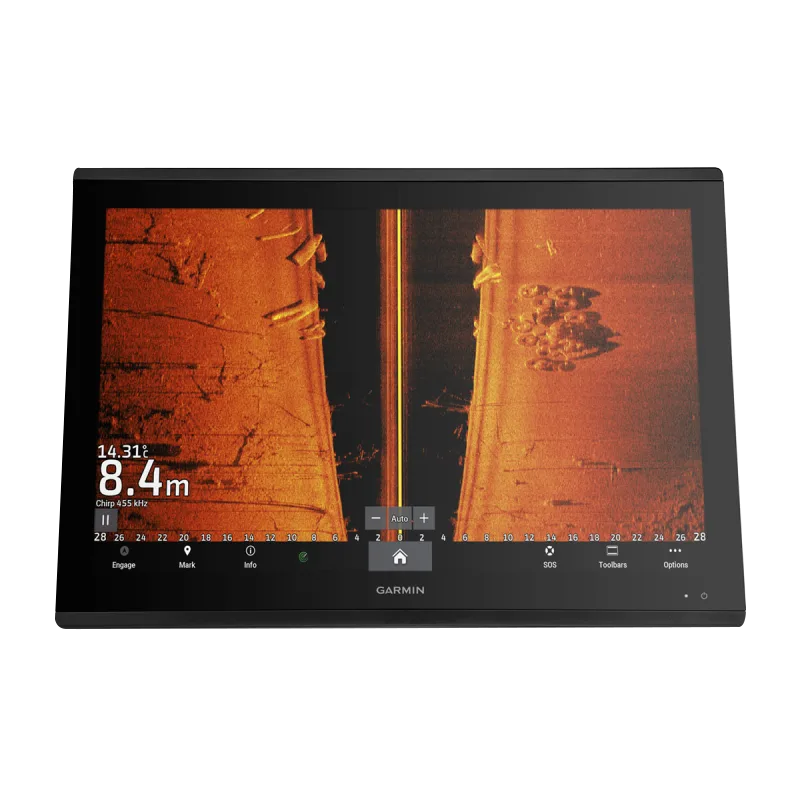

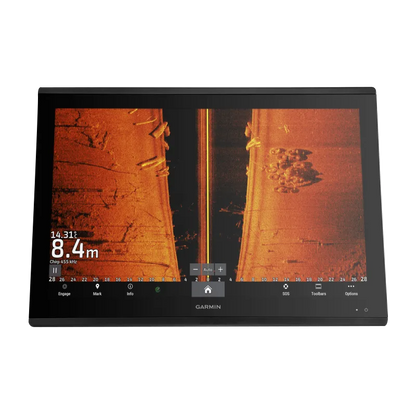

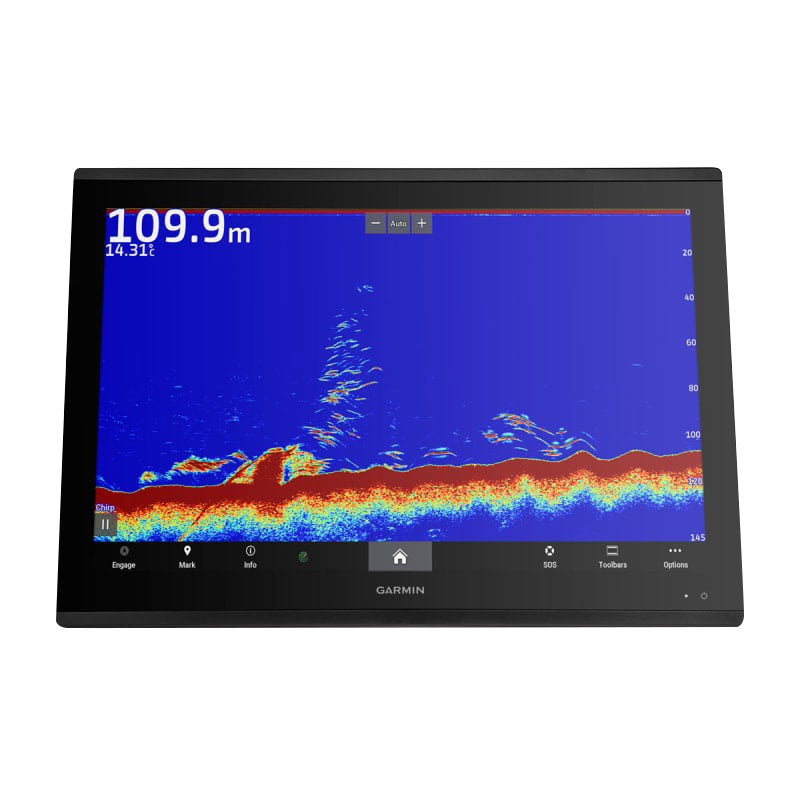

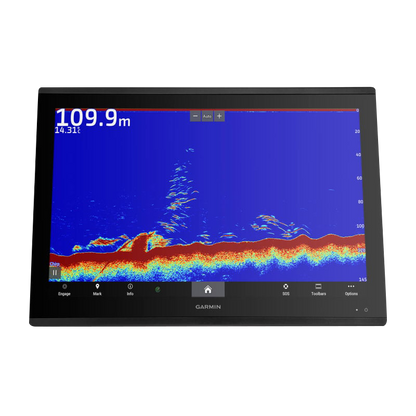

• Dual-Channel CHIRP sonar with maximum depth capability of 1,000 feet for exceptional target separation and fish detection

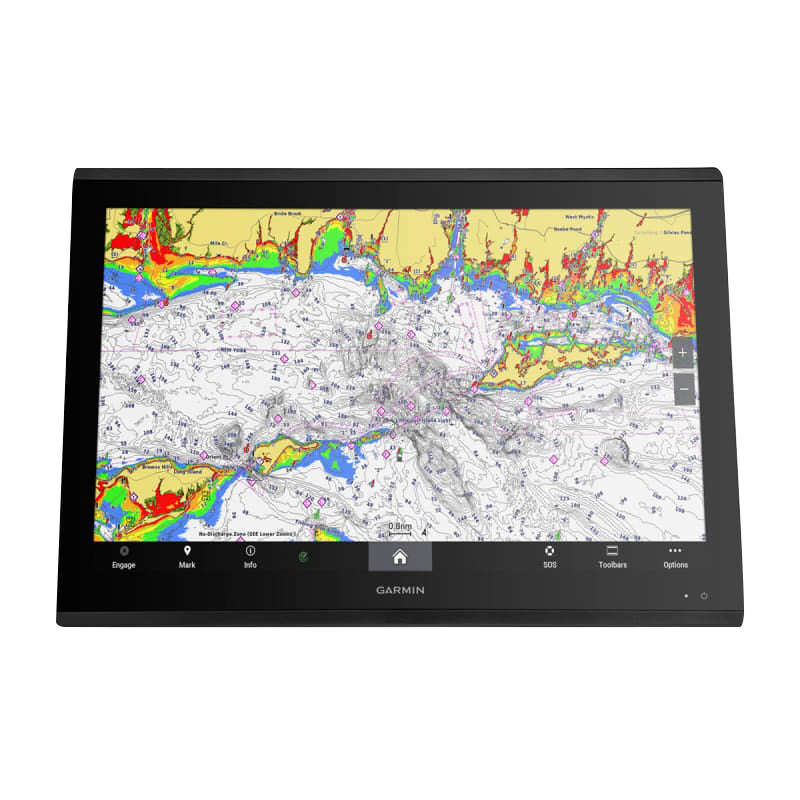

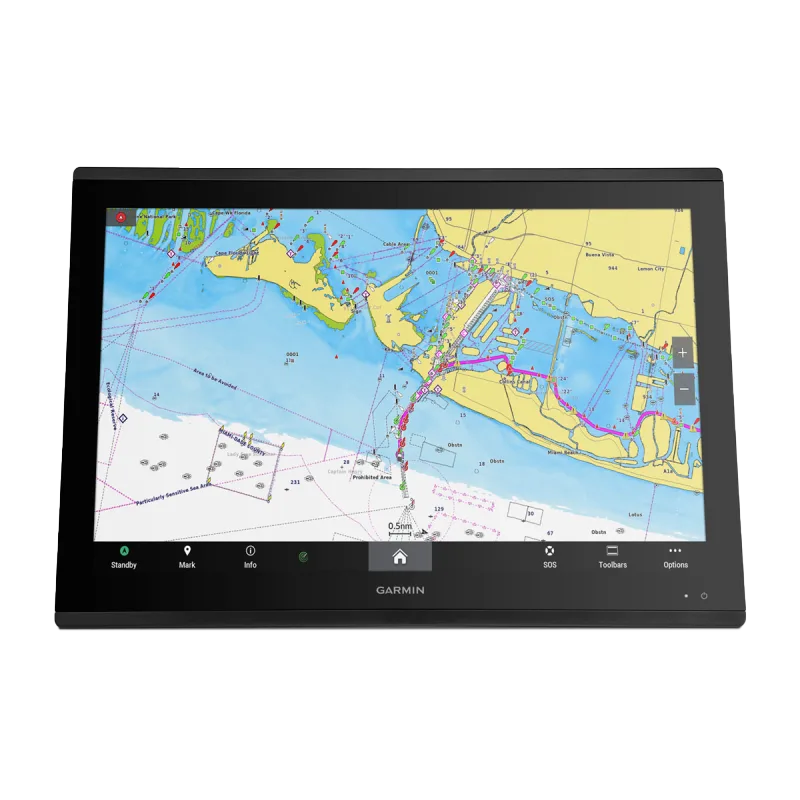

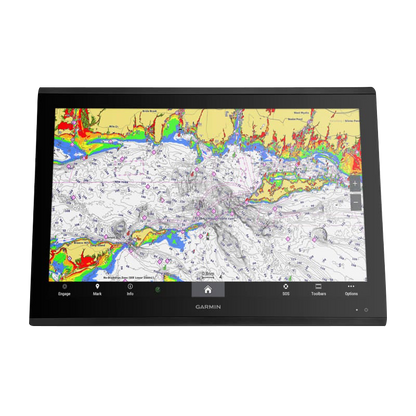

• Built-in Garmin Navionics+™ mapping with detailed inland and coastal charts plus 1-year daily update subscription
• Auto Guidance+™ intelligent routing technology for streamlined course planning and waypoint optimization
• Garmin SailAssist™ navigation tools including laylines, race start guidance, and wind data integration
• SmartMode™ quick-access controls for essential navigation functions during critical operations

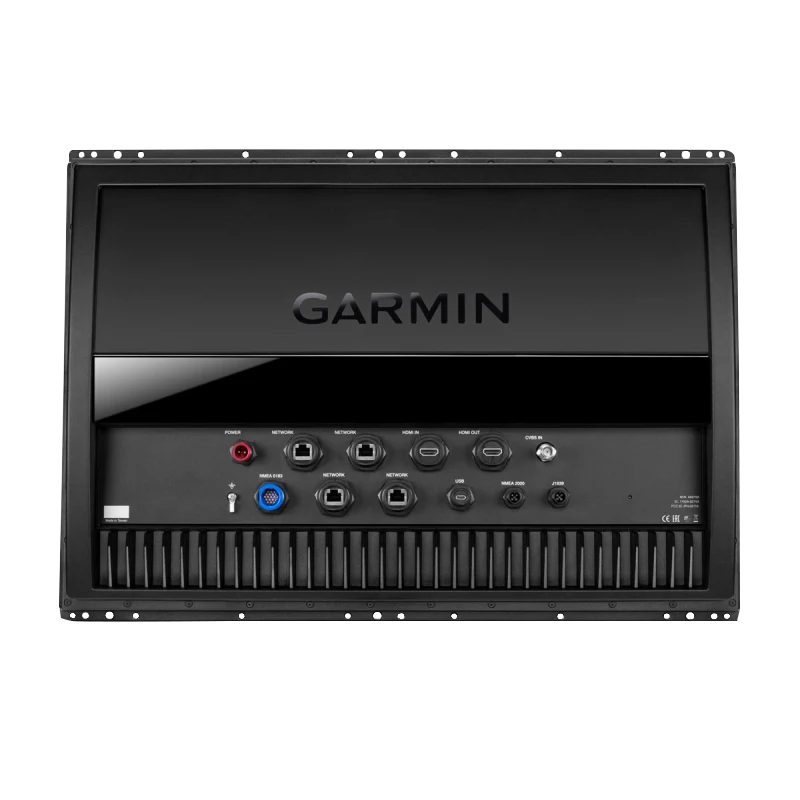

• Network-capable architecture supporting seamless data integration with multiple compatible Garmin marine devices

Data Insights

Users report a 30% improvement in route planning efficiency when utilizing the Auto Guidance+™ technology, significantly reducing transit time through complex waterways and congested navigation zones. The dual-channel CHIRP sonar architecture provides enhanced target discrimination and bottom composition analysis compared to single-frequency systems, enabling faster decision-making during both fishing and navigation scenarios.

Usage Instructions

Power on the device and configure your navigation preferences using the on-screen setup wizard. Activate SmartMode™ to customize your display layout, prioritizing the tools you use most frequently during your typical operating conditions. Configure sonar sensitivity based on your water depth and bottom type, then save custom profiles for different locations or fishing grounds. Use the touchscreen to pan, zoom, and overlay data layers on your nautical charts for comprehensive situational awareness.

Design and Material

The GPSMAP 8424 MFD features a compact, dashboard-integrated form factor designed for both center console and cabin-equipped vessels. Marine-grade aluminum and stainless steel construction withstand prolonged saltwater exposure, UV radiation, and temperature fluctuations typical of open-ocean and coastal environments.

• Marine-grade corrosion-resistant materials rated for saltwater and harsh weather exposure
• Anti-glare IPS display technology maintains readability across a 178-degree viewing angle
• Compact lateral footprint minimizes dashboard space requirements without sacrificing screen real estate
• Multiple mounting bracket configurations accommodate different installation geometries and vessel types
• Sealed touchscreen interface prevents water ingress while maintaining responsive tactile feedback
• Engineered build quality includes rigorous environmental testing and factory quality control validation

Final Verdict

The Garmin GPSMAP 8424 MFD is an essential integration for serious marine operators who require high-resolution navigation, advanced sonar performance, and reliable data connectivity. With proven efficiency gains, weather-resistant engineering, and comprehensive pre-loaded mapping, this chartplotter delivers measurable value for cruising, commercial fishing, and competitive sailing operations. Upgrade your vessel's navigation infrastructure today and experience the performance advantage that professional-grade marine electronics provide.
