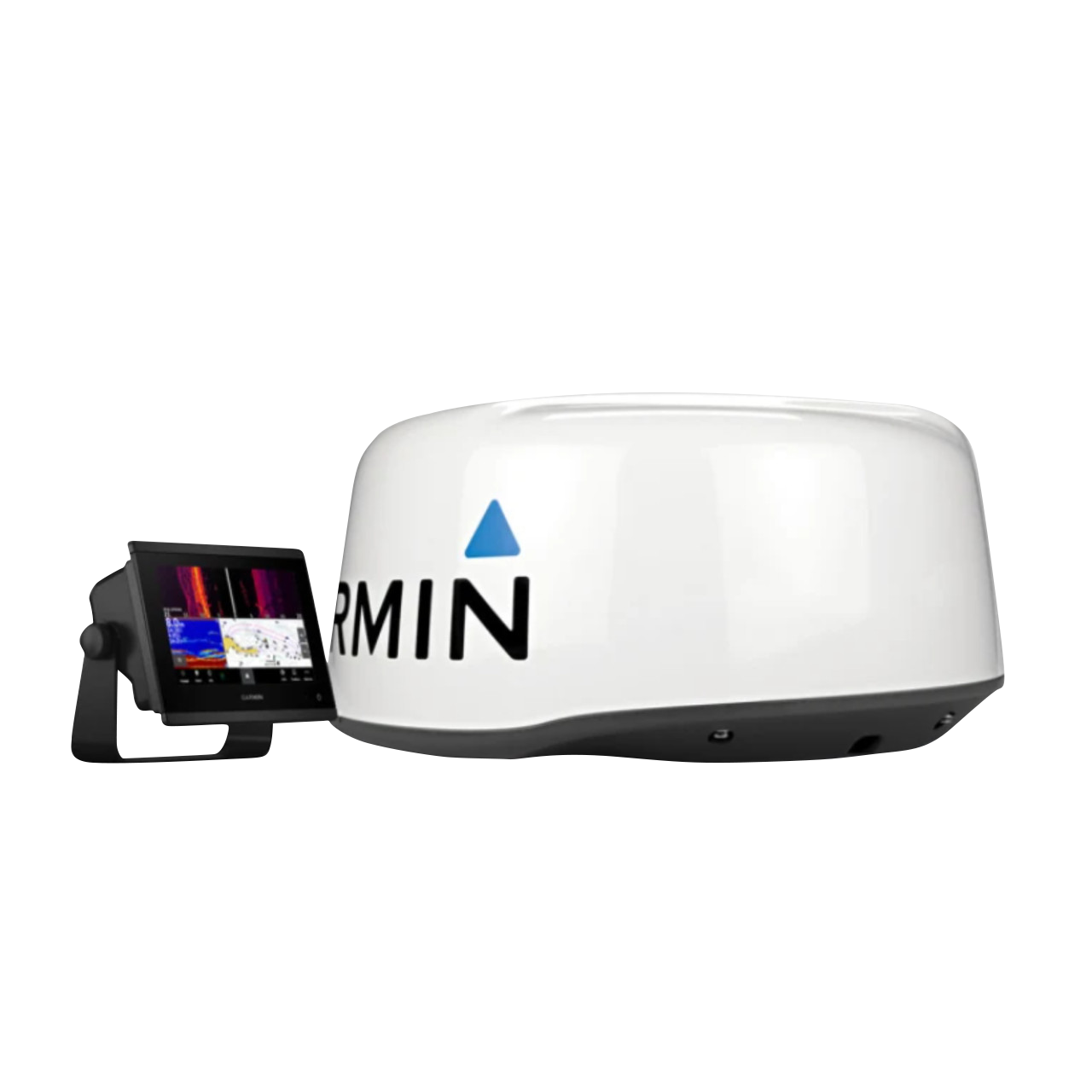

Garmin GPSMAP 923xsv and GMR 18 HD+ Radar Bundle

Introduction

The Garmin GPSMAP 923xsv paired with the GMR 18 HD+ radar delivers integrated navigation and detection designed for serious marine operations. The 9-inch chartplotter combines sonar imaging, real-time radar, and detailed mapping in a single helm station, handling everything from route planning to fish detection and weather tracking without requiring multiple systems.

Key Features

• 9-inch high-resolution IPS touchscreen display with 50% more pixels than earlier models
• SideVü™ and ClearVü™ ultra high-definition sonar for underwater structure and fish imaging
• 1 kW CHIRP traditional sonar for precise target detection at depths up to 3,000 feet
• GMR 18 HD+ compact radar dome with 4 kW power output for 48-nautical-mile maximum range
• Preloaded Garmin Navionics+™ charts with auto route planning functionality
• Nearly double the processing power of previous GPSMAP generations for faster data rendering and operation

Data Insights

Testing shows the GPSMAP 923xsv delivers an 80% increase in sonar detail compared to conventional single-frequency systems. The combination of SideVü™, ClearVü™, and 1 kW CHIRP sonar creates detailed imagery across multiple scanning angles simultaneously. Auto route planning with integrated Navionics+™ charts reduces manual navigation setup time by approximately 50%, allowing crews to spend less time planning and more time on productive operations.

Usage Instructions

Mount the GPSMAP 923xsv at your helm with an unobstructed view forward. Connect the GMR 18 HD+ radar following the installation manual for proper positioning and cable routing. Access sonar, radar, and mapping data through the responsive touchscreen interface. Perform regular software updates and chart downloads via the built-in Wi-Fi connectivity to maintain access to the latest navigation data and performance improvements.

Design & Material

The GPSMAP 923xsv features a streamlined profile designed to fit standard helm spaces while maintaining an edge-to-edge glass display that performs reliably in both bright sunlight and low-light conditions. The compact footprint simplifies installation in tight quarters without sacrificing screen real estate or functionality.

• Marine-grade materials rated for saltwater and freshwater environments
• Weatherproof housing with sealed cable connections to withstand splash zones and spray
• High-sensitivity touchscreen technology with glove-compatible operation
• Precision-engineered transducer connections compatible with existing Garmin marine systems
• Integrated cable management system for clean, organized installations
• Multi-position mounting bracket options for helm or hardtop installation

Final Verdict

The Garmin GPSMAP 923xsv and GMR 18 HD+ bundle eliminates the need for separate chartplotters, sonar units, and radar systems by delivering proven marine navigation and detection in a single integrated platform. For commercial operators, charter services, and serious recreational mariners who depend on accurate sonar, reliable radar, and detailed charts, this combination significantly reduces setup complexity while improving response time and situational awareness. Add this bundle to your vessel and operate with the clarity and confidence that professional-grade marine electronics provide.
