Garmin GPSMAP 923xsv Marine Chartplotter with SideVü, ClearVü, and CHIRP Sonar

Introduction

The Garmin GPSMAP 923xsv combines a 9-inch IPS chartplotter with integrated sonar systems designed to deliver detailed underwater imaging and real-time navigation data on the water. Built for boaters and anglers who depend on accurate fish finding and precise route planning, this device pairs traditional CHIRP sonar capable of 1 kW output with advanced imaging technologies, giving you multiple ways to read underwater structure and locate fish. The edge-to-edge glass display handles glare in bright sunlight while maintaining color accuracy across viewing angles, making chart and sonar data legible from the helm in virtually any lighting condition.

Key Features

• 9-inch IPS touchscreen display with edge-to-edge glass construction for maximum visibility and durability

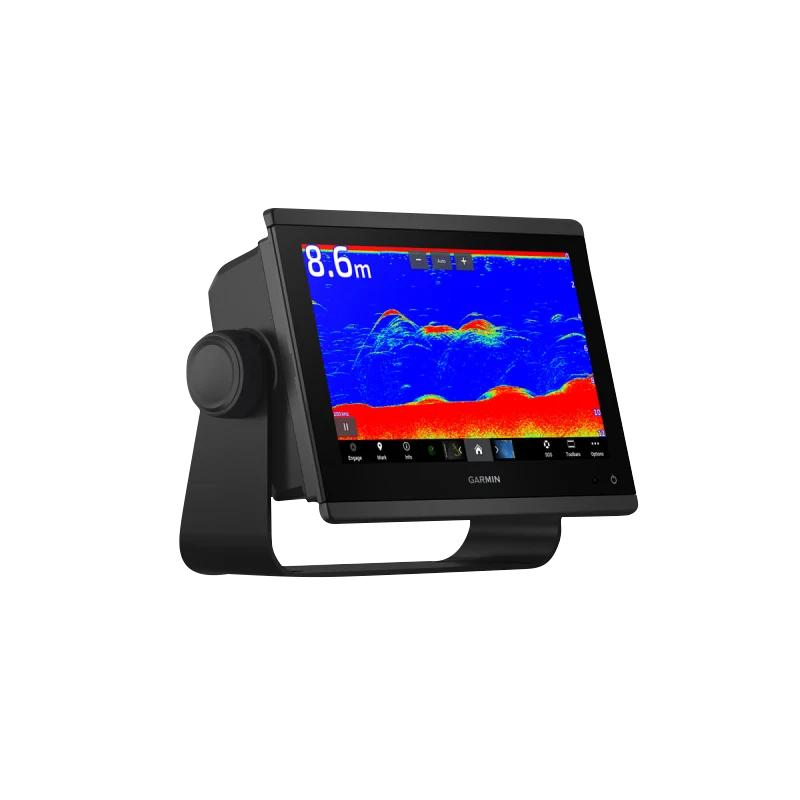

• Traditional CHIRP sonar output up to 1 kW for extended range and enhanced target definition
• SideVü and ClearVü scanning sonar for 270-degree and forward-looking imaging with color-coded fish targeting
• Live sonar compatibility with Panoptix and LiveScope systems (transducers purchased separately)

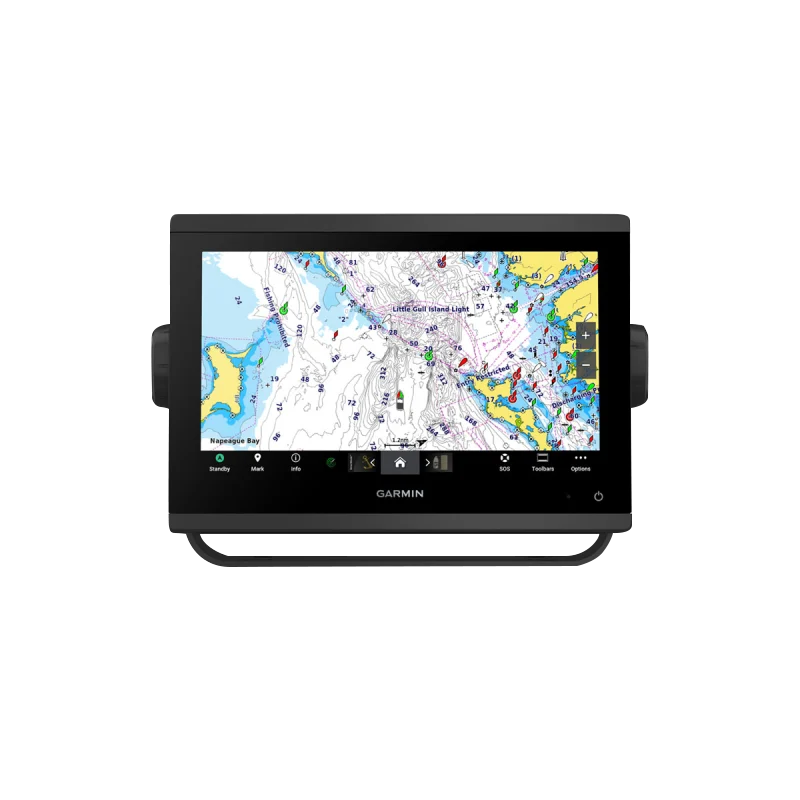

• Preloaded Garmin Navionics+ worldwide basemap with vector charts for global navigation and route planning
• NMEA 2000 and NMEA 0183 connectivity for integration with autopilots, VHF radios, and other marine electronics

Data Insights

Advanced sonar technology allows anglers to distinguish fish from structure and bottom composition with significantly improved accuracy compared to traditional single-frequency systems. The combination of SideVü imaging and traditional CHIRP sonar provides complementary data—SideVü captures a wide lateral view while CHIRP delivers depth-resolved target information. This dual-sonar approach reduces the guesswork when identifying productive fishing zones, especially in depths ranging from shallow flats to offshore structures.

Usage Instructions

Mount the GPSMAP 923xsv in a position that minimizes direct sunlight glare while keeping it within arm's reach of your helm station. Connect compatible sonar transducers to the appropriate ports and use the intuitive touchscreen interface to select your preferred sonar view—SideVü, ClearVü, or traditional CHIRP. Utilize the preloaded Navionics+ charts to establish waypoints and routes before heading out. For Live Sonar viewing, pair the device with Panoptix or LiveScope transducers following the product-specific wiring guidelines.

Design & Material

The GPSMAP 923xsv is engineered with marine-grade materials to endure salt spray, moisture, and temperature fluctuations inherent to boating environments. Its compact form factor fits tight helm spaces without sacrificing screen real estate or functionality. The robust construction and integrated mounting provisions allow installation on various boat types, from center consoles to cabin cruisers, with minimal modification.

• Edge-to-edge glass display maximizes viewable area and protects internal components from water intrusion
• IPS panel technology ensures consistent color accuracy and readability at wide viewing angles
• Stainless steel and marine-grade polymer construction resists corrosion and UV degradation

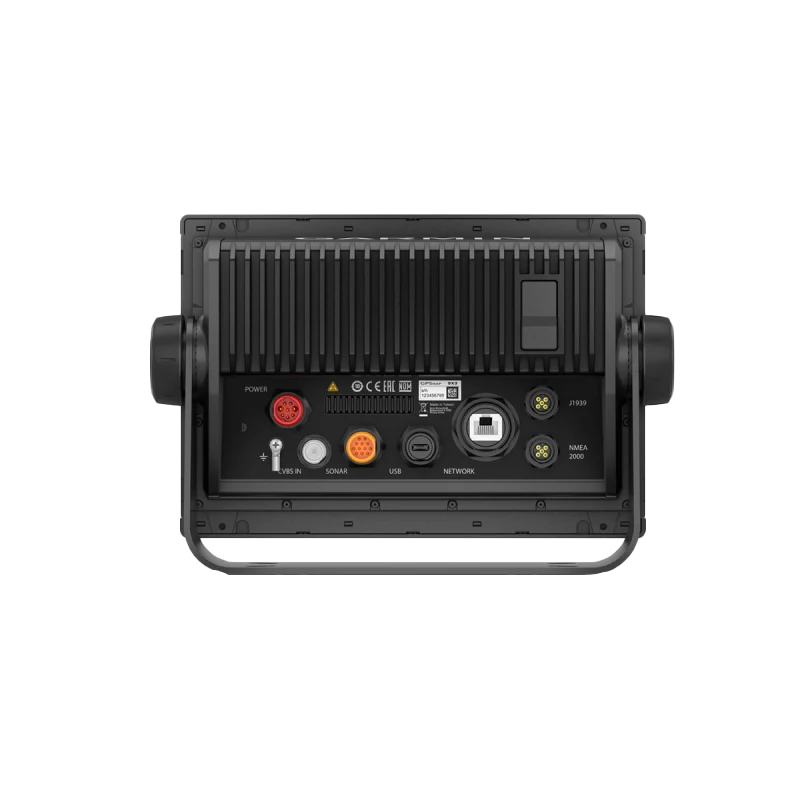

• Integrated NMEA connector ports support plug-and-play connections to auxiliary sensors and devices
• Flush-mount and bracket-mount options simplify installation across different helm configurations
• Power supply accepts 12–24 VDC input, compatible with standard marine electrical systems

Final Verdict

The GPSMAP 923xsv delivers the sonar imaging clarity and navigation precision required by serious anglers and professional boaters. With three independent sonar technologies—traditional CHIRP, SideVü, and ClearVü—plus worldwide basemaps and seamless integration into modern marine networks, this chartplotter eliminates the need for multiple single-function devices. If you rely on accurate fish finding and consistent chart accuracy to spend your time on the water more productively, the GPSMAP 923xsv justifies its position as a central hub for your vessel's navigation and fishing systems. Invest in reliable underwater visibility and navigation data today.
