Garmin GPSMAP 9500 Black Box Marine Navigation System

Introduction

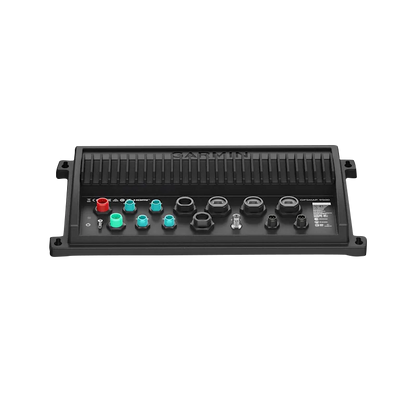

The Garmin GPSMAP 9500 Black Box (model 010-02677-00) is a full-featured marine navigation processor designed for serious boaters who demand fast processing, reliable sonar integration, and seamless network connectivity across multiple onboard systems. This compact black box unit processes navigation data, manages sonar feeds, and coordinates multi-monitor displays with processing power seven times faster than previous generation systems, reducing lag during real-time navigation and eliminating delays when switching between charts, sonar views, and electronic systems.

Key Features

• HDMI video output with USB DRD support for multi-display configuration and touchscreen compatibility
• 7x faster processor compared to predecessor models, delivering accelerated chart rendering and route calculations
• Garmin BlueNet™ technology providing gigabit networking speeds, 10 times faster than previous generation systems
• Full compatibility with LiveScope™, Panoptix™, and CHIRP sonar technologies for real-time underwater imaging and traditional sonar
• Integrated Garmin Navionics+™ mapping with Auto Guidance+™ for optimized route planning and advanced waypoint navigation
• Tri-band wireless connectivity combining Wi-Fi, Bluetooth, and ANT protocols for integrated device communication
• Compact black box form factor measuring 1.4 inches, engineered for helm integration without occupying excessive space

Data Insights

The GPSMAP 9500 delivers measurable performance advantages through its generational leap in processing capabilities. With processing speeds rated at seven times faster than previous models, users experience significantly reduced rendering times when zooming charts, calculating complex routes, or switching between multiple sonar displays. The implementation of Garmin BlueNet™ technology achieves gigabit networking speeds—a tenfold improvement over earlier systems—enabling real-time data synchronization across multiple networked chartplotters, sonar units, and autopilot systems without bottlenecks or latency issues.

Usage Instructions

Connect the GPSMAP 9500 Black Box to HDCP-compliant monitors or display units via HDMI to enable full chartplotter and sonar visualization. Integrate sonar transducers for LiveScope™ real-time sonar or traditional CHIRP options by connecting through dedicated sonar networking ports. Use the ActiveCaptain® app to manage wireless software updates, plan routes remotely, and sync waypoints and tracks directly to the black box processor. For optimal multi-display operation, connect additional monitors through the integrated HDMI outputs and configure display preferences through the system menu to route sonar, charts, or specialized data views to specific screens.

Design & Material

The GPSMAP 9500 features a purpose-built marine enclosure designed to operate reliably in harsh saltwater environments. Its compact black box architecture minimizes helm footprint while delivering enterprise-grade marine electronics performance. The cooling system actively manages processor heat through strategically designed ventilation channels, ensuring sustained performance during extended navigation sessions.

• Rugged marine-grade housing engineered to withstand exposure to saltwater spray, UV radiation, and temperature fluctuations
• Compact dimensions optimized for installation in standard helm consoles and networking cabinets aboard vessels
• Advanced heat dissipation through internal cooling channels and passive ventilation design to maintain optimal operating temperatures
• Integrated networking ports and connectivity interfaces (HDMI, USB, Ethernet) for simplified integration with existing marine systems
• Durable construction using premium materials rated for the marine environment with corrosion-resistant hardware
• Professional-grade internal components delivering reliable processing power for mission-critical navigation and sonar data management

Final Verdict

For fishing boat operators, professional captains, and recreational cruisers who require fast, reliable navigation processing with advanced sonar integration, the Garmin GPSMAP 9500 Black Box represents a substantial upgrade in system responsiveness and connectivity. The sevenfold processing improvement directly translates to faster chart updates and sonar rendering, while the BlueNet networking architecture eliminates synchronization delays across multiple displays and sonar systems. This is the processor backbone for boaters who refuse to compromise on performance or speed. Install the GPSMAP 9500 Black Box today and experience the difference that next-generation marine electronics make on the water.
