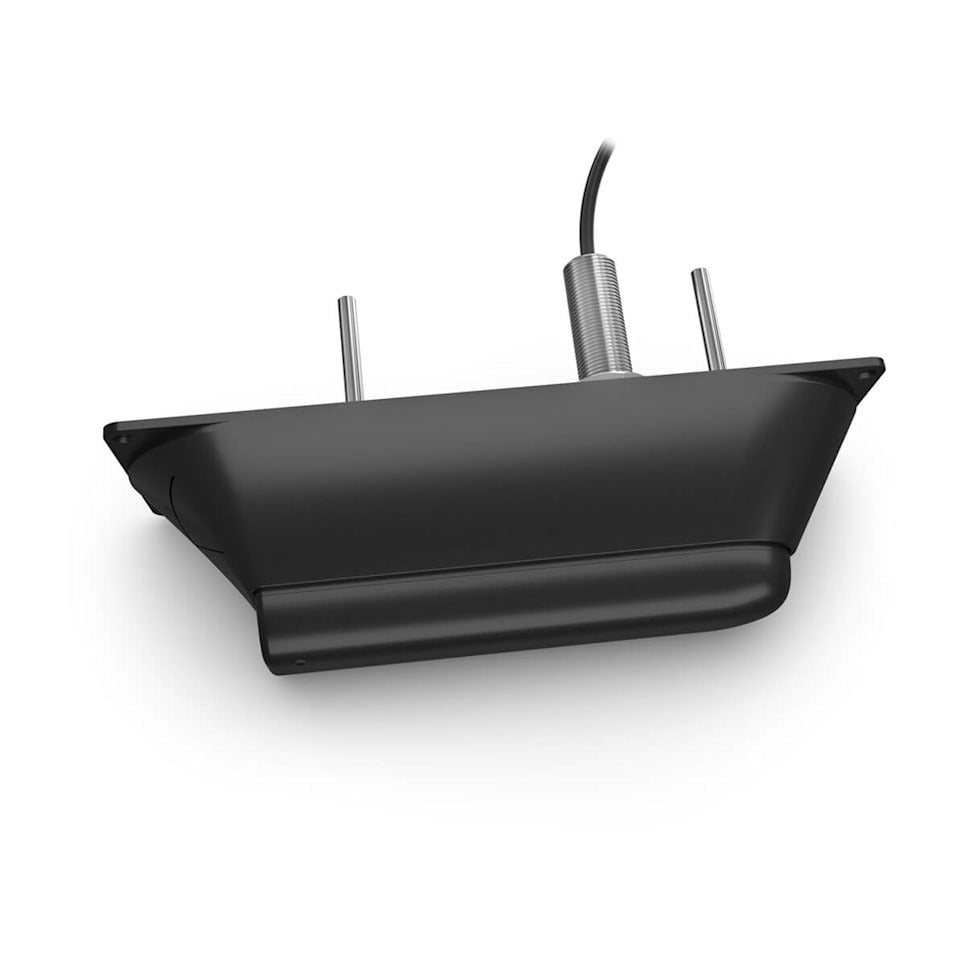

Garmin GT56UHD-TH All-in-One Transducer (010-02732-10)

Introduction

The Garmin GT56UHD-TH is designed for anglers who want the ultimate combination of sonar technologies in a single transducer. By integrating Ultra High-Definition ClearVü and SideVü scanning sonar with High Wide CHIRP traditional sonar, it delivers remarkably detailed underwater images, superior target separation, and expansive coverage around your boat.

Whether you're searching for fish, identifying underwater structures, or exploring unfamiliar waters, the GT56UHD-TH provides crystal-clear sonar images with enhanced range and vibrant colour detail. Multiple scanning frequencies allow you to optimize performance for different water depths, while the included mounting hardware provides installation flexibility to suit a variety of boats.

Key Features

Ultra High-Definition ClearVü Sonar

• Produces exceptionally detailed images beneath the boat.
• Enhanced target clarity at greater depths.
• Downward-facing scanning element.
• Clearly identifies fish and underwater structures.

Ultra High-Definition SideVü Sonar

• Wide-angle scanning on both sides of the boat.
• Up to 20% greater range at 1,000 kHz.
• Quickly surveys large fishing areas.
• Exceptional structure and fish detail.

High Wide CHIRP Traditional Sonar

• Outstanding fish target separation.
• Sharp fish arches and bottom detail.
• Effective scanning to depths of 244 m (800 ft).
• High-performance traditional sonar.

Multiple Sonar Frequencies

• Supports 455 kHz scanning.
• Supports 800 kHz scanning.
• Supports 1,000 kHz Ultra High-Definition scanning.
• Optimized performance across various depths.

Vivid Colour Display

• High-contrast colour palettes.
• Improved target visibility.
• Easier identification of fish and structures.
• Enhanced underwater interpretation.

Flexible Installation

• Supports thru-hull mounting.
• Compatible with transom mounting.
• Compatible with trolling motor mounting.
• Includes mounting hardware.

Sonar Performance Insights

The Garmin GT56UHD-TH combines three advanced sonar technologies to deliver one of the most versatile underwater imaging solutions available. Ultra High-Definition ClearVü provides detailed images directly beneath the boat, while SideVü scanning offers expansive views to both sides with increased range for locating fish and submerged structures more efficiently.

High Wide CHIRP traditional sonar delivers exceptional target separation and crisp fish arches, making it easier to distinguish individual fish from surrounding cover. Combined with vivid colour palettes and multiple selectable frequencies, the GT56UHD-TH adapts to a wide variety of fishing environments and water depths.

Usage Instructions

Install the Garmin GT56UHD-TH using the mounting option that best suits your vessel, including thru-hull, transom, or trolling motor installation. Follow the supplied installation instructions to ensure proper alignment and optimal sonar performance.

Connect the transducer to your compatible Garmin chartplotter and configure the sonar settings to take advantage of Ultra High-Definition ClearVü, Ultra High-Definition SideVü, and High Wide CHIRP traditional sonar. Select the most appropriate scanning frequency based on your fishing conditions for the best possible underwater imagery.

Design & Build

The Garmin GT56UHD-TH features a rugged marine-ready design engineered for dependable operation in demanding fishing environments. Its all-in-one construction simplifies installation while providing multiple sonar technologies in a single compact transducer.

Design Highlights

• All-in-one sonar transducer
• Ultra High-Definition ClearVü sonar
• Ultra High-Definition SideVü sonar
• High Wide CHIRP traditional sonar
• Downward-facing scanning element
• Multiple scanning frequencies
• 455 kHz operation
• 800 kHz operation
• 1,000 kHz Ultra High-Definition scanning
• Effective depth up to 244 m (800 ft)
• High-contrast vivid colour support
• Thru-hull mounting compatible
• Transom mounting compatible
• Trolling motor mounting compatible
• Complete mounting hardware included

Final Verdict

The Garmin GT56UHD-TH is an exceptional all-in-one sonar transducer for anglers seeking maximum underwater visibility and versatility. Combining Ultra High-Definition ClearVü, Ultra High-Definition SideVü, High Wide CHIRP traditional sonar, multiple scanning frequencies, and flexible mounting options, it delivers professional-level fish finding and structure imaging across a wide range of fishing conditions.

Whether you're fishing shallow lakes, coastal waters, or offshore locations, the Garmin GT56UHD-TH provides the clarity, coverage, and precision needed to spend less time searching and more time catching fish.
