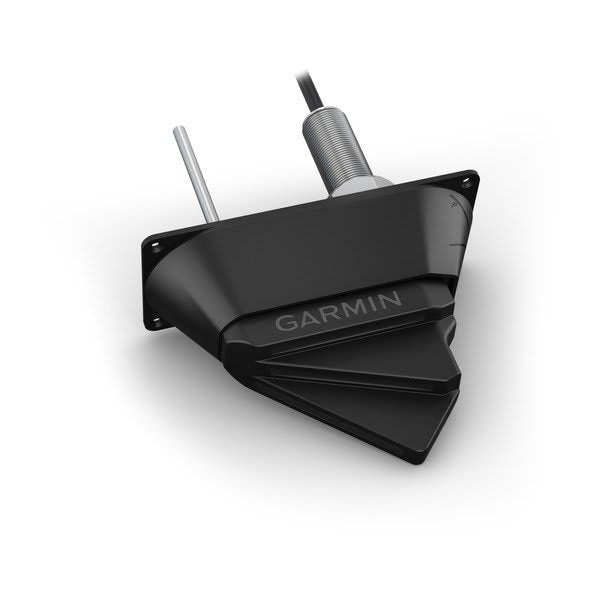

Garmin Panoptix LVS32-TH Transducer Thru-Hull Mount (010-12928-01)

Introduction

The Garmin Panoptix LVS32-TH Thru-Hull Mount Transducer brings advanced live-scanning sonar technology to serious anglers seeking unparalleled underwater visibility. Designed specifically for the Garmin Panoptix LiveScope™ system, this thru-hull transducer delivers highly detailed, real-time sonar images that allow you to watch fish movement, bait schools, and underwater structures as they happen.

When paired with the required GLS™ 10 sonar black box, the LVS32-TH provides LiveScope™ Forward mode, enabling you to scan up to 60 metres in front of and around your boat—even when the vessel is stationary. Integrated Attitude Heading Reference System (AHRS) stabilization automatically compensates for boat movement, ensuring smooth, stable sonar images even in rough water conditions.

Ideal for offshore, freshwater, and coastal fishing, the Garmin Panoptix LVS32-TH offers exceptional live sonar performance through a durable thru-hull installation.

Key Features

LiveScope™ Forward Sonar

• Delivers live-scanning sonar in real time.
• Displays fish, bait, and underwater structures instantly.
• Scan up to 60 metres around the boat.
• Effective even when the boat is stationary.

Real-Time Underwater Imaging

• View fish movement as it happens.
• Track bait schools with exceptional clarity.
• Observe underwater structures in real time.
• Helps improve fishing precision and efficiency.

AHRS Stabilization

• Built-in Attitude Heading Reference System.
• Automatically stabilizes sonar images.
• Maintains a steady display in rough conditions.
• Improves viewing accuracy while underway.

Thru-Hull Installation

• Permanent thru-hull mounting design.
• Optimized for reliable sonar performance.
• Clean and secure installation.
• Ideal for a wide range of fishing vessels.

Panoptix LiveScope Compatibility

• Designed for the Panoptix LiveScope™ system.
• Requires the Garmin GLS™ 10 sonar black box.
• Fully integrated with compatible Garmin chartplotters.
• Expands live sonar capabilities for serious anglers.

Exceptional Fish-Finding Performance

• Monitor fish behavior in real time.
• Improve lure presentation.
• Locate active fish faster.
• Enhance decision-making on the water.

Performance Insights

The Garmin Panoptix LVS32-TH revolutionizes fish finding by providing continuous live sonar instead of traditional historical sonar returns. Rather than viewing where fish were moments ago, anglers can watch fish, bait, and underwater structures moving in real time, making it easier to adjust presentations and target active fish.

The integrated AHRS stabilization system maintains a consistent sonar image by compensating for boat movement caused by waves and rough water. Combined with the permanent thru-hull installation, the LVS32-TH delivers reliable, high-quality sonar performance across a variety of freshwater and saltwater fishing environments.

Usage Instructions

Install the LVS32-TH transducer according to Garmin's installation guidelines for thru-hull mounting. Pair the transducer with the required Garmin GLS™ 10 sonar black box and connect it to a compatible Garmin chartplotter.

Configure the LiveScope™ Forward mode through your chartplotter to begin viewing real-time underwater activity. Regularly inspect and clean the transducer surface to maintain optimal sonar performance.

Please note that the LVS32-TH cannot operate independently and requires the GLS™ 10 sonar black box for functionality.

Design & Construction

The Garmin Panoptix LVS32-TH is engineered for permanent marine installation, offering dependable performance in demanding freshwater and saltwater environments. Its rugged construction and integrated stabilization technology ensure accurate, reliable live sonar imaging throughout every fishing trip.

Design Highlights

• Thru-hull mounted live sonar transducer
• Compatible with Panoptix LiveScope™ system
• Requires Garmin GLS™ 10 sonar black box
• LiveScope™ Forward scanning sonar
• Real-time fish and structure imaging
• Scanning range up to 60 metres
• Built-in AHRS stabilization
• Stable sonar images in rough water
• Permanent marine installation
• Compatible with Garmin chartplotters
• Excellent fish target tracking
• Real-time bait movement visualization
• Durable marine-grade construction
• Suitable for freshwater and saltwater use
• Professional fish-finding performance
• Optimized for serious anglers

Final Verdict

The Garmin Panoptix LVS32-TH Thru-Hull Mount Transducer is an outstanding solution for anglers who want the advantages of permanent live-scanning sonar installation. Delivering real-time LiveScope™ Forward imaging, advanced AHRS stabilization, and exceptional underwater visibility when paired with the GLS™ 10 sonar black box, it enables more precise fish tracking, better lure placement, and greater confidence on every fishing adventure. Whether you're targeting freshwater species or offshore game fish, the LVS32-TH provides the live sonar performance needed to stay one step ahead.
