Garmin Panoptix PS70 Transducer: Live Sonar Imaging Up to 1,000 Feet for Deep-Water Fishing

Introduction

The Garmin Panoptix PS70 Transducer delivers real-time sonar imaging that transforms how you locate and track fish in deep water. This thru-hull transducer combines 800 watts of sonar power with an advanced 10+ frames-per-second display rate, enabling anglers to see baitfish, game fish, and underwater structures as they move below the surface. With the ability to penetrate depths up to 1,000 feet, the PS70 eliminates guesswork from deep-sea fishing and puts actionable underwater intelligence directly in your hands.

Key Features

• Live sonar display with 10+ frames per second refresh rate—six to eight times faster than many competing transducers
• Maximum sonar range of 1,000 feet for deep-water coverage and structure detection
• Wide 120-degree by 8-degree sonar beam angle for expanded underwater scanning
• 800-watt power output ensuring strong sonar penetration through all water conditions
• Multiple sonar modes including LiveVü™ Down, Traditional, Triple-Beam, and RealVü™ 3D imaging
• Stainless steel construction rated for thru-hull, flush, or pocket mounting configurations
• Internal image stabilization sensor compensating for boat motion in rough seas
• Compatible with Garmin EchoMap and other supported chartplotters via single transducer connection

Data Insights

The PS70 outperforms traditional sonar systems with a display refresh rate that updates at least 10 times per second, making it significantly faster than conventional single-frequency transducers. The 120-degree beam width combined with 1,000-foot depth capability creates a detection envelope that covers a much larger portion of the water column than standard transducers, increasing the likelihood of locating fish and navigational hazards before they pass directly beneath your vessel.

Usage Instructions

Install the PS70 following Garmin's thru-hull mounting guidelines, positioning the transducer at the optimal deadrise angle for your hull type using the included fairing block for angles between 0 and 20 degrees. Once mounted and connected to your compatible Garmin fishfinder, activate sonar modes based on your fishing depth and water conditions. Use LiveVü™ Down for direct viewing of fish activity below you, switch to RealVü™ 3D for three-dimensional structure mapping, or rely on Traditional mode for classic sonar performance in varying light and water clarity conditions.

Design and Material

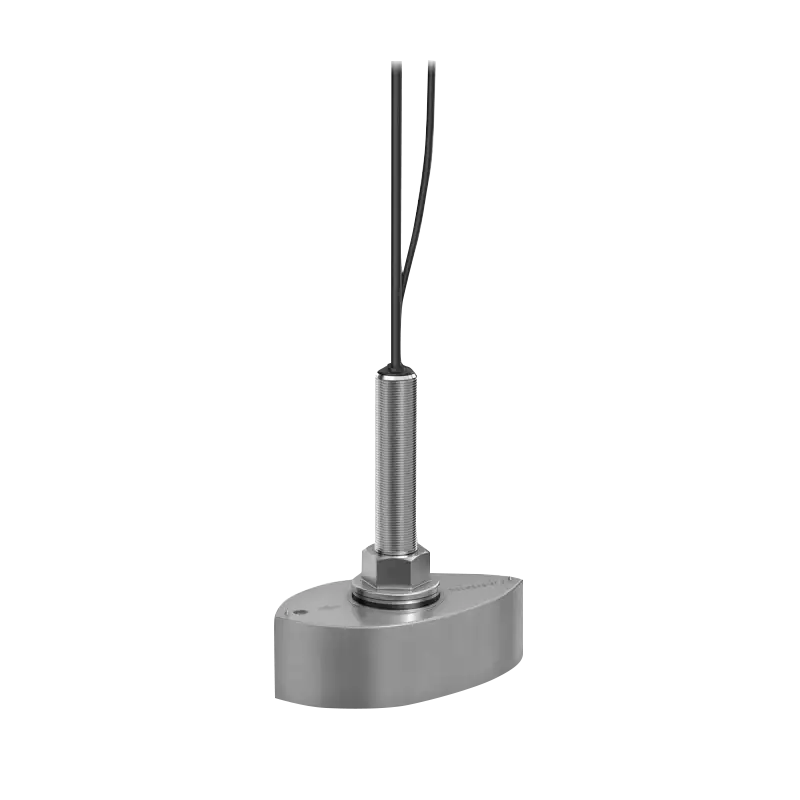

The Panoptix PS70 features a compact, hydrodynamic design engineered to minimize drag while maximizing sonar performance. Its robust stainless steel construction withstands prolonged exposure to saltwater and harsh marine environments without degradation.

• Stainless steel housing resists corrosion and saltwater deterioration over extended use
• Precision-engineered thru-hull design for flush mounting or pocket mount installation
• Streamlined transducer shape reduces water resistance and maintains hull integrity
• Sealed internal components protect electronics from moisture and pressure at depth
• Threaded stainless steel connector shaft rated for secure, permanent installation
• Compact footprint designed for easy integration into existing boat electronics systems

Final Verdict

Serious deep-water anglers need the technological edge that real-time sonar provides, and the Panoptix PS70 delivers that advantage with proven speed and depth capability. The combination of 1,000-foot range, 800-watt power, and rapid frame rates creates a fish-finding system that reveals exactly what's happening below your boat. If deep-sea success depends on seeing before your competition does, invest in the PS70 Transducer and gain the underwater vision that transforms fishing trips into consistent catches.
