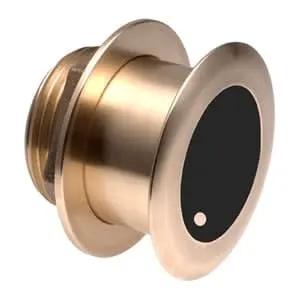

Garmin AIRMAR B175H 0° Tilt Transducer – High-Performance Thru-Hull Sonar for Fishing Vessels

Introduction

The Garmin AIRMAR B175H 0° Tilt Transducer delivers 1 kW of sonar power in a flush-mounted design that minimizes drag while providing exceptional underwater imaging for both inshore and offshore fishing. Unlike traditional transducers that require fairing blocks to account for hull deadrise, the B175H integrates a 0° tilted ceramic element that automatically compensates for compatible hull angles, cutting installation complexity while maintaining precise sonar transmission. Built with a heavy-duty bronze housing for fiberglass and wooden hulls, this transducer is engineered to withstand demanding marine conditions without compromising performance.

Key Features

• Delivers up to 1 kW of high-power sonar output for superior target detection and penetration
• Operates across a 130–210 kHz CHIRP frequency range for exceptional target separation and crisp fish arch detection
• Produces accurate depth readings up to 1,000 feet in both open and coastal water environments
• Flush-mounted bronze housing extends less than 1/4 inch outside the hull, reducing drag and water resistance
• Integrated 0° tilted ceramic element eliminates the need for a fairing block while accommodating compatible hull deadrise automatically
• Equipped with an 8-pin connector compatible with supported Garmin chartplotters and fishfinder systems
• Designed specifically for fiberglass and wooden hull construction with trail-friendly, roller-safe mounting

Data Insights

The B175H's 130–210 kHz CHIRP frequency range produces detailed sonar imagery with outstanding target separation, making it significantly easier to distinguish fish from underwater structures and bottom contours. Operating at 1 kW power output, this transducer provides depth penetration sufficient for deep-water offshore applications while maintaining clarity in shallow-water scenarios. The integrated 0° tilted element compensates for hull geometry, ensuring consistent sonar accuracy across different boat designs without requiring external mounting adjustments.

Usage Instructions

Install the B175H according to supplied installation guidelines to ensure proper thru-hull alignment and secure, watertight mounting. The transducer's built-in 0° tilt element is calibrated to work with compatible hull angles—no fairing block installation is necessary. Connect the 8-pin connector to your compatible Garmin fishfinder or chartplotter, configure sonar settings based on your fishing depth and target species, and verify operation before departing. Periodically inspect and clean the transducer face to maintain optimal sonar resolution.

Design & Material

The B175H combines precision marine engineering with a rugged bronze thru-hull housing built for extended saltwater and freshwater operation. Its low-profile flush-mount design protects the transducer during launching and retrieval while eliminating protrusions that can catch on trailer rollers or dock cleats. The integrated tilted ceramic element is factory-calibrated for consistent sonar performance without field adjustments.

• Heavy-duty bronze housing engineered for harsh marine environments
• Flush-mounted design extends less than 1/4 inch beyond the hull
• Integrated 0° tilted ceramic sonar element for optimized hull angle compensation
• 1 kW high-performance sonar power output in compact form factor
• 8-pin connector interface with universal Garmin system compatibility
• Constructed for fiberglass and wooden hull applications with proven durability
• Trailer-safe profile compatible with roller and bunk systems

Final Verdict

The Garmin AIRMAR B175H 0° Tilt Transducer is the ideal choice for boat owners upgrading to premium CHIRP sonar without the hassle of fairing block installation. Its integrated tilted element, 1 kW power output, and 130–210 kHz frequency range deliver the target separation, depth penetration, and underwater detail serious anglers demand. Whether you fish shallow coastal waters or venture into deep offshore zones, the B175H's flush-mount bronze construction and Garmin compatibility make it a reliable, performance-driven solution for any compatible sonar system. Choose the B175H to maximize your fishing potential with simplified installation and proven sonar accuracy.
