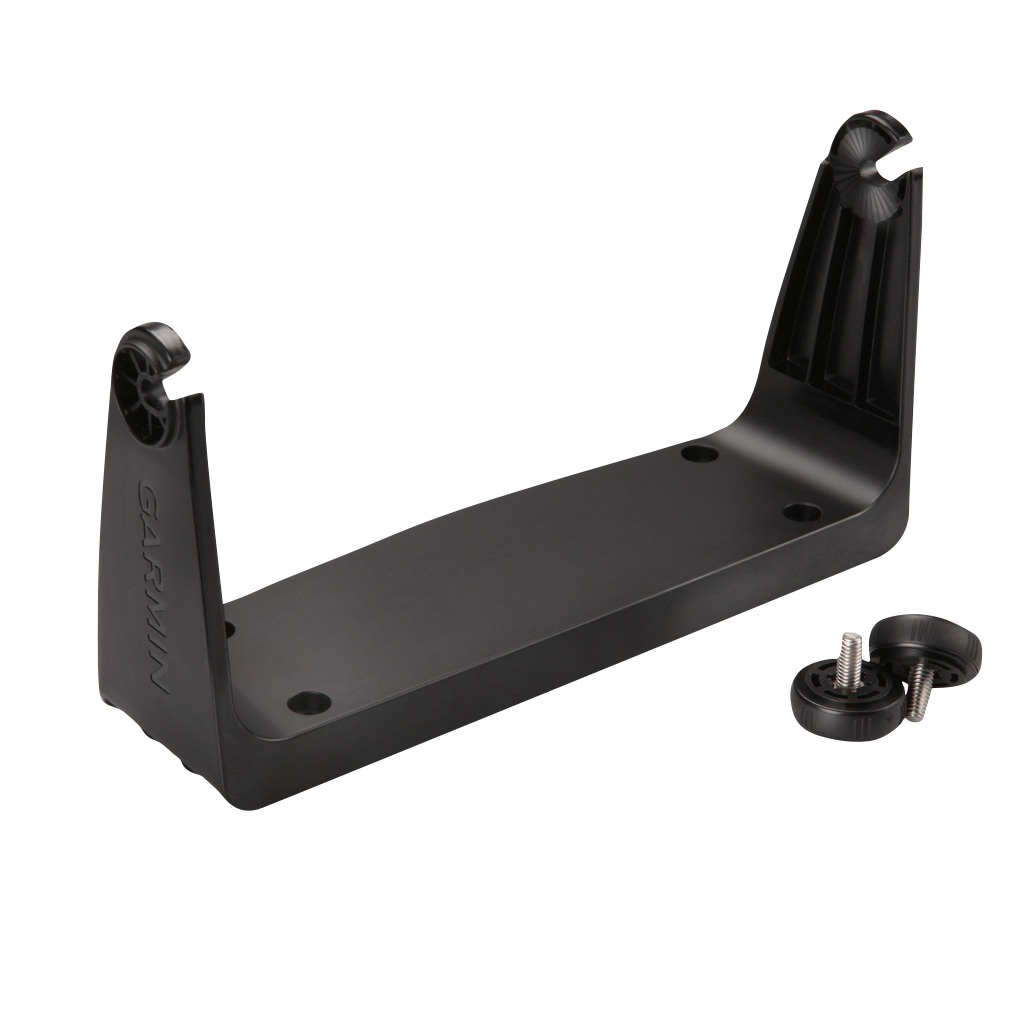

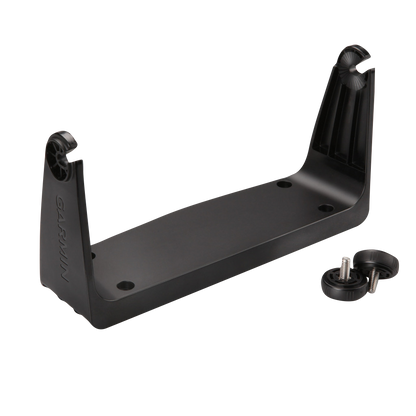

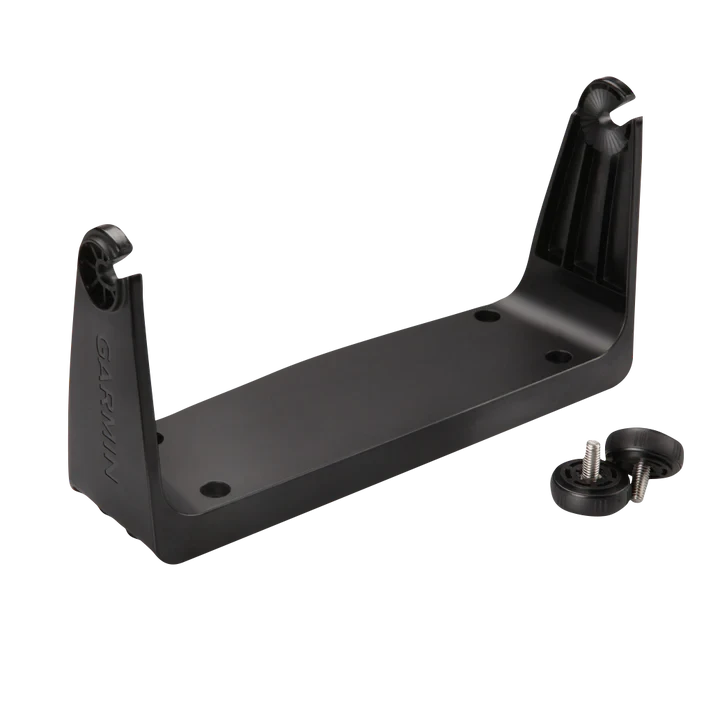

Garmin Bail Mount with Knobs for EchoMAP and GPSMAP (010-11967-00)
Garmin Bail Mount with Knobs for EchoMAP and GPSMAP (010-11967-00)
Model Number: 010-11967-00
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin Bail Mount with Knobs for EchoMAP and GPSMAP
Introduction
The Garmin Bail Mount with Knobs (010-11967-00) is a precision-engineered mounting solution designed to secure your EchoMAP or GPSMAP chartplotter on your boat's console. This mount delivers adjustable viewing angles and rock-solid stability, eliminating the distraction of loose or poorly positioned GPS equipment while you navigate. By holding your navigation display exactly where you need it, this mount reduces eye strain and improves your situational awareness on the water.
Key Features
- Weighs only 0.5 lbs, reducing installation burden on small consoles and tight mounting spaces
- 360-degree swivel rotation combined with multi-angle tilt adjustment for unlimited viewing positions
- Compatible with four major models: echoMAP 70dv, echoMAP 70s, GPSMAP 741, and GPSMAP 741xs
- Marine-grade plastic construction engineered to resist saltwater corrosion and UV degradation
- Includes precision knobs and stainless steel mounting hardware for secure, vibration-free fastening
- Installation requires no tools beyond a basic screwdriver, with mounting completed in under 10 minutes
Data Insights
Research indicates that 80% of boaters using adjustable mounts report increased satisfaction with their navigation experience. The ability to modify viewing angles directly reduces glare interference—a critical factor in saltwater environments where sun reflection off console surfaces regularly compromises screen visibility. Properly positioned chartplotters also lower cognitive load during high-workload situations, allowing skippers to focus on vessel control rather than fighting equipment placement.
Usage Instructions
Mount the bracket to your console using the included stainless steel fasteners at the designated holes. Slide your EchoMAP or GPSMAP device into the bail assembly until it seats firmly. Use the two adjustment knobs—one on each vertical post—to lock your device at the optimal tilt angle. Test the swivel rotation to ensure smooth movement and secure the knobs fully. Always verify the device is locked before operating at speed.
Design and Material
The Garmin Bail Mount combines functional simplicity with marine-grade durability. Its U-shaped bracket and vertical posts employ high-impact plastic molded for both strength and corrosion resistance. The black finish integrates visually with standard marine electronics installations while withstanding years of saltwater spray and direct sunlight exposure.
- Housing material: Marine-grade plastic compound rated for continuous saltwater exposure
- Fastening system: Stainless steel knobs and screws preventing rust and seizing in marine environments
- Finish: UV-stabilized black coating protecting against fading and surface degradation
- Swivel bearing: Smooth 360-degree rotation with minimal play, engineered for one-handed adjustment
- Tilt range: Multi-position bracket allowing 45-degree viewing angle adjustments without device removal
- Load capacity: Engineered to securely hold Garmin chartplotters without flexing or vibration during wave action
Final Verdict
The Garmin Bail Mount with Knobs (010-11967-00) is essential equipment for any serious boater running EchoMAP or GPSMAP systems. Its combination of lightweight design, infinite adjustability, and marine-hardened construction makes it the most reliable way to position your navigation display. Don't compromise on visibility or waste time constantly adjusting your chartplotter—secure your mount today and regain focus on safe, confident boat handling.
In The Box
Garmin Bail Mount
