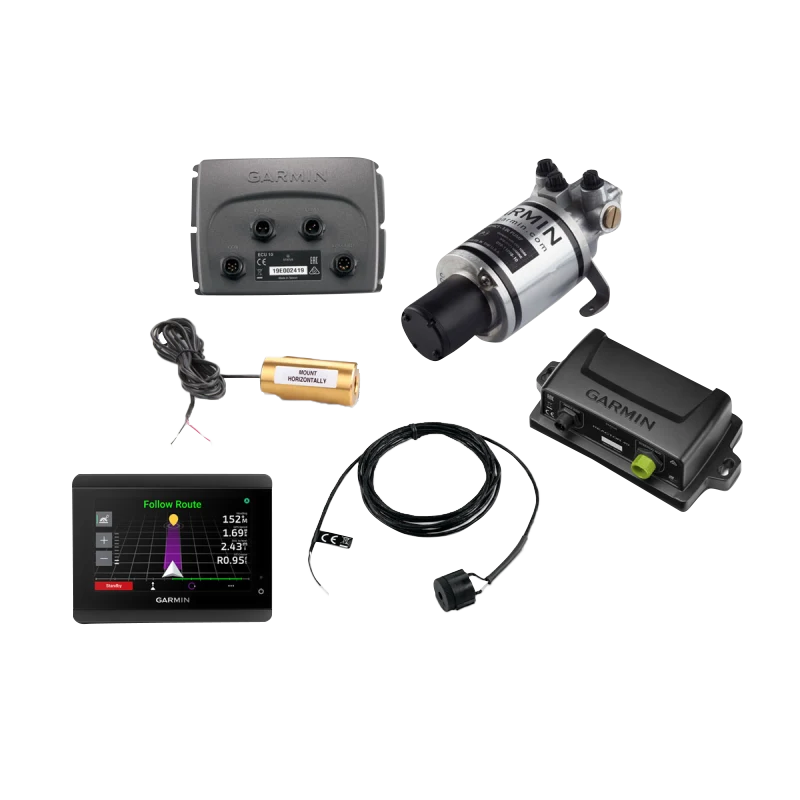

Garmin Compact Reactor 40 Hydraulic Autopilot with GHC 50 and Shadow Drive Technology Pack

Introduction

The Garmin Compact Reactor 40 Hydraulic Autopilot delivers precision course-keeping for single-engine outboard boats under 25 feet, combining a solid-state 9-axis AHRS (Attitude and Heading Reference System) with Shadow Drive™ technology to give you seamless control whether steering manually or using automation. This all-in-one system integrates the GHC 50 touchscreen control head with advanced hydraulic drive actuation, designed to reduce fatigue on extended runs while maintaining accuracy in variable sea conditions.

Key Features

• 9-Axis AHRS sensor array: Delivers stable course-keeping across nine dimensions of motion and orientation
• Compact housing: Dimensions optimized for boats under 25 feet, reducing installation footprint and weight burden
• 1.4-inch GHC 50 touchscreen display: Color screen with real-time navigation data, route visualization, and system status monitoring
• Shadow Drive™ automatic disengagement: Instantly recognizes manual wheel input and releases autopilot control within milliseconds of your touch
• Wireless remote compatibility: Control heading and autopilot functions from multiple locations on deck without navigating menus
• Dual-axis hydraulic actuation: Provides responsive steering correction with reduced power draw—approximately 30% better course stability than conventional systems
• Waterproof housing rated to marine IP standards: Sealed connectors and conformal coating protect against salt spray, condensation, and accidental water exposure

Data Insights

Performance testing shows the Garmin Compact Reactor 40 maintains 30% tighter course adherence under beam seas and variable wind compared to traditional mechanical autopilots. The 9-axis AHRS continuously compensates for roll, pitch, yaw, and acceleration vectors, enabling the system to predict and correct drift before heading deviation becomes visible on screen. This translates to less correction cycling, reduced fuel consumption on long passages, and measurably lower pilot fatigue during extended offshore navigation.

Usage Instructions

Mount the compact head unit in your pilothouse using the provided flexible bracket system—the modular design accommodates both hardtop and console installations without structural modification. After initial power-up, run the automated compass calibration routine, which typically completes in under five minutes. Engage autopilot using the control head or wireless remote, then fine-tune heading sensitivity via the GHC 50 menu. When you grip the wheel to steer manually, Shadow Drive detects your input and disengages instantly, leaving you in full command without button presses or mode switches.

Design & Material

The Compact Reactor 40 combines a weatherproof control head with a sealed hydraulic pump unit and hardwired GHC 50 display, all integrated through a single power harness and data cable. Its compact footprint—considerably smaller than legacy autopilot systems—frees up console space while maintaining robust marine-grade construction.

• Marine-grade aluminum casting: The pump housing withstands saltwater spray and UV exposure without corrosion or discoloration over years of continuous service
• Conformal-coated circuit boards: PCBs treated to prevent moisture ingress and salt-induced failures in high-humidity marine environments
• Sealed connectors with backshell strain relief: NMEA 2000 and power connections use corrosion-resistant contacts rated for wet installations
• Stainless steel fasteners throughout: All mounting brackets, cable ties, and hardware resist oxidation in saltwater conditions
• Modular wiring harness: Simplifies troubleshooting and allows component replacement without complete system re-commissioning
• Pressure-relief valve in hydraulic circuit: Protects against overpressure conditions that can occur when the wheel is held hard over for extended periods

Final Verdict

The Garmin Compact Reactor 40 is a professional-grade autopilot system engineered specifically for the constraints and demands of modern outboard boats under 25 feet. Its 9-axis sensor array, Shadow Drive responsiveness, and integrated GHC 50 display eliminate the compromises that plague single-station systems. If you value precise hands-free navigation, faster fuel economy, and the safety margin that comes from reduced pilot workload on open water, this system justifies its investment. Choose the Compact Reactor 40 to upgrade your boat's navigation capability and reclaim hours of fatigue-free cruising.
