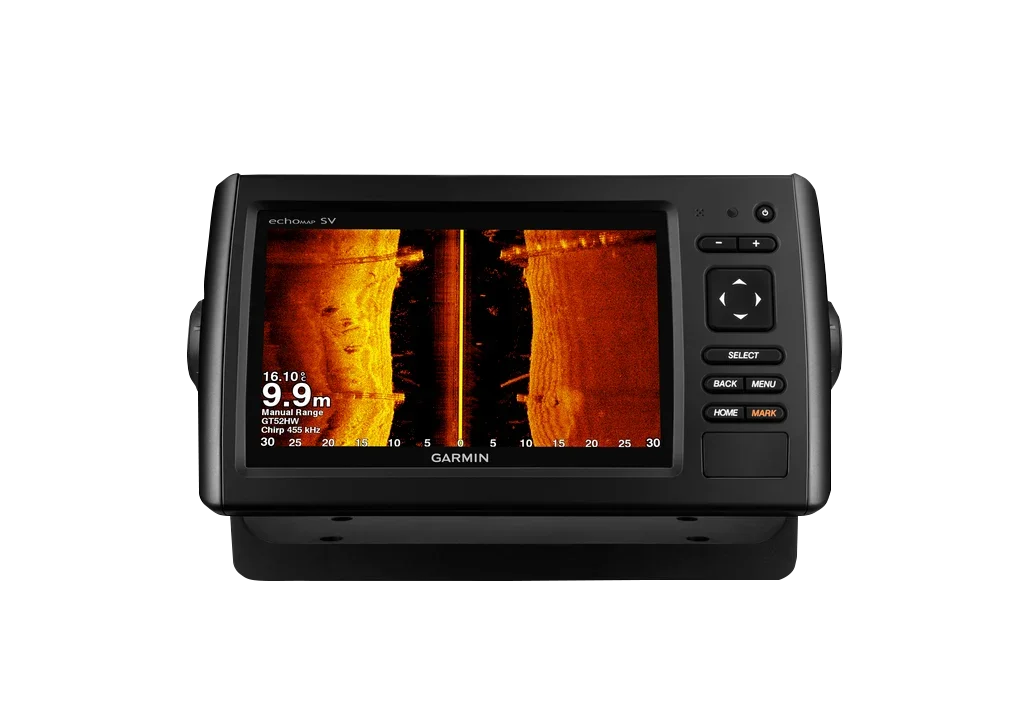

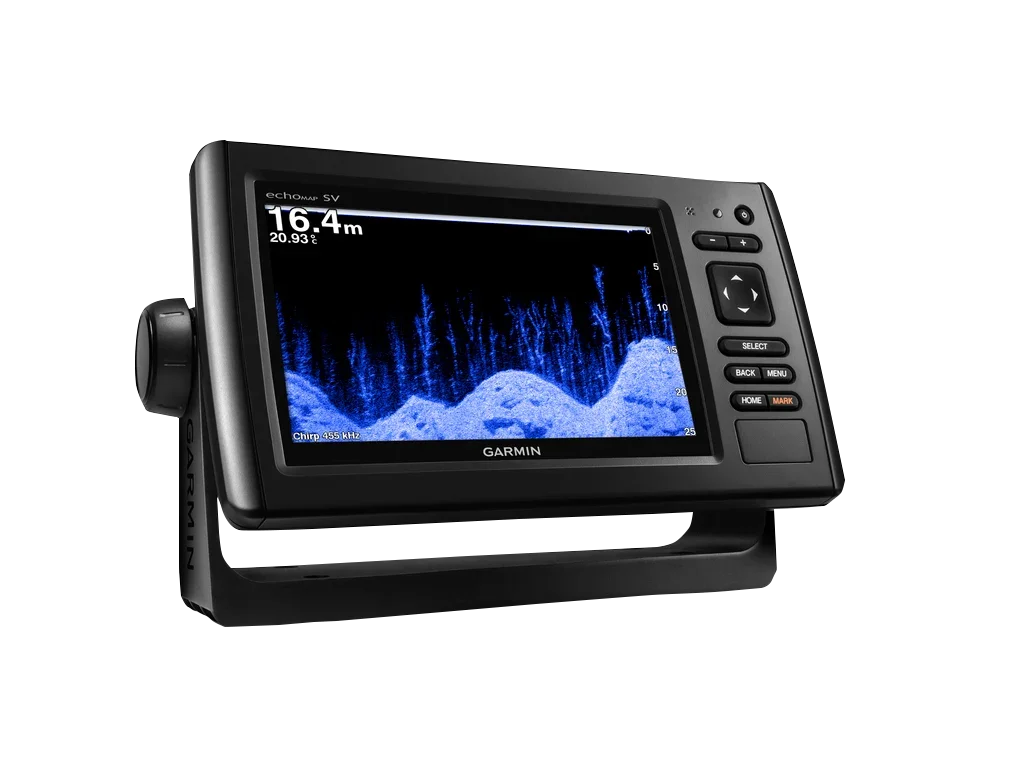

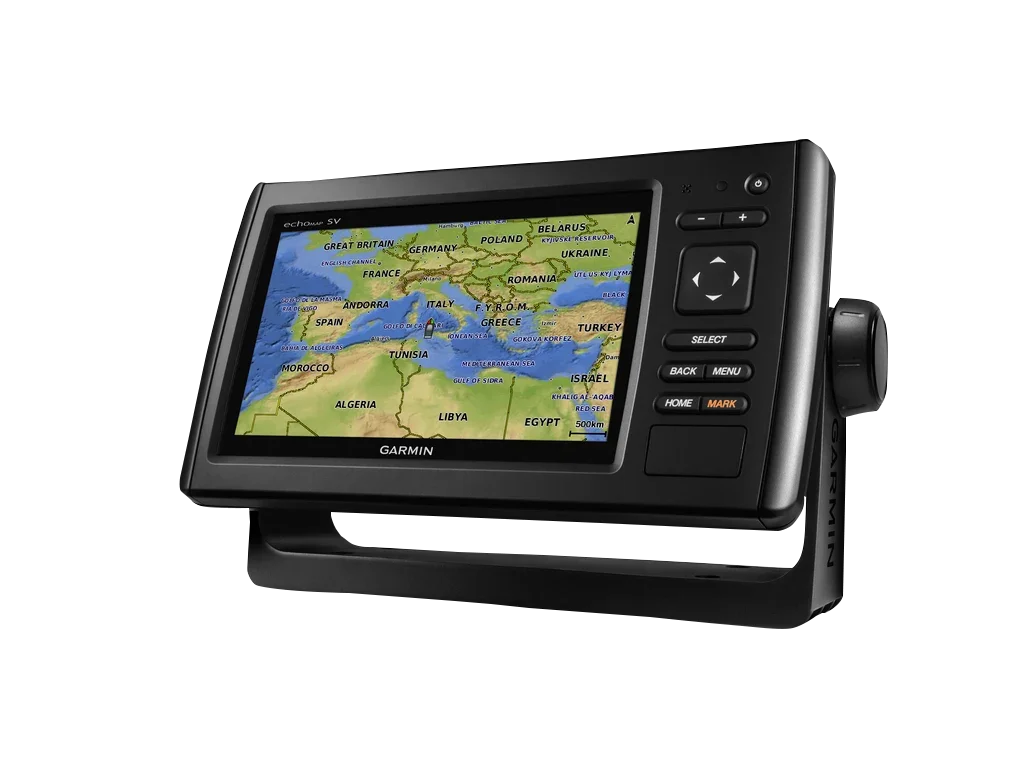

Garmin ECHOMAP CHIRP 72sv w/o Transducer (010-01574-00)
Garmin ECHOMAP CHIRP 72sv w/o Transducer (010-01574-00)
Model Number: 010-01574-00
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin ECHOMAP CHIRP 72sv Fish Finder and Chartplotter Without Transducer
Introduction
The Garmin ECHOMAP CHIRP 72sv (model 010-01574-00) is a 7-inch marine chartplotter and fish finder that combines advanced CHIRP sonar scanning with real-time GPS navigation for freshwater and saltwater fishing. This unit delivers high-definition sonar imaging and customizable mapping capabilities to help you locate structure, identify fish-holding depths, and navigate confidently to productive fishing grounds. The ECHOMAP CHIRP 72sv integrates mapping, sonar, and waypoint management into a single display without requiring a transducer to be included, giving you flexibility to pair it with compatible Garmin transducers that suit your specific fishing needs.
Key Features
- CHIRP sonar technology delivers 20% improved target separation compared to traditional sonar devices for enhanced underwater clarity
- 7-inch high-resolution display with vivid color output for visibility in direct sunlight
- 5 Hz GPS receiver updates position five times per second for precise boat tracking
- Quickdraw Contours allows custom HD mapping with 1-foot contours created in real time while you fish
- Stores up to 5,000 waypoints for marking productive fishing locations and navigation routes
- MicroSD card slot supports expandable memory for premium base maps and additional chart data
- Auto Guidance creates virtual pathways to waypoints while automatically calculating arrival times and avoiding shallow water hazards
- Panoptix transducer compatibility for optional live underwater imaging integration
Data Insights
The 20% improvement in target separation with CHIRP sonar technology means you can distinguish individual fish and structure details with greater precision than conventional scanning methods. Research indicates that anglers using advanced sonar systems can increase catch rates by up to 30%, primarily because better target definition leads to more accurate depth and structure identification. This performance gain translates directly to spending less time searching and more time fishing in verified productive zones.
Usage Instructions
Mount the ECHOMAP CHIRP 72sv using the included installation bracket, ensuring the unit is positioned for easy viewing and control access. Connect a compatible Garmin transducer (sold separately) to the transducer port, then power on the device and allow GPS acquisition. Use the directional pad and SELECT button to navigate menus, activate Quickdraw Contours while fishing to create personalized depth maps, and mark waypoints at productive locations. Save your custom maps to the microSD card for future reference. Refer to the user manual for advanced features like Auto Guidance configuration and sonar adjustment settings.
Design & Material
The ECHOMAP CHIRP 72sv combines a compact, purpose-built chassis with an intuitive control layout optimized for boat operation. The unit is engineered for permanent or semi-permanent mounting and designed to perform reliably in demanding marine environments ranging from freshwater lakes to coastal saltwater conditions.
- Rugged housing constructed to endure harsh marine conditions, UV exposure, and temperature fluctuations
- Water-resistant enclosure protects internal circuitry and electronics from spray, moisture, and washdown
- 7-inch TFT display with high-resolution output and color saturation for sunlight readability
- Plug-and-play transducer connectivity with integrated cables for simplified installation and removal
- Side-mounted grip handles facilitate secure mounting and potential relocation between vessels
- Streamlined black polymer bezel and faceplate design integrates with modern boat console aesthetics
Final Verdict
The Garmin ECHOMAP CHIRP 72sv is an essential tool for serious anglers who want the combination of reliable sonar imaging and detailed mapping without the premium pricing of fully integrated systems. The transducer-free configuration allows you to select the exact sonar technology that matches your boat type and fishing style. Whether you're targeting structure on deep lakes or navigating coastal waters, this chartplotter delivers the real-time data and user-friendly interface needed to fish smarter. Purchase the Garmin ECHOMAP CHIRP 72sv today and add precision sonar and mapping to your fishing arsenal.
In The Box
- echoMAP CHIRP 72sv with worldwide basemap
- Power/data cable
- Tilt mount
- Quick-release cradle
- Protective cover
- Flush mount kit
- Hardware
- Documentation
