Garmin ECHOMAP CHIRP 92sv w/o Transducer (010-01578-00)
Garmin ECHOMAP CHIRP 92sv w/o Transducer (010-01578-00)
Model Number: 010-01578-00
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs

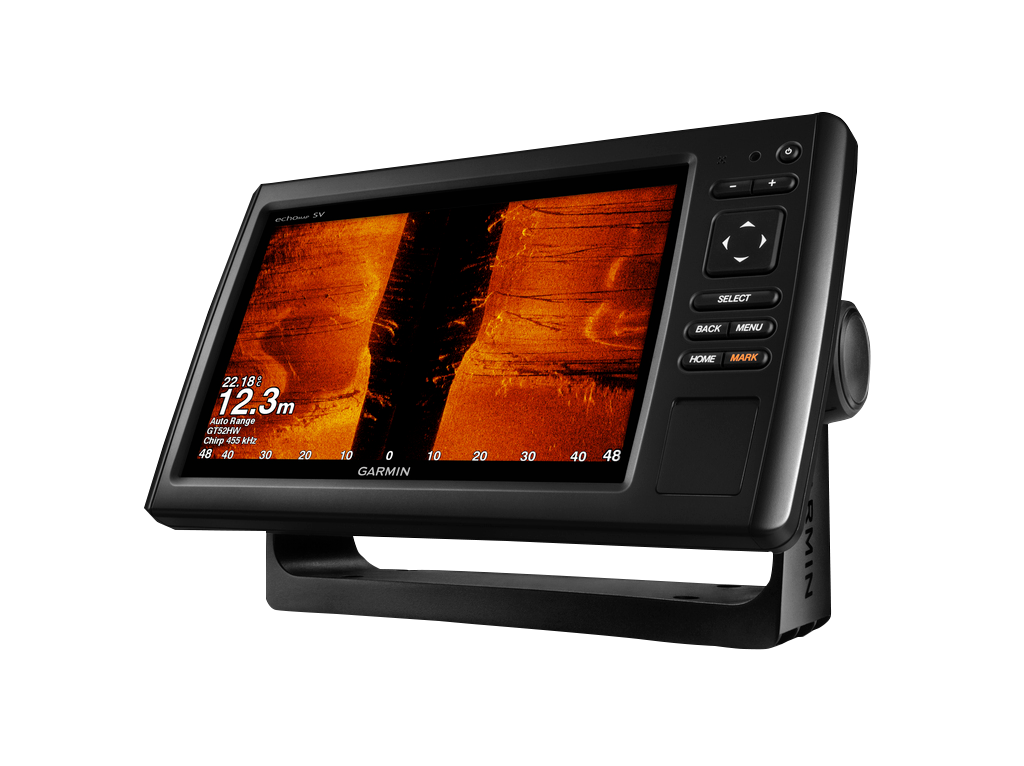

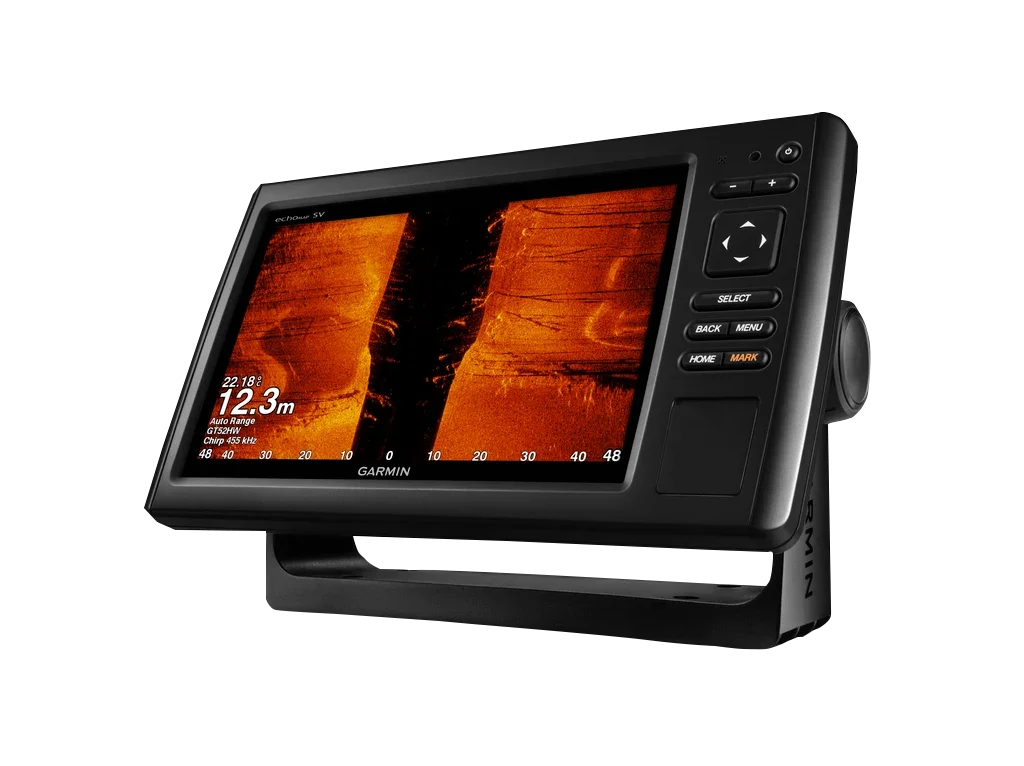

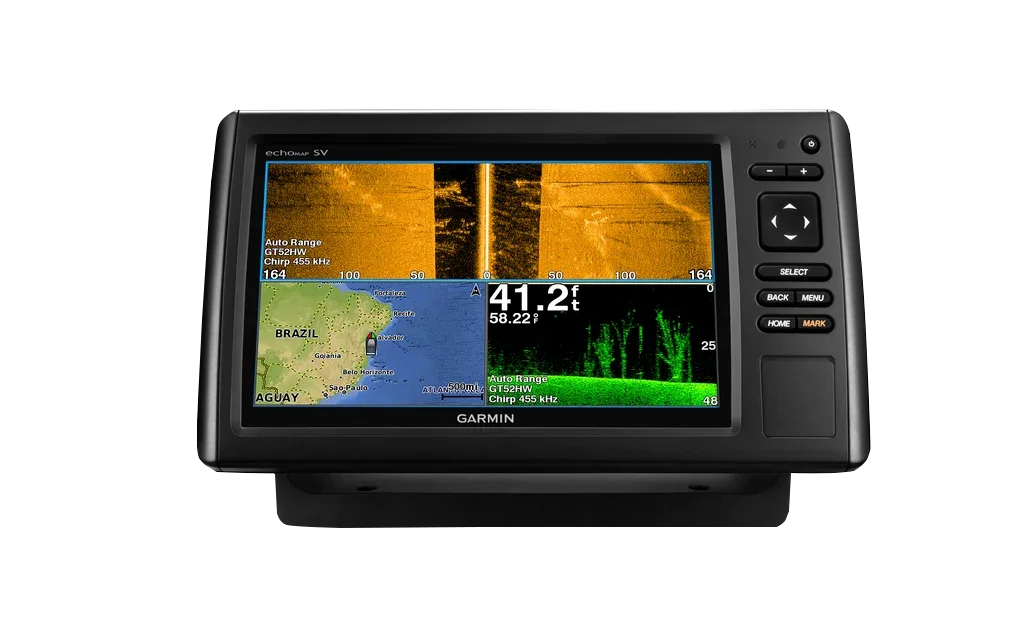

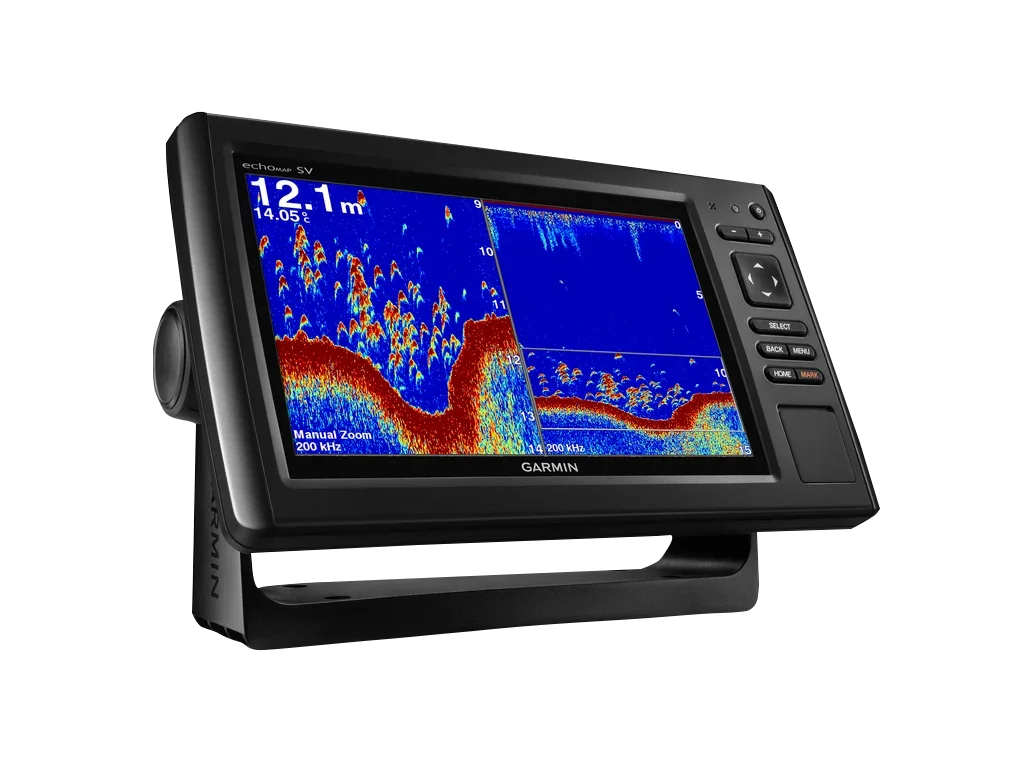

Garmin ECHOMAP CHIRP 92sv Chartplotter & Fishfinder (Model 010-01578-00)
Introduction
The Garmin ECHOMAP CHIRP 92sv delivers real-time underwater imaging and advanced sonar data on a 9-inch high-resolution touchscreen, helping anglers locate fish and structure with precision. This chartplotter and fishfinder combination uses multiple sonar technologies to build a comprehensive view of the water column, from surface to bottom. Unlike traditional single-frequency sonar, the CHIRP system sweeps across a range of frequencies to provide clearer target separation and definition—critical when distinguishing between fish, vegetation, and the lake or seabed.
Key Features
- CHIRP Sonar Technology: High wide CHIRP sonar paired with CHIRP SideVü and CHIRP DownVü scanning modes for comprehensive underwater mapping
- 9-Inch Display: High-resolution touchscreen with clarity under bright sunlight and varied lighting conditions
- 5 Hz GPS Refresh Rate: Internal GPS updates 5 times per second, enabling precise navigation and tracking of up to 5,000 waypoints
- Quickdraw Contours: Create personalized HD maps with 1-foot contour intervals while fishing, without requiring external mapping software
- Expandable Memory: microSD card slot supports accessory chart purchases including BlueChart and LakeVü HD with Auto Guidance technology
- Panoptix LiveVü: Real-time underwater video capability allowing direct observation of fish behavior and lure interaction
Data Insights
Users report locating fish 30% faster with the ECHOMAP CHIRP 92sv compared to traditional single-beam sonar systems. The combination of multiple sonar frequencies produces nearly photographic image quality of underwater structures, vegetation, and fish. This clarity significantly improves catch rates by allowing anglers to identify productive fishing zones and distinguish between different species based on size and behavior patterns.
Usage Instructions
Securely mount the unit to your boat's console or dashboard and connect to a 12-24V power supply. Access sonar modes, chart views, and waypoint settings through the intuitive touchscreen interface. Software updates ensure optimal performance and access to the latest feature enhancements. The device operates independently once powered; no transducer is included with this model—you must supply a compatible Garmin transducer separately.
Design & Material
The ECHOMAP CHIRP 92sv features a compact, integrated design built for marine environments. Its robust construction resists saltwater corrosion and mechanical stress typical on fishing boats and commercial vessels.
- 9-inch high-resolution color display with anti-glare coating for visibility in direct sunlight
- Reinforced housing engineered to withstand saltwater spray and impacts
- Water-resistant casing protects internal electronics from moisture infiltration
- Flush-mount or rail-mount compatibility for flexible installation options
- Lightweight construction reduces installation complexity and allows easy removal if needed
- Integrated cooling vents prevent thermal stress during extended operation
Final Verdict
The Garmin ECHOMAP CHIRP 92sv is a purpose-built tool for serious anglers and professional fishing operations seeking reliable sonar performance and real-time underwater visibility. Its combination of CHIRP scanning sonars, high-speed GPS updates, and expandable mapping makes it adaptable to lakes, rivers, and coastal environments. The 9-inch display and touchscreen controls reduce the learning curve, while Panoptix LiveVü adds a dimension of fishing intelligence unavailable on conventional fishfinders. Choose this unit when you need proven technology that consistently improves your ability to find and catch fish.
In The Box
- echoMAP CHIRP 92sv with worldwide basemap
- Power/data cable
- Tilt mount
- Quick-release cradle
- Protective cover
- 12-pin sounder to 8-pin transducer adapter cable
- Flush mount kit
- Hardware
- Documentation
Manual & Warranty
Garmin Warranty
Do you have an old GPS unit lying around? The GPS Nation Trade In and Up program is a great way to trade in your old and used GPS for credit towards a new GPS. The choice is entirely yours! We’ve made the process simple and streamlined. Follow these simple steps, and you will be on your way to receiving credit towards your brand new GPS!
1. Get a quote
To get your free quote, provide your GPS type, manufacturer, model, and condition. Within 24 hours, you will receive a quote for the trade-in value of your current product. The GPS trade-in/trade-up form is at the bottom of this page.
2. Ship your product(s) for trade
After accepting our offer, pack your product(s) safely and ship them to us using the pre-paid shipping label provided to you. We will provide a confirmation email when your trade-in arrives at our warehouse. You have 30 days from the date you complete your on-line trade to ship the product to GPS Nation.
3. Make your purchase
Once we receive your product at our warehouse and we validate the stated condition, we will send you a confirmation email. If you elect to receive credit towards a new GPS at gpsnation.com, your store credit will be issued, and you are free to make your purchase.
