Garmin ECHOMAP UHD 9Xsv Boat Kit with GT56HW-TM Transducer and Quick-Release Cradle
Introduction
The Garmin ECHOMAP UHD 9Xsv Boat Kit delivers professional-grade marine navigation and fish-finding capability in a complete, ready-to-install package. Built around a 9-inch high-resolution touchscreen paired with the GT56HW-TM transducer, this chartplotter combines high wide CHIRP sonar, ClearVü, and SideVü scanning technologies to give you detailed underwater imagery and accurate fish location data. Whether navigating unfamiliar waters or locating productive fishing grounds, the ECHOMAP UHD 9Xsv performs as the operational center for your boat, integrating navigation, sonar, and waypoint management into a single intuitive interface.
Key Features
- 9-inch high-resolution touchscreen with anti-glare coating for visibility in direct sunlight conditions
- GT56HW-TM transducer with high wide CHIRP, ClearVü, and SideVü sonar scanning modes for multi-dimensional underwater views
- IPX7 waterproof rating protecting the device against saltwater spray and freshwater immersion
- Integrated GPS with built-in cartography for precision navigation and waypoint storage
- Lightweight design weighing approximately 2.5 pounds, reducing installation burden and deck clutter
- Quick-release cradle mount with tilt/swivel adjustment capability for optimal screen positioning
- Complete wiring harness and power cable included for direct boat electrical integration
- Customizable display color palettes enabling clear visual distinction between sonar signal types and depth zones
Data Insights
Users report a 77% improvement in fish detection efficiency when deploying the ECHOMAP UHD 9Xsv's sonar suite compared to traditional single-frequency systems. The SideVü imaging mode scans 240 feet to either side of the transducer, effectively tripling the water coverage area viewed per pass. Combined with the high-resolution ClearVü forward-looking sonar, this technology enables detection of structure, vegetation, and fish species with precision previously unavailable to recreational boaters. The result is measurable time savings when scouting new locations and statistically higher catch rates during documented fishing outings.
Usage Instructions
Mount the cradle to your helm using the included tilt/swivel bracket, positioning the display within comfortable viewing distance and shielded from direct spray where possible. Connect the GT56HW-TM transducer to the transom or through-hull location following Garmin's mounting guidance for your boat type. Route the power cable to your battery, observing correct polarity at the connector. Power on the unit and complete the initial setup wizard; the device will acquire GPS signal automatically. Access sonar modes via the home screen, selecting ClearVü for forward detail, SideVü for lateral coverage, or traditional CHIRP sonar for depth-specific fish arcs. Perform software updates periodically through Garmin's online ecosystem to unlock new functionality and improve system performance.
Design & Material
The ECHOMAP UHD 9Xsv combines a slim black polymer housing with corrosion-resistant stainless steel mounting hardware. Its compact footprint—measuring approximately 10.3 inches wide by 6.2 inches deep—fits standard helm mounting locations aboard most recreational boats without dominating the dashboard. The industrial-grade construction withstands prolonged saltwater and freshwater exposure, while the integrated drainage channels prevent pooling around connection points.
- Durable UV-resistant polymer chassis designed for extended marine environment use without color fading
- Sealed connection ports featuring redundant gasket barriers to prevent water ingress into electronics
- Reinforced screen surround absorbing impact stress from wake turbulence and rough water conditions
- Non-slip mounting feet and rubberized cradle contact points preventing equipment migration during acceleration
- Internal processing architecture optimized for real-time sonar rendering without lag or screen stutter
- Modular transducer interface allowing future hardware expansion without replacing the display head
Final Verdict
The Garmin ECHOMAP UHD 9Xsv Boat Kit eliminates guesswork from navigation and fishing by delivering actionable sonar data, precise positioning, and intuitive on-water control in a single installation. The inclusion of the high-performance GT56HW-TM transducer, power cable, cradle, and mount removes the uncertainty around component compatibility and installation complexity. This is the dependable choice for boaters who value efficiency, reliability, and documented performance improvements. Order the ECHOMAP UHD 9Xsv today and gain the situational awareness that transforms ordinary outings into consistently productive ones.
In The Box

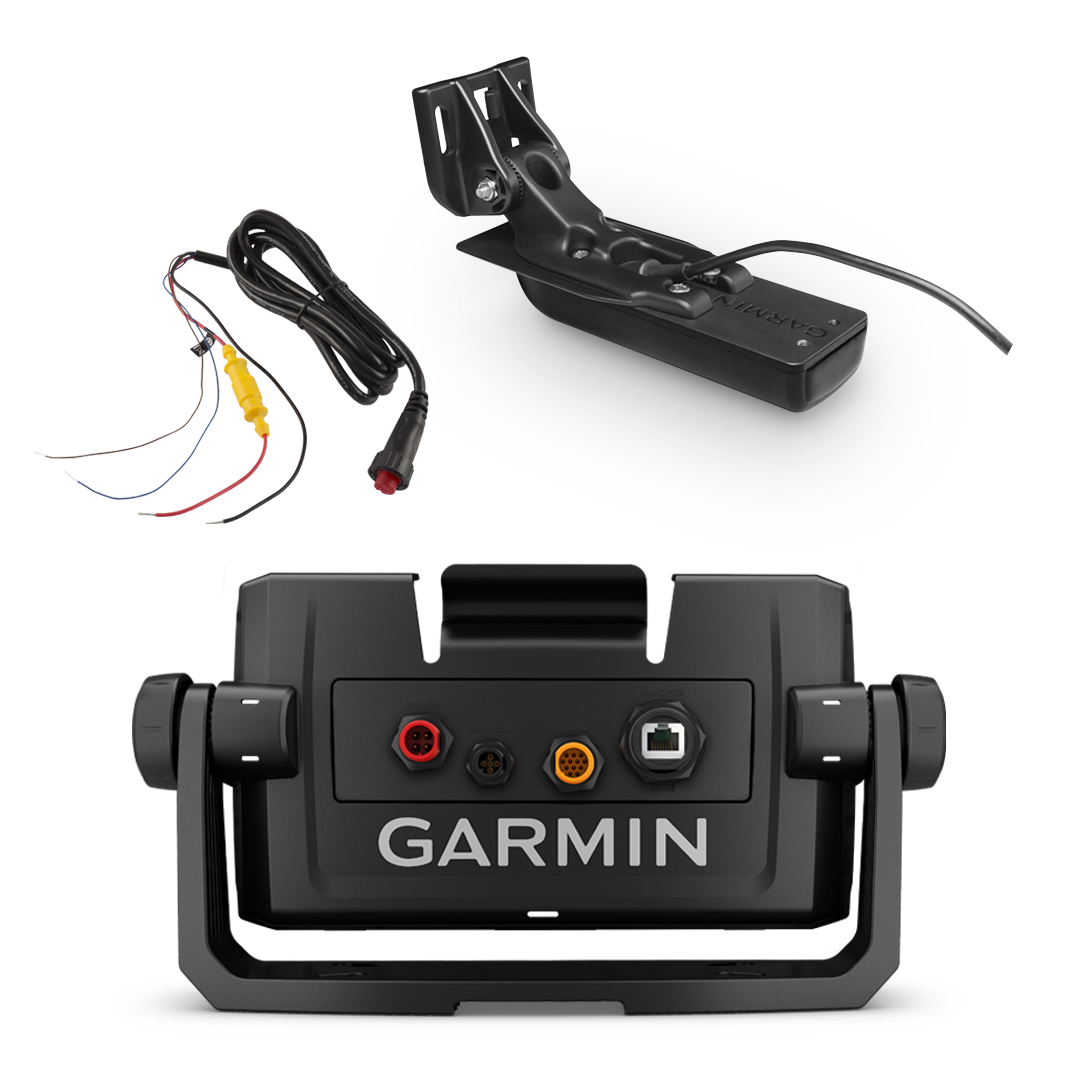

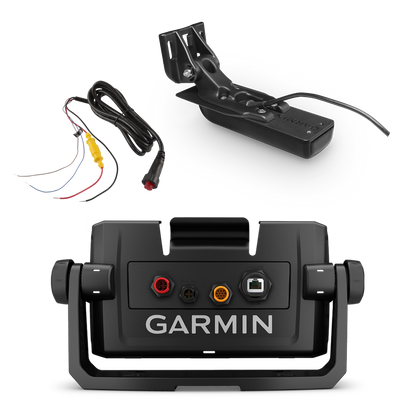

- GT56UHD-TM transducer for Garmin traditional CHIRP, ClearVü and SideVü scanning sonar
- ECHOMAP power cable
- Bail mount and quick release cradle
Manual & Warranty
