Garmin ECHOMAP UHD2 5" cv Chartplotters 52cv with GT20-TM Transducer

Introduction

The Garmin ECHOMAP UHD2 5" cv chartplotter combines dual-frequency sonar technology with a sunlight-readable display to give you precise underwater visibility and confident navigation in any light condition. Built for freshwater and saltwater fishing, this compact unit delivers the sonar clarity and mapping detail serious anglers need to locate structure, identify fish-holding depths, and navigate to productive water consistently.

Key Features

• 5-inch high-resolution keyed display with brightness rated for sunlight readability across all viewing angles
• Dual-sonar architecture: Garmin CHIRP Traditional Sonar combined with ClearVü Scanning Sonar for 30% more detail in underwater imaging compared to single-frequency systems
• GT20-TM transducer with 200 kHz and 83 kHz frequency operation for dual-band target detection up to depths exceeding 750 feet
• Preloaded Garmin Navionics+ maps covering U.S. inland and coastal waters with daily map updates through 1-year subscription
• Wireless networking enables real-time sonar and waypoint sharing across up to 4 compatible ECHOMAP UHD2 devices within range
• ActiveCaptain app connectivity via Wi-Fi for off-unit map management, firmware updates, and access to community-submitted fishing data and bottom contours
• High-contrast vivid color palettes and customizable sonar views for distinguishing fish targets from structure and debris

Data Insights

The ECHOMAP UHD2's dual-sonar advantage delivers measurably better target separation on screen. The combination of CHIRP Traditional Sonar at 83 kHz and 200 kHz frequencies with integrated ClearVü technology captures 30% greater detail than traditional single-frequency sonar units, translating to clearer separation between suspended fish, bottom composition, and submerged structure. Navionics+ subscription data refreshes daily, meaning depth contours, hazard markers, and seasonal fishing zones on your map stay current throughout the year, reducing the guesswork in unfamiliar water.

Usage Instructions

Secure the chartplotter to your console or mounting bracket, then connect the GT20-TM transducer to the appropriate port using the included cable. Power on the unit and select your preferred sonar view—either Traditional Sonar, ClearVü, or a split-screen combination. Download the ActiveCaptain app to your smartphone, connect via Wi-Fi, and enable push notifications for map updates and community fishing reports. Adjust color palettes and sensitivity settings to match your target depth and water clarity, then mark waypoints and create routes directly on the Navionics+ base map.

Design & Material

The ECHOMAP UHD2 chassis is engineered for open-water durability without unnecessary bulk. Its compact footprint fits tight helm spaces, while the reinforced plastic housing and stainless-steel bezel resists salt spray, UV exposure, and accidental impact. The integrated flush-mount bracket accommodates pedestal and surface mounting on boats from 16 to 40-plus feet.

• Durable polycarbonate housing rated for sustained exposure to freshwater and saltwater marine environments
• Weather-sealed button cluster and connector ports prevent water ingress during heavy rain and wake spray
• Lightweight at under 2 pounds, reducing console weight and power draw compared to larger glass chartplotters

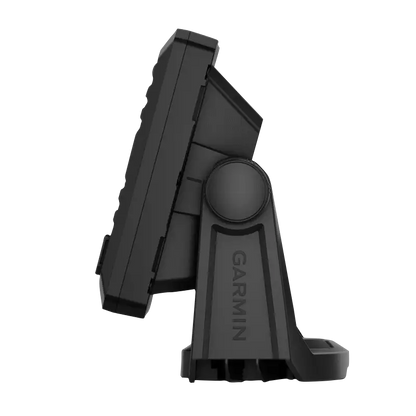

• Adjustable viewing angle bracket allows portrait or landscape orientation and tilt adjustment for glare reduction
• Scratch-resistant anti-glare display coating maintains clarity through prolonged sun exposure and frequent cleaning
• Integrated quick-disconnect power and transducer connectors enable rapid removal and reinstallation for seasonal storage

Final Verdict

The Garmin ECHOMAP UHD2 5" cv combines proven sonar technology, live mapping, and wireless integration into a single compact tool that bridges the gap between entry-level fish finders and full-size systems. If you fish multiple bodies of water, rely on structure-based presentations, or need real-time sonar sharing with fishing partners, this unit delivers measurable advantages in target detection and navigation confidence. The included 1-year Navionics+ subscription and GT20-TM transducer remove setup barriers—you unbox it and start fishing productive water the same day. Add this to your boat and fish with local-level certainty wherever the season takes you.
