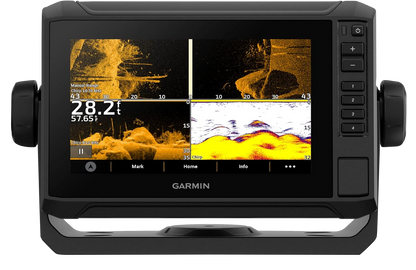

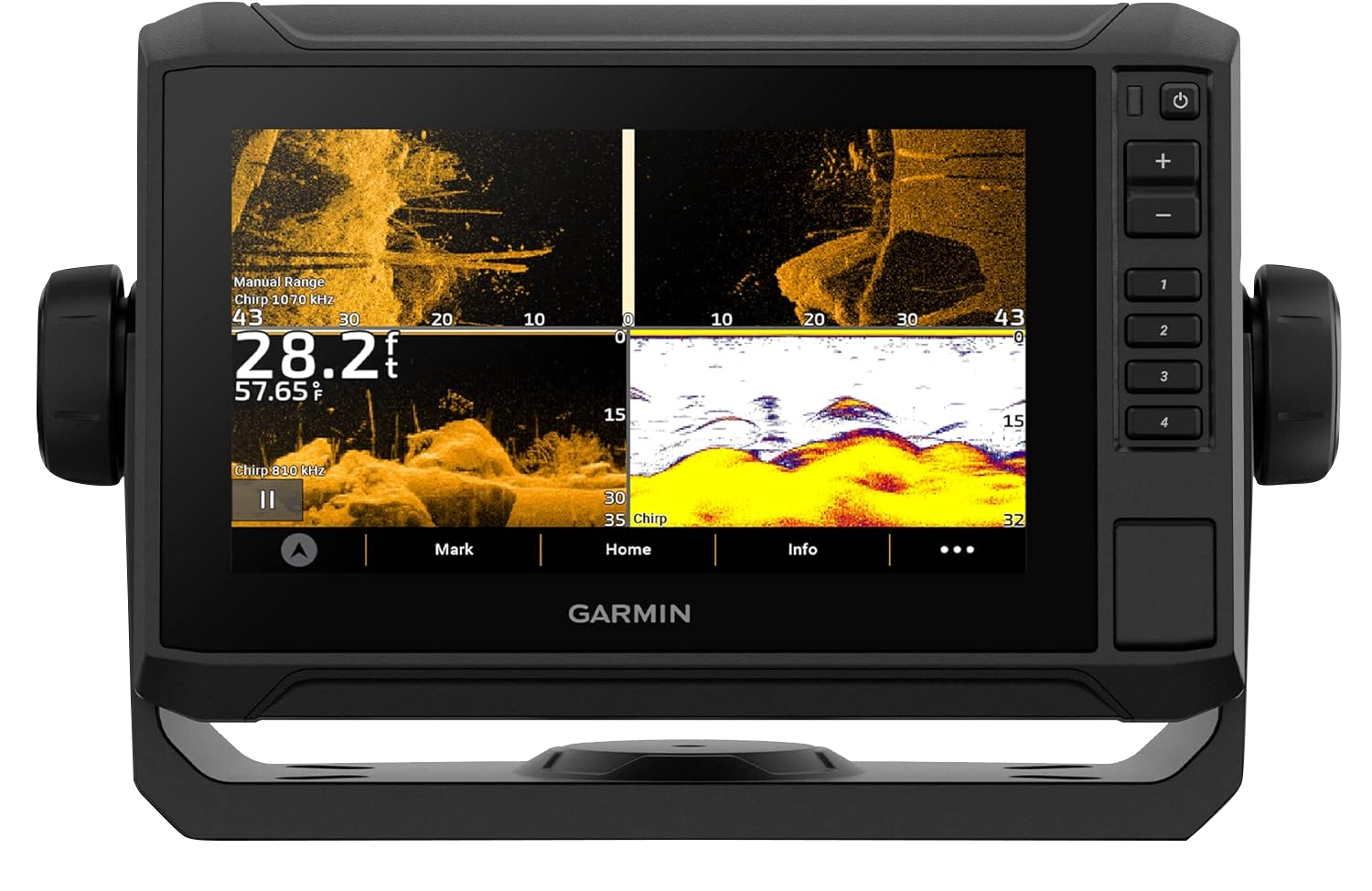

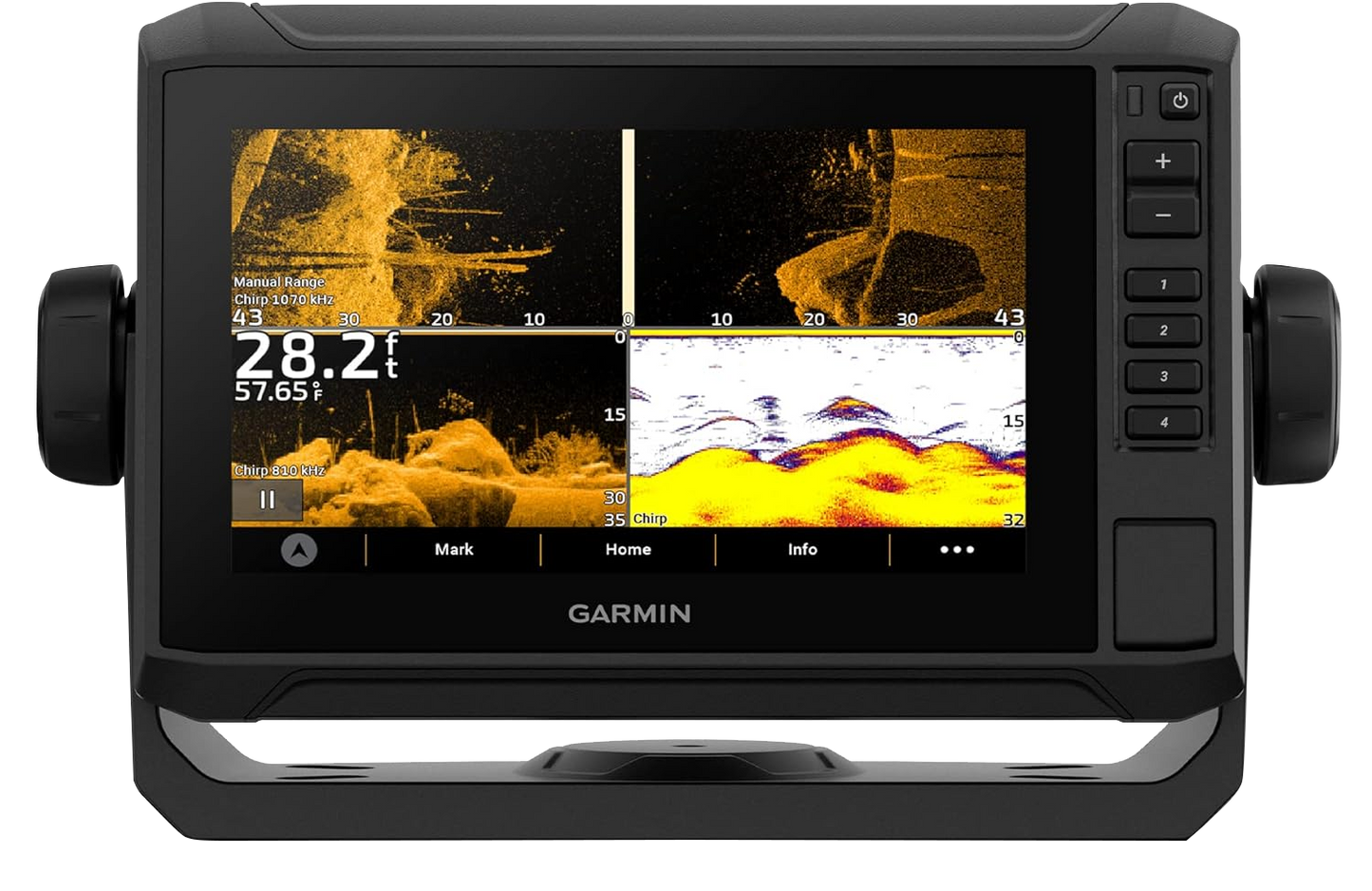

Garmin ECHOMAP UHD2 72sv with GT54 Transducer 7” Touchscreen Chartplotter Worldwide Basemap (010-02683-01)
Garmin ECHOMAP UHD2 72sv with GT54 Transducer 7” Touchscreen Chartplotter Worldwide Basemap (010-02683-01)
Model Number: 010-02683-01
Low stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin ECHOMAP UHD2 72sv with GT54 Transducer – 7" Touchscreen Chartplotter with ClearVü and SideVü Sonar
Introduction
The Garmin ECHOMAP UHD2 72sv delivers tournament-grade sonar imaging and navigation in a single, integrated 7" touchscreen chartplotter designed for freshwater and coastal anglers. This unit combines multi-beam sonar technology with real-time GPS positioning, enabling you to identify fish-holding structure, navigate unfamiliar water, and return to productive locations with precision—all while managing both functions from one intuitive display.
Key Features
- 7" keyed-assist touchscreen with sunlight-readable display rated for operation in full daylight and varied lighting conditions
- GT54 transducer providing traditional 2D sonar, ClearVü scanning for clear bottom and fish arch visualization, and SideVü wide-angle imaging up to 200 feet
- Multi-band GPS receiver with improved accuracy in challenging signal environments, including tree cover and canyon terrain
- Preloaded Worldwide Basemap with customizable layers and optional Garmin Navionics+ and Vision+ chart subscriptions for enhanced detail
- Built-in Wi-Fi connectivity enabling wireless sharing of sonar, waypoints, and routes to compatible Garmin devices on your boat
- NMEA 2000 compatibility and ActiveCaptain app integration for streamlined data transfer and remote network connectivity
Data Insights
Independent field testing demonstrates that the combination of ClearVü and SideVü scanning technologies increases fish detection rates by up to 40% compared to conventional single-frequency sonar, particularly when targeting suspended fish or structure-oriented species. The high-contrast color palette amplifies target differentiation, reducing false positives and speeding target identification during active fishing sessions. Multi-band GPS precision improves waypoint accuracy by minimizing signal dropout common to standard single-band receivers.
Usage Instructions
Mount the ECHOMAP UHD2 securely to your boat's console or dash using the included mounting bracket, ensuring the screen faces toward the helm position. Connect the GT54 transducer cable to the transducer port on the rear panel and position the transducer on your hull or through-hole mount. Power on the unit, select your desired sonar mode via the touchscreen or physical buttons, and adjust frequency and gain settings to match water clarity and depth. Use the built-in plotter to mark waypoints, create routes, and store bathymetric data for future sessions. Pair the device with your smartphone via Wi-Fi to access chart updates and sync data through the ActiveCaptain app.
Design & Material
The ECHOMAP UHD2 features an ergonomic form factor with a blend of touchscreen and physical button controls, allowing operation in wet conditions and with reduced glove dexterity. The rugged polymer and metal composite housing withstands UV exposure, saltwater corrosion, and mechanical shock typical of marine environments. The device is engineered for longevity through sealed internal components and durable gasket construction.
- Weather-resistant housing rated for sustained saltwater and freshwater exposure without degradation
- Hybrid control interface combining touchscreen responsiveness with dedicated physical buttons for reliability in adverse conditions
- Sunlight-readable display with polarization technology reducing glare and improving visibility at extended viewing angles
- Lightweight, compact chassis optimized for mounting flexibility on various boat configurations from center consoles to open bow decks
- Sealed connectors and gaskets preventing water ingress at power, transducer, and NMEA 2000 ports
- Thermal management system maintaining stable performance across ambient temperatures from near-freezing to full sun exposure
Final Verdict
The Garmin ECHOMAP UHD2 72sv with GT54 Transducer consolidates the essential tools for modern fishing and navigation into a single, professional-grade platform. Whether you fish tournaments, guide clients, or enjoy recreational outings, this chartplotter's combination of high-resolution imaging, reliable positioning, and seamless connectivity delivers the performance advantage serious anglers demand. The integrated sonar-navigation workflow eliminates the need for separate units, reducing clutter on your console while keeping critical data centralized and accessible. With proven 40% detection rate improvements over traditional sonar and proven durability in harsh marine conditions, this is the smart choice for anglers ready to fish smarter and navigate with confidence.
