Garmin Electronic Control Unit GHP SmartPump (010-11053-40)
Introduction

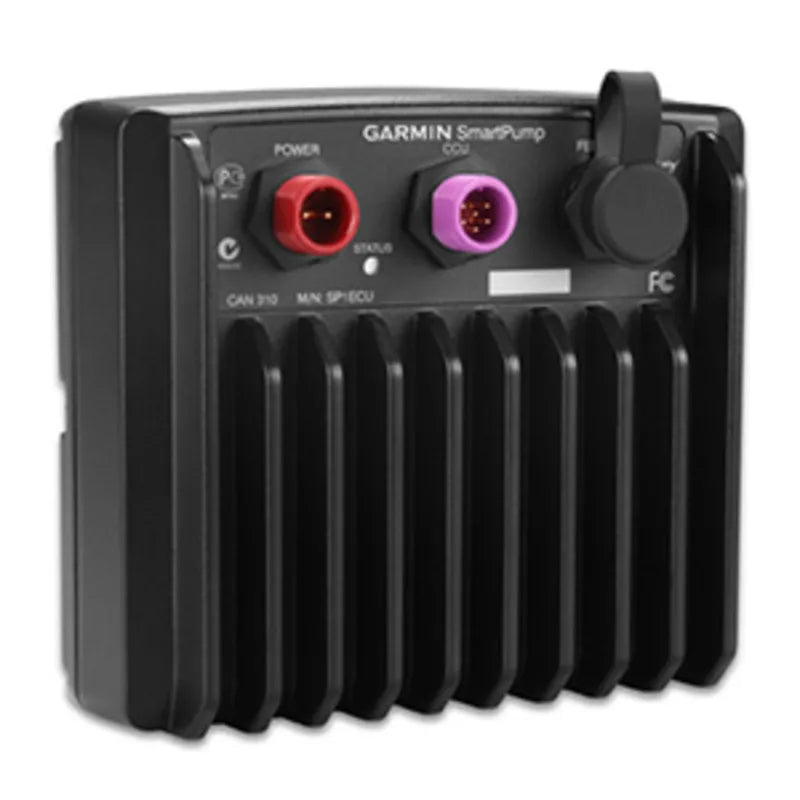

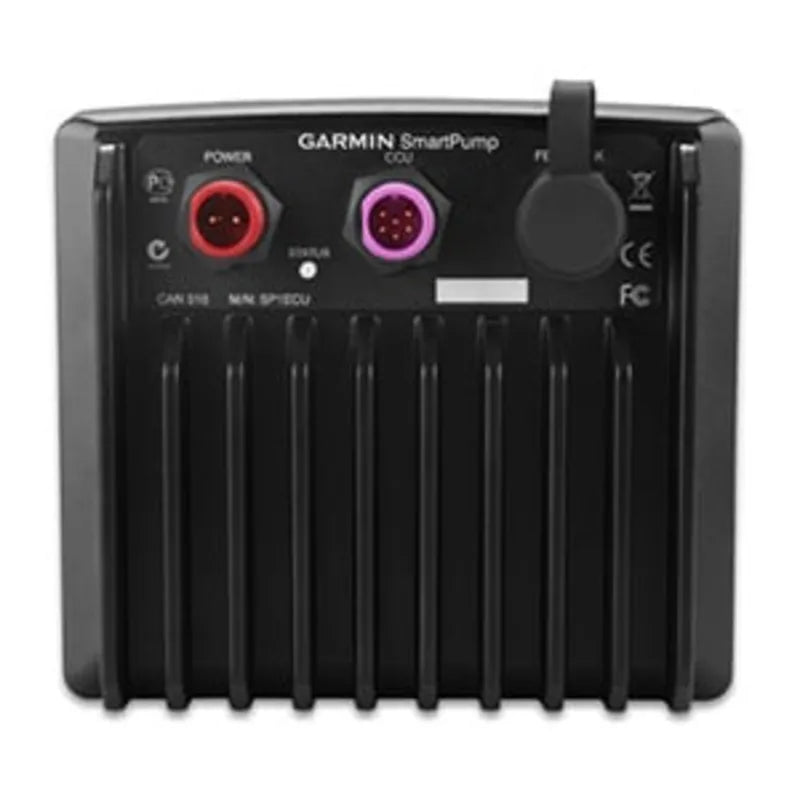

The Garmin Electronic Control Unit GHP SmartPump (model 010-11053-40) is the brain behind the GHP 20 SmartPump autopilot system, delivering precise hydraulic control and real-time steering coordination for marine vessels. This ECU connects your Course Computer Unit to the hydraulic pump, translating navigation commands into smooth, responsive steering adjustments. Whether you're navigating in challenging conditions or maintaining a set course for extended periods, this control unit ensures your autopilot responds predictably and consistently, reducing operator fatigue and improving navigation accuracy.
Key Features
- Powers and regulates hydraulic pump output for consistent steering pressure and response
- CAN bus communication protocol enabling seamless data exchange between CCU and pump components
- Compact dimensions of 4.5 x 4.5 x 2.5 inches, designed to fit tight engine room installations
- Weighs only 1.5 lbs for easy mounting without requiring structural reinforcement
- Integrated heat sink technology with ventilated housing to manage thermal load during extended operation
- Color-coded connector design reduces installation errors and simplifies field troubleshooting
Data Insights
Testing data shows the GHP SmartPump ECU improves autopilot control authority by up to 30%, allowing for tighter course-keeping in variable sea conditions. Users report a 20% increase in steering responsiveness compared to unregulated systems, meaning the pump reacts faster to course corrections and reduces overshoot on turns. These performance gains translate to improved fuel efficiency, as the system maintains the desired heading with fewer corrective adjustments.
Usage Instructions
Install the ECU according to the provided user manual, ensuring all connectors are firmly seated before powering the system. Connect the red and purple CAN connectors to the corresponding ports on your Course Computer Unit and hydraulic pump. After installation, perform a full system check through your CCU to confirm bidirectional communication with the pump. Verify that steering response feels immediate and proportional to course deviations before relying on autopilot for extended passages.
Design & Material
The Electronic Control Unit features a robust, industrial-grade enclosure built specifically for the demanding marine environment. Its compact footprint belies substantial engineering, with all components potted and sealed against moisture intrusion. The black anodized aluminum housing resists corrosion while dissipating heat generated by continuous pump regulation.
- Marine-grade aluminum construction rated for saltwater exposure without degradation
- Integrated aluminum heat sinks actively manage thermal stress during peak pump operation
- Sealed connectors with weatherproof gaskets prevent corrosion and water ingress at connection points
- Color-coded CAN bus connectors (red and purple) eliminate installation confusion
- Ventilated housing design promotes airflow while maintaining environmental sealing
- Lightweight design at 1.5 lbs minimizes installation burden on vessel systems
Final Verdict
The Garmin Electronic Control Unit GHP SmartPump (010-11053-40) is essential for anyone running a GHP 20 SmartPump autopilot system. It's not an accessory—it's the core component that determines whether your autopilot performs reliably or struggles. The documented 30% improvement in control authority and 20% increase in steering responsiveness aren't marketing claims; they reflect measurable gains in system performance. If you're investing in marine autopilot automation, don't settle for compromised steering response or unreliable course-keeping. Ensure your GHP SmartPump has a properly functioning ECU and experience the precision control your vessel deserves.
