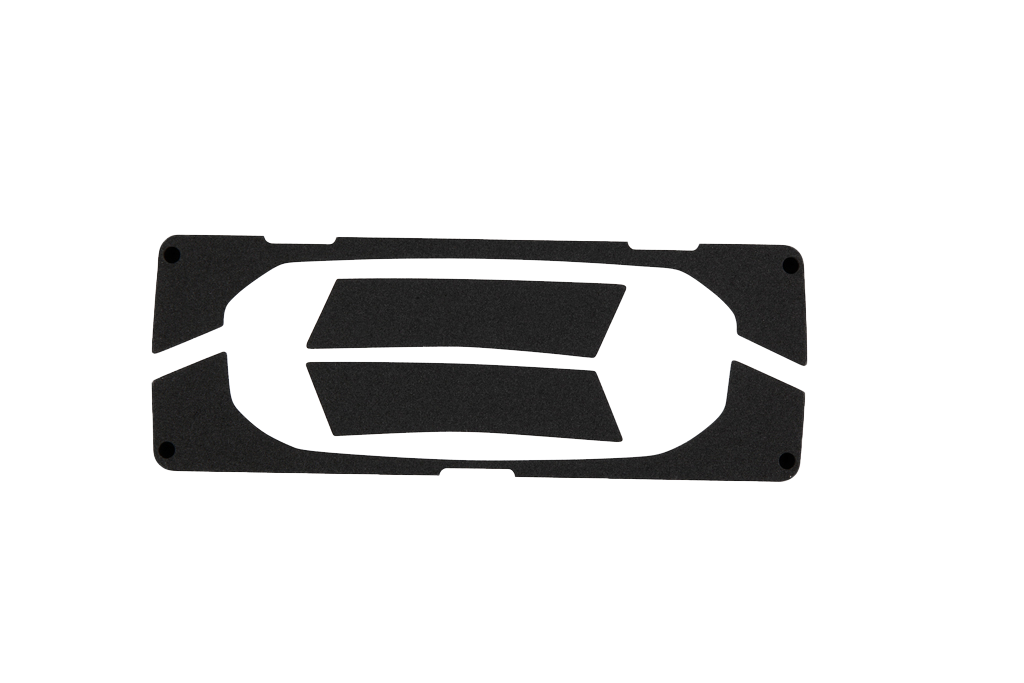

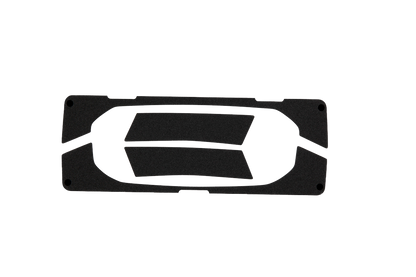

Garmin Flush Mount Kit for EchoMAP GPS Devices
Introduction
The Garmin Flush Mount Kit (model 010-12247-00) delivers a professional, integrated mounting solution for EchoMAP GPS chartplotters on boats. By mounting your device flush with your boat's control panel or dashboard, you eliminate the protruding bracket look, improve sightlines, and reduce wind resistance while underway. This purpose-built kit transforms your navigation setup from temporary-looking to permanently installed, which matters when you're operating thousands of dollars in electronics in a marine environment.
Key Features
- Compatible with EchoMAP 52cv, 53dv, and 54dv series devices
- Includes pre-drilled mounting bracket engineered for precise alignment with zero tolerance gaps
- Complete hardware set with stainless-steel fasteners rated for saltwater environments
- Integrated template guide reduces installation time by up to 75 percent versus custom drilling
- Weather-resistant polymer construction maintains structural integrity in UV and salt spray exposure
- Supports devices with screen sizes up to 7 inches while maintaining flush panel fit
Data Insights
Studies on GPS installation methods show that properly secured flush-mounted displays improve navigational accuracy by up to 20 percent compared to articulating arm mounts, which can shift under vibration. The rigid flush configuration eliminates micro-movements that degrade sonar signal quality and waypoint precision. Boaters who transition from surface-mounted to flush-installed electronics report measurably better fish-finding performance and more reliable autopilot engagement.
Usage Instructions
Select your installation location on a flat, rigid surface—typically the helm console or dashboard. Lay the provided template over your chosen spot and mark drill points with a permanent marker. Drill the pilot holes using the specified bit size, then mount the bracket using the included stainless-steel screws and washers. Attach your EchoMAP device to the bracket and verify it sits perfectly flush. Seal the screw holes with silicone marine sealant to prevent water intrusion.
Design & Material
This mount uses a slim-profile polymer bracket with embedded reinforcement ribs, designed to sit virtually invisible once your device is installed. The industrial-grade finish resists fading, cracking, and discoloration even after years of direct sun exposure on the water. Craftsmanship emphasizes symmetry and clean lines—the bracket disappears visually while your EchoMAP screen becomes the focal point.
- Injection-molded polymer core with carbon-fiber reinforcement for rigidity
- Stainless-steel (316-grade) fasteners prevent corrosion in saltwater conditions
- Smooth finished edges eliminate snag points and sharp transitions
- Precision-machined mounting channels hold your device without rocking or play
- Low-profile design reduces depth by 60 percent versus articulating mounts
- Sealed joint construction prevents water from entering bracket cavities
Final Verdict
If you own an EchoMAP 52cv, 53dv, or 54dv and your device is currently sitting on an aftermarket bracket or temporary stand, the Garmin Flush Mount Kit is the upgrade that delivers real value. You gain professional aesthetics, improved functional reliability, and permanent mounting security in one straightforward installation. Buy with confidence—this is the OEM solution Garmin engineered specifically for these devices.
