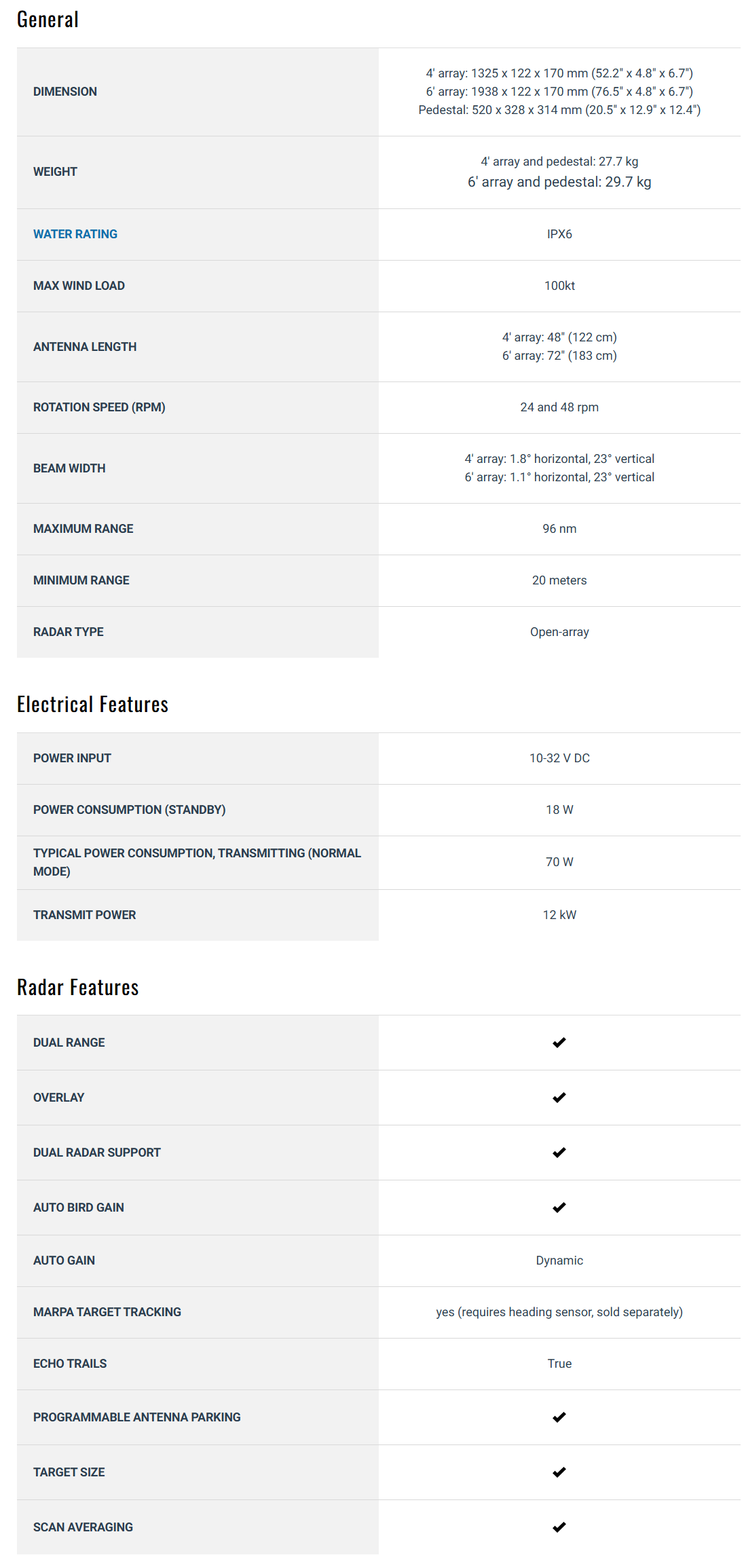

Tech Specs
In The Box
Power cable (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Voltage converter
Mounting hardware kit and template
Installation instructions
Manual & Warranty
Garmin Warranty
Do you have an old GPS unit lying around? The GPS Nation Trade In and Up program is a great way to trade in your old and used GPS for credit towards a new GPS. The choice is entirely yours! We’ve made the process simple and streamlined. Follow these simple steps, and you will be on your way to receiving credit towards your brand new GPS!
1. Get a quote
To get your free quote, provide your GPS type, manufacturer, model, and condition. Within 24 hours, you will receive a quote for the trade-in value of your current product. The GPS trade-in/trade-up form is at the bottom of this page.
2. Ship your product(s) for trade
After accepting our offer, pack your product(s) safely and ship them to us using the pre-paid shipping label provided to you. We will provide a confirmation email when your trade-in arrives at our warehouse. You have 30 days from the date you complete your on-line trade to ship the product to GPS Nation.
3. Make your purchase
Once we receive your product at our warehouse and we validate the stated condition, we will send you a confirmation email. If you elect to receive credit towards a new GPS at gpsnation.com, your store credit will be issued, and you are free to make your purchase.
Reviews
Ask a Question
Tech Specs
In The Box
Power cable (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Voltage converter
Mounting hardware kit and template
Installation instructions
Manual & Warranty
Trade-In
Do you have an old GPS unit lying around? The GPS Nation Trade In and Up program is a great way to trade in your old and used GPS for credit towards a new GPS. The choice is entirely yours! We’ve made the process simple and streamlined. Follow these simple steps, and you will be on your way to receiving credit towards your brand new GPS!
1. Get a quote
To get your free quote, provide your GPS type, manufacturer, model, and condition. Within 24 hours, you will receive a quote for the trade-in value of your current product. The GPS trade-in/trade-up form is at the bottom of this page.
2. Ship your product(s) for trade
After accepting our offer, pack your product(s) safely and ship them to us using the pre-paid shipping label provided to you. We will provide a confirmation email when your trade-in arrives at our warehouse. You have 30 days from the date you complete your on-line trade to ship the product to GPS Nation.
3. Make your purchase
Once we receive your product at our warehouse and we validate the stated condition, we will send you a confirmation email. If you elect to receive credit towards a new GPS at gpsnation.com, your store credit will be issued, and you are free to make your purchase.
Overview

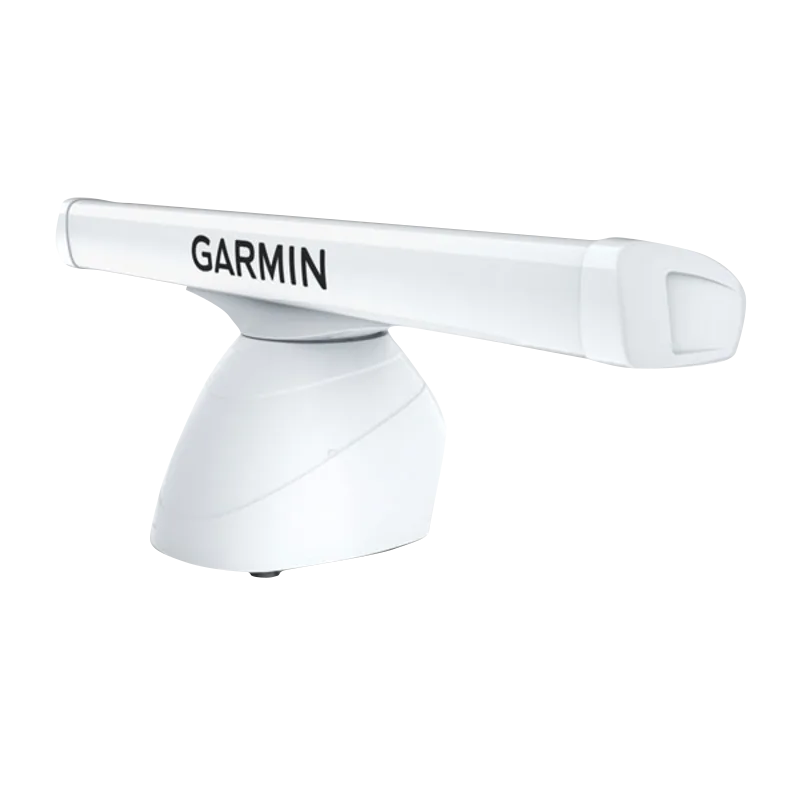

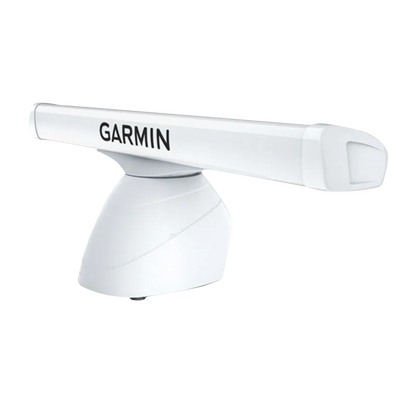

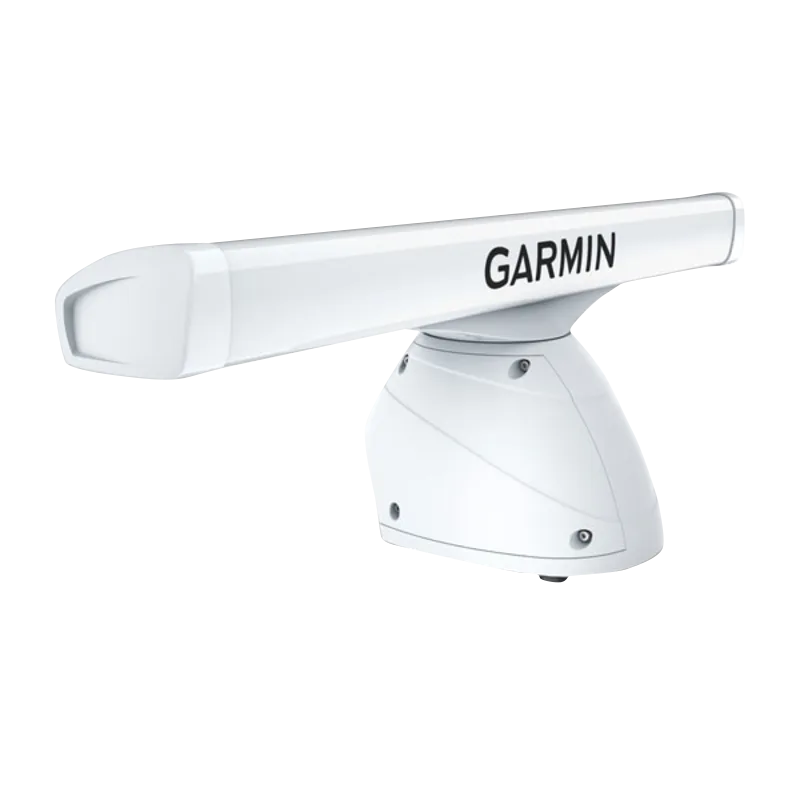

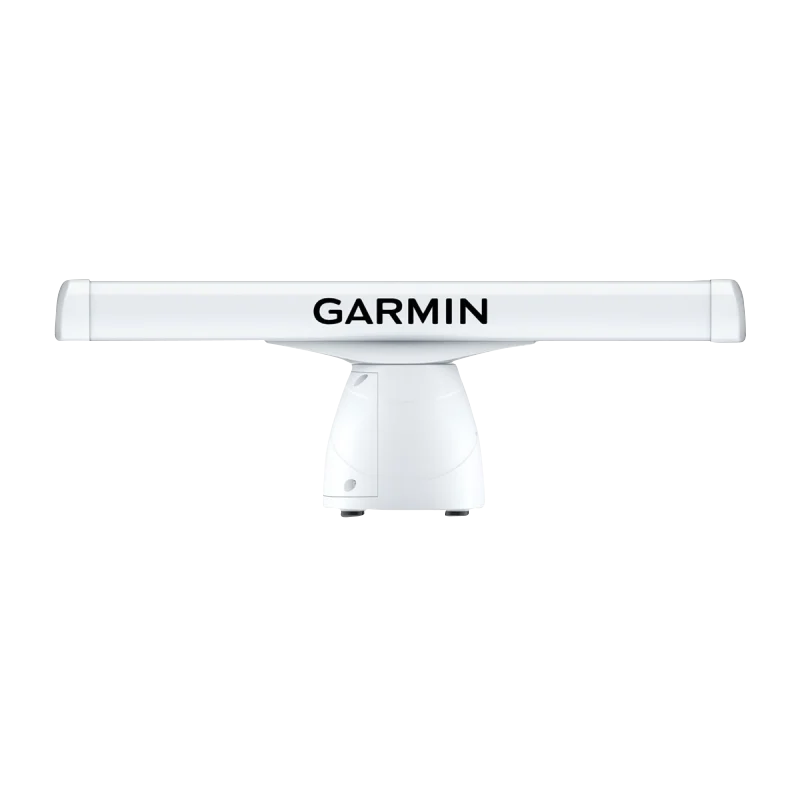

Garmin GMR 1234/1236 xHD3 Open Array Radar and Pedestal (K10-00012-26)
Introduction
The Garmin GMR 1234/1236 xHD3 Open Array Radar delivers professional-grade detection capabilities for offshore navigation, combining selectable power outputs with a maximum range of 96 nautical miles to give you complete situational awareness in challenging maritime conditions. Built for commercial and serious recreational mariners, this radar system uses advanced scanning technology to cut through sea clutter, accurately identify weather systems, and track surrounding vessels with precision that directly improves safety and navigation efficiency.
Key Features
- Selectable power output in 4 kW, 12 kW, or 25 kW configurations for flexible detection requirements
- Maximum detection range extending to 96 nautical miles with 25 kW setting
- Commercial-grade wind rating up to 100 knots for reliable operation in severe weather
- MARPA (Mini-Automatic Radar Plotting Aid) target tracking monitoring up to 30 simultaneous targets
- True Echo Trails function displaying historical target positions to reduce motion distortion and improve tracking clarity
- Dual rotation speeds at 24 and 48 RPM for customized scan rates based on navigation requirements
Data Insights
The Garmin GMR 1234/1236 xHD3 employs Scan Averaging Technology that reduces false target detection by filtering sea clutter with up to 75% effectiveness. This clutter rejection capability, combined with enhanced target-size processing, enables mariners to interpret object shapes with remarkable precision across all range scales—a critical advantage when operating in congested shipping lanes or coastal waters where sea state conditions can mask legitimate contacts.
Usage Instructions
For optimal performance, mount the radar unit at sufficient height to achieve an unobstructed 360-degree view of the surrounding area. Calibrate gain and filter settings regularly to adapt to changing sea conditions, and utilize the split-screen dual-range display capability to monitor both long-range traffic patterns and close-range targets simultaneously. Dynamic Auto Gain automatically adjusts sensitivity levels, though manual fine-tuning during varying weather conditions maximizes target separation and reduces unnecessary clutter on your display.
Design & Material
The GMR 1234/1236 xHD3 features a compact, modern open-array design that integrates seamlessly with contemporary vessel layouts while maintaining the rugged construction demanded by offshore environments. The system prioritizes both functionality and durability through marine-specific materials and engineering.
- High-grade marine-rated aluminum and stainless steel construction resisting corrosion in saltwater exposure
- Narrow horizontal beamwidth antenna design enabling precise target separation and reduced false echoes
- Quiet open-array drive motor minimizing mechanical noise during extended operational periods
- Advanced adaptive filters automatically optimizing radar performance across variable sea state conditions
- Flexible display interface with customizable layout options for individual navigation preferences and workflow integration
- Pedestal-mounted configuration allowing 360-degree rotation and simplified installation on mast or hardtop structures
Final Verdict
The Garmin GMR 1234/1236 xHD3 Open Array Radar and Pedestal is a mission-critical investment for mariners who demand accurate, reliable target detection in demanding offshore conditions. Its combination of selectable power outputs, advanced sea clutter rejection, and robust commercial-rated construction delivers the performance and confidence required for safe navigation in high-traffic waters. Choose the GMR 1234/1236 xHD3 to equip your vessel with radar technology engineered specifically for serious ocean navigation.
