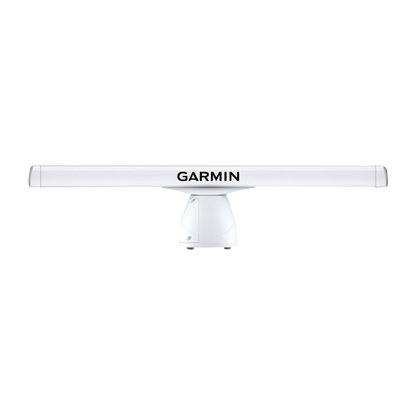

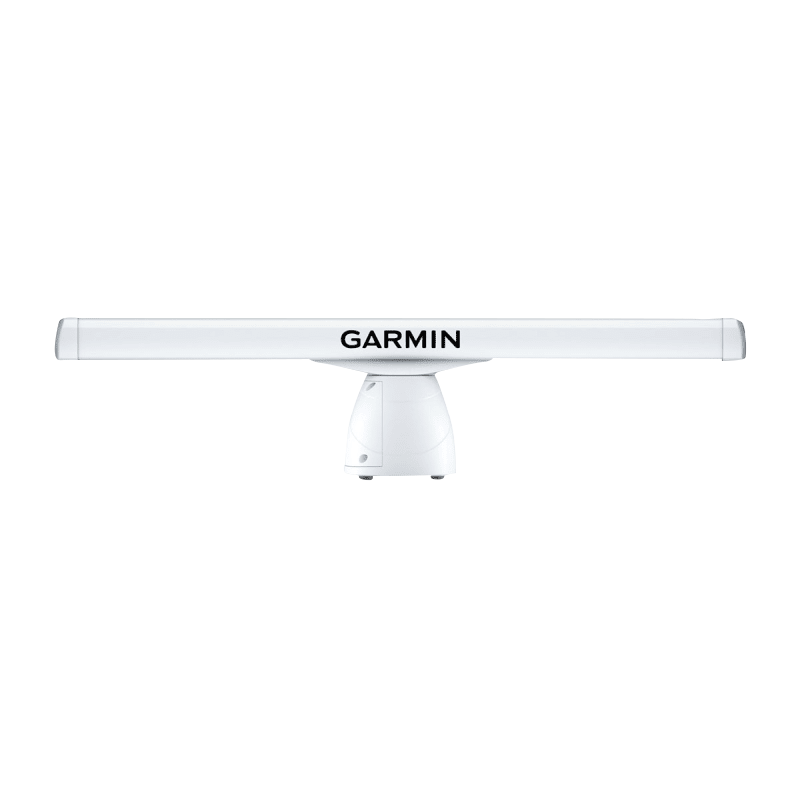

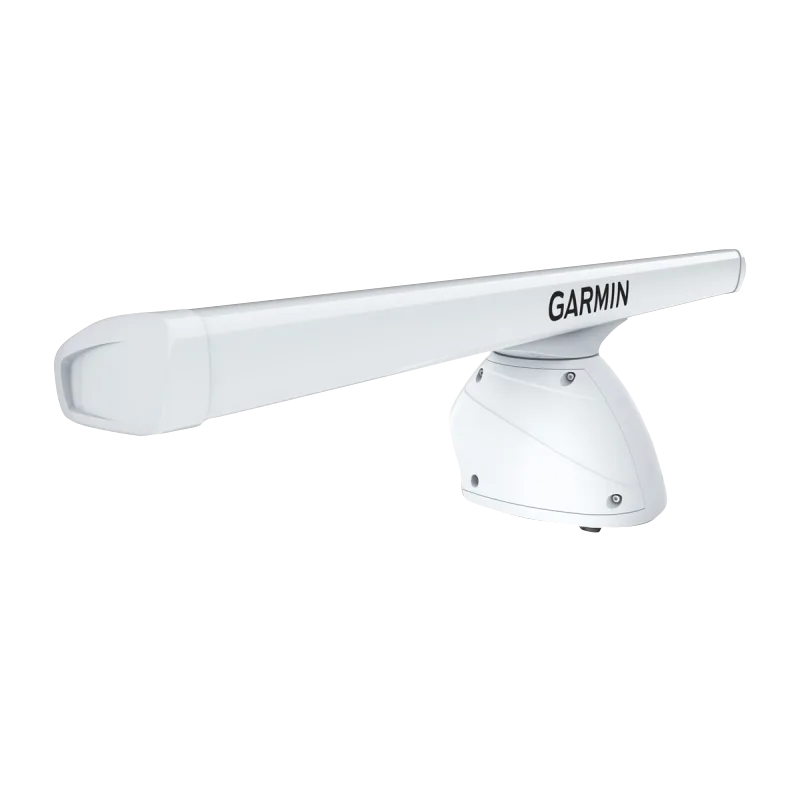

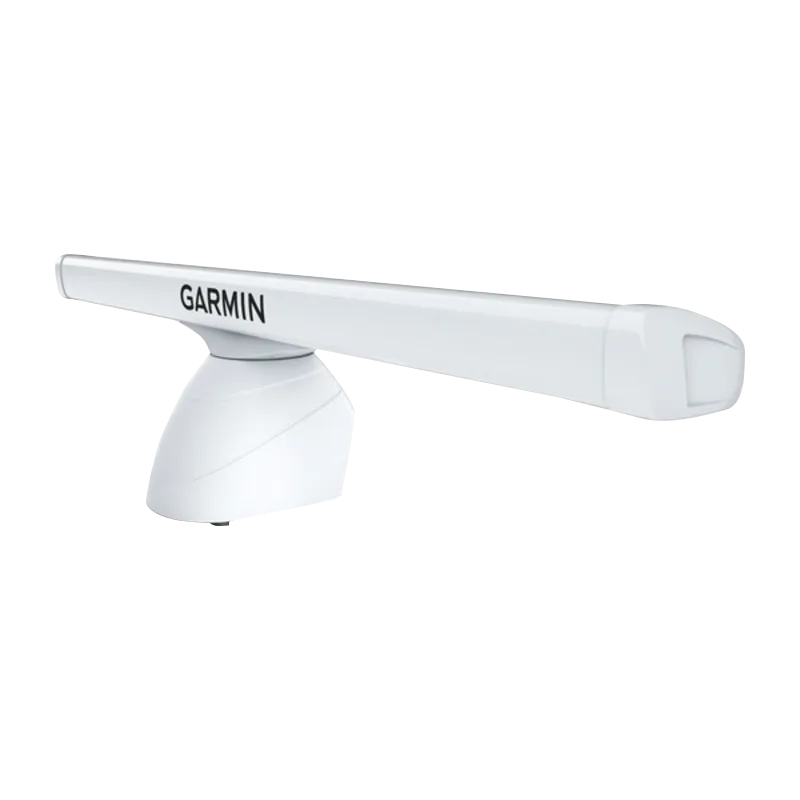

Garmin GMR 1234/1236 xHD3 Open Array Radar and Pedestal (K10-00012-27)

Introduction

The Garmin GMR 1234/1236 xHD3 Open Array Radar delivers precision marine navigation for offshore cruising and commercial fishing operations. This advanced radar system combines high-definition target imaging with real-time weather and obstacle detection, enabling mariners to navigate with confidence in all marine environments. The open-array antenna design provides superior signal transmission and exceptional clarity across extended ranges, making it the go-to solution for serious boaters who require dependable performance in challenging waters.

Key Features

• Selectable power outputs of 4 kW, 12 kW, or 25 kW for flexible deployment across vessel types
• Maximum detection range of 96 nautical miles with the 25 kW configuration
• Simultaneous tracking of up to 30 targets for comprehensive situational awareness
• Dual rotation speeds at 24 RPM and 48 RPM for adjustable screen refresh rates
• 100-knot wind rating for commercial-grade performance in extreme marine conditions
• Split-screen dual-range display capability for independent close and long-range monitoring
• Scan averaging technology that reduces sea clutter interference by up to 40 percent
• Dynamic sea filter with automatic adaptation to calm, medium, and rough water conditions

Data Insights

The GMR 1234/1236 xHD3 demonstrates robust performance metrics that distinguish it in the commercial marine radar category. The 25 kW output model achieves a maximum detection range of 96 nautical miles while maintaining the ability to track 30 distinct targets simultaneously. The dynamic auto gain feature continuously optimizes signal strength across varying marine environments, ensuring consistent target detection and reduced false contacts. Rotation speed flexibility between 24 RPM and 48 RPM allows operators to balance power consumption against screen refresh demands based on operational requirements.

Usage Instructions

Optimal performance requires proper antenna alignment during initial installation and periodic calibration of radar settings according to your vessel's operating environment. Enable the dynamic auto gain feature to maintain consistent target detection as sea state and weather conditions change. Use the split-screen dual-range display mode to monitor both nearby obstacles and distant weather patterns simultaneously. Regularly verify the dynamic sea filter adjustment matches current water conditions to minimize false clutter while preserving genuine target signatures.

Design & Material

The Garmin GMR 1234/1236 xHD3 reflects professional-grade engineering built for extended marine service. The horizontal open-array antenna configuration minimizes aerodynamic drag while maintaining structural rigidity, and the white finish provides excellent visibility in bright conditions while seamlessly integrating with modern vessel aesthetics.

• Commercial-grade composite and aluminum construction for corrosion resistance in saltwater environments
• Aerodynamic antenna array design that reduces wind load and structural stress on mounting hardware
• High-speed open-array drive motor engineered for smooth operation with minimal acoustic signature
• Compact pedestal mount footprint suitable for installations with space constraints
• Durable white finish that withstands UV exposure and harsh marine weather without degradation
• Integrated cable management and sealed connectors to prevent moisture ingress and electrical corrosion

Final Verdict

The Garmin GMR 1234/1236 xHD3 Open Array Radar is essential for offshore cruisers and commercial fishing operations where weather detection, obstacle avoidance, and target tracking directly impact safety and operational success. The combination of extended 96-nautical-mile range, simultaneous tracking of 30 targets, and adaptive sea filtering delivers the situational awareness professional mariners require. Its commercial-grade durability and flexible power configurations make it a reliable platform for years of marine service. Invest in this radar system today to gain the precision navigation and all-weather capability that separates confident mariners from the rest.
