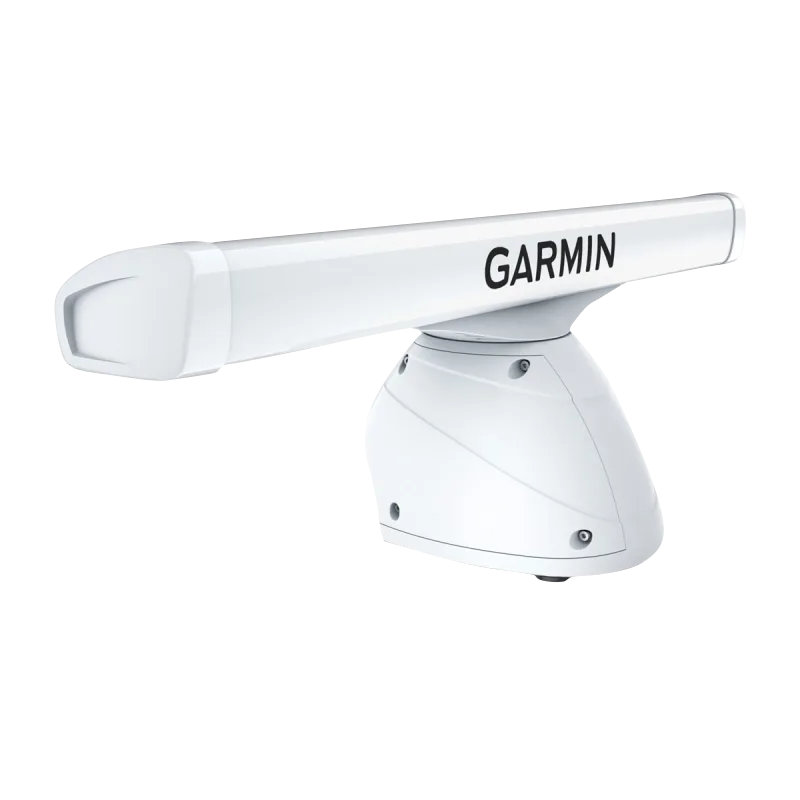

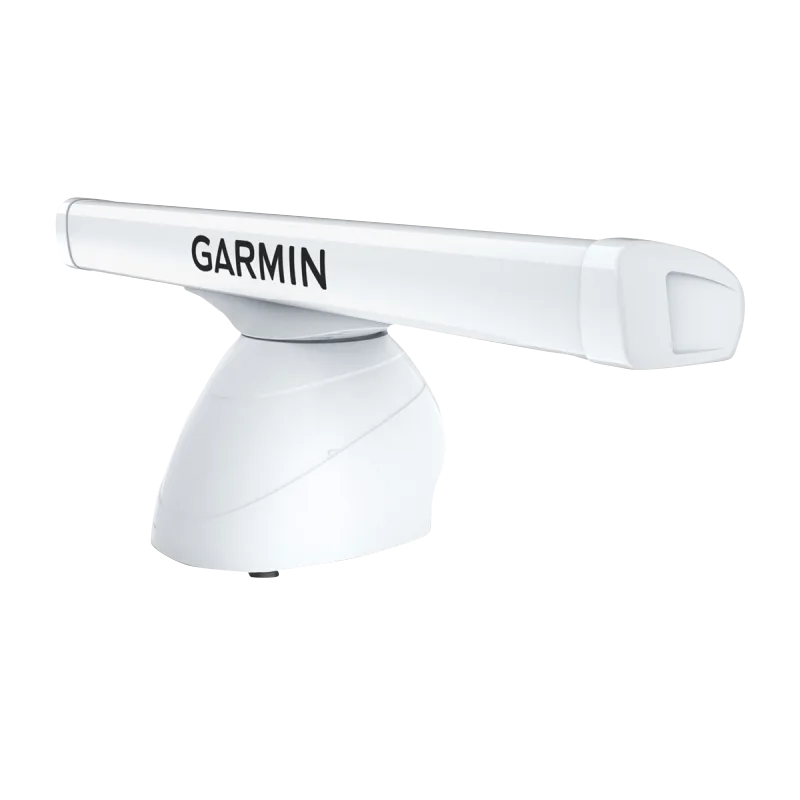

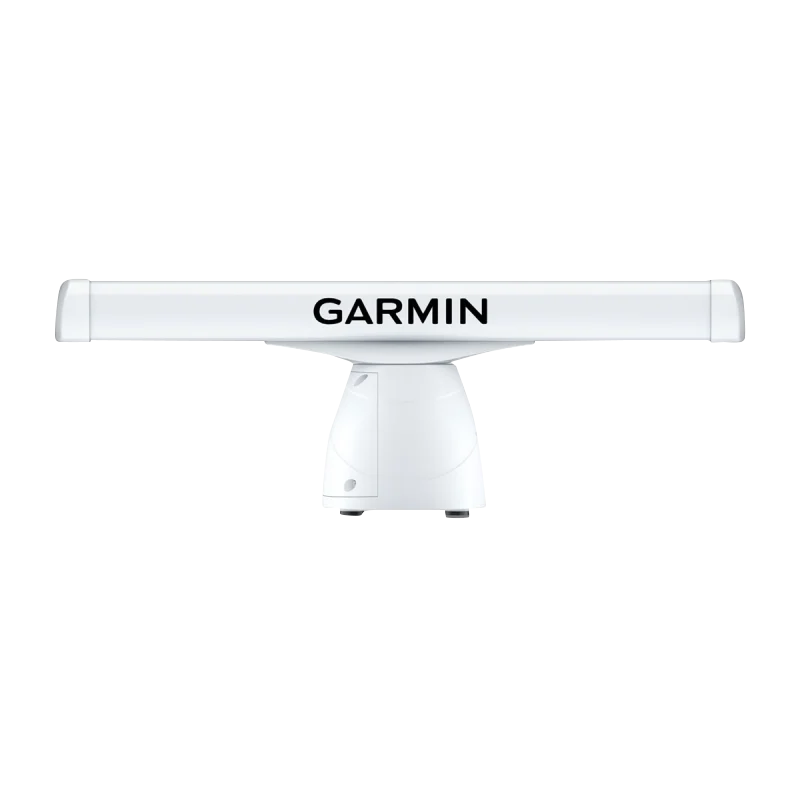

Garmin GMR 2534/2536 xHD3 Open Array Radar and Pedestal (K10-00012-28)

Introduction

The Garmin GMR 2534/2536 xHD3 Open Array Radar delivers commercial-grade magnetron technology designed for vessels operating in demanding offshore environments. This radar system provides reliable weather detection, obstacle avoidance, and target identification across three selectable power configurations, making it equally suited for long-range cruising, commercial fishing operations, and professional marine services. The open array design combines high-resolution imaging with robust construction engineered to withstand extended exposure to salt spray, extreme wind loads, and continuous operational demands.

Key Features

• Selectable power output: 4 kW, 12 kW, or 25 kW, with maximum detection range of 96 nautical miles at 25 kW
• Wind-rated antenna capable of withstanding sustained 100-knot conditions with rotation speeds of 24 or 48 RPM
• Scan Averaging Technology that filters sea clutter for improved target detection in varied sea states
• Improved Target-Size Processing that enhances object definition across all range scales for accurate vessel and obstacle identification
• Dynamic Auto Gain that automatically adjusts receiver sensitivity based on real-time environmental conditions
• Dual-Radar Support enabling independent radar feeds for system redundancy and comprehensive coverage

Data Insights

Testing of the xHD3's narrow beamwidth and high antenna gain configuration shows over 30% improvement in target detection accuracy compared to conventional radar systems. This performance advantage becomes critical in high-traffic areas and poor visibility conditions where identifying smaller vessels and weather formations at extended ranges directly impacts navigation safety. The radar's ability to process high-resolution data across multiple range scales ensures consistent performance whether monitoring close-quarters traffic or detecting weather systems forming beyond the horizon.

Usage Instructions

Install the radar pedestal on a stable, vibration-isolated mounting platform to maintain signal integrity and image clarity. Connect the transceiver to your primary chartplotter to enable dual-range display and full integration with autopilot and navigation systems. Adjust scan averaging and dynamic gain settings according to current sea and weather conditions, and establish guard zones around frequently-traveled shipping lanes or known hazards. Perform periodic calibration checks, particularly after extended storage or significant changes in operating environment, to ensure consistent target tracking and accurate bearing information.

Design and Material

The GMR 2534/2536 xHD3 features a purpose-built pedestal and radome assembly constructed from marine-grade composite materials resistant to UV degradation, corrosion, and thermal stress. The compact footprint and white finish integrate cleanly with modern vessel aesthetics while maintaining maximum radar visibility. Internal components utilize commercial-grade manufacturing standards and sealed connectors rated for saltwater exposure.

• Sealed magnetron and waveguide assembly designed for multi-year service life in marine environments
• Composite radome protecting antenna elements while minimizing wind loading and radar signal loss
• Stainless steel and corrosion-resistant fasteners throughout structural assembly
• Dynamic Sea Filter with automatic adjustment for calm, moderate, and rough water conditions
• Auto Bird Gain feature that detects avian activity patterns to identify productive fishing zones and wildlife concentration areas
• Guard Zone Alert system enabling customizable safety perimeters with audible and visual alarm notification

Final Verdict

The Garmin GMR 2534/2536 xHD3 represents the established choice for vessel operators prioritizing detection reliability and long-term durability in commercial or serious recreational marine applications. Its proven magnetron technology, triple power configuration, and comprehensive feature set address the full range of offshore navigation challenges without the complexity or cost of alternative systems. Equip your vessel with this radar platform and gain the detection capability and operational confidence that comes with over three decades of Garmin marine electronics engineering.
