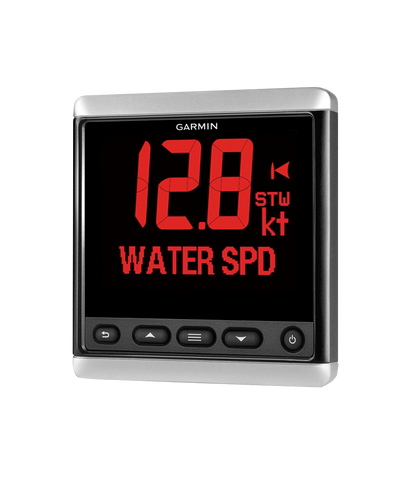

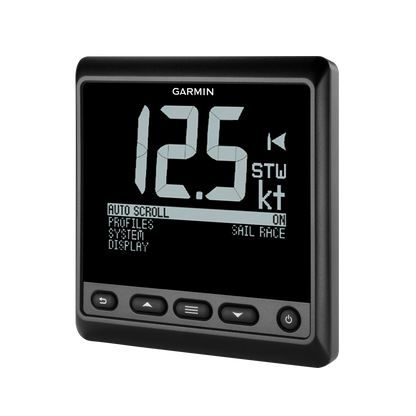

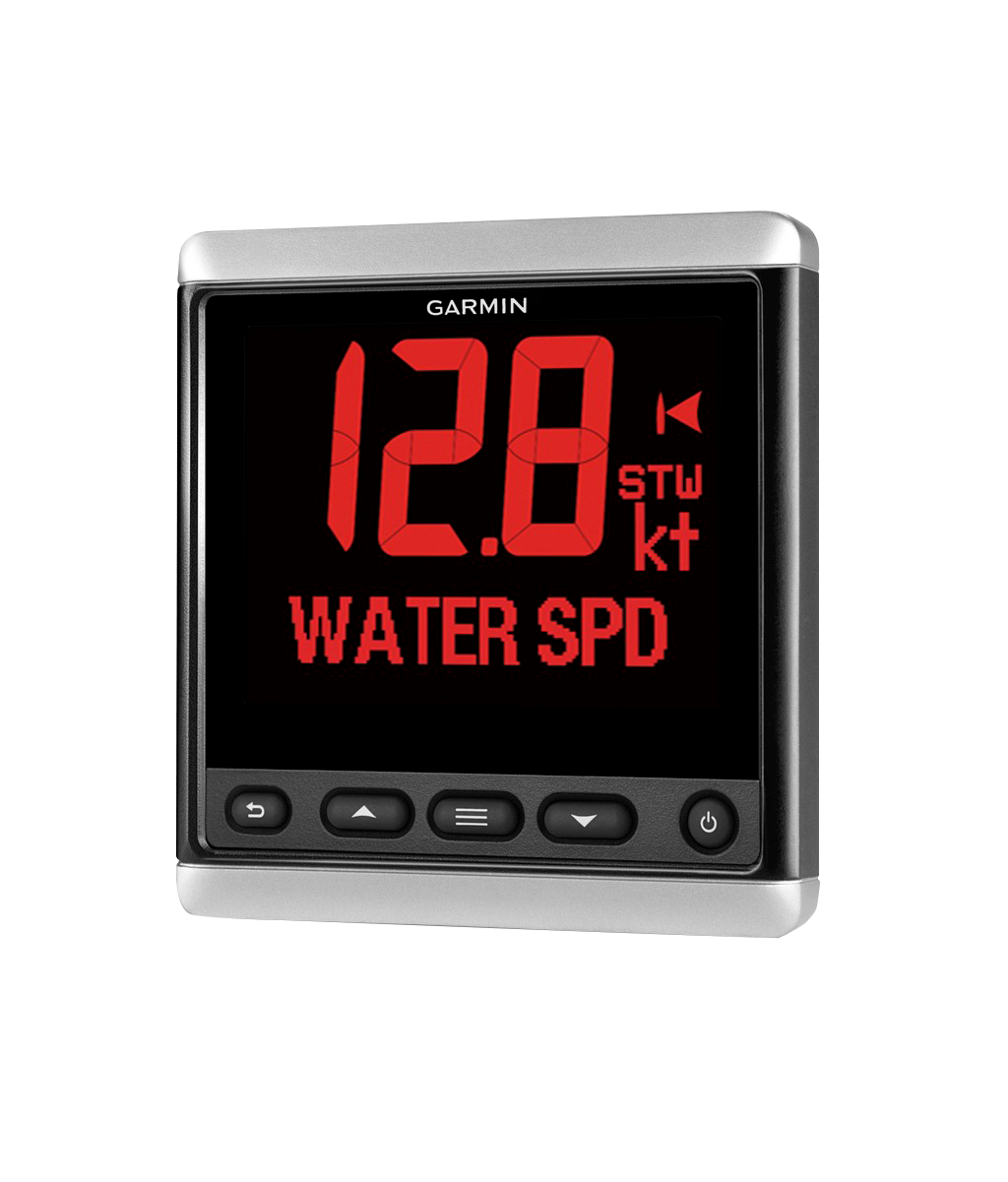

Garmin GNX 20 Marine Instrument Display
Introduction
The Garmin GNX 20 Marine Instrument Display (model 010-01142-00) is a glass-bonded marine instrument that consolidates over 50 navigation and performance parameters into a single high-contrast display, eliminating the need to scan multiple gauges while you're at the helm. Built for both cruising and fishing, this compact instrument delivers real-time data on speed, depth, wind, and dozens of other critical metrics with refresh rates fast enough to catch changes as they occur—ideal for sailors and boaters who need immediate awareness without distraction.
Key Features
- Displays over 50 marine parameters including wind speed, depth, and boat speed with direct LCD segment and dot-matrix capability
- High-contrast digits scalable up to 36 millimeters for enhanced readability across all lighting conditions
- Extremely low power consumption at just 25 milliamperes during operation, with dual backlight modes at 350 mW (no backlight) or 400 mW (mid-level backlight)
- Glass-bonded display construction with anti-glare lens coating for superior daytime and nighttime visibility
- Achieves up to 99% visibility contrast to maintain data legibility in direct sunlight without screen washout
- Customizable user profiles that allow you to prioritize wind, depth, and speed data according to your specific sailing or fishing needs

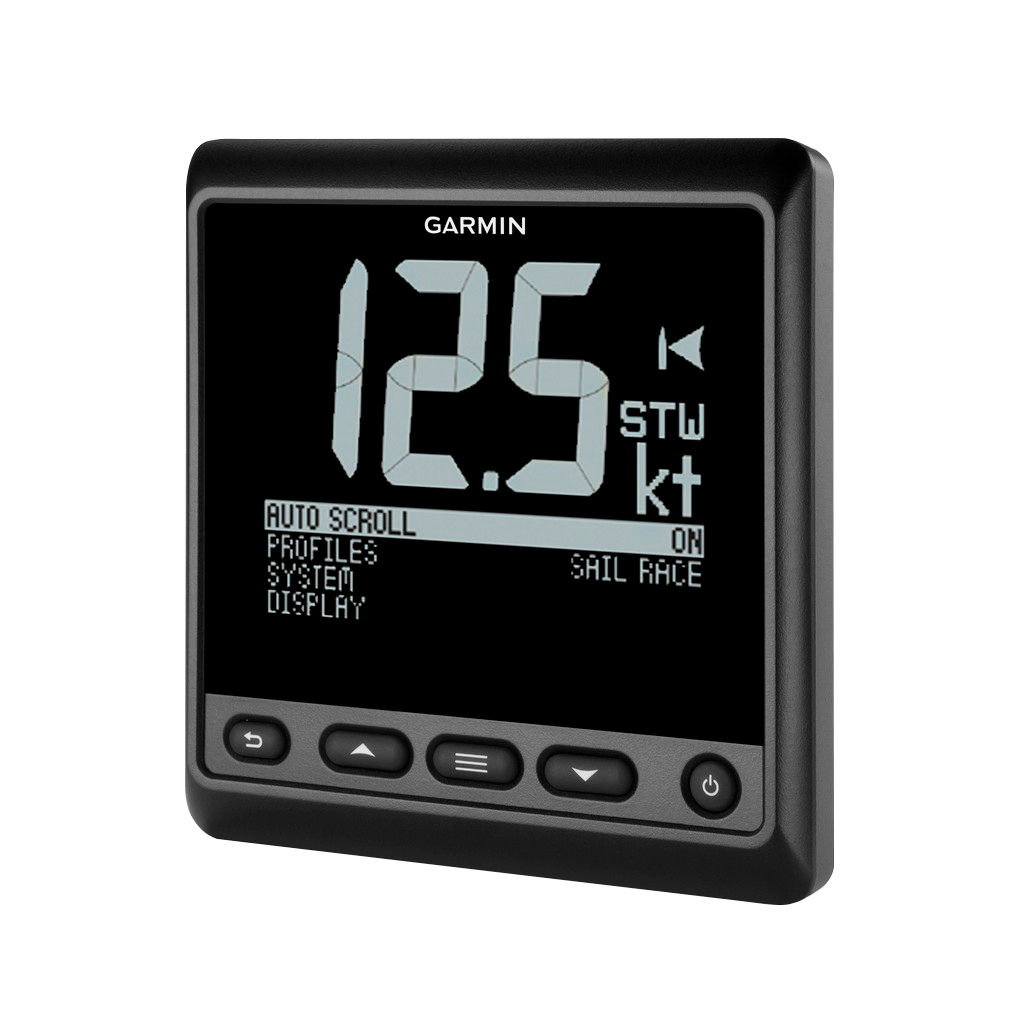

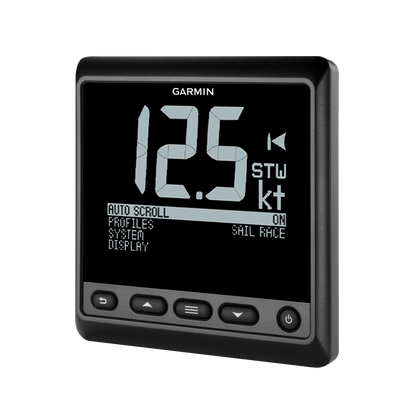

- Auto-scroll feature rotates through data screens automatically, enabling hands-free monitoring during extended operations
- Flush-mount and flat-mount installation options for professional, integrated helm aesthetics
Data Insights
The GNX 20's real-time data refresh ensures that speed, depth, and wind changes register immediately—critical for dynamic water conditions where lag time between sensor reading and display can affect your decision-making. The combination of direct LCD segments and dot-matrix field technology allows this single display to replace multiple dedicated instruments, reducing helm clutter while centralizing essential information. With power consumption as low as 25 mA, the unit draws minimal current from ship's systems, making it especially suited to sailboats and vessels relying on auxiliary power or battery systems where power efficiency directly extends operational range.
Usage Instructions
Mount the GNX 20 in a location with clear sightlines to your navigation workspace, using either the flush-mount or flat-mount bracket appropriate to your helm layout. Access the menu via the five-button control interface to configure custom user profiles that display the parameters most relevant to your style of boating. Enable the auto-scroll feature to cycle through data screens without manual intervention, or manually navigate screens using the up and down buttons. Check all electrical connections periodically and verify that the anti-glare lens remains clean to maintain optimal contrast and readability in all weather conditions.
Design & Material
The GNX 20's industrial design balances compact footprint with functional density, presenting a modern, low-profile appearance that integrates seamlessly into contemporary helm layouts without dominating the space. Its durable marine-grade construction withstands salt spray, UV exposure, and temperature fluctuations encountered in open-water environments.
- Engineered with precision-grade components and assembly to ensure reliability under extended use in harsh marine conditions
- Constructed of high-quality, corrosion-resistant materials rated for prolonged saltwater exposure
- Anti-glare coating applied to the glass-bonded display lens reduces reflections and glare across the full range of lighting scenarios, from dawn through midday sun

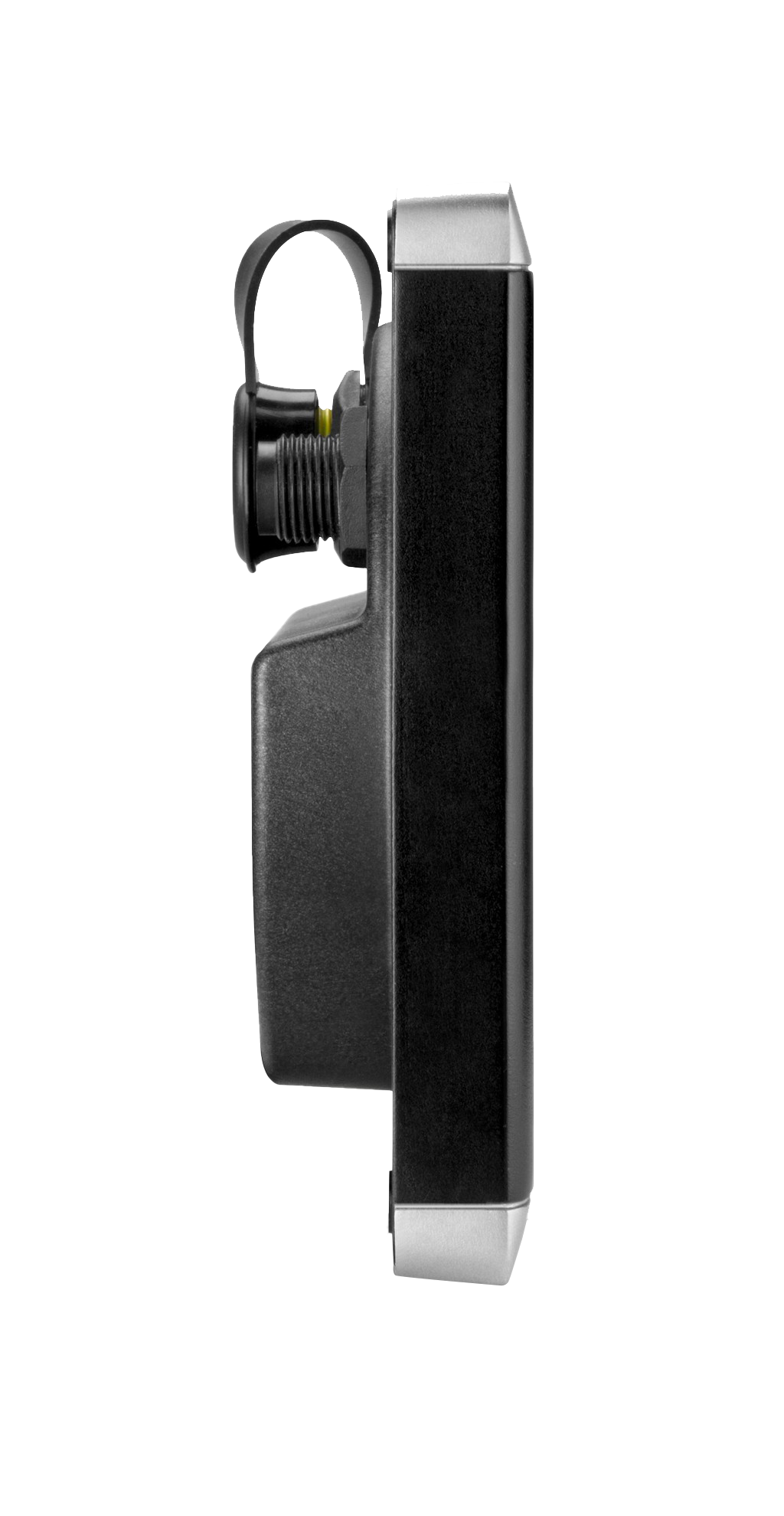

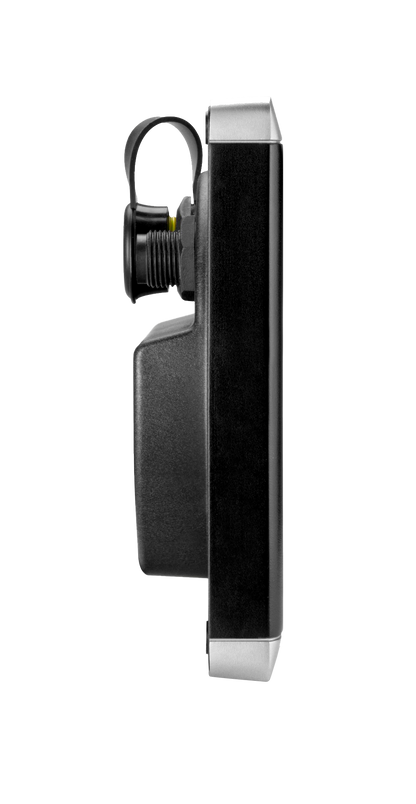

- Low-profile form factor allows flexible mounting positions without creating visual obstruction or unbalancing helm ergonomics
- Lightweight design sufficient for stable mounting while minimizing load on installation brackets and structural components
- Dual mounting options—flush mount and flat mount—accommodate various helm panel configurations and installation depths
Final Verdict
The Garmin GNX 20 consolidates critical marine data into a single, power-efficient display that performs reliably in full-sun conditions and costs less power to operate than competing multi-gauge setups. If you spend substantial time on the water and depend on real-time depth, speed, and wind data to make safe, informed decisions, this instrument pays for itself in helm simplicity and operational confidence. Choose the GNX 20 and reduce cognitive load while gaining the precision display performance that Garmin's marine electronics are built to deliver.
In The Box
- GNX 20
- Trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- NMEA 2000® T-connector
- NMEA 2000 drop cable
- Installation instructions
- Documentation
