Garmin GPS 15xH-F Sensor with Flex Cable Connection (010-00240-33)
Introduction
The Garmin GPS 15xH-F Sensor is a compact navigation-grade receiver designed for integration into marine, aviation, automotive, and industrial positioning systems. Unlike consumer-grade GPS modules, this sensor delivers 2.5-meter positioning accuracy under open sky conditions and maintains 99% operational reliability in urban environments where signal obstruction is common. The flex cable connection design allows for flexible mounting in confined spaces, making it particularly valuable for retrofit applications and custom system integrations where space constraints limit component placement.
Key Features
- True RS-232 serial communication ports for direct device integration without additional interface converters
- Ultra-high sensitivity receiver rated at -159 dBm, enabling signal acquisition in degraded signal environments
- Cold start acquisition time under 30 seconds, providing rapid positioning fixes for time-critical applications
- Wide operating temperature range from -40°C to 85°C for deployment in harsh marine and outdoor conditions
- Exceptional EMI/RFI filtering performance, reducing susceptibility to interference from nearby wireless communications and computing devices
- Flexible cable connector (model 010-00240-33) enabling custom routing and installation configurations in compact enclosures
Data Insights
Performance testing demonstrates the GPS 15xH-F achieves 2.5-meter horizontal accuracy in clear sky conditions and maintains positioning lock across 99% of urban navigation scenarios. The receiver's -159 dBm sensitivity threshold represents a significant performance advantage in obstructed environments such as canyon-like urban areas, forests, and near large structures where weaker signal penetration requires superior receiver gain. Cold start times below 30 seconds reduce system initialization delays in applications requiring immediate position reporting.
Usage Instructions
Mount the GPS 15xH-F Sensor with an unobstructed view toward the sky; rooftop or mast-top placement yields best performance. Connect the flex cable to your host device's RS-232 port and secure mounting hardware through the two PCB-mounted bolt holes. Configure serial communication parameters to 4800 baud, 8 data bits, 1 stop bit (factory default). Firmware updates should be applied periodically to access protocol improvements and enhanced almanac data for faster acquisition times.
Design & Material

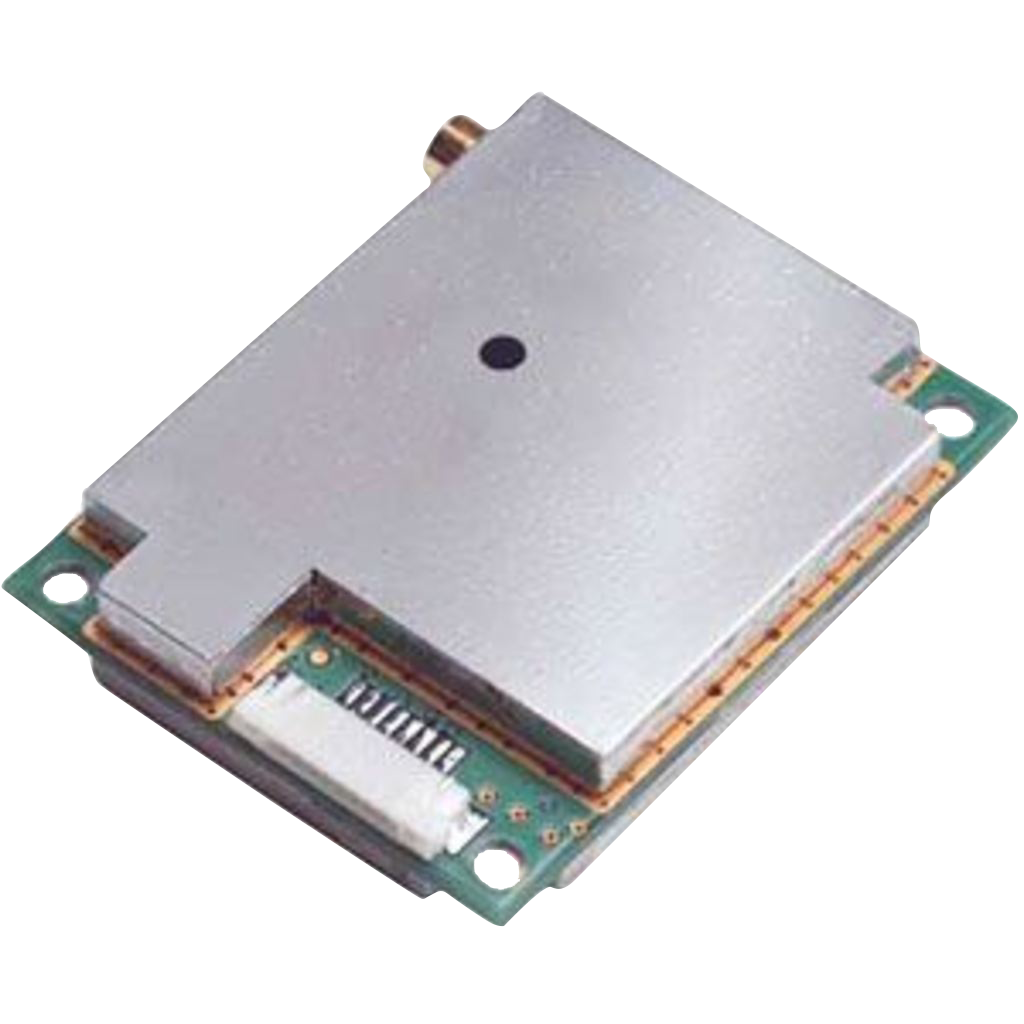

The GPS 15xH-F combines a die-cast aluminum heat-sink housing with a green PCB substrate measuring approximately 50mm × 50mm in total size. The compact form factor accommodates installation within dashboard enclosures, mast-mounted brackets, and OEM equipment housings. Integrated shielding minimizes EMI emissions that could degrade performance in systems using nearby RF transmitters or switching power supplies.
- Die-cast aluminum housing provides thermal management and mechanical rigidity while maintaining lightweight construction
- Green PCB with professional-grade surface treatment resists corrosion from salt spray and moisture exposure
- Corrosion-resistant brass connector pins rated for repeated mating cycles without performance degradation
- Advanced multilayer PCB design integrates high-speed signal routing with RF shielding to minimize cross-talk
- Thermal bonding between aluminum heat-sink and PCB ensures efficient heat dissipation during extended operation
- Compact 50mm × 50mm footprint designed for systems requiring minimal component space allocation
Final Verdict
The Garmin GPS 15xH-F Sensor is purpose-built for professional applications demanding accurate, reliable positioning with minimal installation complexity. Its proven performance across marine, industrial, and vehicular systems, combined with the flexibility of RS-232 communication and cable-based connectivity, makes it the practical choice for engineers integrating GPS into legacy or custom equipment platforms. Purchase the GPS 15xH-F today to add proven positioning accuracy and urban-environment reliability to your next project.
In The Box
- GPS 15xH-F
