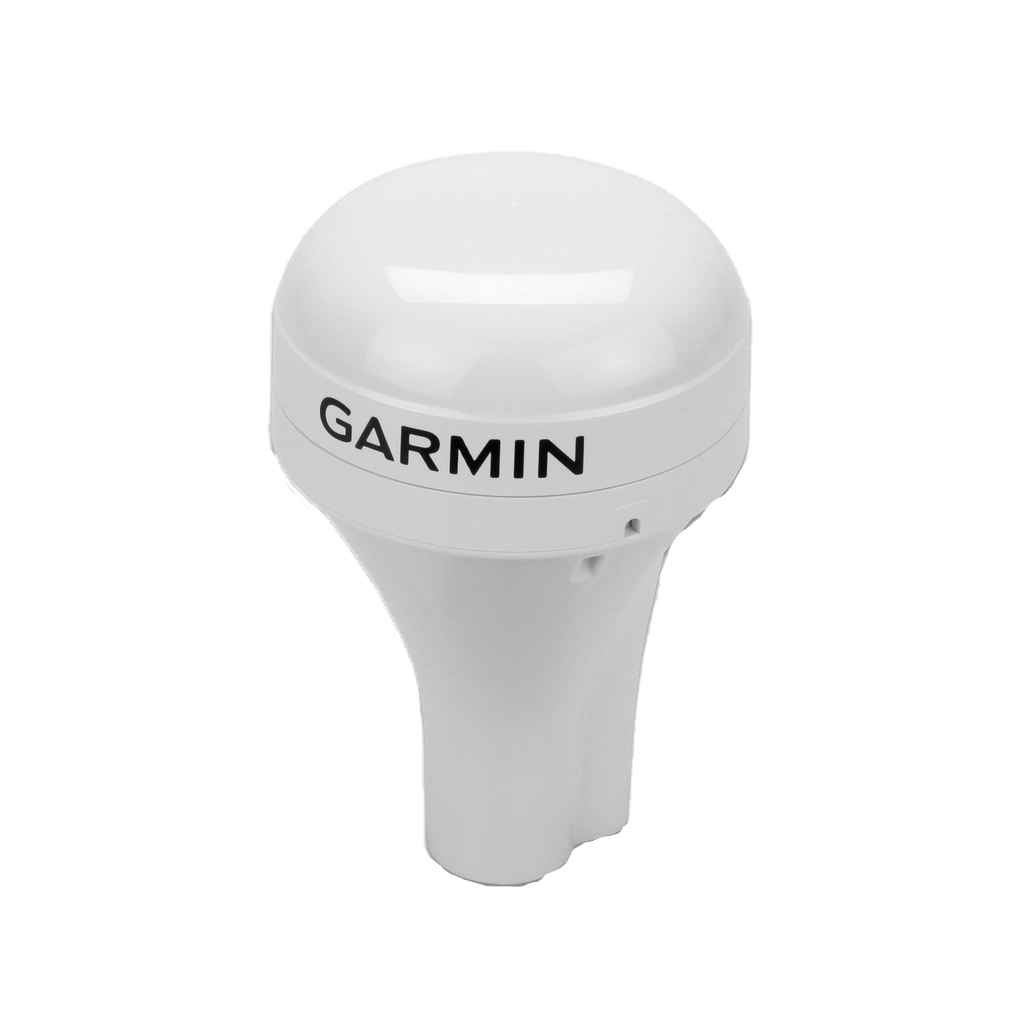

Garmin GPS 19x HVS High-Precision Multi-GNSS Marine GPS Receiver

Introduction

The Garmin GPS 19x HVS delivers accurate positioning and heading data for marine vessels and remote navigation applications where precision cannot be compromised. Built on a 32-channel receiver architecture, this device tracks signals from multiple global navigation satellite systems simultaneously, providing position updates that are 10 times faster than conventional single-frequency GPS units. Whether you're navigating through confined waterways, monitoring vessel heading during slow-speed maneuvering, or operating in areas with challenging satellite geometry, the GPS 19x HVS maintains the accuracy and responsiveness required for both recreational boating and professional fleet operations.

Key Features

• 32-Channel Multi-GNSS Receiver: Simultaneous tracking of GPS, GLONASS, Galileo, and QZSS signals for enhanced satellite availability and redundancy
• 10x Faster Data Delivery: Position, heading, and speed updates delivered 10 times quicker than standard GPS receivers for real-time responsiveness
• WAAS-Capable Positioning: Achieves horizontal accuracy within 3 meters (9.84 feet) when using augmentation services
• Sub-1 mph Heading Stability: Maintains stable, jitter-free heading indication below 1 mph, critical for low-speed boat maneuvering and docking
• Configurable Update Rates: Selectable 1 Hz or 5 Hz output rates to balance performance demands with system bandwidth requirements
• IPX7 Waterproof Rating: Sealed against water immersion up to 1 meter for 30 minutes, ensuring reliability in marine spray and washdown environments

Data Insights

Performance testing demonstrates that the GPS 19x HVS operates at a fundamental advantage over conventional receivers. The 32-channel architecture accessing four separate GNSS constellations increases the probability of maintaining lock in obstructed or urban canyon environments where standard GPS alone struggles. Data update frequency at 10 Hz (when configured for 5 Hz output with internal processing) enables accurate heading computation even during tight turns and course corrections, whereas older 1 Hz receivers produce delayed or lagging heading vectors. True vessel heading—the actual direction the boat points rather than the direction it moves—remains steady and accurate during transitions, a critical distinction when exiting turns or holding station against current.

Usage Instructions

Mount the GPS 19x HVS in an elevated, unobstructed location with clear sightlines to the sky. Both pole-mounted and flush-mount configurations are supported; verify that the antenna faces upward and avoids shadowing from radar reflectors, masts, or superstructure. Configure the device's update rate—select 1 Hz for lower bandwidth applications or 5 Hz for high-performance navigation systems—and verify WAAS correction availability in your region for enhanced accuracy. Connect power and data wiring using the provided cable set, ensuring weatherproof connections at all terminals.

Design & Material

The GPS 19x HVS combines functional marine-grade construction with a compact cylindrical profile that integrates cleanly into modern vessel installations. Its streamlined housing minimizes wind loading and radar reflection while projecting a professional appearance consistent with contemporary navigation equipment.

• IPX7 Waterproof Enclosure: Fully sealed against salt spray, washdown systems, and temporary water immersion; meets marine environment durability standards
• Lightweight Polymer Housing: Weighs minimally to reduce rigging loads and installation labor on both large vessels and small craft

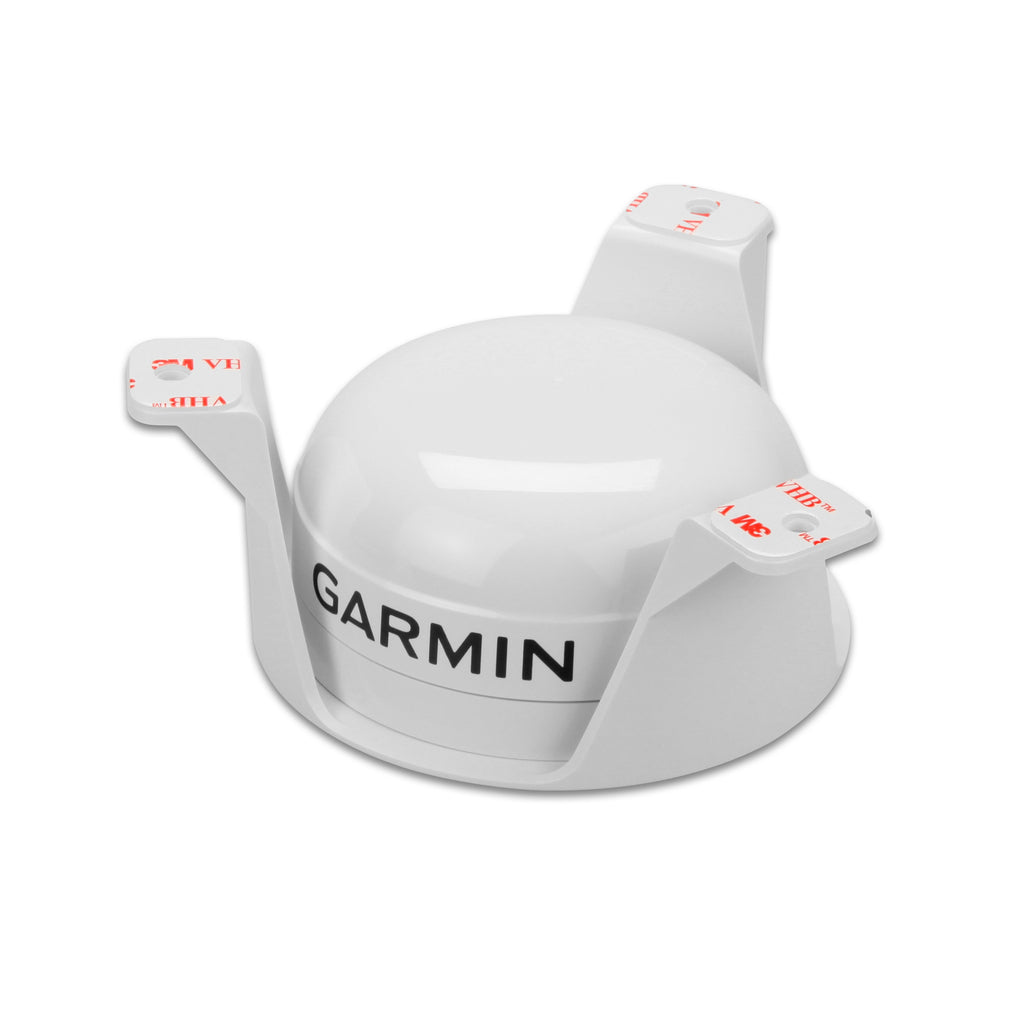

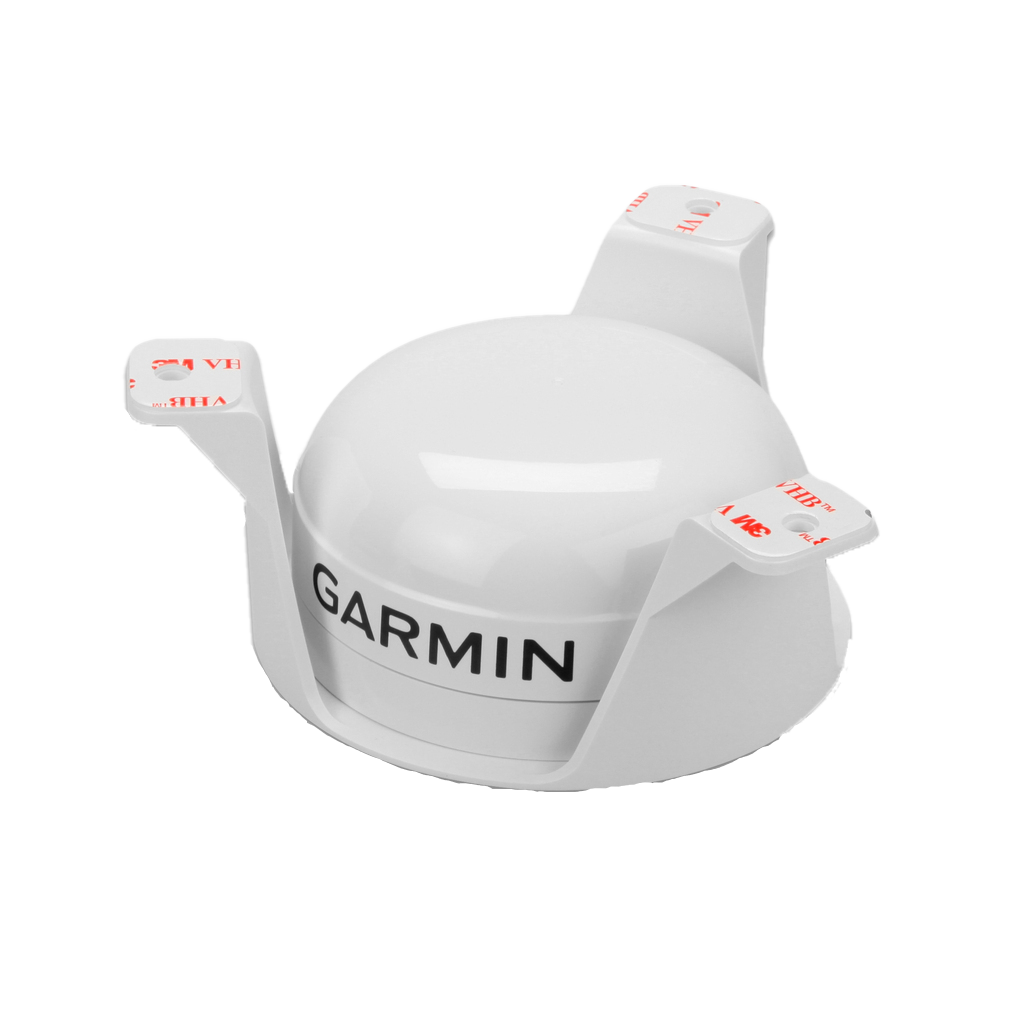

• Multi-Mount Design: Compatible with standard 1 inch rail mounting, pole-mount brackets, and flush-deck installations without requiring custom adapters
• Corrosion-Resistant Fasteners: Stainless steel and anodized hardware resist salt-air degradation typical in coastal operations

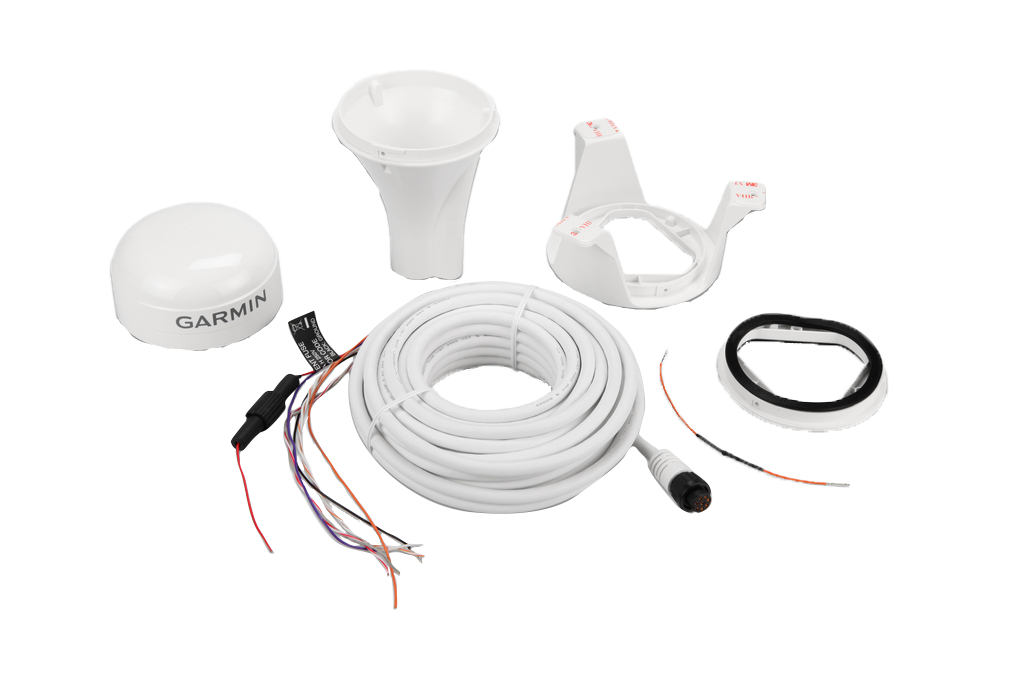

• Clean Cable Management: Supplied with an extensive wiring harness and connectors rated for marine use, simplifying integration with existing navigation systems
• White Finish: Neutral color scheme reflects solar heat and blends with most vessel instrumentation layouts

Final Verdict

The Garmin GPS 19x HVS (model 010-01010-00) is the precision instrument you need when heading accuracy, update speed, and reliability directly impact safety and operational efficiency. Its 32-channel multi-constellation approach, rapid data throughput, and proven waterproof durability make it the foundation of modern marine navigation systems. Operators who demand accurate boat heading below 1 mph, fast response to course changes, and WAAS-augmented positioning within 3 meters cannot afford to compromise with older single-frequency alternatives. Upgrade your vessel's navigation suite with the GPS 19x HVS and navigate with data you can trust in any condition.
