Garmin GPSMAP 1223xsv and GMR 18 HD+ Radar Bundle

Introduction

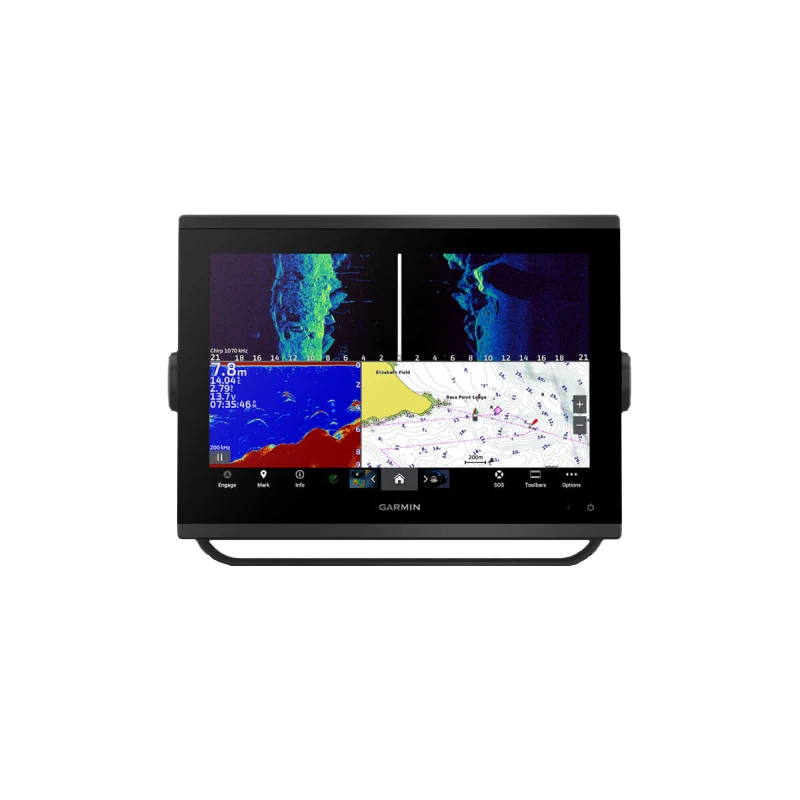

The Garmin GPSMAP 1223xsv paired with the GMR 18 HD+ radar delivers integrated navigation, sonar, and vessel monitoring on a single 12-inch screen. This bundle combines a high-definition chartplotter with advanced sonar imaging and radar, eliminating the need for multiple standalone systems while delivering real-time data on fishing conditions, navigation hazards, and vessel traffic simultaneously.

Key Features

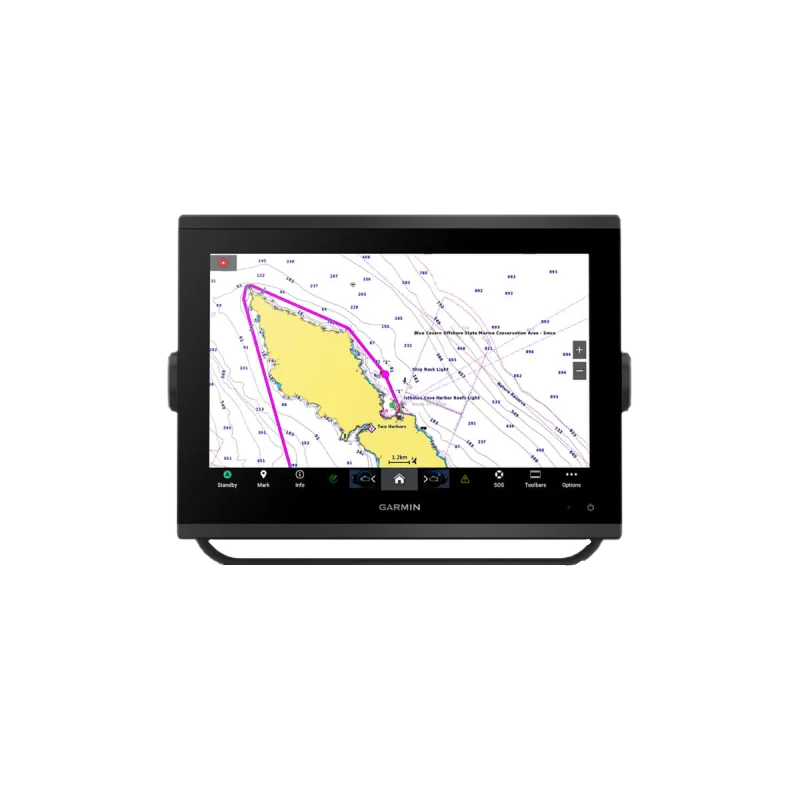

• 12-inch high-resolution IPS display with 1280 x 800 pixel resolution for clear visibility in bright sunlight and variable lighting conditions

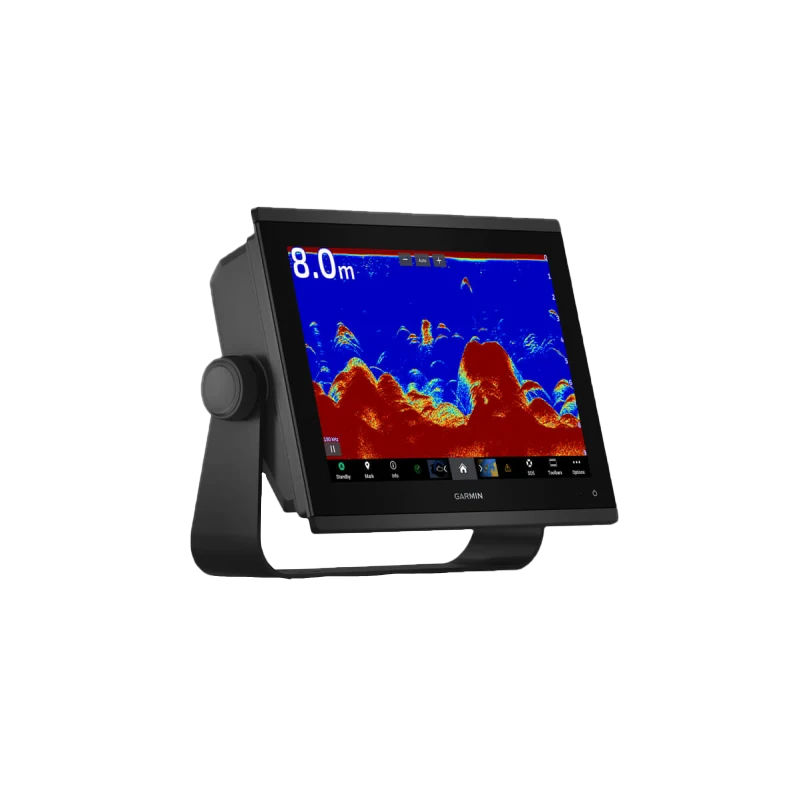

• 1 kW CHIRP traditional sonar with adjustable frequency ranges for precise target detection and separation at depths up to 3,000 feet

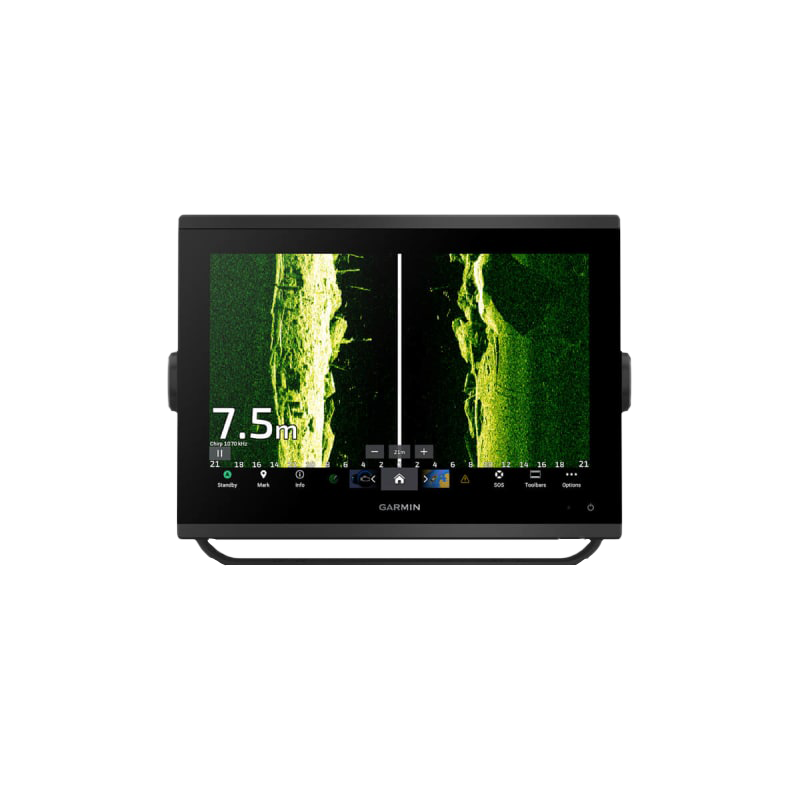

• SideVü™ scanning sonar imaging with coverage extending up to 300 feet horizontally from the transducer

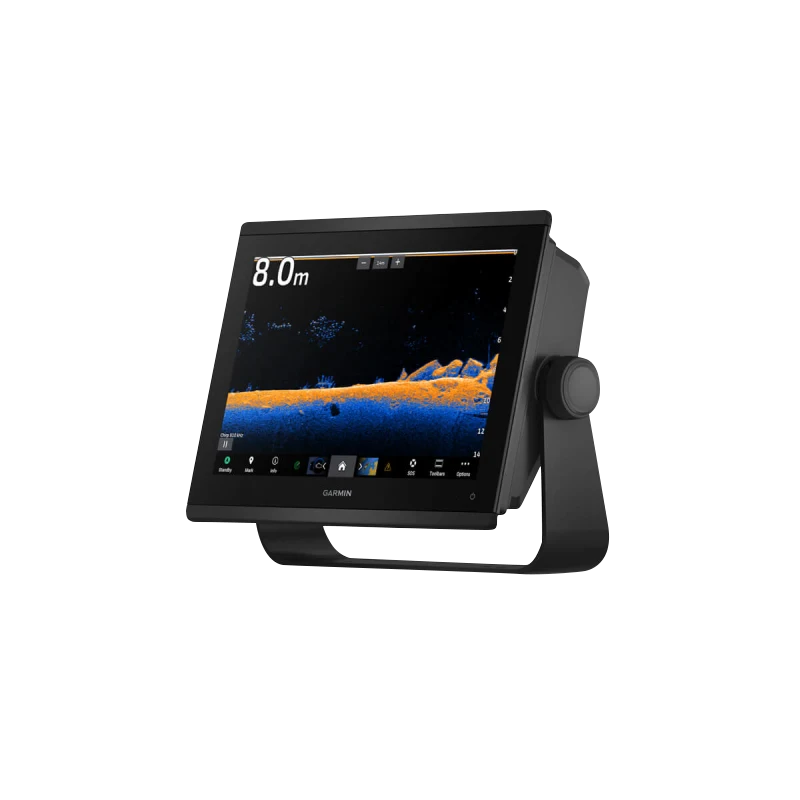

• ClearVü™ high-definition scanning sonar providing photo-like underwater structure visualization and object detection

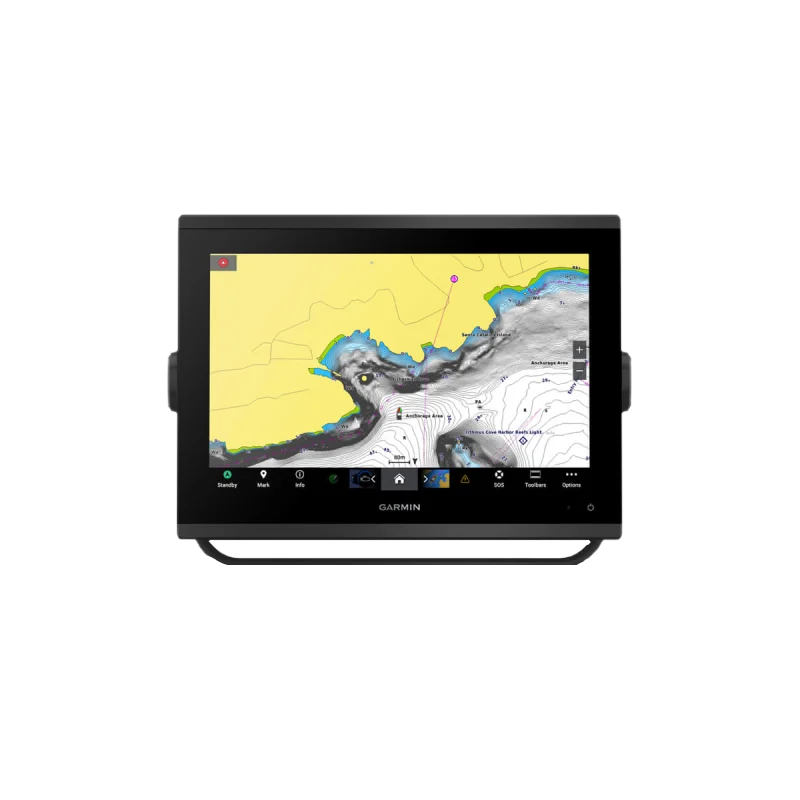

• Preloaded Garmin Navionics+™ charts covering coastal and inland waterways with customizable detail levels
• NMEA 2000® and NMEA 0183 dual connectivity supporting integration with external sensors, autopilot systems, and other marine electronics
• Built-in Wi-Fi® with ActiveCaptain® app compatibility for wireless software updates and community data access

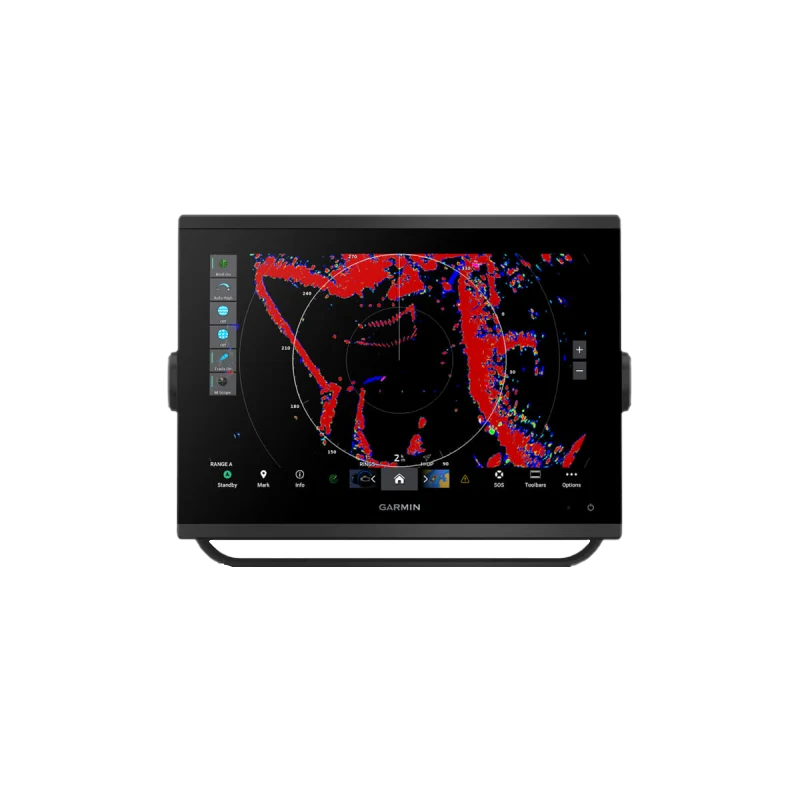

• GMR 18 HD+ marine radar module with digital beam steering and 18-nautical-mile detection range for collision avoidance and weather monitoring

Data Insights

The GPSMAP 1223xsv achieves 60% better sonar accuracy compared to conventional single-frequency sonars through its 1 kW CHIRP architecture, which transmits multiple frequencies simultaneously to isolate targets with higher precision. The SideVü™ sonar reaches 300 feet laterally, allowing complete scanning of subsurface terrain in a single pass. The GMR 18 HD+ radar's 18-nautical-mile detection range covers typical boating distances while maintaining target discrimination for vessels as small as 18 feet in length.

Usage Instructions

Mount the GPSMAP 1223xsv in a protected dashboard location with direct power connection to a marine battery or hardwired power system. Connect the included GMR 18 HD+ antenna to the transducer port and secure the pedestal mount. Activate the unit via the power button and allow initial satellite acquisition for GPS positioning. Use the 10-point multitouch display to switch between chart, sonar, and radar views. Access the setup menu to configure transducer types, water temperature displays, and alarm parameters. Enable Wi-Fi in the system settings to connect with the ActiveCaptain® app for periodic chart and software updates.

Design & Material

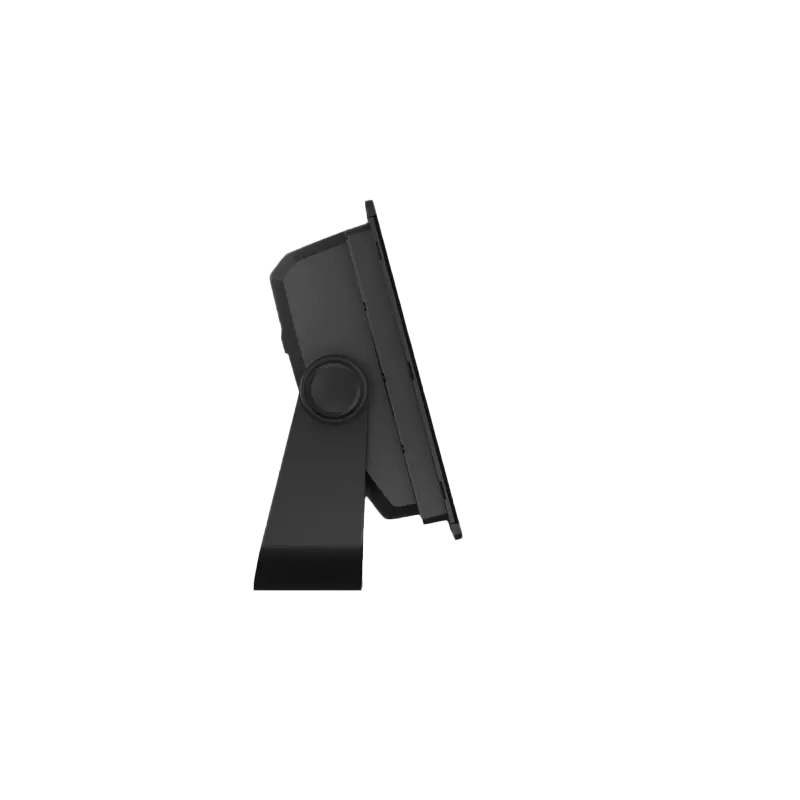

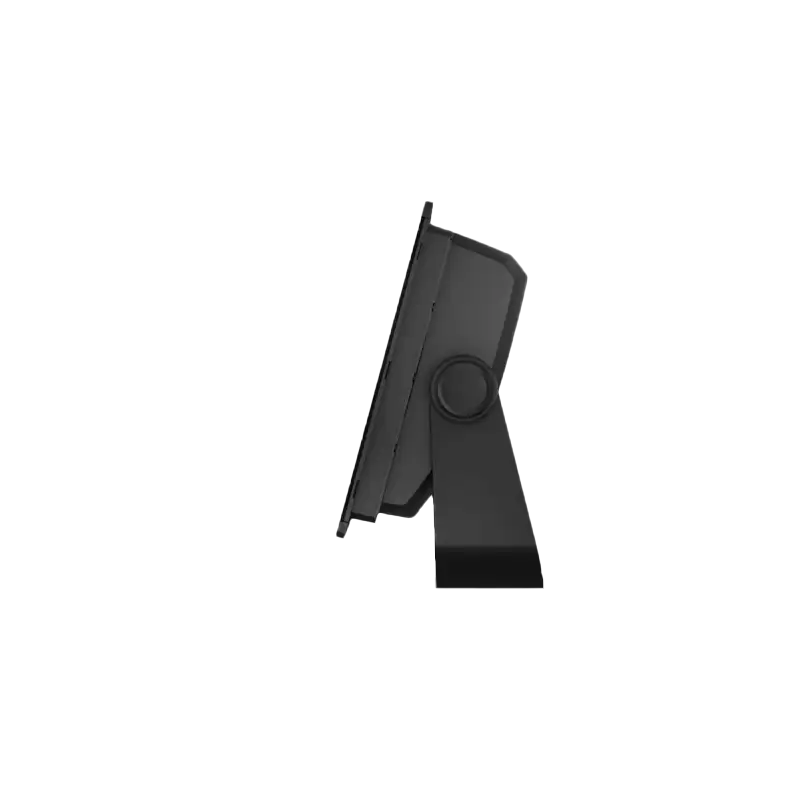

The GPSMAP 1223xsv combines a reinforced marine-grade construction with modern touchscreen technology. The bezel-less glass display integrates cleanly into modern helm station designs while withstanding salt spray, mechanical vibration, and temperature extremes typical of offshore and coastal navigation.

• Edge-to-edge tempered glass display with anti-glare coating reducing solar reflection in direct sunlight
• Rubberized mounting bracket and stainless steel hardware engineered for vibration damping and corrosion resistance

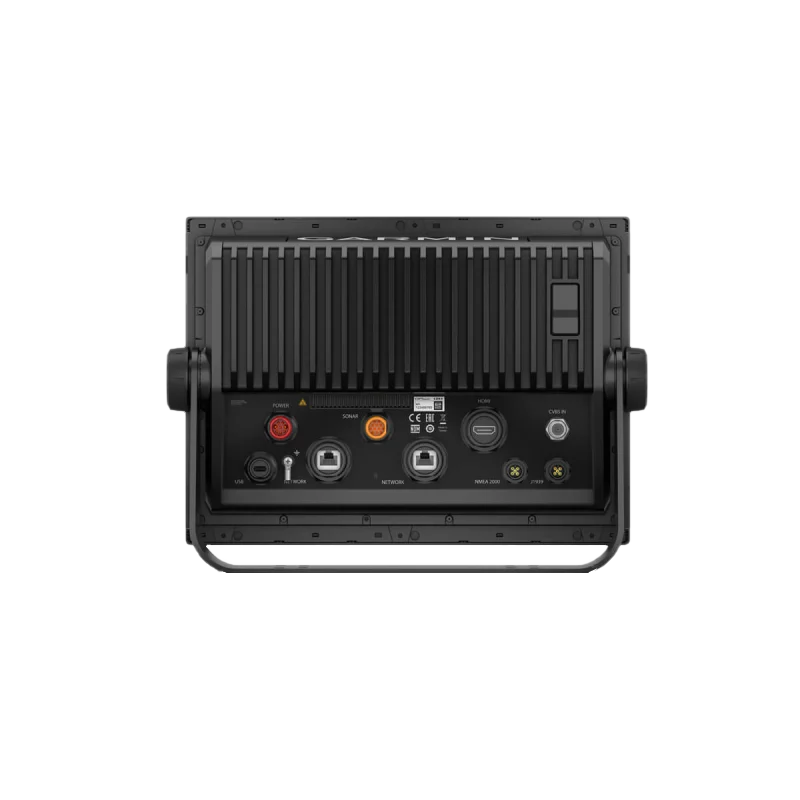

• Marine-grade enclosure with sealed cable ports preventing moisture intrusion at connector points
• Compact 12-inch footprint fitting standard dashboard openings without requiring extensive modification
• Multi-touch responsive display with glove-responsive capability for operation in wet conditions
• Integrated cooling system preventing thermal throttling during extended summer operation

Final Verdict

The Garmin GPSMAP 1223xsv and GMR 18 HD+ bundle eliminates the compromise between chart capability, sonar performance, and radar functionality. Serious anglers and cruising boaters gain navigation clarity, subsurface detection, and collision avoidance on a single integrated display—reducing dashboard clutter while delivering the redundant systems safety demands offshore. This combination addresses the core requirements for both fishing-focused and navigation-heavy operations without purchasing separate units. Upgrade to integrated marine electronics that match your vessel's actual needs.
