Garmin GPSMAP 1223xsv With GMR 18 HD3 Radome Marine Chartplotter and Radar System

Introduction

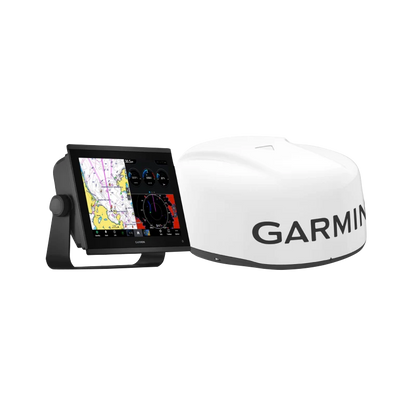

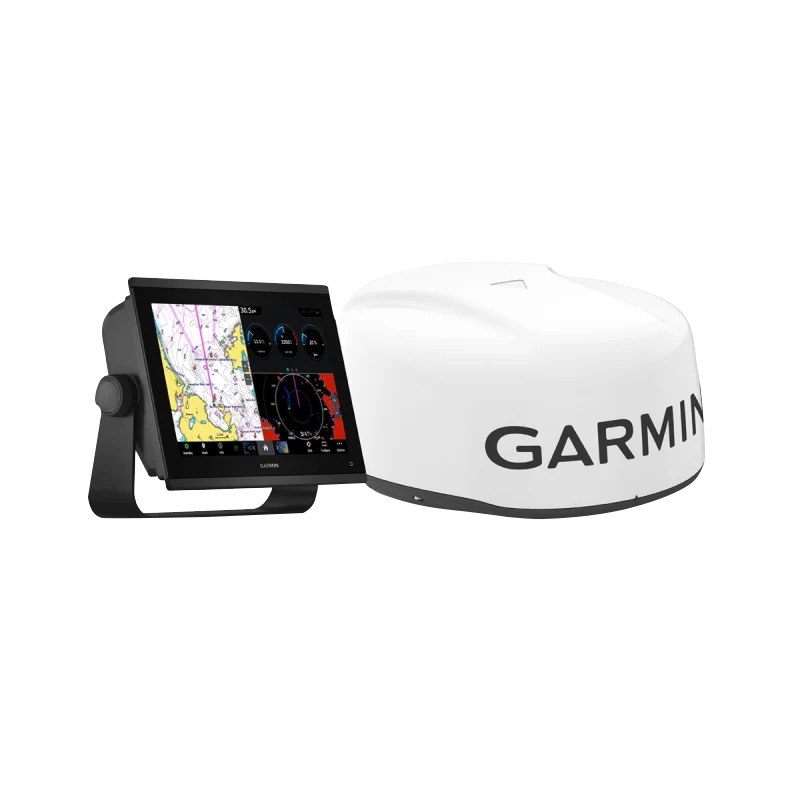

The Garmin GPSMAP 1223xsv paired with the GMR 18 HD3 Radome delivers integrated navigation, sonar imaging, and weather radar in a single system designed for serious boaters who need real-time water intelligence. The 12-inch IPS touchscreen display combines chart plotting with advanced sonar visualization, while the bundled radar dome adds weather and surface target detection to your decision-making toolkit on the water.

Key Features

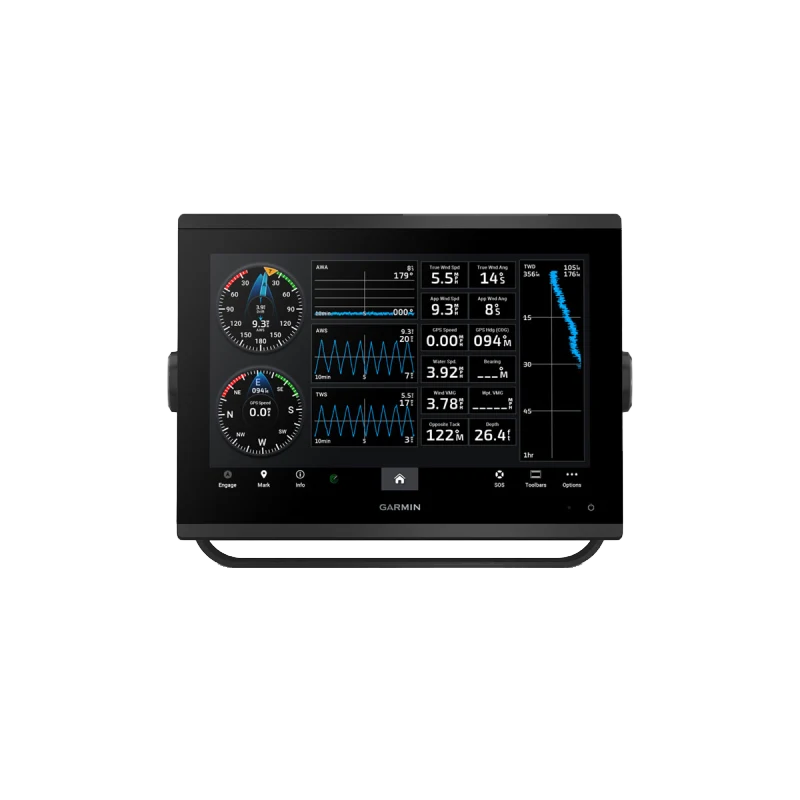

• 12-inch high-resolution IPS display with edge-to-edge glass and sunlight-readable screen technology for visibility across all lighting conditions
• 1 kW traditional sonar support enabling up to 1,000 watts of transmission power for enhanced target separation and underwater detail clarity
• Ultra High-Definition SideVü™ and ClearVü™ sonar imaging for 270-degree side-scanning and forward-looking bottom visualization
• Preloaded Garmin Navionics+™ charts with regular update capability through ActiveCaptain® app integration
• GMR 18 HD3 Dome Radar providing weather detection, surface target tracking, and marine traffic awareness with automated alerts
• Dual network protocol support via NMEA 2000® and NMEA 0183 for seamless integration with external marine devices and multiple engine brands
• Built-in Wi-Fi connectivity enabling remote system management and chart updates from compatible mobile devices
• Auto Guidance+™ technology calculating optimal routes through complex waterways while reducing grounding risk in shallow water scenarios

Data Insights

The GPSMAP 1223xsv's 1 kW sonar architecture delivers measurable performance advantages in target differentiation and bottom composition analysis compared to standard 500-watt systems. The integrated GMR 18 HD3 Radar operates at higher transmission frequencies, providing enhanced weather pattern recognition and small-target detection within a 48-nautical-mile range. Users leveraging Auto Guidance+™ report reduced navigation planning time by consolidating chart overlay, sonar feedback, and real-time depth data into unified route calculations—critical when operating in areas with variable bottom conditions or narrow channels.

Usage Instructions

Install the display in accessible dash locations where the sunlight-readable screen maintains visibility without reflection. Connect the system to your boat's NMEA network, engine interface, and power source per Garmin installation guidelines. Activate Wi-Fi pairing through the touchscreen menu to authorize ActiveCaptain® app access for chart and software updates. Enable Auto Guidance+™ after loading your destination to allow the system to calculate and display suggested courses, then monitor sonar windows to verify water conditions along your planned route. Review radar overlay during transitions between clear and adverse weather to maintain surface awareness.

Design & Material

The GPSMAP 1223xsv combines a slim profile design with durable marine-grade construction, fitting standard and custom dashboard configurations without requiring major structural modifications. The GMR 18 HD3 Radome attaches via pedestal or fixed-mount bracket, rotating continuously to maintain 360-degree radar coverage.

• Durable polymer and aluminum construction rated for saltwater corrosion resistance and vibration tolerance in varied sea conditions
• Anti-glare glass faceplate reducing surface reflections while preserving color accuracy across chart and sonar display modes
• Precision-engineered touchscreen interface with customizable softkey shortcuts for rapid access to frequently used functions
• Lightweight radome design minimizing top-weight impact on boat stability while maintaining radar signal transmission efficiency
• Integrated cooling management preventing display degradation during extended operation in high-temperature environments

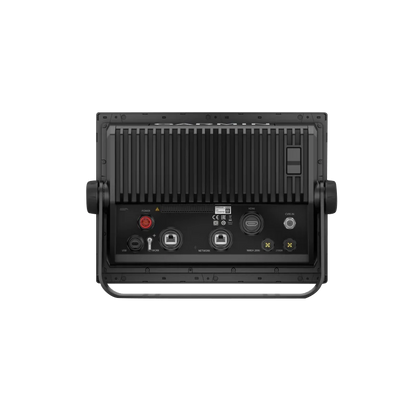

• Sealed connector ports and gasket systems protecting internal electronics from spray exposure and moisture ingress

Final Verdict

The Garmin GPSMAP 1223xsv with GMR 18 HD3 Radome is the proven choice for boat owners prioritizing integrated navigation intelligence. This system eliminates the need for separate chartplotter, sonar, and radar installations while delivering single-screen access to the data layers that define safe and efficient boating. Whether navigating coastal traffic, fishing structure-dependent waters, or monitoring approaching weather systems, the 1223xsv gives you the actionable data required to make faster decisions. Upgrade your marine electronics now to experience unified navigation performance.
