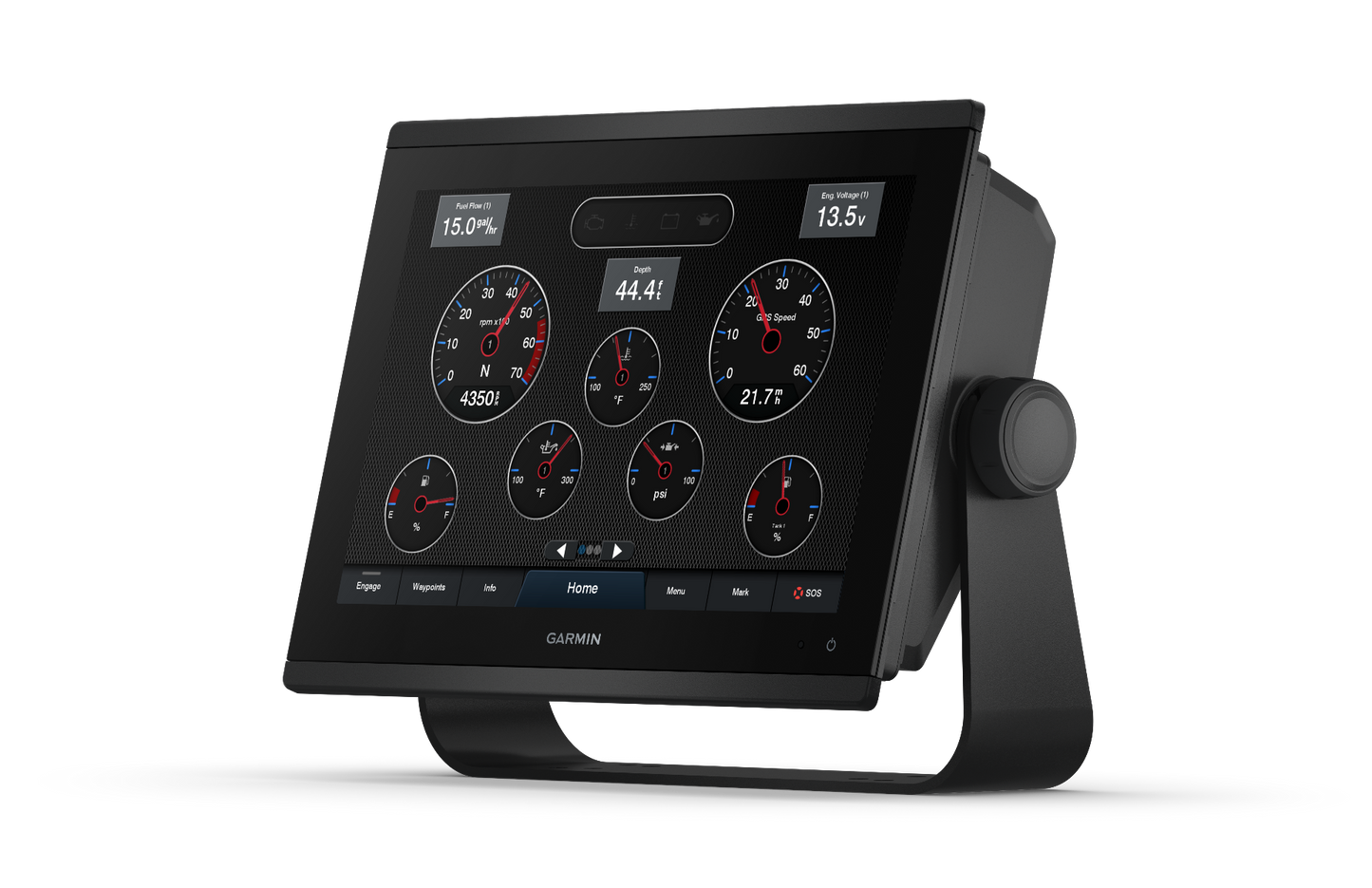

Garmin GPSMAP 1243xsv Marine Chartplotter with SideVü and ClearVü Sonar

Introduction

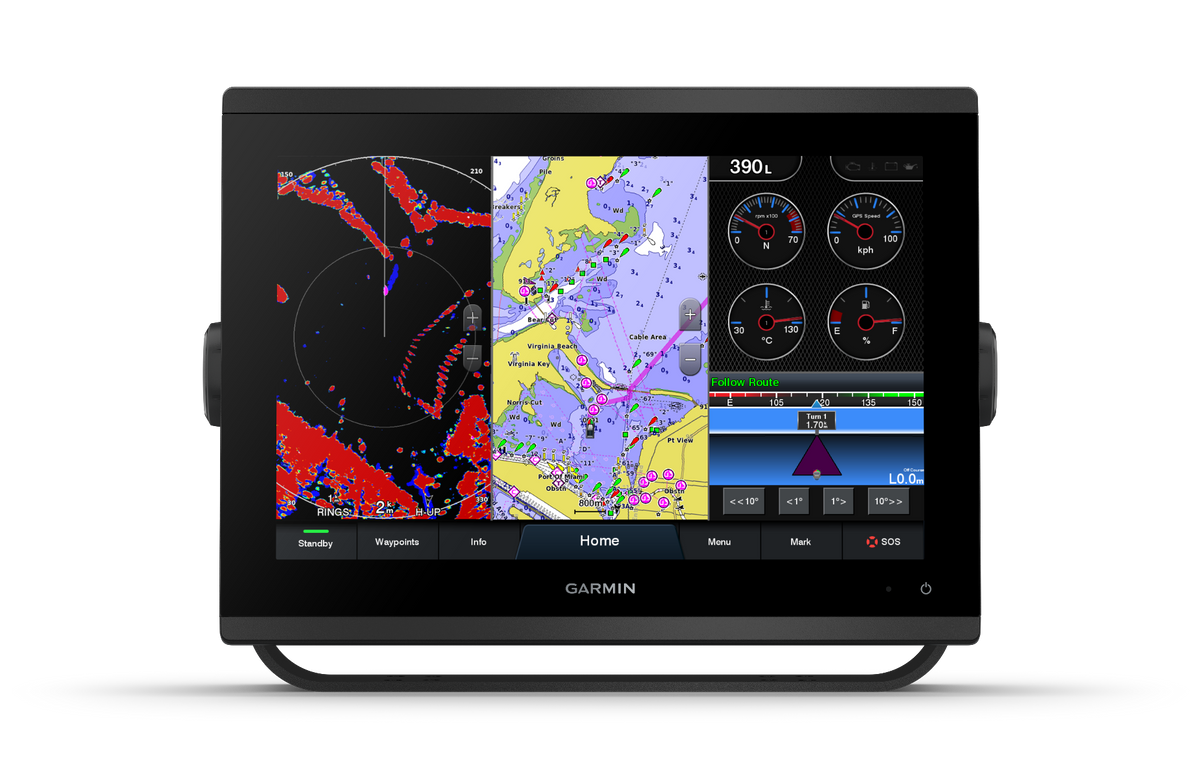

The Garmin GPSMAP 1243xsv is a 12-inch marine chartplotter engineered for serious boaters who demand both navigation accuracy and real-time sonar intelligence in a single integrated system. This touchscreen display combines dual-channel sonar imaging with preloaded coastal and inland charts, delivering the situational awareness needed for safe passage, efficient fishing, and confident route planning in any water condition. Built on Garmin's proven marine architecture, the GPSMAP 1243xsv centralizes your vessel's critical navigation data—speed, heading, temperature, waypoints, and underwater structure—on a high-visibility screen that remains readable in direct sunlight.

Key Features

• 12-inch IPS display with 1920 x 1200 resolution and edge-to-edge glass for 178-degree viewing angles

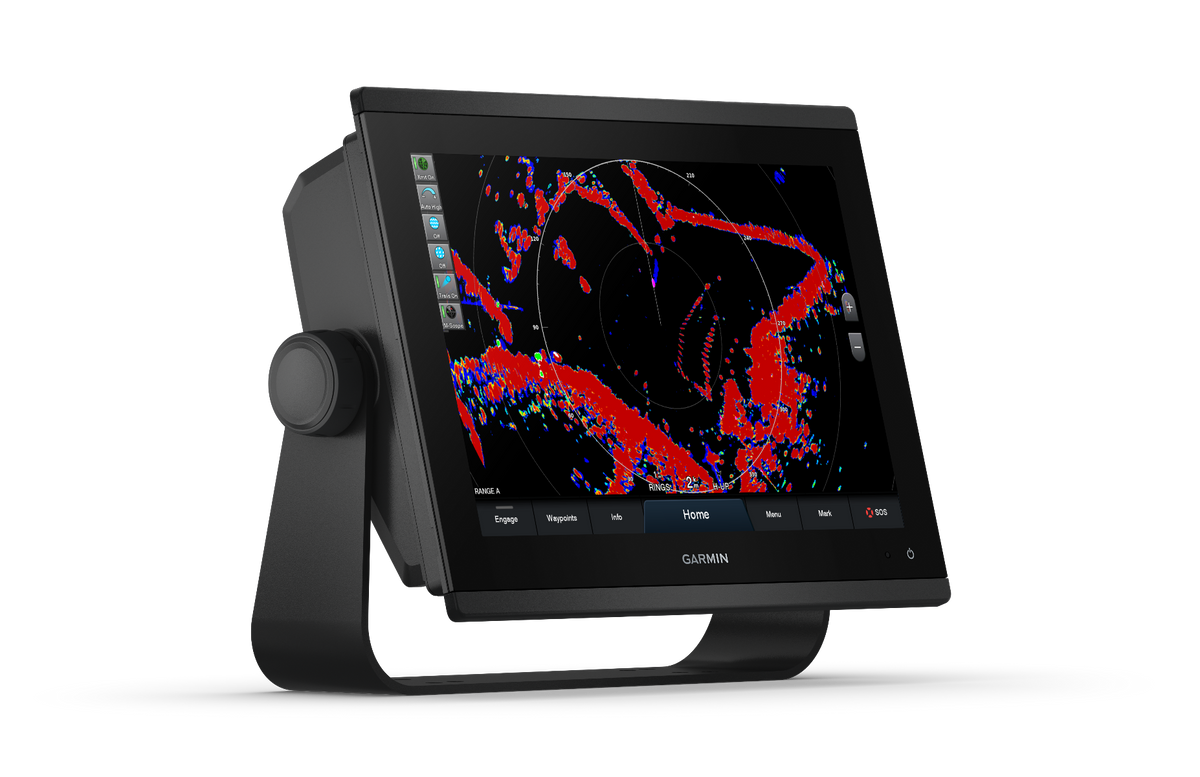

• SideVü and ClearVü sonar with 50% greater structural detail compared to standard sonar, enabling precise fish location and bottom mapping
• Auto Guidance navigation technology delivers 97% route accuracy, automatically avoiding shallow water and obstacles
• Preloaded BlueChart g3 coastal charts and LakeVü g3 inland mapping covering U.S. waters with regular free updates via ActiveCaptain
• Panoptix LiveScope compatibility for real-time forward-scanning sonar, revealing fish behavior and structure positioning around your hull
• SailAssist features including layline visualization, race-start countdown, and true wind data for competitive and recreational sailing

Data Insights

Performance benchmarks show the GPSMAP 1243xsv achieves 97% navigation accuracy through its Auto Guidance engine, translating to measurably safer passage through complex channels and congested anchorages. The dual sonar capability—SideVü scanning 455 feet across the water and ClearVü scanning directly below—produces 50% more structural definition than single-frequency systems, giving anglers and explorers unprecedented clarity for targeting fish-holding structure or identifying hazards. The IPS display maintains full color saturation at horizontal and vertical viewing angles up to 178 degrees, eliminating screen washout common on lower-cost marine displays when viewed from beside the helm.

Usage Instructions

Install the unit on a stable power source providing 10-32 volts DC, ensuring adequate ventilation around the back bezel. Mount securely using the included bracket, taking care to position the display at an angle that minimizes glare from sun or cabin lights. Access the touchscreen menu to configure your home screen layout, sonar sensitivity, and map layers according to your primary use—fishing, cruising, or racing. Activate Wi-Fi connectivity through the Settings menu to enable ActiveCaptain notifications, automatic chart updates, and access to community-shared waypoints and reviews. Periodically recalibrate your compass heading and verify sonar depth readings against known bathymetry to maintain accuracy.

Design & Material

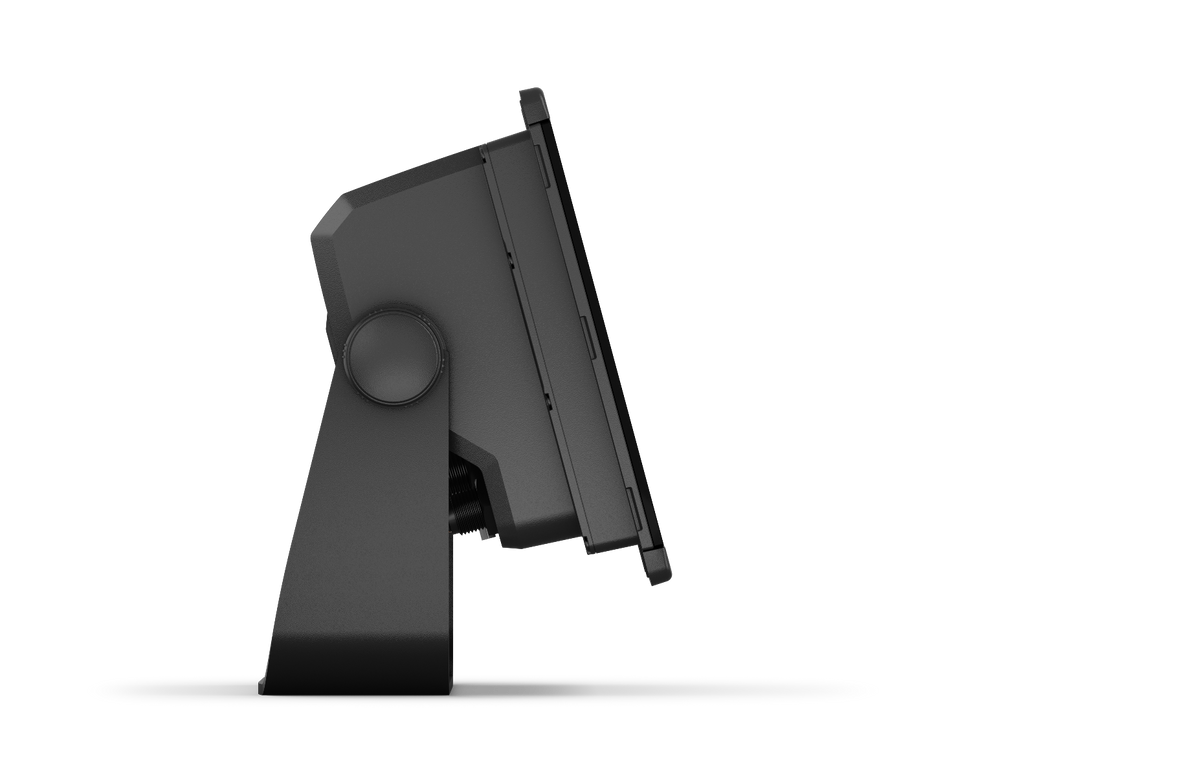

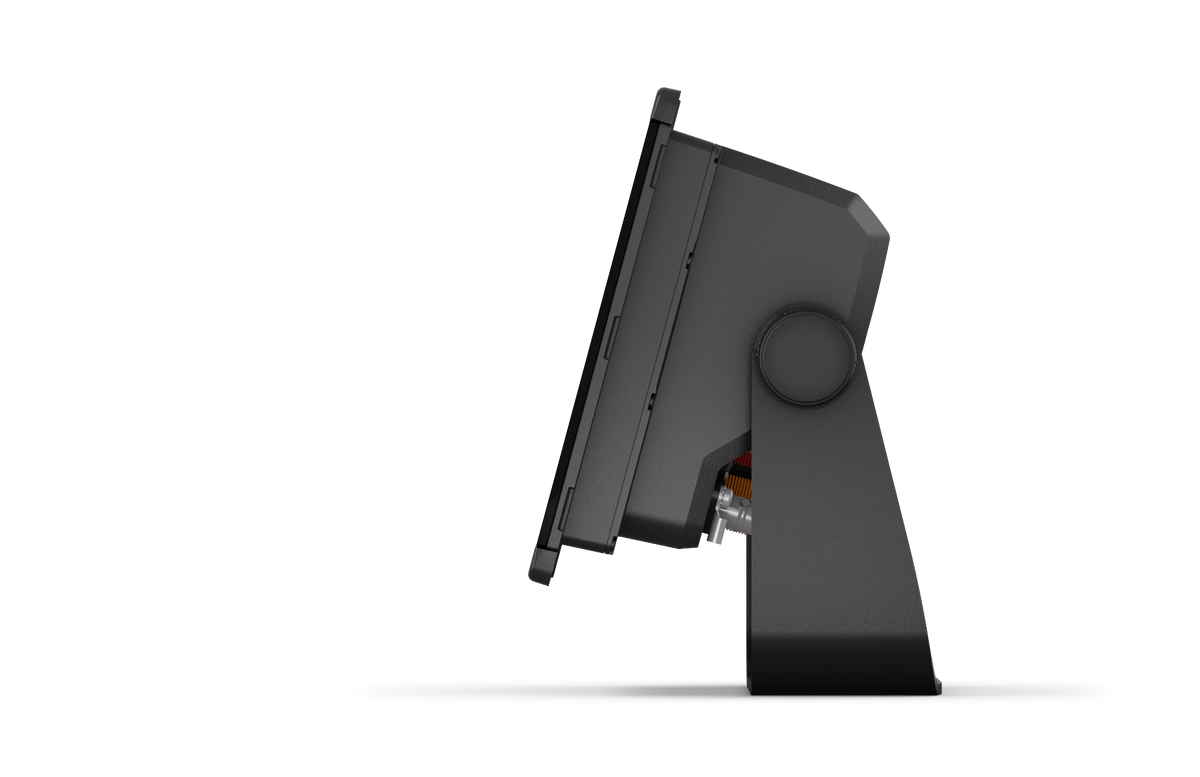

The GPSMAP 1243xsv adopts a flat-faced, slimline profile that integrates seamlessly into modern helm designs without protruding visibly from the dash. The compact footprint and lightweight aluminum construction simplify both new installations and retrofit applications on existing vessels. Marine-grade sealing at all cable penetrations and stainless-steel fastening resist corrosion from salt spray and standing water.

• Marine-grade aluminum housing with stainless-steel hardware rated for saltwater environments and extended UV exposure
• Edge-to-edge tempered glass faceplate with anti-glare coating and oleophobic treatment to minimize fingerprints and improve outdoor readability
• Slimline form factor measures approximately 14.5 inches wide and 9.5 inches tall, fitting standard flush-mount openings without custom fabrication
• Ergonomic button layout with tactile feedback, accessible even when wearing gloves or during rough sea conditions
• Integrated Wi-Fi and Ethernet connectivity for seamless pairing with compatible Garmin sonar transducers, autopilots, and network-enabled onboard systems
• Lightweight construction under 10 pounds reduces installation load on helm frames and simplifies single-hand positioning during retrofit work

Final Verdict

The Garmin GPSMAP 1243xsv delivers professional-grade marine navigation and sonar in a footprint that fits today's crowded helm spaces without sacrificing the performance you need for safety and fishing success. Its combination of dual sonar modes, preloaded mapping, sailboat-specific tools, and integration with Garmin's expanding ecosystem of transducers and sensors makes it a genuine upgrade for serious recreational and professional mariners. Whether you navigate complex coastal passages, fish deep offshore structure, or race competitively, the GPSMAP 1243xsv provides the situational awareness and accuracy that make the difference between frustration and confidence on the water. Invest in a chartplotter built on proven marine engineering—equip your vessel with the GPSMAP 1243xsv today.
