Garmin GPSMAP 1543xsv Marine Chartplotter with ClearVü, SideVü and Traditional CHIRP Sonar

Introduction

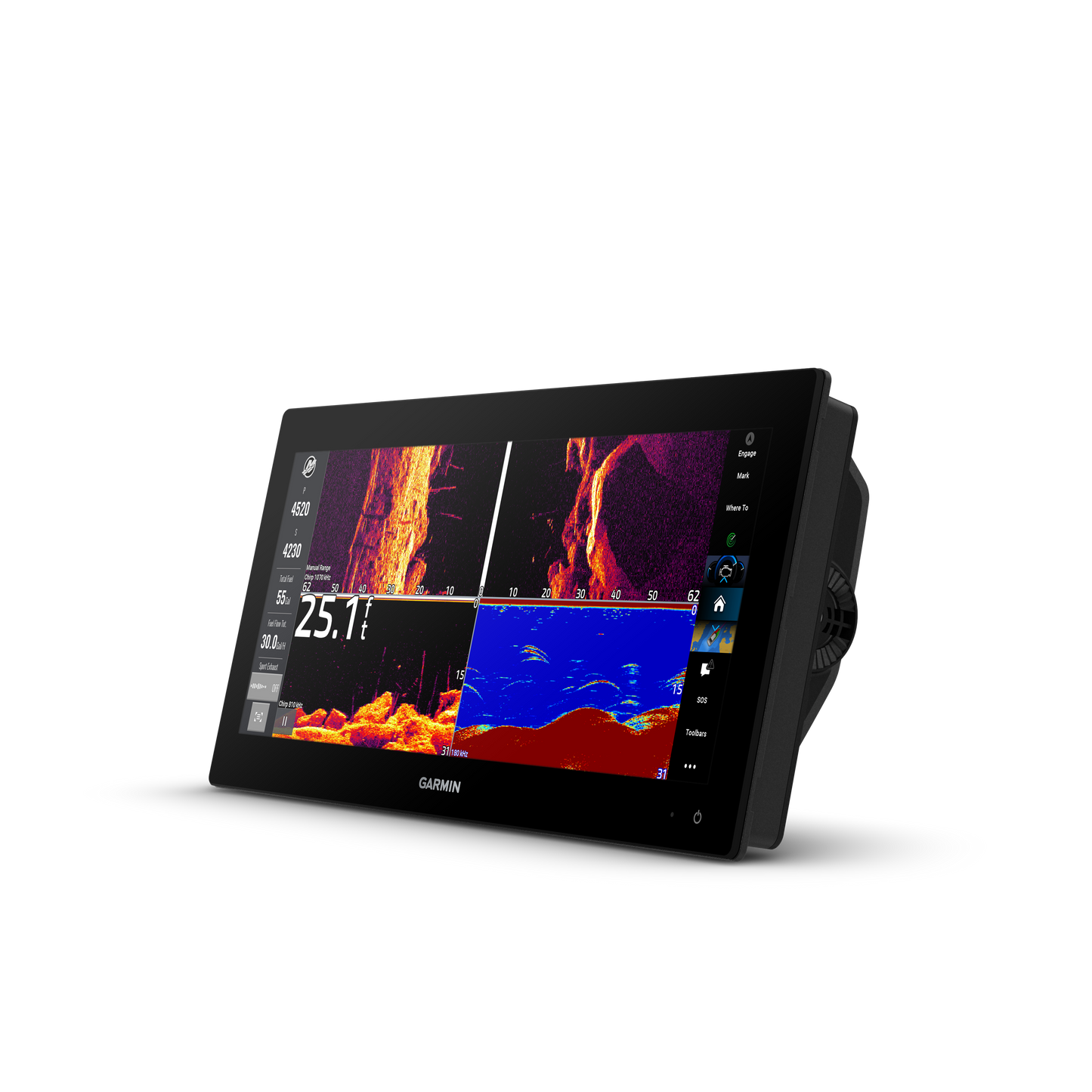

The Garmin GPSMAP 1543xsv delivers a commanding helm experience through its 15-inch ultrawide IPS display, which is 74% wider than standard 9-inch chartplotters and includes significantly more pixels for enhanced viewing clarity. This professional-grade marine chartplotter combines real-time sonar visibility with advanced mapping and full boat system integration, enabling captains to navigate with confidence while maintaining complete command of their vessel from a single screen.

Key Features

• 15-inch ultrawide edge-to-edge IPS display with high-resolution touchscreen interface supporting split-screen functionality for customized dual-screen views
• Built-in 1 kW CHIRP traditional sonar providing superior target separation and fish/structure distinction
• Ultra High-Definition ClearVü and SideVü scanning sonar support with vivid, high-contrast color palettes (transducer required; sold separately)
• Preloaded Garmin Navionics+ integrated coastal and inland mapping with Auto Guidance+ technology and 1-year subscription for daily chart updates
• Panoptix and LiveScope live sonar compatibility for real-time 360-degree visibility around your boat (transducer required; sold separately)
• NMEA 2000 and NMEA 0183 network connectivity supporting autopilots, digital switching, VHF, AIS, weather systems and compatible third-party devices
• Garmin SailAssist feature set including laylines, race start line guidance, wind rose, polar tables and sailing-specific data fields
• Integrated ANT technology for wireless connectivity with compatible Garmin marine watches, transducers and instruments
• Multi-engine support for select Yamaha and Mercury engine connectivity and monitoring
• Power-Pole and Force trolling motor integration enabling advanced boat control including smart anchor deployment and drag detection

Data Insights

The 15-inch display format represents a substantial upgrade in screen real estate compared to conventional 9-inch units, delivering 74% additional width and substantially more pixel density for improved target resolution and chart detail. Split-screen capability allows simultaneous viewing of sonar, mapping and system data, while the ultrawide IPS panel maintains accurate color representation and visibility even in direct sunlight and when wearing polarized sunglasses—critical factors for daylong helm operation in varying light conditions.

Usage Instructions

Position the chartplotter at your helm using either the included bail-mount bracket for floating display configurations or the rear-mount option for flush installations. Connect compatible sonar transducers (sold separately) to activate ClearVü, SideVü or live sonar features. Customize split-screen layouts by sizing and organizing data panels according to your navigation priorities. Connect your vessel's compatible engines, power systems and auxiliary equipment via NMEA networks, then access the integrated Garmin Marine Network to share maps, sonar data and system information across multiple onboard Garmin devices. Use the ActiveCaptain app to download software updates and access Quickdraw community mapping data.

Design & Material

The GPSMAP 1543xsv presents a modern helm aesthetic with edge-to-edge glass construction and minimal trim borders, creating an immersive display experience. Its ultrawide proportions fit diverse mounting configurations while maintaining a sleek profile that complements contemporary boat designs. The display architecture supports both stationary and dynamic mounting scenarios without compromising structural integrity or user interaction.

• Ultrawide 15-inch IPS touchscreen panel with sunlight-readable optics and anti-glare performance
• Precision-engineered bail-mount bracket with inset knobs for secure floating display installations
• Rear-mount bracket system designed for flush and flat-mount helm integration
• Edge-to-edge glass construction with minimal bezel design for maximum viewing area
• Durable black housing designed for marine environments and continuous operational exposure
• Sealed internal architecture protecting electronic components from moisture and salt exposure

Final Verdict

The GPSMAP 1543xsv stands as the ideal chartplotter for serious boaters who demand advanced sonar, comprehensive network integration and superior helm control. Its combination of traditional and scanning sonar support, preloaded Garmin Navionics+ mapping, live sonar compatibility and multi-system connectivity makes it an essential upgrade for fishing, cruising and sailing applications. The ultrawide display and split-screen functionality eliminate the need for multiple screens, while integrated engine and trolling motor support streamlines boat management into a single command center. Whether navigating coastal waters or inland lakes, this chartplotter delivers the visibility, control and connectivity demanded by professional and dedicated recreational captains.
