Garmin GPSMAP 743xsv with GMR 18 HD+ Radome Marine Chartplotter

Introduction

The Garmin GPSMAP 743xsv is a 7-inch marine chartplotter built for captains and anglers who demand reliable navigation, real-time sonar data, and integrated radar capability in a single helm unit. This all-in-one system combines advanced scanning sonar, preloaded coastal and inland charts, and optional radar functionality to deliver the situational awareness professional mariners expect. The upgraded IPS display with 50% more pixels than previous Garmin models ensures sharp, readable charts and sonar imagery in full sunlight, eliminating the visual frustration of washed-out screens at sea.

Key Features

• 7-inch high-resolution IPS display with 50% increased pixel density for superior visibility in bright marine conditions
• Ultra High-Definition SideVü and ClearVü scanning sonar built directly into the unit for real-time fish and structure detection
• Panoptix transducer compatibility (sold separately) for advanced sonar imaging including down-imaging and forward-looking views

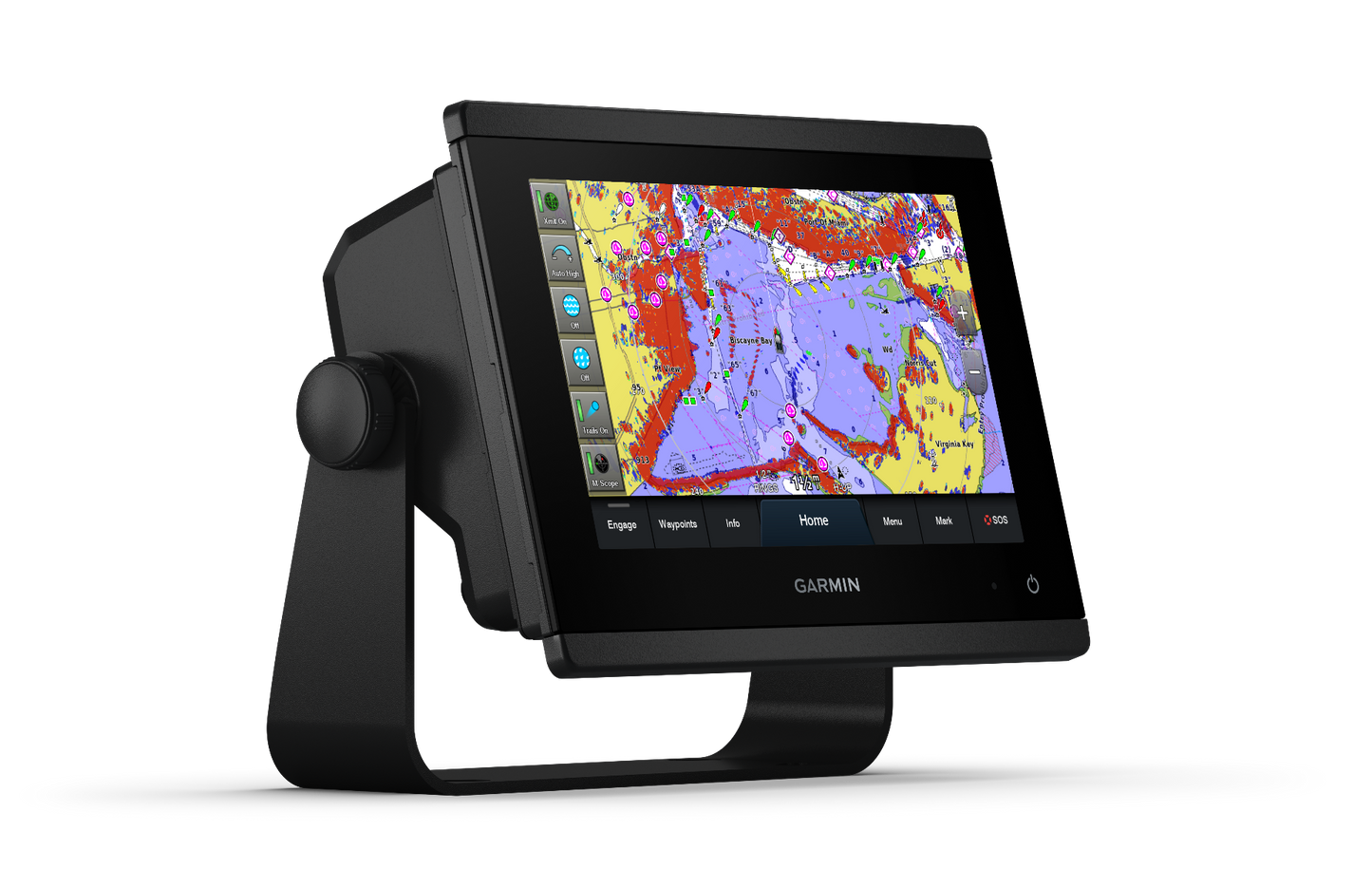

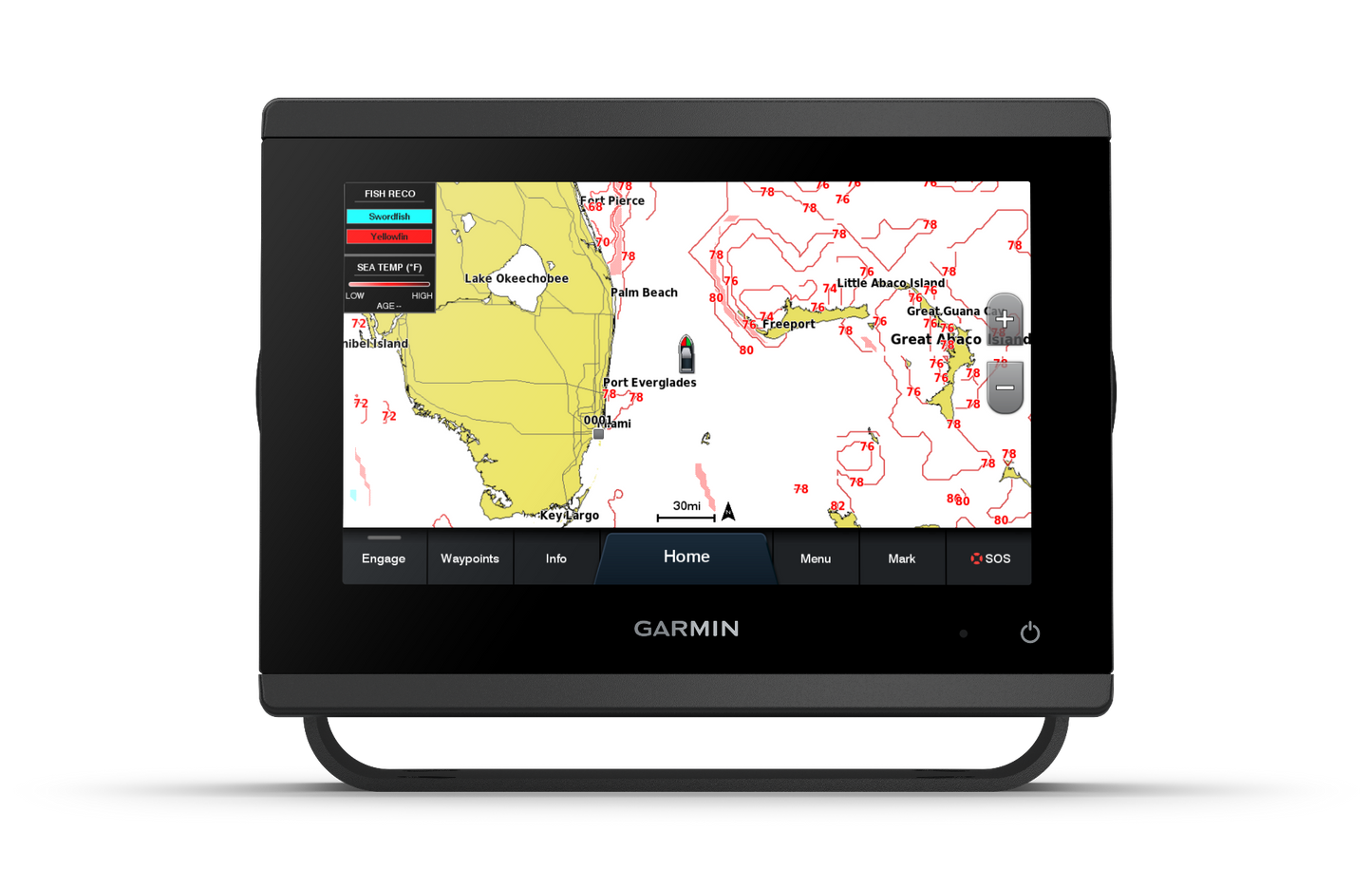

• BlueChart g3 coastal charts and LakeVü g3 inland maps with Auto Guidance line-of-sight routing and waypoint automation

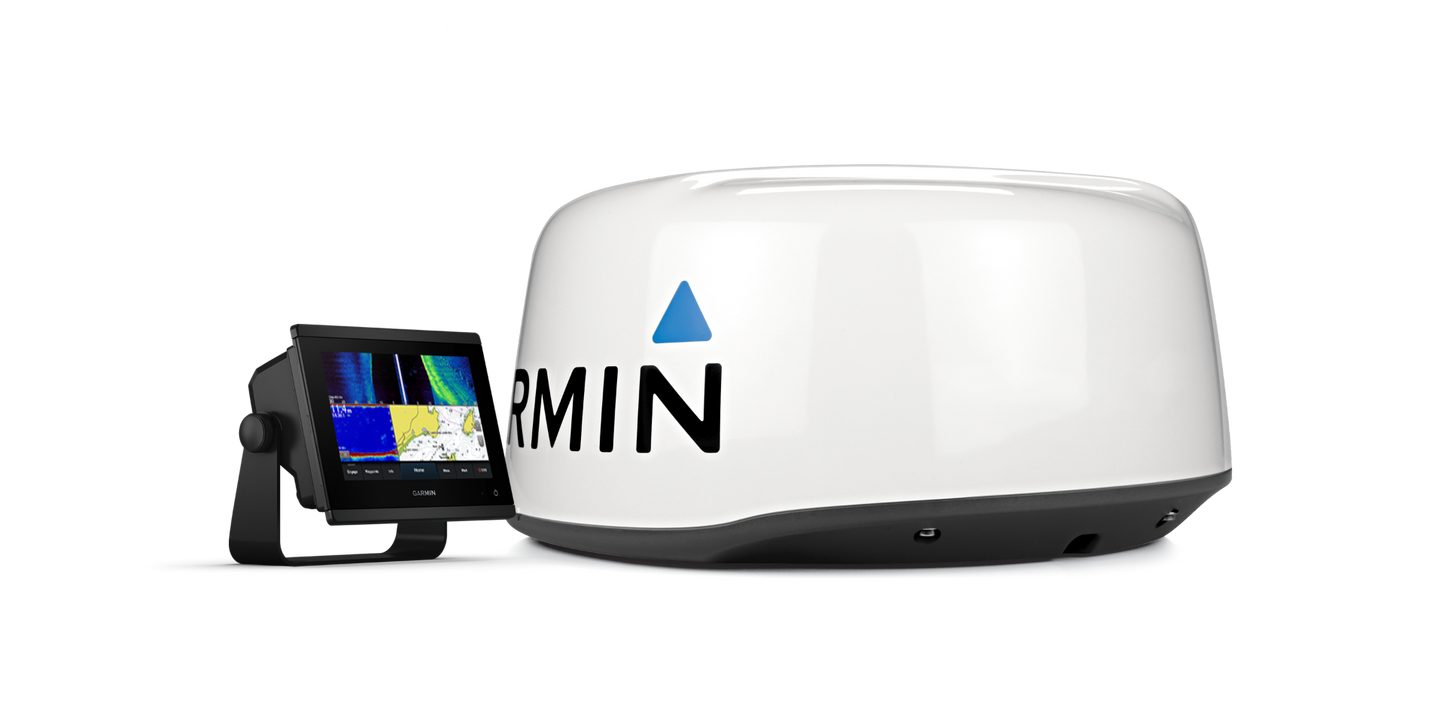

• GMR 18 HD+ dome radar with 4 kilowatt output power providing up to 24 nautical mile detection range for weather and target navigation
• Integrated SailAssist features including layline calculation, race start line guidance, and true wind data for competitive sailing applications
• NMEA 2000 and ANT wireless connectivity for multi-device sensor integration and networked marine systems
• Weather-resistant and saltwater-rated housing engineered to withstand harsh marine spray, moisture, and UV exposure

Data Insights

The Garmin GPSMAP 743xsv's performance advantage lies in its enhanced display resolution—the 50% pixel increase over earlier models translates to noticeably crisper chart detail and sonar imagery clarity, reducing eye strain during extended operations. The Ultra High-Definition scanning sonar provides significantly improved fish target separation from bottom composition and structure, a measurable upgrade for fisheries applications. The optional GMR 18 HD+ radar delivers 4 kilowatt transmission power, enabling detection of weather systems and surface targets at distances up to 24 nautical miles under optimal conditions, positioning this system as capable equipment for both near-shore and offshore ventures.

Usage Instructions

Install the GPSMAP 743xsv at your helm station for direct sightline access during operation. Input your destination using the intuitive touchscreen interface, then activate Auto Guidance for calculated routing. Enable the built-in SideVü or ClearVü sonar by selecting your depth range and frequency preference; adjust sensitivity to water clarity and bottom composition. Connect compatible Panoptix transducers to unlock advanced imaging modes. If equipped with the GMR 18 HD+ radar, position the dome radome at your highest point free from obstruction and enable radar overlay on the chartplot display. Update your BlueChart g3 and LakeVü g3 maps regularly through the ActiveCaptain mobile app to receive the latest survey data, hazard notices, and community-contributed edits.

Design & Material

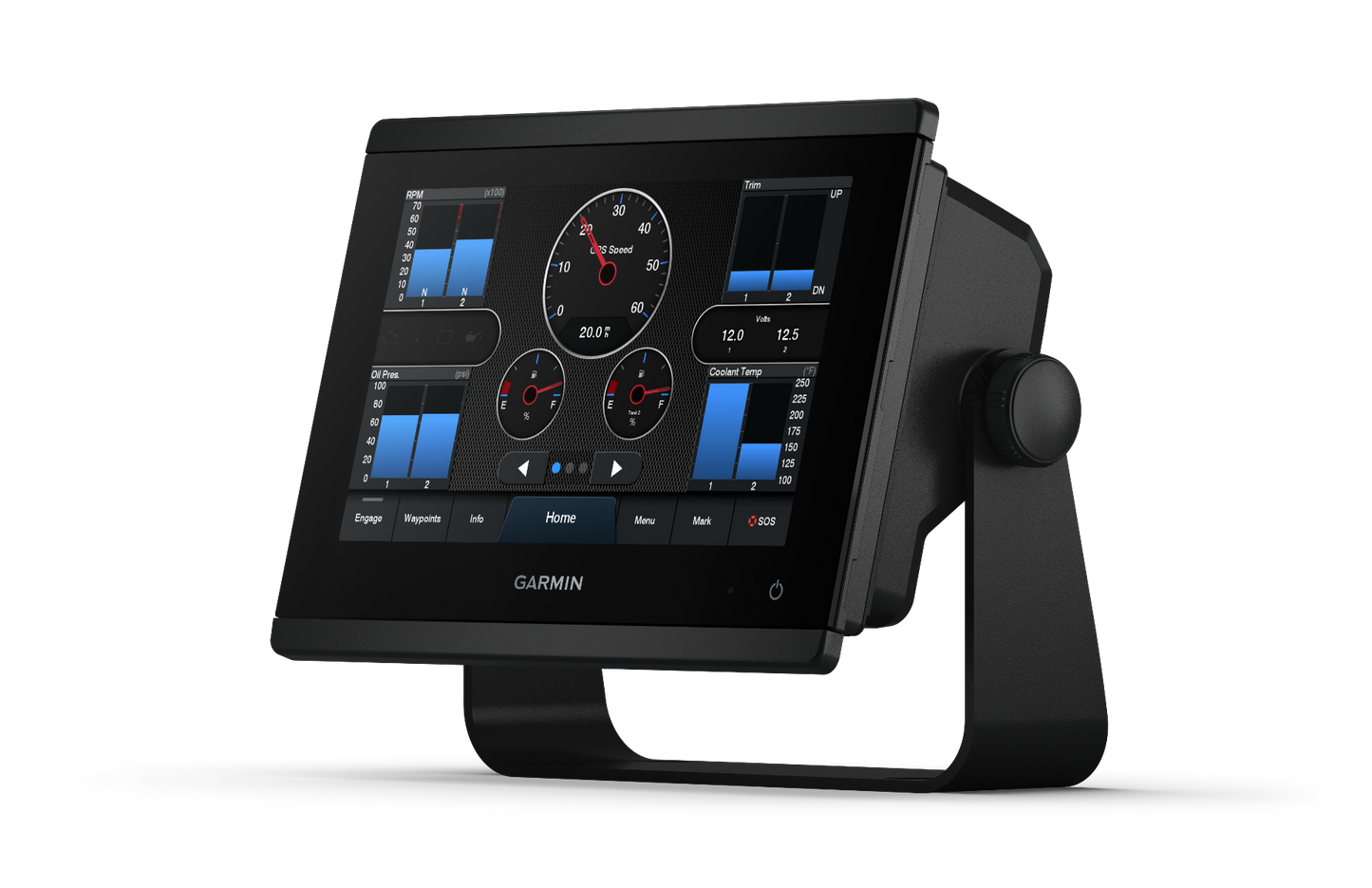

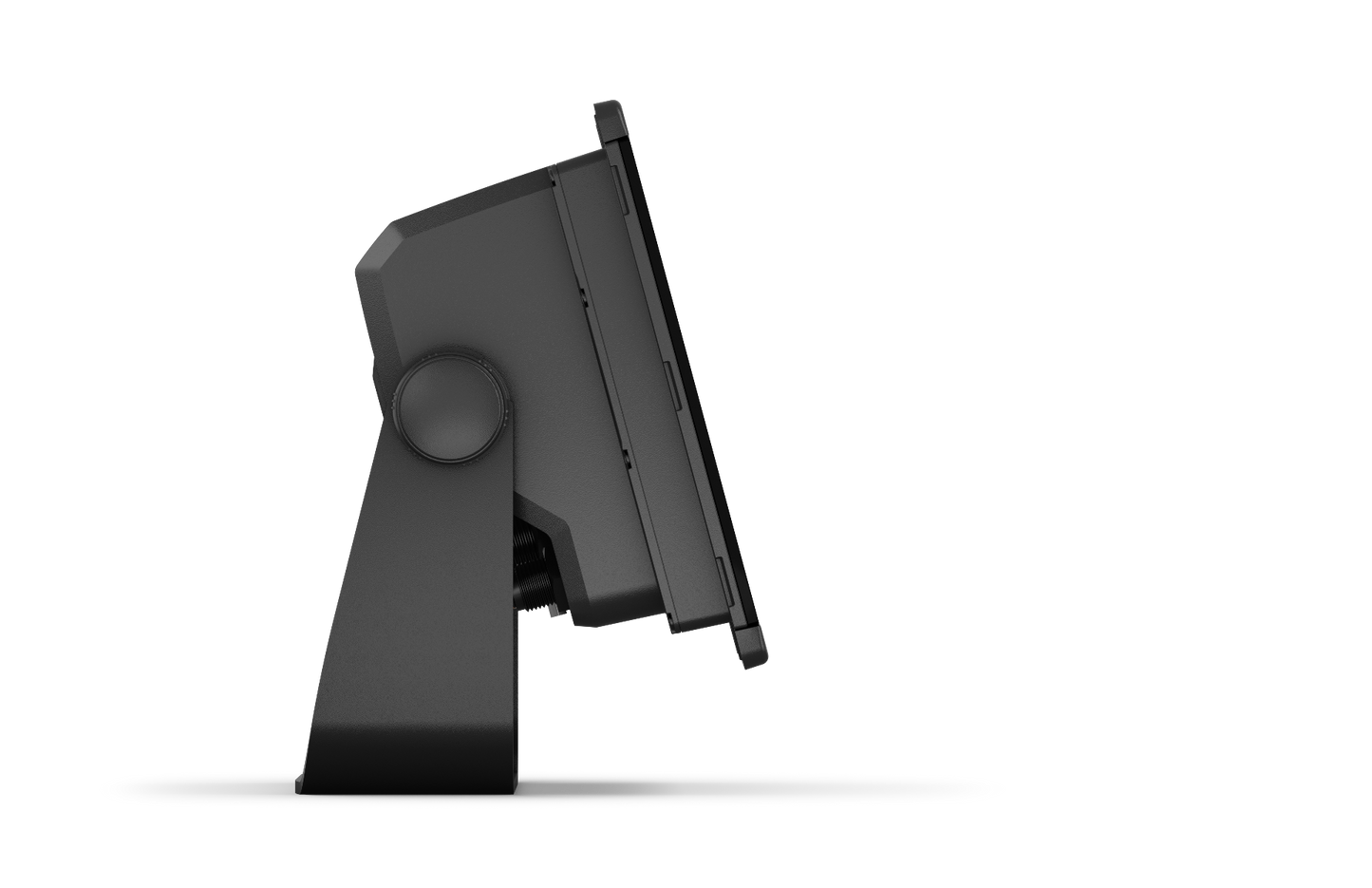

The Garmin GPSMAP 743xsv combines compact, modern industrial styling with marine-grade engineering. The unit's sleek black faceplate and adjustable bracket mount integrate cleanly into contemporary helm layouts without consuming excessive dashboard real estate. Every component is selected for long-term reliability in saltwater, UV, and high-humidity environments.

• Marine-grade housing with sealed connectors resistant to corrosion and salt spray degradation
• Anti-glare IPS panel with wide 178-degree viewing angle for chart visibility from multiple helm positions
• Composite materials and stainless steel hardware throughout to eliminate rust-prone ferrous metals

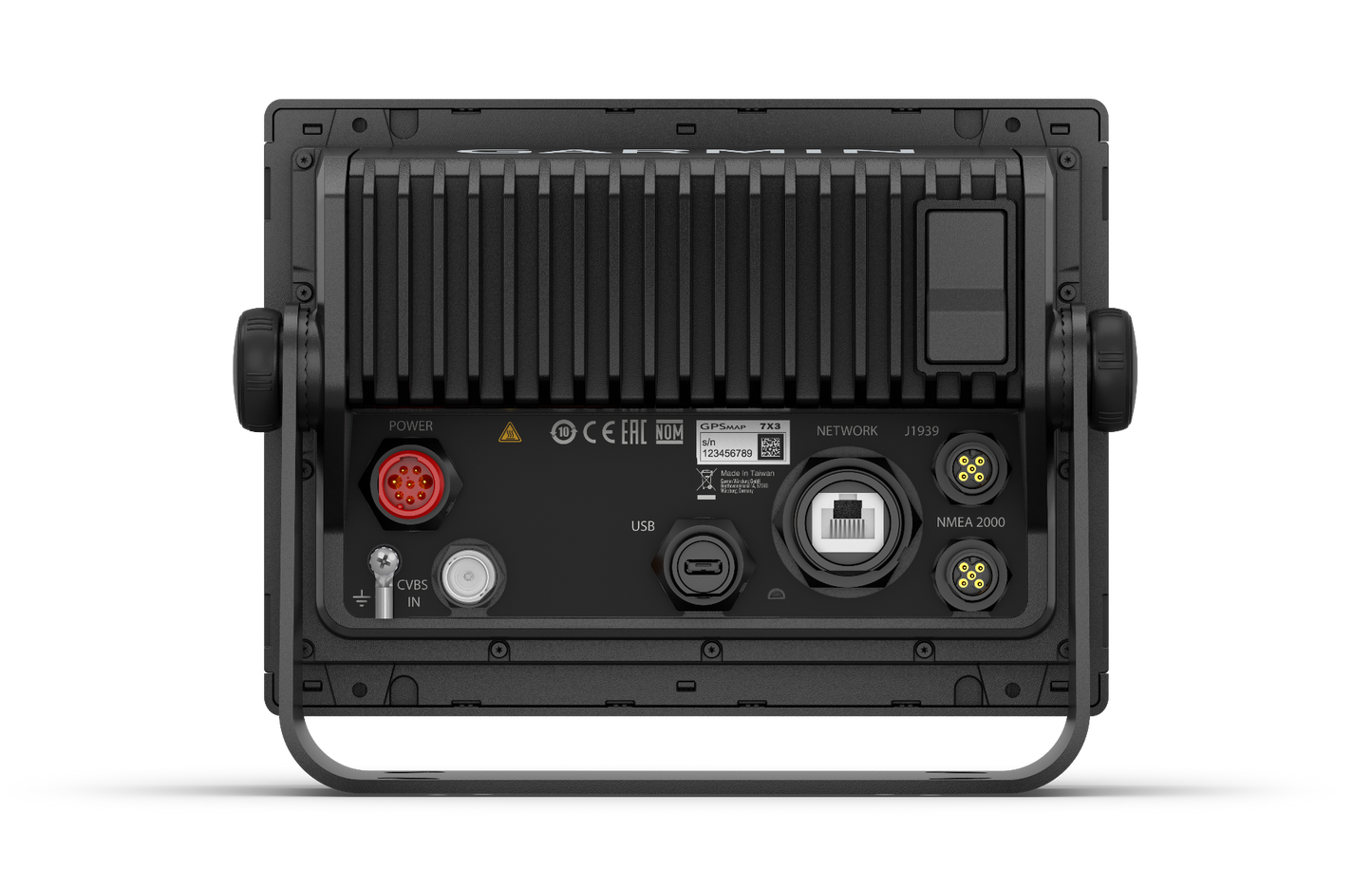

• Integrated cable management with color-coded connectors for NMEA 2000, ANT wireless, power, and transducer inputs
• Ergonomic front-mounted physical buttons supplementing the touchscreen for one-handed operation in rough conditions
• Compact 7-inch form factor designed to retrofit existing helm installations without major dashboard modification

Final Verdict

The Garmin GPSMAP 743xsv with GMR 18 HD+ Radome (model 010-02365-51) is engineered for boaters and commercial operators who require integrated navigation, sonar, and radar without managing multiple separate displays. The combination of high-resolution charting, Ultra High-Definition scanning sonar, and optional 4 kilowatt radar delivers a unified platform that reduces clutter, streamlines training, and improves decision-making on the water. Whether you navigate coastal channels, fish deep inland reservoirs, or race under competitive conditions, this system provides the processing power and sensor suite to handle demanding marine tasks. Invest in the GPSMAP 743xsv and gain the confidence that comes from reliable, integrated marine electronics.
