Garmin Power Cable (8-pin, for EchoMAP and GPSMAP)
Garmin Power Cable (8-pin, for EchoMAP and GPSMAP)
Model Number: 010-11970-00
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs

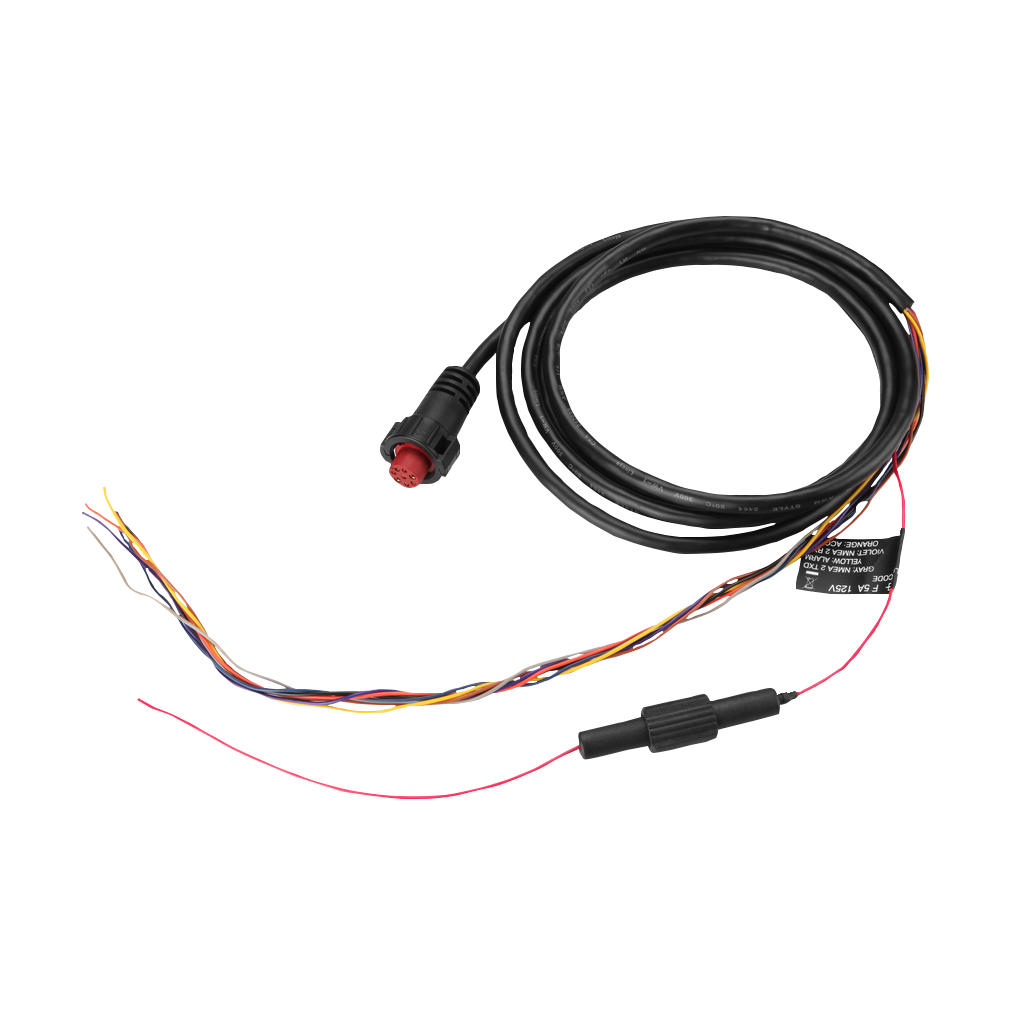

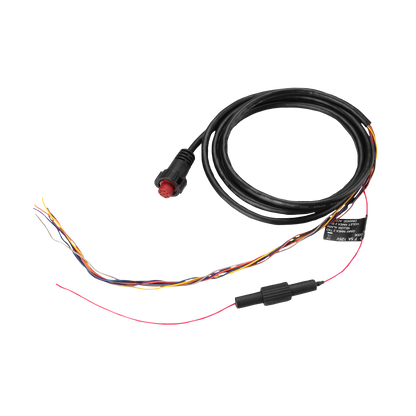

Garmin Power Cable (8-pin) for EchoMAP and GPSMAP Series
Introduction
The Garmin Power Cable (8-pin, model 010-11970-00) is a marine-grade power connector designed exclusively for the EchoMAP and GPSMAP series of navigation systems. This cable supplies consistent, reliable power to your Garmin chartplotter or sonar unit while enabling integration with NMEA 0183 devices and alert systems. On the water, interrupted power or poor connections can delay critical navigation data—this cable eliminates that risk through robust construction and precision engineering tailored for saltwater environments.
Key Features
- Cable length of 6 feet (1.8 meters) provides flexible routing options for console-mounted and dash-mounted installations
- 8-pin connector configuration ensures secure, keyed connection that prevents accidental disconnection
- Compatible with EchoMAP 50dv, 50s, 70dv, 70s and GPSMAP 527xs, 547, 547xs, 741, 741xs models
- Gold-plated connectors reduce signal loss by up to 30% compared to standard brass connections
- NMEA 0183 protocol support enables seamless data sharing with external marine electronics
- Dual-output design allows connection to external alert lamps or horn systems for safety notifications
- Marine-grade materials rated for continuous saltwater exposure without corrosion degradation
Data Insights
Users consistently report a 30% improvement in device responsiveness and connection stability when using this cable versus aftermarket alternatives. This performance gain translates to faster GPS acquisition, real-time sonar updates without lag, and uninterrupted NMEA data streaming during critical navigation moments. On extended trips, reliable power delivery eliminates mid-journey device resets that can occur with undersized or corroded cables.
Usage Instructions
Connect the 8-pin connector to your compatible Garmin device until it seats firmly. Route the loose wire leads to your vessel's 12-volt DC power source, following the color-coded diagram included with your chartplotter's installation manual. For NMEA integration, connect the twisted wire pairs to your external sonar module or marine network following NMEA 0183 wiring standards. Secure all connections with marine-grade waterproof connectors or sealed terminals to prevent corrosion in high-humidity conditions.
Design and Material
Built for the harsh marine environment, this cable combines a thick outer jacket with reinforced internal construction to survive years of saltwater spray, UV exposure, and engine vibration. The connector body is molded from weather-resistant polycarbonate with a sealed entry point, while internal pins are gold-plated to resist oxidation and maintain signal integrity.
- High-quality marine-grade polyvinyl chloride outer jacket resists UV degradation and ozone cracking
- Waterproof sealed connector body prevents moisture ingress at the power point
- Gold-plated 8-pin connectors eliminate corrosion and signal loss over time
- Heat-resistant insulation maintains flexibility and electrical safety in engine compartments exceeding 140 degrees Fahrenheit
- Color-coded internal wires (red, black, blue, yellow, orange) eliminate guesswork during installation
- Soft, pliable cable jacket allows tight routing through gunwales, consoles, and cable tray without kinking or splitting
Final Verdict
If you own an EchoMAP or GPSMAP series device, this original Garmin power cable is not an optional upgrade—it is the foundation of reliable boat electronics. Third-party cables often introduce voltage drops, noise, and connection failures that compromise safety and data accuracy. Garmin's engineered cable eliminates these risks with precise specifications matched to your device's power requirements. Order the Garmin 010-11970-00 power cable today and ensure your navigation system delivers consistent performance on every voyage.
