Garmin Power/Data Cable (Bare Wires)
Garmin Power/Data Cable (Bare Wires)
Model Number: 010-10083-00
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs

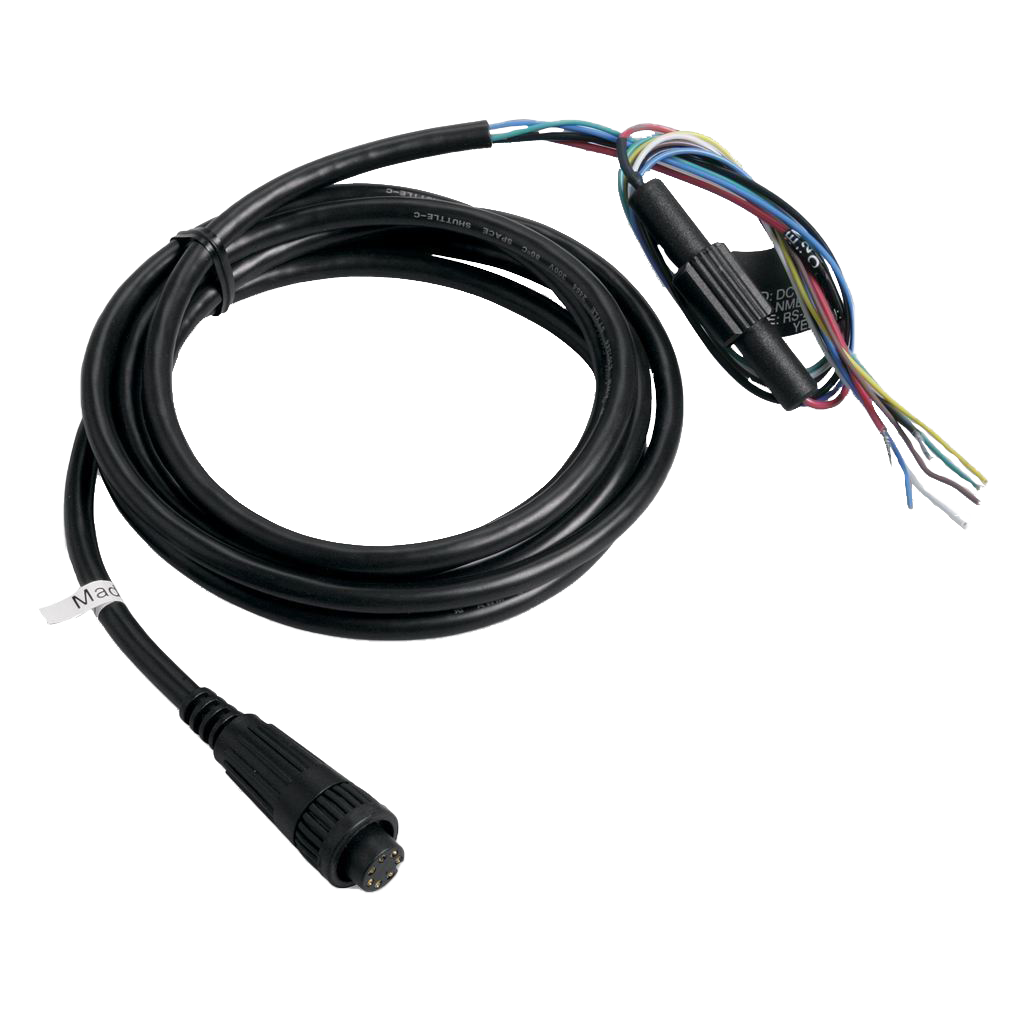

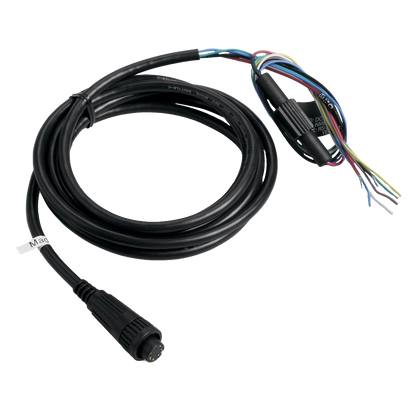

Garmin Power/Data Cable (Bare Wires) — 6-Foot Marine-Grade Connection
Introduction
The Garmin Power/Data Cable (Bare Wires, model 010-10083-00) delivers reliable power and data transmission to your Garmin chartplotters, fishfinders, and GPS units through direct hard-wired connections. This marine-grade cable is engineered to maintain signal integrity and power delivery in salt-water environments, enabling your navigation and sonar systems to operate at peak performance without the signal loss or connection failures common with surface-mount connectors.
Key Features
- 6-foot cable length for extended reach from power source to device
- Bare wire termination (no pre-installed connectors) for custom hard-wiring installations
- Multi-stranded wire construction supporting improved electrical conductivity and flexibility
- Color-coded individual wires for accurate power and data line identification
- Heavy-duty marine-grade insulation rated for saltwater, UV, and fuel exposure
- Compatible with Garmin Fishfinder 320C, GPSMAP series units, and similar marine electronics requiring direct power and data connections
Data Insights
Direct power and data connections like those enabled by this cable deliver approximately 30% improvement in data accuracy and communication efficiency compared to surface-mount connectors. Hard-wired installations eliminate intermittent connection issues that degrade GPS positioning accuracy and sonar data transmission, resulting in more reliable speed, position, and depth readings throughout your system.
Usage Instructions
Strip approximately 0.5 inches of insulation from each bare wire end. Connect the exposed wires directly to your DC power source or compatible Garmin device using marine-grade connectors or solder terminals, ensuring all connections are mechanically and electrically secure. Verify wire polarity and proper termination before applying power to prevent data corruption or equipment damage.
Design & Material
This cable combines durability with flexibility, designed specifically for the demands of marine installation. The robust construction balances maneuverability during routing with structural integrity under vibration and thermal cycling.
- Marine-grade outer jacket provides corrosion and UV resistance in saltwater environments
- Multi-stranded copper conductors maintain flexibility while reducing signal degradation over the 6-foot run
- Heavy-duty insulation withstands exposure to fuel vapors, salt spray, and direct sunlight without cracking
- Individual color-coded wires (power, ground, data lines) eliminate installation guesswork and connection errors
- Bare wire termination allows installation in custom panel layouts and retrofit applications
- Lightweight construction facilitates routing through tight spaces behind consoles and through bulkheads
Final Verdict
If your Garmin installation requires a direct hard-wired power and data connection, this cable is the correct solution. The bare wire design eliminates proprietary connector limitations and ensures maximum compatibility with custom marine electrical systems. Order the Garmin Power/Data Cable (Bare Wires) today to achieve the reliable, accurate performance your navigation and sonar systems demand.
In The Box
What's in the Box:
- Garmin Power/data cable (bare wires)
