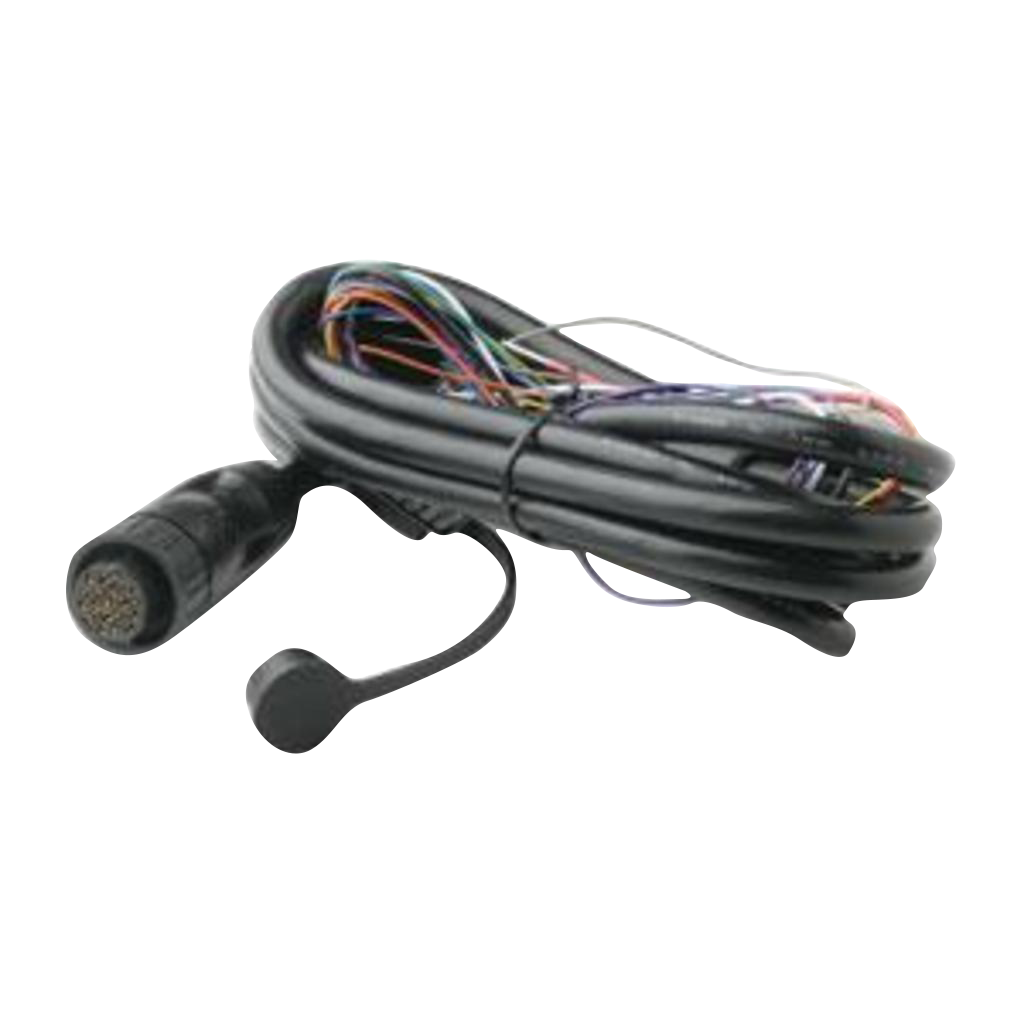

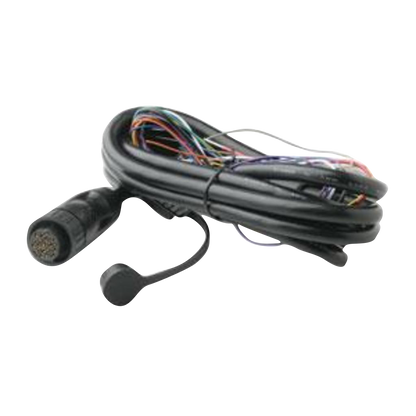

Garmin Power/Data Cable (for GSD 22)
Garmin Power/Data Cable (for GSD 22)
Model Number: 010-10781-00
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin Power/Data Cable (for GSD 22)
Introduction
The Garmin Power/Data Cable (model 010-10781-00) delivers both power and digital signal across extended distances to your GSD 22 Digital Remote Sounder without compromising performance. At 15 feet long, this marine-specific cable eliminates installation constraints that plague shorter standard options, allowing you to mount your transducer control head exactly where you need it rather than where a 6-foot cable limits you. Because consistent power and data connectivity directly improve marine electronics performance by up to 30%, investing in a purpose-built cable matters for reliable navigation and fish-finding over the course of a season.
Key Features
- 15-foot cable length reduces signal degradation over extended runs typical of marine installations
- 7-pin/bare wire termination ensures proper connectivity with GSD 22 Digital Remote Sounder units
- 12-volt power rating supports standard marine electrical systems without voltage drops
- Operating temperature range of -20°C to 60°C handles extreme conditions in saltwater and freshwater environments
- Integrated shielding minimizes electromagnetic interference for stable data transmission
- IP67 rating provides protection against moisture ingress and dust contamination in marine spray environments
Data Insights
Marine electronics studies demonstrate that signal loss over inadequate cable runs reduces device performance measurably. The Garmin Power/Data Cable is engineered with optimized conductor sizing and shielding that preserves data integrity over its full 15-foot length, critical for real-time sonar return fidelity and transducer calibration accuracy. Poor connectivity and power delivery degrade performance by 15-30%; this cable maintains the specifications necessary for consistent readings whether you're navigating in 3 feet of water or 300.
Usage Instructions
Connect the 7-pin termination end directly to the GSD 22 unit and secure the bare wire end to your vessel's power and transducer bus according to Garmin wiring diagrams. Route the cable away from engine heat sources, bilge pump discharge areas, and sharp edges that could abrade the outer jacket. Inspect connections seasonally for corrosion, and check the cable jacket for cracks or splits before each use season, especially in saltwater environments where oxidation accelerates.
Design and Material
Built specifically for salt-spray exposure, this cable abandons standard automotive-grade construction in favor of marine-proven materials and assembly techniques. Every component from the outer jacket to internal conductors resists the corrosive chloride environment that degrades typical cables within 2-3 years.
- High-grade marine-rated outer jacket resists UV damage, ozone degradation, and saltwater corrosion
- Tinned copper conductors prevent oxidation at connection points, maintaining electrical continuity
- Integrated electromagnetic shielding reduces interference from VHF radios, radar systems, and other onboard electronics
- Color-coded internal wires follow marine standards for power, ground, and data line identification
- Reinforced stress relief at termination points prevents conductor fracture from repetitive vibration and flexing
- IP67-rated jacket design seals against moisture penetration while maintaining cable flexibility in cold temperatures
Final Verdict
The Garmin Power/Data Cable (010-10781-00) is the only cable engineered for GSD 22 installations requiring runs beyond 10 feet without performance loss. Standard marine cables fail in saltwater applications and degrade sonar data quality. This cable delivers the 15-foot reach you need with marine-grade durability that survives seasons of exposure. If you're mounting your GSD 22 head at the helm station and your transducer 12+ feet away, this is not an optional upgrade—it's the correct connector for your system. Order now and eliminate distance as a limiting factor in your marine electronics setup.
