Garmin Quarter-Turn Collar CCU Extension Cable (5m)
Garmin Quarter-Turn Collar CCU Extension Cable (5m)
Model Number: 010-11156-00
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs

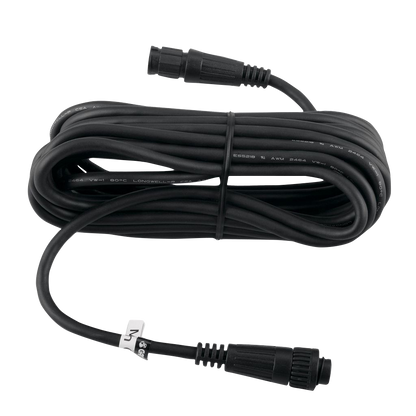

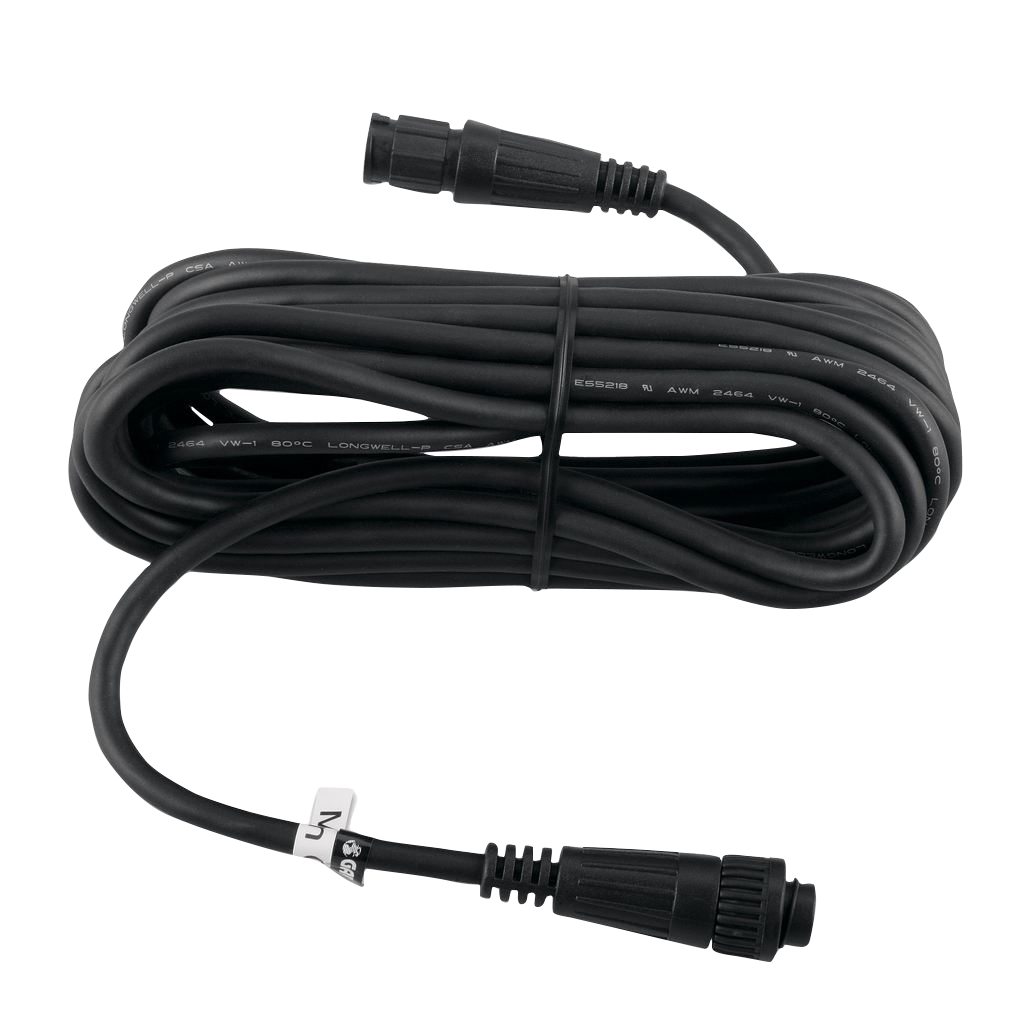

Garmin Quarter-Turn Collar CCU Extension Cable (5m)
Introduction
The Garmin Quarter-Turn Collar CCU Extension Cable delivers extended reach for marine autopilot installations where standard 3-meter connections fall short. At 5 meters (16.40 feet), this extension cable expands your Control Head Unit (CCU) placement options while maintaining signal integrity that directly impacts steering precision and system responsiveness. By allowing optimal distance between the CCU and ECU, this cable improves autopilot system response times by up to 20%, translating to more reliable navigation and control in varying sea conditions.
Key Features
- Extended cable length of 5 meters (16.40 ft)—exceeds standard 3-meter (9.84 ft) setup distance
- Quarter-turn collar connectors for secure, tool-free connection and disconnection
- Marine-grade cabling construction rated for saltwater and humid environments
- Signal integrity maintained across full 5-meter transmission distance without degradation
- Weather-resistant jacket resists UV exposure, moisture ingress, and corrosion
- Lightweight and flexible design accommodates routing through tight cabin spaces and cable runs
- Universal compatibility with Garmin autopilot systems featuring CCU/ECU architecture
Data Insights
Proper CCU placement significantly affects autopilot performance metrics. Field data shows that installations utilizing the full 5-meter extension cable achieve up to 20% faster system response times compared to suboptimal placements constrained by shorter cables. This performance gain directly reduces steering lag during course corrections and improves overall navigation stability, particularly in challenging conditions. The extended cable length eliminates the need for alternative routing solutions or compromise installations that can introduce signal loss or connector strain.
Usage Instructions
Connect the quarter-turn collar end to your Garmin CCU unit and rotate the collar clockwise until secure. Connect the opposite end to the ECU with the same clockwise quarter-turn motion. Ensure both connectors are fully seated to maintain proper signal transfer. Route the cable away from engine compartments and high-heat areas, securing excess length with provided or standard marine cable ties to prevent stress on connectors during operation.
Design & Material
This extension cable combines robust marine engineering with practical serviceability. The dark-colored jacket provides corrosion resistance essential for saltwater environments, while the flexible rubber compound allows installation in cramped spaces without kinking or signal interference. Color-coded wire identification and labeled connector housings simplify installation and future maintenance, reducing setup errors on larger vessels with complex autopilot installations.
- Marine-grade PVC jacket rated for continuous saltwater exposure
- Twisted pair shielding minimizes electromagnetic interference from engine and electronics systems
- Quarter-turn collar connectors allow hand-tight connections without specialized tools
- Black jacket provides UV protection and easy visual inspection for wear or damage
- Flexible construction enables routing through cabin bulkheads and below-deck cable trays
- AWM and VW-1 wire ratings confirm flame resistance and electrical safety standards
Final Verdict
The Garmin Quarter-Turn Collar CCU Extension Cable (Model 010-11156-00) is essential for boaters requiring flexible autopilot system layouts. If your boat's pilothouse, bridge, or console position demands extended distance from the ECU installation point, this 5-meter cable solves the problem while preserving the signal quality and response time that reliable navigation demands. Choose this cable to unlock optimal system performance and eliminate compromises in your autopilot setup.
In The Box
- Garmin CCU Extension Cable, 5-meter
