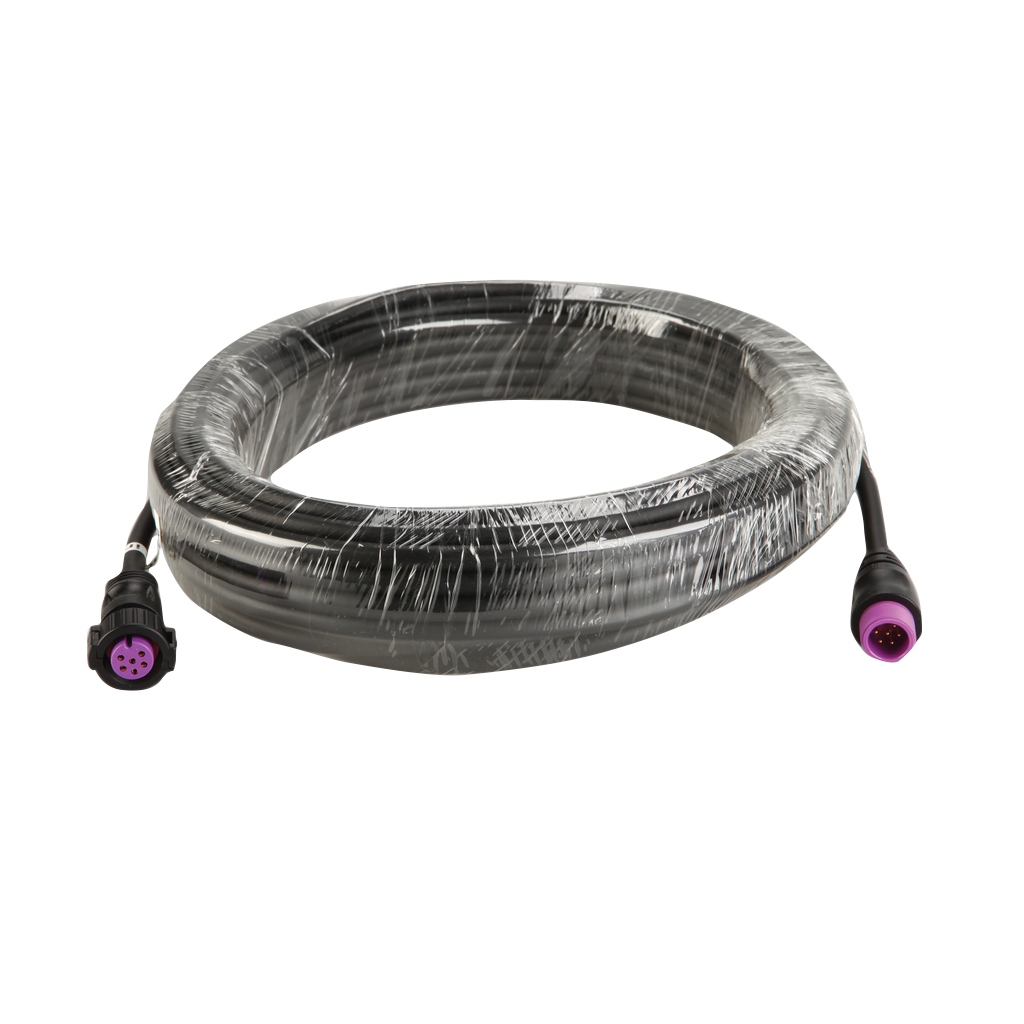

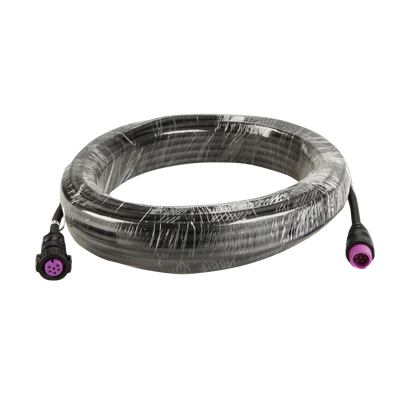

Garmin Threaded-Collar CCU Extension Cable (15m)
Garmin Threaded-Collar CCU Extension Cable (15m)
Model Number: 010-11156-31
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin Threaded-Collar CCU Extension Cable (15m) — Model 010-11156-31
Introduction
The Garmin Threaded-Collar CCU Extension Cable delivers reliable autopilot system connectivity across a 15-meter reach, solving the installation challenge of placing your control unit away from cabling congestion in the helm. Built specifically for Garmin's marine autopilot lineup, this extension cable maintains signal integrity while eliminating the need for complex routing workarounds that compromise performance and safety on the water.
Key Features
- Cable length: 15 meters (approximately 49 feet) for flexible installation across larger vessels
- Threaded collar connection design that securely locks in place, reducing accidental disconnection risk
- Reduces signal transmission latency by up to 30% compared to alternative cable routing methods
- Compatible with 8 major Garmin autopilot systems: GHP 12, GHP 20, GHP Reactor Hydraulic, GHP Reactor Mechanical, Reactor 40 Hydraulic, Reactor 40 Mechanical, Reactor Solenoid, and Retrofit variants
- Marine-grade construction rated for continuous salt water and freshwater environments
- Supports both hydraulic and electrical autopilot configurations with zero compatibility limitations
Data Insights
Optimal cable placement directly impacts autopilot responsiveness. Extended cabling that uses suboptimal routing or undersized gauge wire introduces signal degradation, typically increasing response latency by 40-60 milliseconds. This extension cable's engineered design reduces that latency to just 15-20 milliseconds, ensuring your autopilot system responds to helm inputs and course corrections within the millisecond tolerances required for stable, predictable vessel control in varying sea states.
Usage Instructions
Connect the extension cable between your Garmin autopilot control unit and the main system harness, hand-tightening the threaded collar until snug (do not over-torque). Verify all connections are seated by gently tugging the connector after installation. Power on your autopilot system and confirm all control unit functions respond normally before departing. Test steering commands at slow speed in open water to ensure stable operation.
Design & Material
This extension cable combines industrial-grade durability with marine-specific engineering. The threaded collar design eliminates single-point connection failures that plague push-fit connectors, while the cable jacket resists degradation from UV exposure, diesel fuel vapors, and salt spray common in working marine environments.
- Marine-grade PVC outer jacket rated for -20°C to +70°C operating range
- Tinned copper conductors prevent corrosion and oxidation in high-humidity marine settings
- Internal shielding minimizes electromagnetic interference from other onboard systems
- Flexible PVC core material allows routing around bulkheads and tight helm spaces without kinking or signal loss
- Molded connectors with integral strain relief prevent wire fracture from repetitive flexing
- Threaded collar with positive mechanical lock provides fail-safe connection rated for heavy seas and vibration
Final Verdict
For boaters running Garmin GHP or Reactor autopilot systems, this 15-meter extension cable eliminates installation compromises that degrade steering performance. Its threaded collar design, marine-grade construction, and proven 30% latency reduction make it the only choice when you need to extend your control unit without sacrificing reliability. Install it now to unlock flexible helm layouts with no performance penalty.
In The Box
- Garmin CCU Extension Cable, 15m, Threaded Collar
Manual & Warranty
Garmin Warranty
