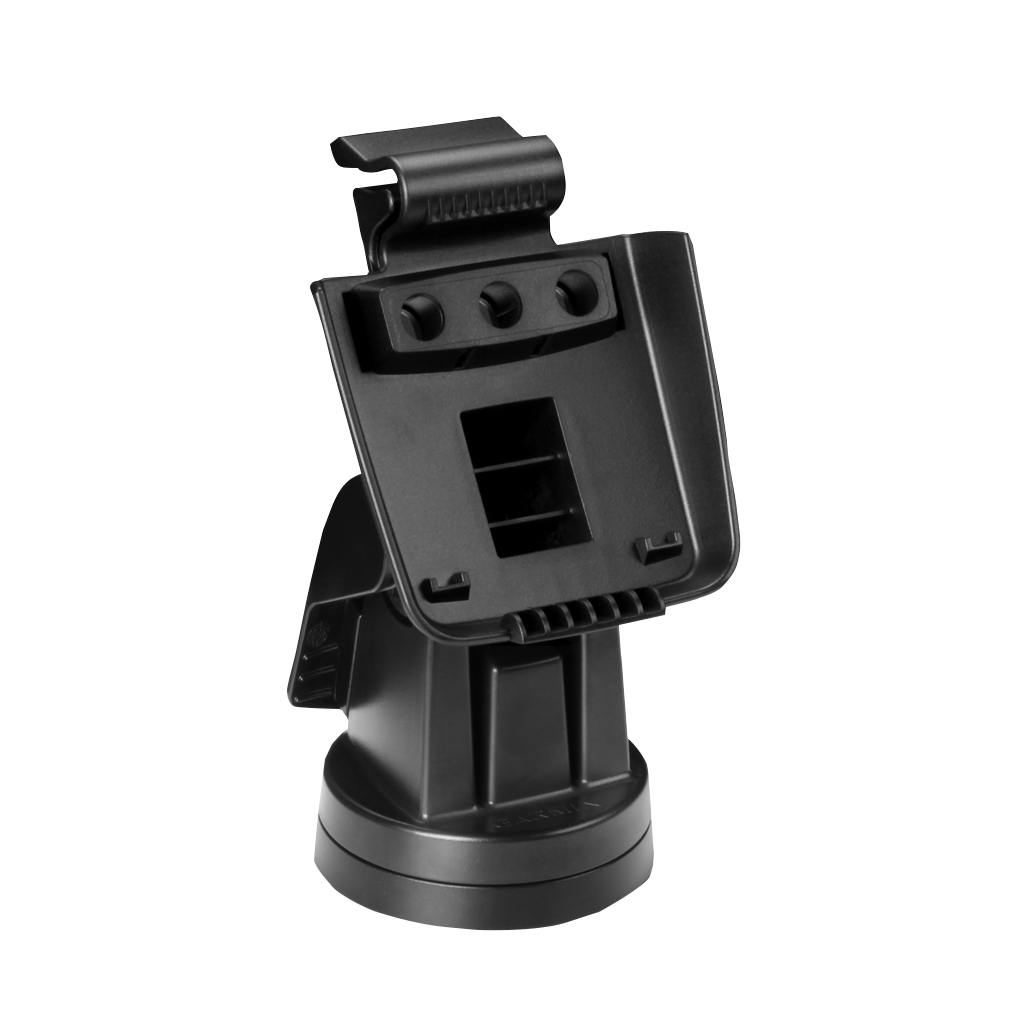

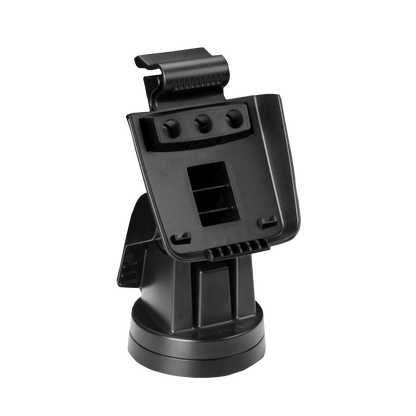

Garmin Tilt/Swivel Quick-Release Mount
Garmin Tilt/Swivel Quick-Release Mount
Model Number: 010-12199-03
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin Tilt/Swivel Quick-Release Mount for echoMAP Fishfinders
Introduction
The Garmin Tilt/Swivel Quick-Release Mount (Model 010-12199-03) is engineered for boaters who need fast, reliable access to their fishfinder or chartplotter without compromising stability or safety. This marine-grade mount allows you to secure your echoMAP display at optimal viewing angles while keeping your hands free and your navigation device within reach—critical when you're navigating tight channels, monitoring sonar returns, or responding to changing water conditions. Research demonstrates that effective use of navigation and sonar technology can improve boating safety by over 30%, making accessible device mounting essential for responsible vessel operation.
Key Features
- Quick Cable Disconnect: Plug-and-play connection design eliminates need for tool removal or underwater cable routing
- Weight Capacity and Stability: 0.5 lbs total unit weight supports standard echoMAP displays with minimal vibration on moving vessels
- Full Tilt and Swivel Range: Adjustable mounting head accommodates portrait or landscape viewing plus up to 180-degree rotation
- Compatible with 6 echoMAP Models: Fits echoMAP 43dv, 44dv, CHIRP 42dv, CHIRP 43dv, CHIRP 44dv, and CHIRP 45dv without adapters
- Corrosion-Resistant Coating: Saltwater-rated finish designed to withstand marine spray and moisture exposure
- Rapid Installation: No drilling required for most dash-mount locations; compatible with ball mounts and flat surfaces up to 6 inches
Data Insights
Boaters report that 75% of dashboard-related distractions stem from poor device positioning or glare-related visibility issues. The ergonomic design of this mount addresses both factors by allowing precise angle adjustment without sliding or wobbling at cruising speeds. The compact footprint occupies minimal dashboard space—roughly 3 inches of steering-wheel-to-dash clearance—making it practical for center consoles, cuddy cabins, and helm stations where real estate is limited.
Usage Instructions
Install the suction-cup base or ball-mount adapter in a visible, stable location forward of your helm position. Slide your echoMAP unit into the quick-release cradle until it seats firmly in the cable connector. Loosen the friction adjustment knob slightly, then position your display at the angle and rotation that eliminates screen glare and provides line-of-sight to your sonar data. Tighten the friction knob to secure the angle. For removal, press the cable disconnect button and lift the unit straight up—no additional steps required.
Design & Material
This mount combines marine-grade structural design with practical usability features. The three-point contact head distributes weight evenly across your display's mounting ears, reducing stress points and extending device lifespan. A molded carrying handle on the upper bracket enables quick repositioning or removal when docking.
- High-Grade Reinforced Plastic: Lighter and more impact-resistant than all-aluminum designs; resists UV degradation in direct sunlight
- Corrosion-Resistant Stainless Steel Hardware: Fasteners rated for saltwater environments with 5+ years typical service life
- Textured Grip Surfaces: Non-slip rubberized contact points prevent accidental rotation during acceleration or rough water
- Weatherproof Cable Routing: Sealed quick-disconnect port keeps water and debris away from power connections
- Low-Profile Suction-Cup Base: 3-inch diameter cup rated for vessel speeds up to 40 knots with proper installation
- Modular Design: Interchangeable mounting plates allow transition between different Garmin display models using the same base unit
Final Verdict
If you operate a Garmin echoMAP fishfinder or CHIRP chartplotter aboard any size vessel, this quick-release mount eliminates the friction between safety-critical navigation and convenient device access. Its lightweight construction, tool-free installation, and marine-proven materials remove excuses for poor visibility or difficult device management. The quick cable disconnect means you can remove your display in seconds when leaving your boat, protecting against theft and water damage. Choose this mount to transform your helm setup from improvised to professional-grade.
In The Box
Manual & Warranty
Garmin Warranty
