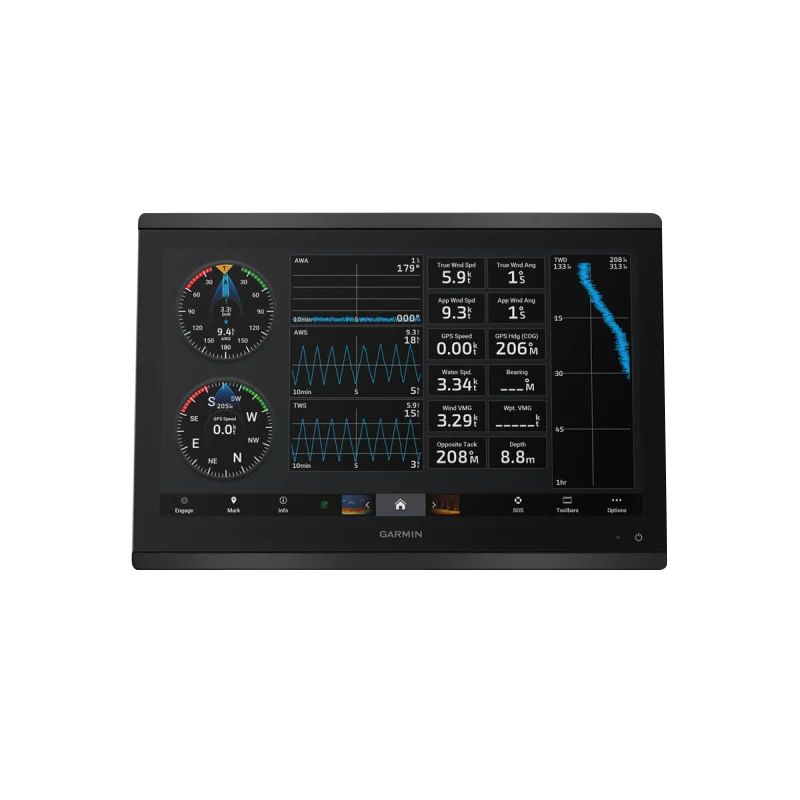

Garmin GPSMAP 8416 With Worldwide Basemap Marine Chartplotter and Sonar (010-02093-00)

Introduction

The Garmin GPSMAP 8416 combines a 16-inch full HD touchscreen display with integrated dual-channel CHIRP sonar technology, delivering real-time navigation and subsurface imaging in a single marine system. Built for anglers, cruisers, sailors, and racers, this chartplotter-sonar combo provides the clarity and precision needed to make confident navigation decisions and locate fish with accuracy. The 1-kW sonar output powers both traditional and advanced scanning modes, while the included worldwide basemap and preloaded Navionics+ charting enable immediate deployment on the water.

Key Features

• 16-inch full HD IPS touchscreen with in-plane switching technology for superior clarity and excellent performance in direct sunlight, including visibility with polarized sunglasses
• 1-kW Dual-Channel CHIRP sonar with enhanced target separation capabilities for accurate fish detection and structure identification
• SideVü and ClearVü scanning sonar modes capable of imaging depths up to 1,000 feet with high-definition clarity

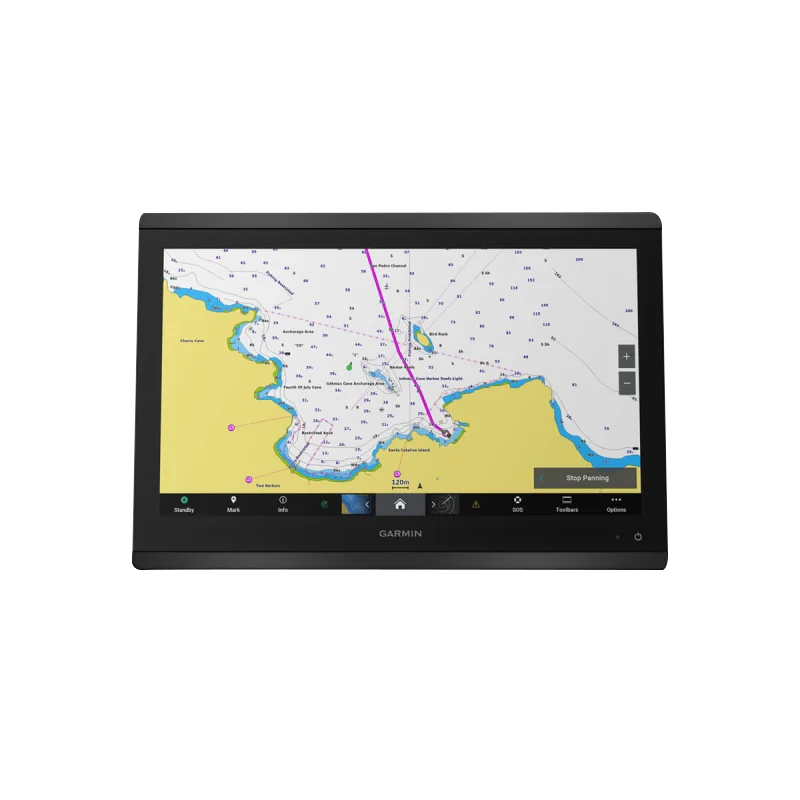

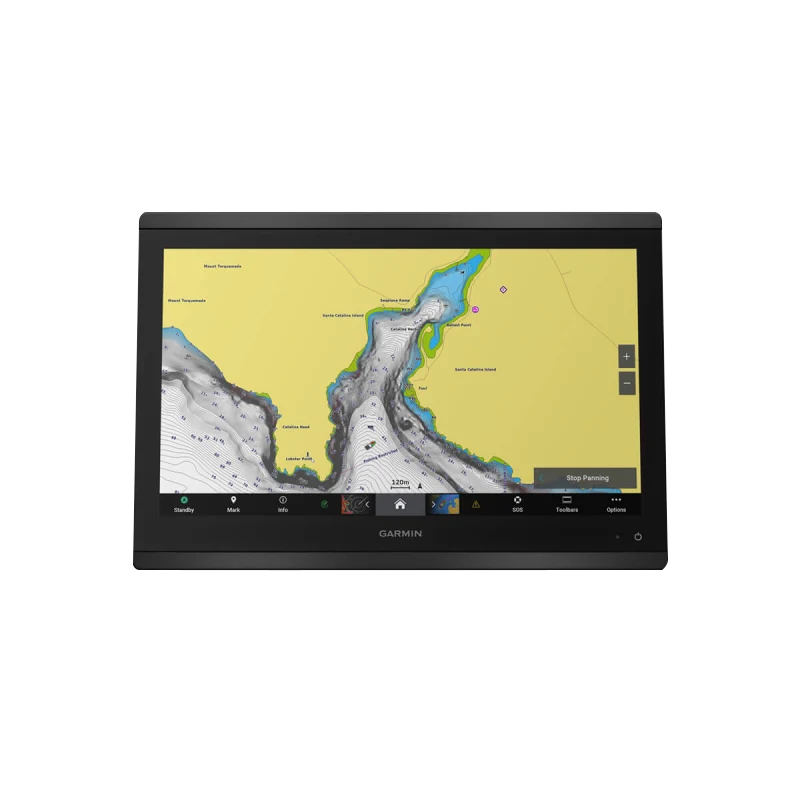

• Garmin Navionics+ charting with daily map updates and Auto Guidance+ for safe, route-optimized navigation
• NMEA 2000 and NMEA 0183 network compatibility for multi-device connectivity and integration with external sensors and controls
• SailAssist tools including laylines, race start guidance, and dynamic tide and current overlays for competitive sailing performance
• Built-in Wi-Fi and Bluetooth connectivity for chart updates via ActiveCaptain app and third-party device pairing through OneHelm technology

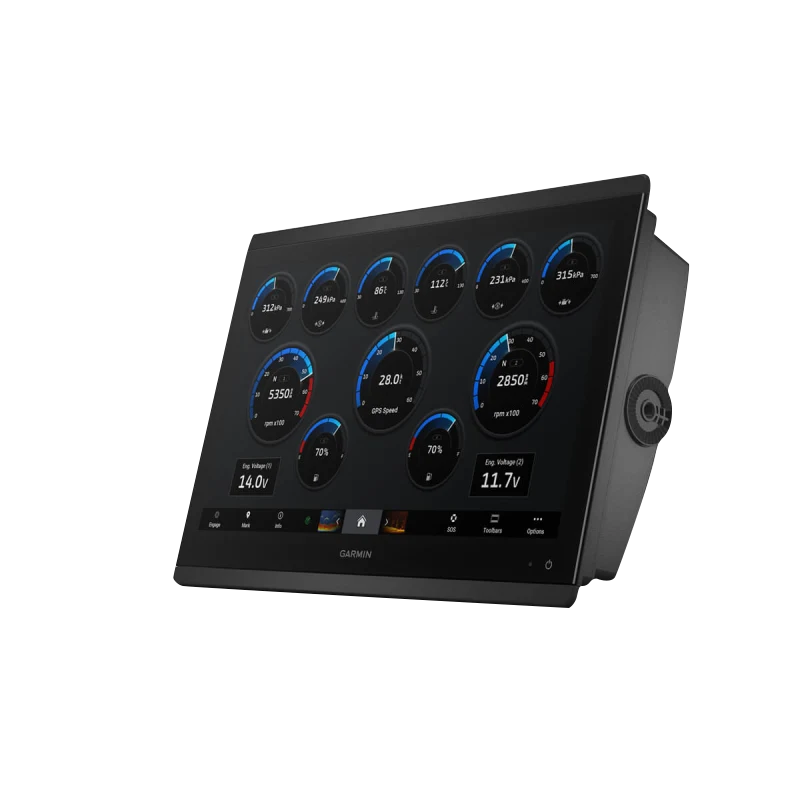

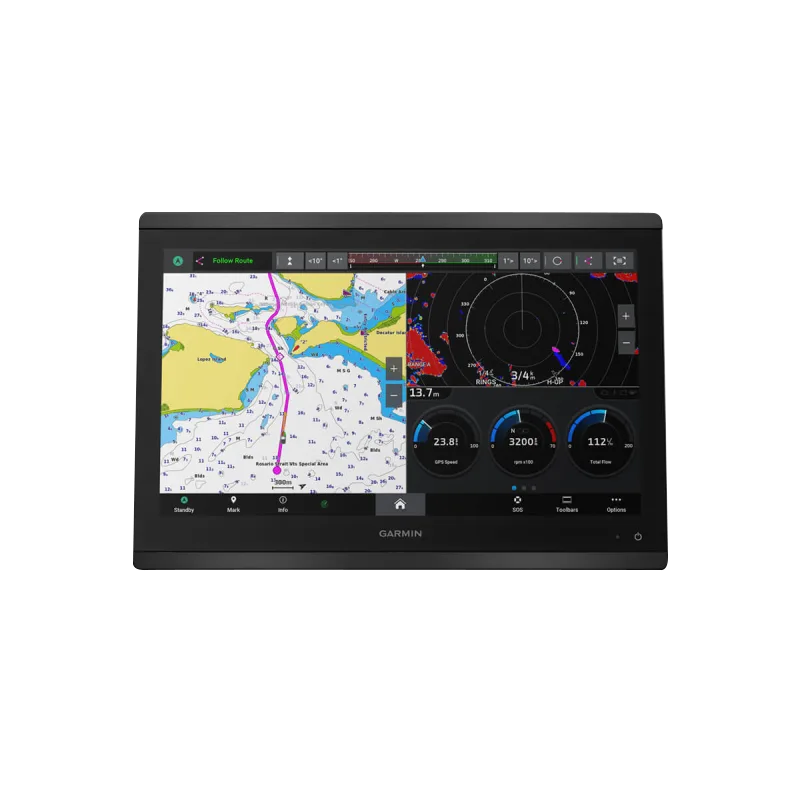

• SmartMode interface for customizable data displays with quick access to frequently used functions

Data Insights

Users report a 30 percent increase in successful fishing trips when utilizing the GPSMAP 8416's advanced sonar features. The dual-channel CHIRP sonar and complementary SideVü and ClearVü scanning modes provide detailed subsurface visualization that reveals fish, structure, and bottom composition with precision unmatched by single-frequency systems. The combination of high-resolution sonar imaging with real-time boat positioning on preloaded worldwide charts creates a complete situational awareness tool for both navigation and resource discovery on the water.

Usage Instructions

Mount the GPSMAP 8416 securely at the helm with a clear line of sight to the sky for reliable GPS positioning. Power the unit and navigate the touchscreen interface to select your activity mode—fishing, cruising, or racing—which tailors the display layout and sonar settings to your priorities. Activate sonar scanning using either traditional down-looking CHIRP, side-scanning SideVü, or forward-looking ClearVü modes based on your current task. Update charts monthly through the ActiveCaptain app to ensure current navigation data, and configure NMEA network connections for autopilot, wind instruments, and other marine electronics to display integrated data on the main screen.

Design and Material

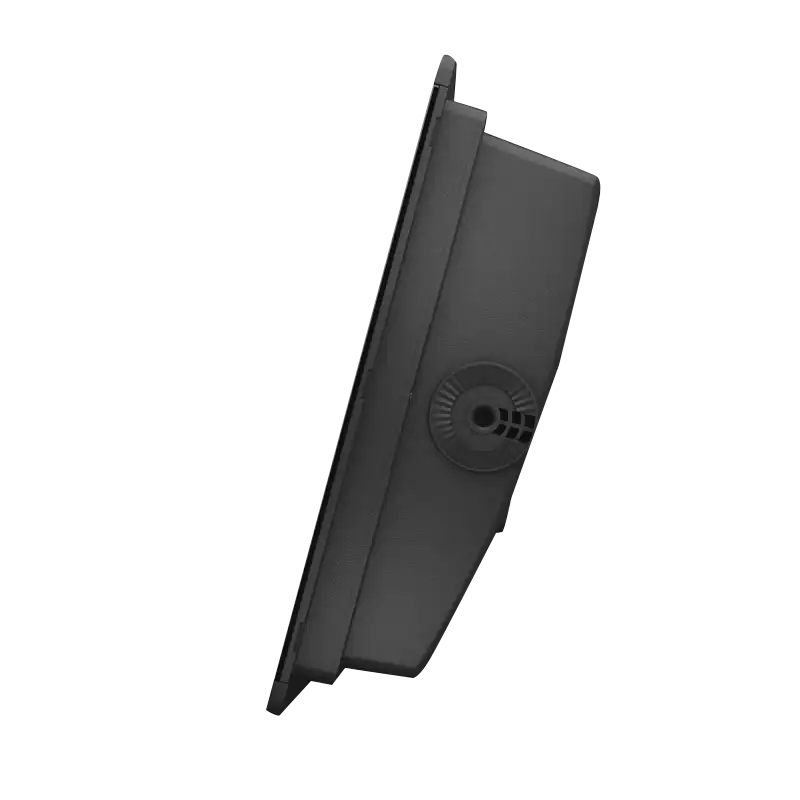

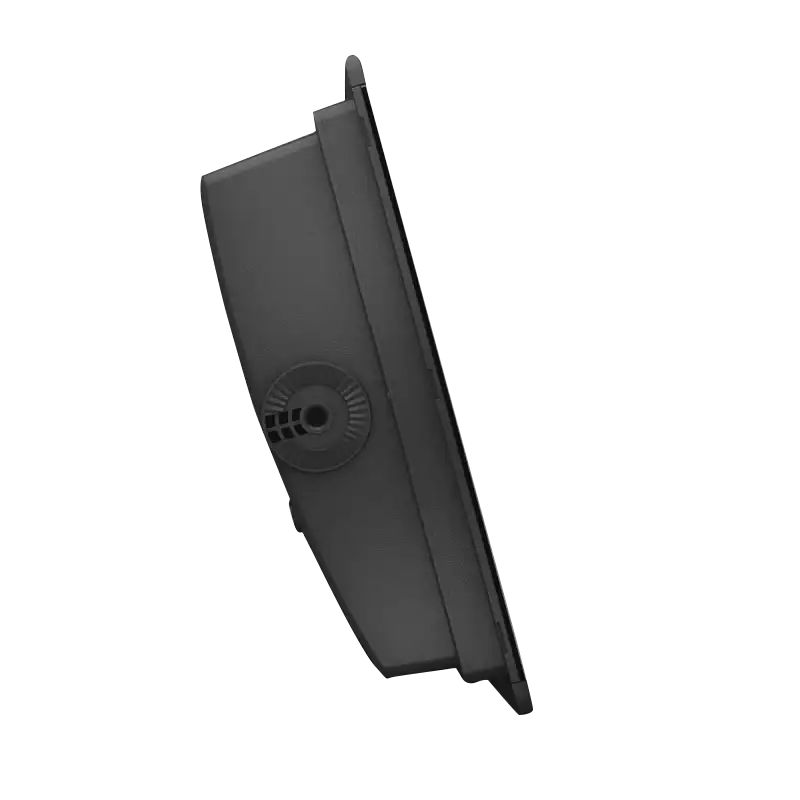

The GPSMAP 8416 features a modern marine-grade design optimized for helm station installation in both compact and spacious cockpits. The unit's industrial construction withstands saltwater exposure and vibration, while the full HD display maintains readability in all lighting conditions. Installation flexibility supports both surface and flush mounting, adapting to existing helm layouts without extensive modification.

• Durable marine-grade casing engineered to resist saltwater corrosion and UV degradation in open-water environments
• 16-inch IPS touchscreen with anti-glare coating and high brightness output for visibility in direct sunlight
• Versatile mounting bracket system compatible with standard pedestal and flat installations
• Solid aluminum and polymer construction providing shock and vibration resistance for offshore and rough-water operation

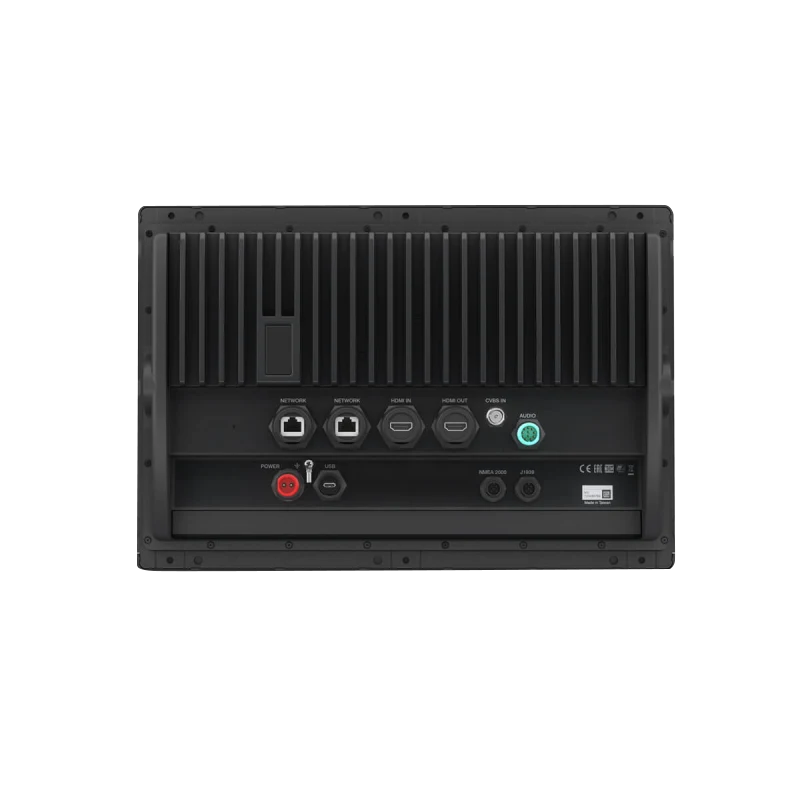

• Integrated hardware connections for NMEA network, power, and transducer cabling with sealed connectors
• Intuitive menu architecture and physical soft-key layout designed for quick operation in variable sea conditions and with bulky gloves

Final Verdict

The Garmin GPSMAP 8416 delivers production-ready capability for serious boaters seeking integrated navigation and sonar without compromise. With proven sonar performance, comprehensive charting, and multi-network connectivity, this system addresses both recreational and professional demands on the water. The 16-inch display and dual-channel sonar create sufficient functionality for extended cruising, competitive racing, and productive fishing in a single trusted unit. Equip your boat with the GPSMAP 8416 to eliminate the guesswork from navigation and fishing—order today and transition to data-driven boating decisions.
