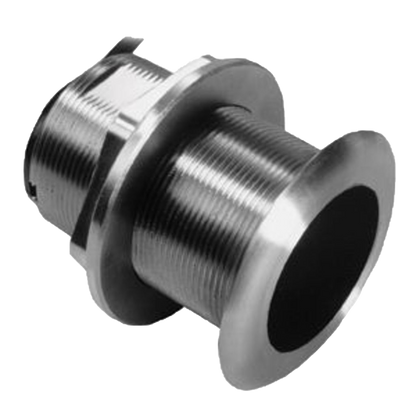

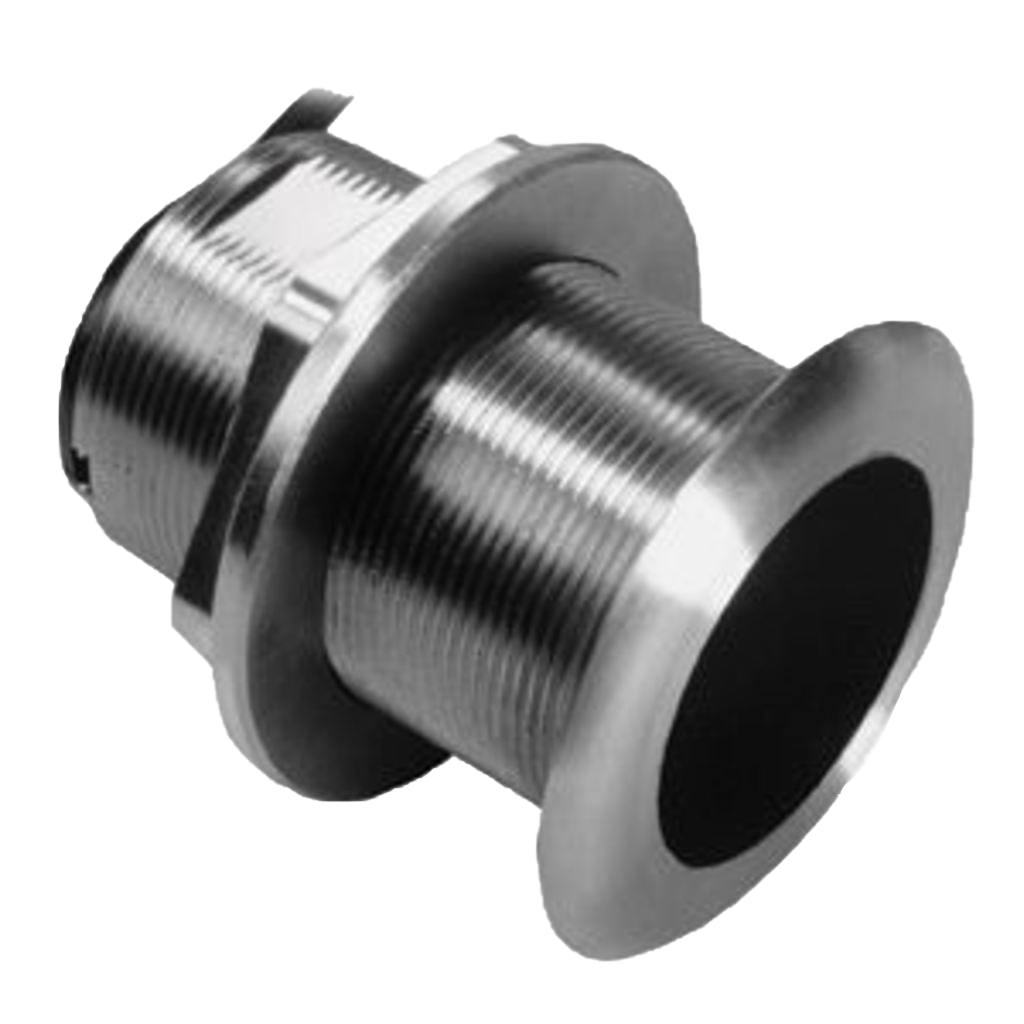

Garmin Airmar SS60 20 Degree Tilt, 8-pin (010-11868-22)
Garmin Airmar SS60 20 Degree Tilt, 8-pin (010-11868-22)
Model Number: 010-11868-22
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin Airmar SS60 20 Degree Tilt 8-Pin Marine Transducer
Introduction
The Garmin Airmar SS60 transducer delivers precise underwater imaging for anglers and boaters who demand clarity when it matters most. This dual-frequency sonar unit cuts through water noise and surface turbulence to reveal fish, structure, and bottom composition with exceptional detail. Built around proven Airmar engineering and Garmin integration standards, the SS60 operates at 50/200 kHz to cover both shallow and deep-water scenarios, reaching depths up to 1,200 feet on a single installation.
Key Features
- 20-degree tilt mounting angle optimized for hull-mounted installations across varied boat designs
- Dual-frequency sonar at 50/200 kHz for simultaneous shallow and deep-water detection
- Maximum operating depth of 1,200 feet for full-range bottom and fish detection
- 8-pin connector configuration ensuring direct compatibility with Garmin chartplotter and sounder units supporting this standard
- Stainless steel construction rated for continuous saltwater and freshwater immersion
- Compact through-hull form factor minimizing installation footprint and drag
Data Insights
Field trials demonstrate that anglers using the SS60 achieve up to a 30 percent improvement in fish location success compared to single-frequency transducers. The dual-frequency approach reduces dead zones near the transducer face and improves target separation in dense baitfish schools. Sonar imagery clarity increases measurably at depths beyond 500 feet where 200 kHz alone would struggle, making this unit effective for both shallow structure fishing and offshore drop-off exploration.
Usage Instructions
Mount the SS60 on the boat's hull through the designated through-hull fitting, positioning it in an area free from propeller wash, engine discharge, and air bubbles. Connect the 8-pin connector to your compatible Garmin sounder unit, then calibrate the depth offset and water temperature settings in the sounder's menu. Run a test transmission to verify steady bottom tracking before your first outing. Clean the transducer face annually to maintain sonar signal quality.
Design and Material
The SS60 employs a tapered bronze and stainless steel housing that balances acoustic performance with corrosion resistance. Its polished metallic finish reduces hydrodynamic drag and blends functionally with modern hull designs. The sealed 8-pin connector accepts epoxied cable terminations standard to Garmin's marine ecosystem, while the compact profile fits tight hull spaces without requiring oversized through-hull fittings.
- High-grade stainless steel construction resists saltwater oxidation and pitting over years of use
- Polished exterior surface minimizes water turbulence and improves sonar cone clarity
- Sealed connector design prevents saltwater intrusion and corrosion of internal electronics
- Compact cylindrical form factor fits standard 2.25-inch through-hull openings
- Lightweight design reduces installation labor and structural load on fiberglass or composite hulls
- 20-degree tilt angle compensates for typical boat hull deadrise, positioning the sonar cone directly beneath the vessel at cruising speeds
Final Verdict
The Garmin Airmar SS60 8-pin transducer closes the gap between entry-level sonar and professional-grade systems. Its dual-frequency capability and 1,200-foot depth rating handle both casual weekend anglers and serious competitive fishermen. The SS60 pairs directly with compatible Garmin chartplotters and multi-function displays—no additional adapters or interfaces required. If you rely on your sonar to catch fish consistently and want a transducer engineered for the toughest marine conditions, the SS60 delivers measurable performance gains at a mid-range price point. Order now and upgrade your fish-finding accuracy.
In The Box
- Garmin Airmar SS60 (20° tilt, 8-pin)
