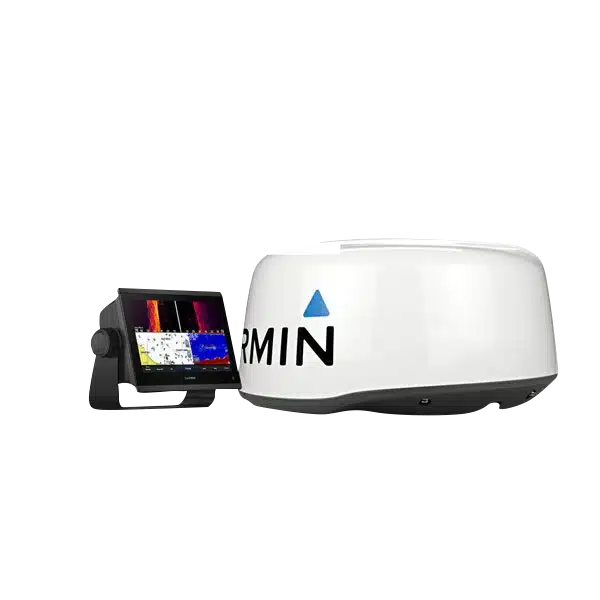

Garmin GPSMAP 1243xsv US+Canada GN+ w/18HD+ (010-02367-80)
Garmin GPSMAP 1243xsv US+Canada GN+ w/18HD+ (010-02367-80)
Model Number: 010-02367-80
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin GPSMAP 1243xsv US+Canada Marine Chartplotter with 18HD+ Radar Integration
Introduction
The Garmin GPSMAP 1243xsv is a 12-inch chartplotter and fishfinder system engineered for serious anglers and commercial operators who demand real-time sonar performance and precision navigation. This integrated unit combines advanced scanning sonar, GNSS positioning, and marine-grade connectivity into a single touchscreen display, eliminating the need for multiple standalone devices while delivering consistent depth tracking, fish detection, and waypoint navigation across US and Canadian waters.
Key Features
- 12-inch IPS touchscreen display with edge-to-edge glass and sunlight-readable visibility in direct sunlight conditions
- Ultra High-Definition SideVü™ and ClearVü™ scanning sonar for 270-degree horizontal and vertical fish and structure detection
- 1 kW CHIRP traditional sonar with exceptional target separation and depth capabilities to 5,000 feet
- 10 Hz GNSS receiver supporting GPS, GLONASS, and Galileo satellite systems for multi-constellation positioning
- Real-time software updates and smart notifications via integrated Wi-Fi and ActiveCaptain® app connectivity
- Dual NMEA 2000® and NMEA 0183 connections for networking with marine electronics and compatible radar systems including GMR 18HD+ integration
Data Insights
The 10 Hz GNSS update rate on the GPSMAP 1243xsv delivers positioning accuracy within 9 feet across most operating conditions, significantly improving waypoint precision and route tracking compared to standard 1 Hz GPS receivers. The 1 kW CHIRP sonar transmitter produces real-time target separation that distinguishes individual fish from structure at depths up to 5,000 feet, while the dual-frequency scanning sonar provides simultaneous side and forward viewing capability for comprehensive water column analysis during both shallow and deep-water operations.
Usage Instructions
Install the unit in a secure, protected mounting location with clear visibility of the touchscreen. Connect NMEA 2000® and power connections according to manufacturer specifications, then configure your navigation maps and sonar frequency settings through the on-screen menu system. Enable ActiveCaptain® Wi-Fi connectivity to receive automatic software updates, weather alerts, and real-time data overlays. Regularly update your chart data to ensure accurate coastal and inland waterway information for your region.
Design & Material
The GPSMAP 1243xsv features a marine-grade construction designed to operate reliably in saltwater, freshwater, and varying climate conditions. The compact form factor accommodates aftermarket or factory dashboard installations without requiring major structural modifications, while the integrated antenna and sealed electronics protect against salt spray, vibration, and moisture exposure inherent in marine environments.
- Corrosion-resistant housing with black and white exterior finish rated for extended saltwater exposure
- Reinforced touchscreen panel with responsive input sensitivity and anti-glare treatment for extended daylight visibility
- Integrated single-cable sonar transducer connection reducing installation complexity and deck clutter
- Compact profile measuring approximately 15 inches wide and 12 inches deep for streamlined dashboard integration
- Weather-sealed connectors for NMEA 2000®, NMEA 0183, and auxiliary sensor inputs preventing corrosion and water intrusion
- Factory-installed US and Canada chart data covering coastal waters, the Great Lakes, and major river systems with regular update availability
Final Verdict
The Garmin GPSMAP 1243xsv delivers professional-grade chartplotting and sonar performance in a single integrated display unit, eliminating compatibility concerns and reducing overall system cost compared to separate GPS and fishfinder purchases. The combination of 10 Hz precision navigation, real-time sonar imaging, and seamless connectivity to advanced radar systems makes this unit essential for anyone navigating and fishing US and Canadian waters where accuracy and reliability directly impact success. Upgrade your marine electronics package now and gain the situational awareness that separates occasional boaters from consistent performers on the water.
In The Box
microSD preinstalled
Power cable
NMEA 2000 T-connector
NMEA 2000 drop cable
Bail mount with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
Documentation
GPSMAP x3 chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada
Manual & Warranty
Garmin Warranty
